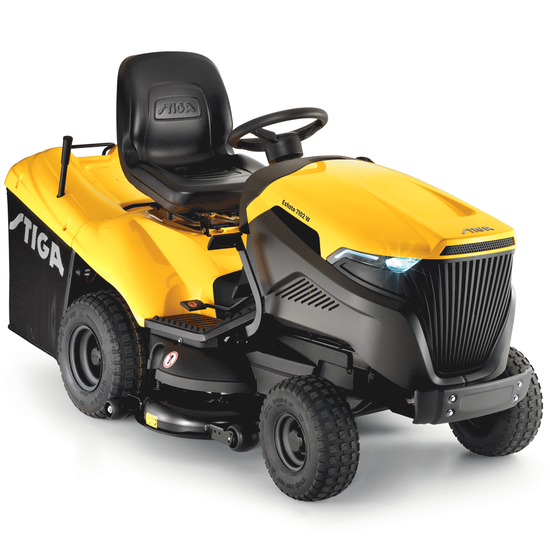

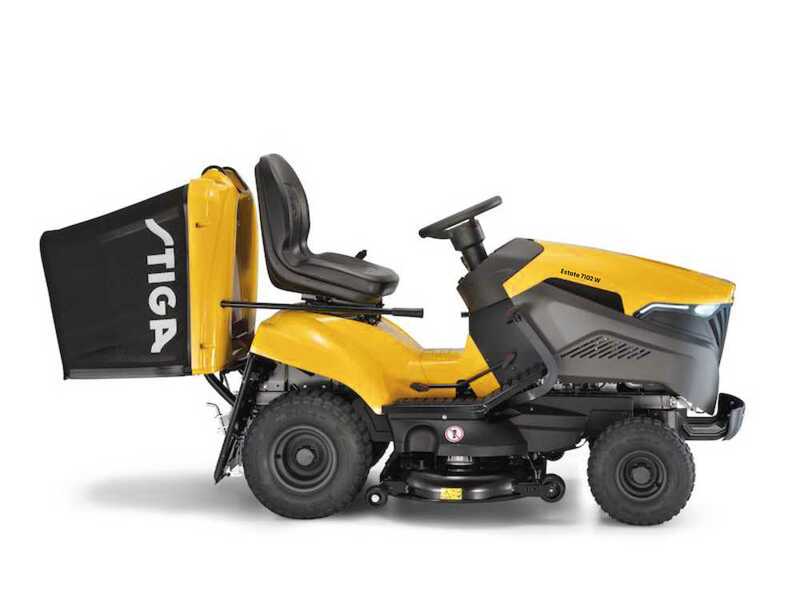

Stiga Estate 7102 W - Lawn tractor - hydrostatic transmission - collection box - mulching

The Stiga Estate 7102 W petrol lawn mower tractor is designed for high performance and reliability on large areas of grass.

Equipped with a 708cc ST 700 Twin powered by STIGA engine, ensures high power and torque while minimising vibration and fuel consumption. The pedal-operated hydrostatic transmission allows smooth driving, with stepless speed adjustment in both forward and reverse.

The 102 cm cutting deck, with synchronised double blades, optimises air flow and ensures an even cut even on tall, damp grass. Cutting height adjustment offers seven different positions, ranging from 30 to 90 mm, to suit different lawn conditions.

The 300-litre collection basket reduces the number of stops for emptying, increasing operational efficiency.

The Stiga Estate 7102 W lawn tractor is equipped with an LED display for monitoring operating indicators, including battery and transmission status. LED headlights : visibility is assured even in low light conditions.

The electromagnetic blade engagement system facilitates effortless activation. The robust frame, with cast-iron front axle and reinforced front bumper, ensures strength and durability.

Main features:

• St 700 Twin 708cc engine with OHV technology for greater efficiency and lower fuel consumption.
• 102 cm cutting deck with synchronised blades for superior cutting performance.
• 300 litre collection basket to minimise work interruptions.
• Hydrostatic pedal-operated transmission for smooth speed control.
• LED display and headlights for optimal management and improved visibility.

With its combination of power, cutting precision and driving comfort, the Stiga Estate 7102 W lawn mower tractor is an ideal solution for anyone looking for an efficient and versatile lawn tractor for their garden.

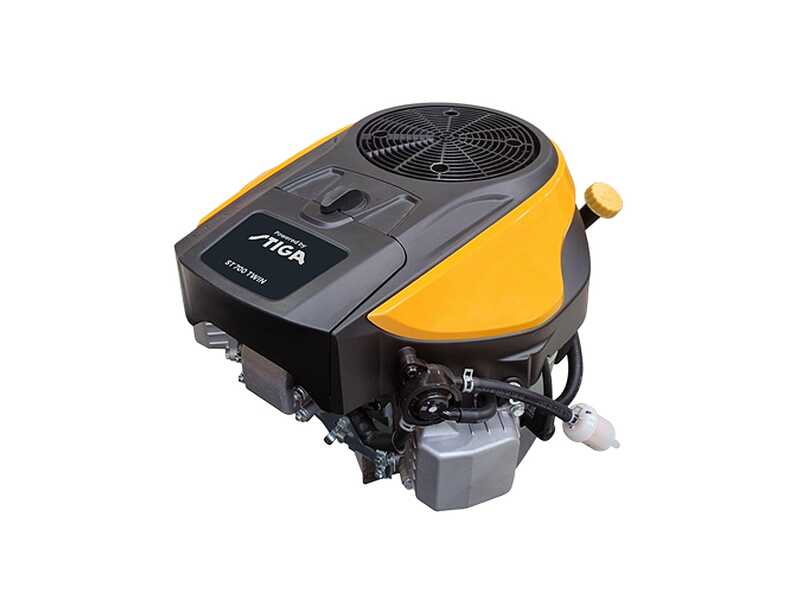

This Stiga lawn tractor is fitted with the Stiga St 700 twin-cylinder 708 cc engine, which develops an effective power output of 18.2 Hp at 2400 rpm.

This high-performing engine is equipped with a dual air filter and pressurised lubrication system with automatic decompression.

The St 700 Twin engine is powerful, reliable and generates low noise and emissions.

It has a tank of no less than 8 litres!

Features:

The V-90° cylinder layout is used to effectively reduce engine vibration.

The double pressure release valve, reducing the pressure in the combustion chamber, improves starting up to -5°C room temperature.

Spark plug detail

Nominal Power: 24 Hp
The correct term would be "Commercial” Power, meaning the standard definition used until a few years ago by all well-known engine manufacturers.

* This technical feature is the one indicated in the main sales channels, even if it is higher than the real power of the engine.

Effective power: 18.2 Hp (at 2400 rpm)
It refers to the real power of the engine. This is the power indicated as official in the engine instructions manual.

* this is a figure that can vary for the same engine model depending on the rpm the equipment manufacturer has decided to have the applied engine deliver

1- GRASS COLLECTION SYSTEM (on standard equipment):

Brand new capacious grass collection basket, with a capacity of no less than 300 L, among the largest in its class.

Easy grass collector emptying system: is done through a very effective system, by levering the pull-out handle. Thus, it will be possible to empty the grass collector at any time while working, without any effort.

The bag can be disassembled in an instant: simply lift it upwards to remove it from its 'bridge' housing where it is housed

2- MULCHING CUTTING SYSTEM (on standard equipment):

this grass mowing system allows crushing grass clippings and dropping them on the ground. The resulting grass particles are so small, they will be barely noticeable on the lawn. This eliminates the problem of its disposal (reducing any effort and time-saving). Moreover, grass clippings will break down into nutrients and water for the lawn (grass is 80% water) and will thus ensure a perfectly balanced biological cycle. However, it is worth remembering that, to ensure the greatest mulching results, the lawn should be irrigated, and the grass needs cutting at least once a week. Converting the machine from a cutting system to the other one is very easy.

Conversion: remove the collection bag and insert the mulching plug in the centre tunnel.

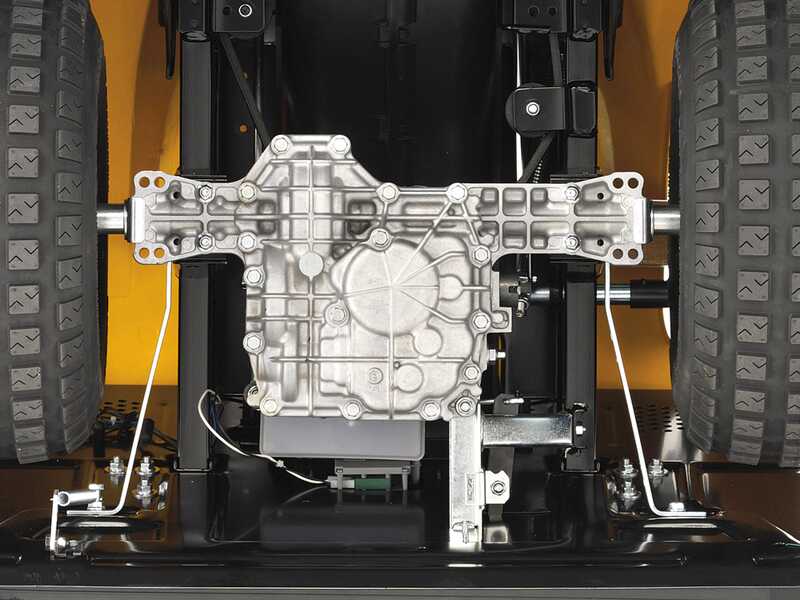

Thanks to the new hydrostatic 2-pedal gearbox, driving the tractor will be easy and intuitive. Everything can be controlled simply with your right foot resting on the pedal.

The operation is very simple: all you have to do to move forward us push the pedal with your toe. The riding-on mower will move forward according to the pressure on the pedal. Simply push the other end of the pedal with your heel for moving in reverse.

As soon as the pedal is released, the machine stops and allows safe operation.

Sturdy gears make the gearbox difficult to break. The hydrostatic transmission is, by its nature, much more modern and functional (although more expensive) compared to traditional manual gearbox. The latter model, whenever it is necessary to adjust the speed, obliges the Operator to stop, change gear (because in all the riding-on mowers with a manual or mechanical gearbox the gear change takes place when the machine is stationary), leaving the clutch and then restart at the desired speed. In case of frequent speed variations (e.g. in gardens with trees, vases or other types of obstacles) the standard gear transmission wouldn’t be practical at all. The hydrostatic transmission, on the other hand, allows immediate speed changes, without ever stopping, in absolute convenience, in a totally automatic way, simply by varying the pressure on the accelerator pedal.

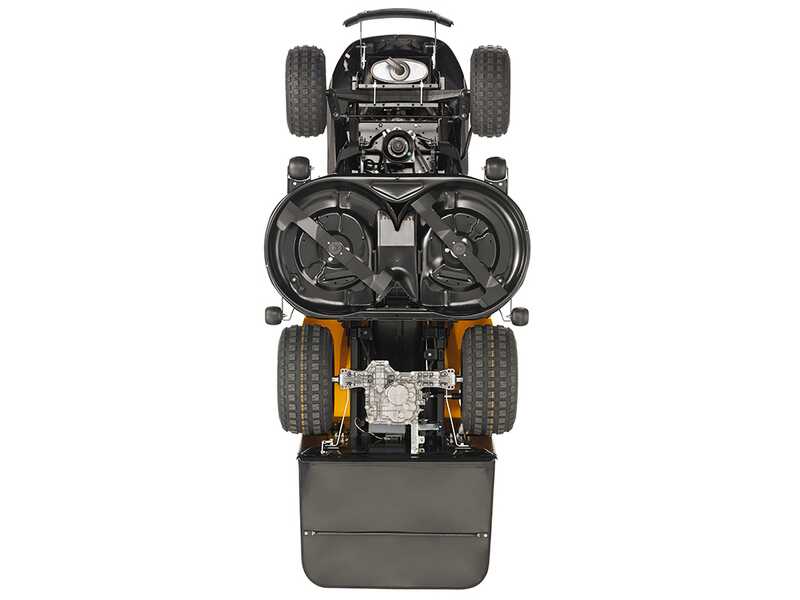

Stiga Estate lawn tractor mounts a 2-blade deck.

The machine comes with the blades already mounted.

A 102cm cutting deck width

It works by cutting in reverse.

The cutting deck is tilting: it adapts easily to the undulations of the ground (as long as they are not overly sharp).

The electromagnetic blade engagement is operated via the yellow button on the right side of the steering wheel. This system avoids the manual engagement by means of the standard lever which many models of riding-on mowers are equipped with and works thanks to an electromagnetic clutch that allows easy and quick engagement of the blades.

The height of the cutting deck is adjusted by means of a lever.

Seven cutting positions are available and can be varied from a maximum of 90 mm to a minimum of 30 mm.

Detail of the cutting deck with the mulching cutting system engaged.

The cutting deck is equipped with 4 anti-scalp wheels and of double washing connection.

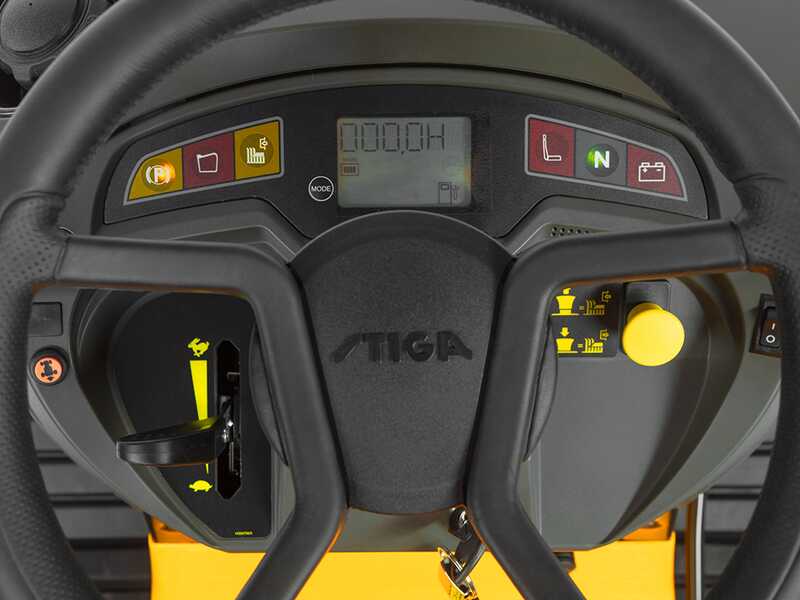

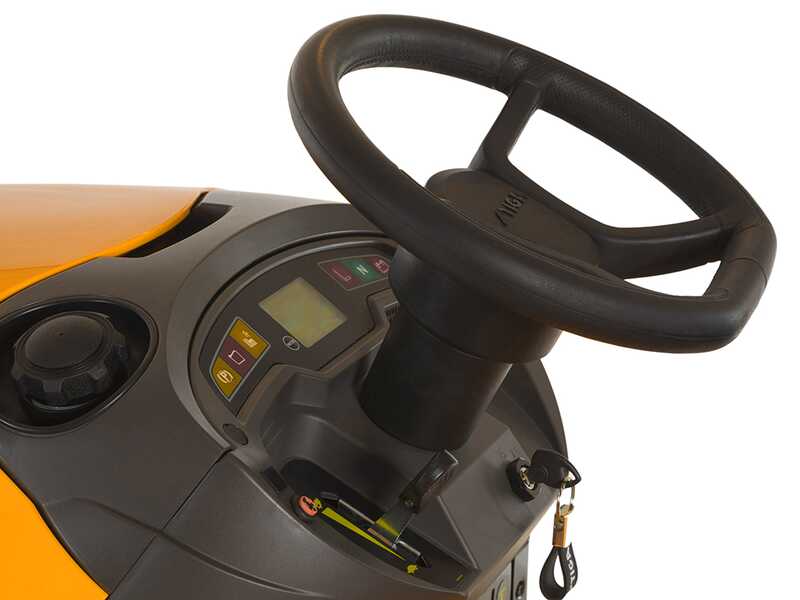

The controls and adjustments of the Stiga Estate lawn tractor are easy and intuitive. This model is provided with many controls

• Speed controller
• Braking pedal
• Electromagnetic blade engagement by means the yellow button on the right side of the steering wheel.
• Cutting height adjustment lever
• pedal-operated hydrostatic gearbox
• control lamps indicating the operating status of the machine and alerting in the event of faults

Other features of the Stiga Estate lawn tractor:

• Engine bonnet can be opened for cleaning and maintenance
• Stiga comfort plus adjustable seat for maximum comfort in use
• Stiga Premium ergonomic steering wheel with soft grip
• Sturdy front bull bar: it prevents from frontal impacts and protects the machine.
• Huge rear wheels of size 18 x 8.5-8
• Front wheels: wheel dimensions are 15 x 6.00-6
• ensures excellent balance, stability and driving comfort even on uneven terrain.
• Detail of LED headlights
• Detail of the battery hidden under the seat
