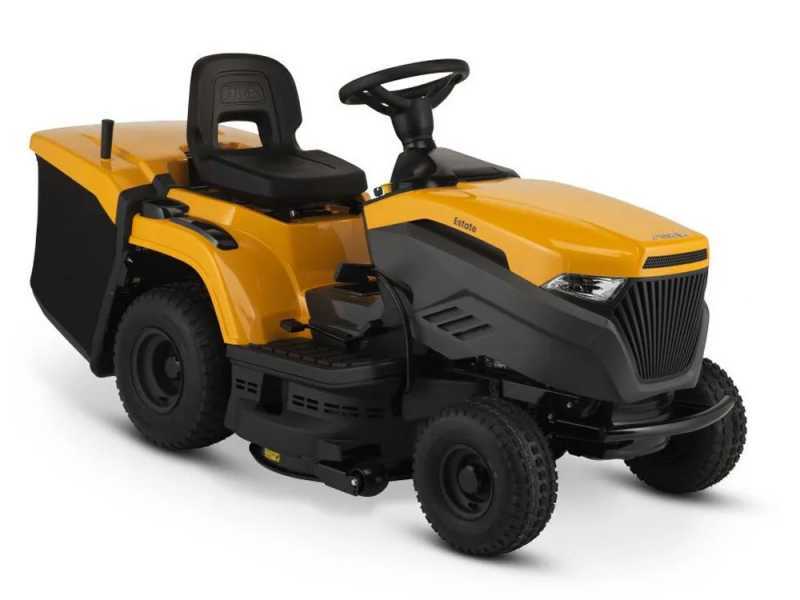

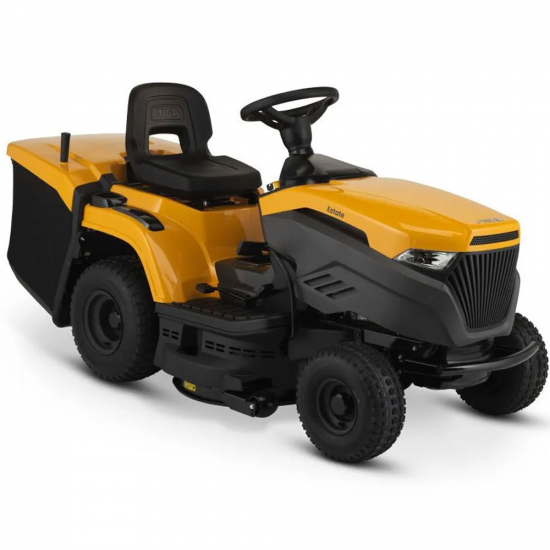

Stiga Estate 384 Lawn Tractor - 240 L Collection Basket - Hydrostatic Transmission

A high-performance lawn tractor, the Stiga Estate 384is suitable for work on large spaces and areas, where freshly cut grass needs to be systematically collected. The modern design is combined with an impact- and weather-resistant enamelled steel structure.

Equipped with hydrostatic transmission, which allows you to move forward on the ground smoothly, without having to change gears every time.

84 cm cutting deck with two blades, with 7 different cutting heights ranging from 25 to 80 mm available.

Capacious 240-litrecollection box with integrated lever, which allows the bag to be emptied directly from the driver's seat.

Powered by a powerful 432 cm³ Stiga St 450engine, which at maximum revs delivers a power output of 6.8 kW, making the lawn tractor suitable for working on areas up to 3500 m2.

The blades are not activated manually, but thanks to a convenient and fully electronic electromagnetic clutch system.

A raised steering wheel and adjustable ergonomic seat make the driving experience extremely pleasant and comfortable.

For the user looking for a semi-professional level vehicle.

1- COLLECTION IN THE BASKET (standard):

The grass is directly collected in the large grass catcher with a capacity of no less than 240 litres.

The basket is made of reinforced fabric and has a very robust plastic top, and can be emptied at any time and wherever you want, thanks to a convenient integrated lever that can be reached from the driver's seat.

The bag can be disassembled in an instant: simply lift it upwards to remove it from its 'bridge' housing where it is housed

2- Mulching (for free):

This grass mowing system allows crushing grass clippings and dropping them on the ground. The resulting grass particles are so small, they will be barely noticeable on the lawn. This eliminates the problem of its disposal (reducing any effort and shortening the time taken to mow) and, moreover, as it decomposes, it is subsequently transformed into nutrients for the lawn itself and into water, this ensuring a perfectly balanced biological cycle.

• It is important to remember that for maximum results with this system, the lawn must still be watered, and the grass cut very often.

- Detail of the lever for emptying the sack

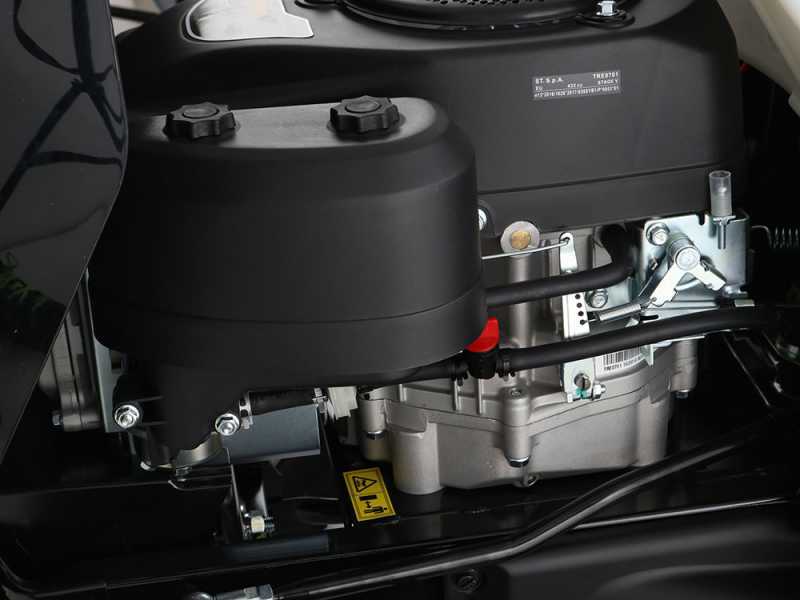

The petrol-powered St 450 Powered by Stiga engine will deliver strong and noteworthy performance.

432 cm³ single-cylinder engine with'OHV' overhead valve shaft for low vibration.

At maximum revs, it develops a power of 6.8 kW.

6 litre internal fuel tanks.

The engine is equipped with a starter motor and ignition is with the key.

ENGINE OIL NOT SUPPLIED AS STANDARD.

Nominal Power: 16 HP
The correct term would be "Commercial” Power, meaning the standard definition used until a few years ago by all well-known engine manufacturers.

* This technical feature is the one indicated in the main sales channels, even if it is higher than the real power of the engine.

Rated power: 9.11 Hp (at 2400 rpm)
It refers to the real power of the engine. This is the power indicated as official in the engine instructions manual.

* this is a figure that can vary for the same engine model depending on the rpm the equipment manufacturer has decided to have the applied engine deliver

Thanks to the new hydrostatic 2-pedal gearbox, driving the tractor will be easy and intuitive. Everything can be controlled simply with your right foot resting on the pedal.

The operation is very simple: all you have to do to move forward us push the pedal with your toe. The riding-on mower will move forward according to the pressure on the pedal. Simply push the other end of the pedal with your heel for moving in reverse.

As soon as the pedal is released, the machine stops and allows safe operation.

Robust gears make the gearbox difficult to break. The hydrostatic transmission is by far the most modern and functional (although more expensive) compared to standard manual transmission gears. The latter model, whenever it is necessary to adjust the speed, obliges the Operator to stop, change gear (because in all the riding-on mowers with a manual or mechanical gearbox the gear change takes place when the machine is stationary), leaving the clutch and then restart at the desired speed. In case of frequent speed variations (e.g. in gardens with trees, vases or other types of obstacles) the standard gear transmission wouldn’t be practical at all. The hydrostatic transmission, on the other hand, allows immediate speed changes, without ever stopping, in a totally automatic way, simply by varying the pressure on the accelerator pedal.

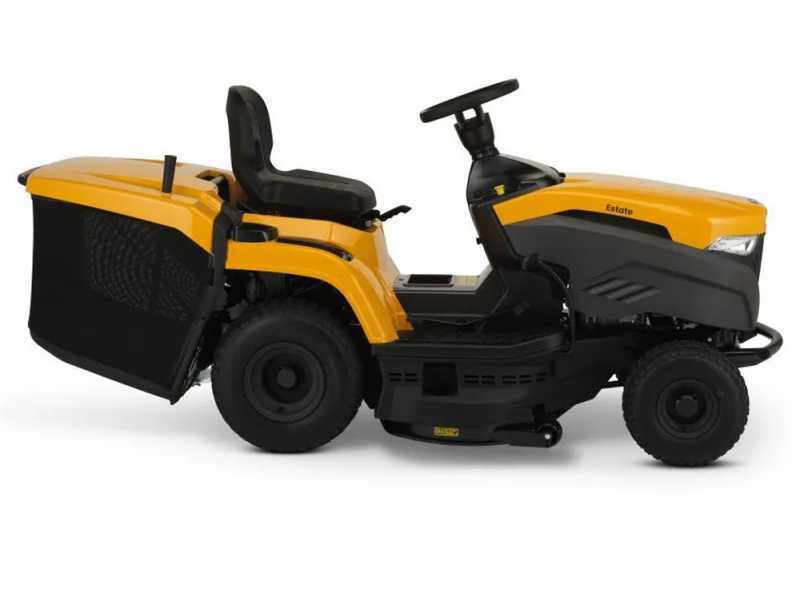

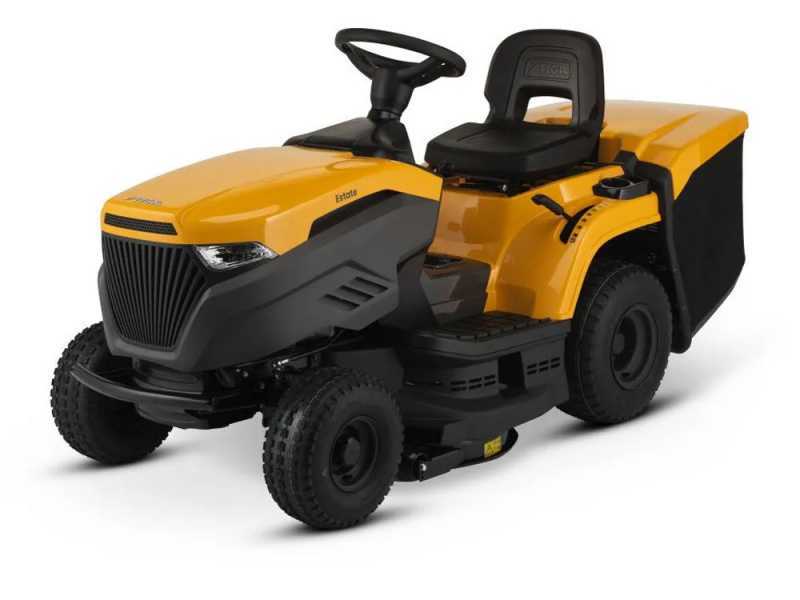

The Stiga Estate 384 riding-on mower is equipped with a double blade cutting deck.

Cutting deck width: 84 cm.

The deck of the lawn tractor is pivoting: it easily adapts to undulating terrain (as long as it is not excessively rough). Furthermore, this model features a large protection which entirely surrounds the cutting deck.

The electromagnetic blade engagement is operated via the button on the right side of the steering wheel. This system avoids the manual engagement by means of the standard lever which many models of riding-on mowers are equipped with and works thanks to an electromagnetic clutch that allows easy and quick engagement of the blades.

There are 7 cutting positions available and they are adjustable via a lever. They can be varied from a maximum of 80 mm to a minimum of 25 mm.

The cutting deck is equipped with 2 anti-scalp wheels and a double washing connection for both the right and left side of the deck.

- Detail of the harvesting blades.

The controls and adjustments of the Stiga Estate 384 lawn tractor are easy and intuitive:

• Speed variator
• Parking brake
• Ignition lock with key
• Braking pedal
• Electromagnetic blade engagement by means the yellow button on the right side of the steering wheel.

• Cutting height adjustment lever

- Detail of the hydrostatic platform

Other features of the Stiga Estate 384 lawn tractor:

• Openable engine cover for cleaning and maintenance operations.
• Adjustable Comfort seat for maximum comfort during use
• Ergonomic steering wheel
• Sturdy front bull bar: it prevents from frontal impacts and protects the machine.
• Huge rear wheels of size 18 x 8.5-8
• Front wheels: : wheel dimensions are 15 x 6.00-6
• Pivoting front axle that ensures great balance, stability and driving comfort even on not perfectly flat terrains.
• Can holder compartment

- Detail of the washing connection of the cutting deck.

- Detail of the anti-scalp wheels on the cutting deck.

- Detail of halogen front lights
