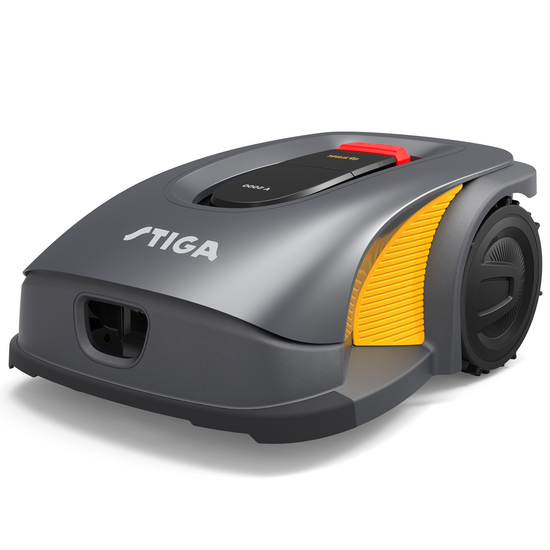

Stiga A 5000 - Robotic Lawn Mower - With two 5 Ah E-Power batteries

The STIGA A 5000 battery-powered robotic lawn mower offers a highly automated solution for maintaining large grassy areas.
Unlike traditional automatic mowers that require the installation of perimeter cables, this model operates without a physical setup thanks to the virtual boundary of the working area, configurable via the STIGA.GO app.
You can divide the garden into up to 10 distinct cutting zones, each customizable for intervention times, cutting height, and operational priority.

The guidance system is based on the patented RTK AGS (Active Guidance System) by STIGA, capable of accurately predicting GPS signal quality and optimizing work paths. The integrated 4G connectivity allows the robot to constantly communicate with the STIGA Cloud, receive remote updates, and keep operational data synchronized. The entire system is manageable via smartphone, with support for voice commands via Amazon Alexa.

Designed to work on areas up to 7000 m² (5000 m² recommended), the robot can effectively operate even on slopes up to 50%, adapting to contexts with significant elevation changes. The mulching cutting system consists of 6 pivoting blades mounted on a central disc, finely chopping the grass and returning it to the soil. The cutting width is 26 cm, while the height can be electronically adjusted between 20 and 65 mm. The blades rotate at a constant speed of 2400 rpm, ensuring precision and efficiency.

The STIGA A 5000 robotic lawn mower is powered by two 5 Ah – 25.2 V lithium-ion batteries, doubling its energy capacity compared to other models in the same range. It features a brushless motor and a fully automatic charging system.
The weight of 13.4 kg and compact structure (695 x 526 x 300 mm) facilitate positioning and potential manual movement.

Main features:

• Virtual installation: area management via app, without the need for perimeter wires or construction work.

• Independent operation: cutting, charging, updates, and programming occur without manual intervention.

• Intelligent remote control: total management via the STIGA.GO app, with the possibility of voice command via Alexa.

• Management of up to 7000 m² in 10 zones: ideal for large gardens or complex spaces, with flexible planning.

• Precise 26 cm cut: equipped with pivoting blades and adjustable height, for a uniform and continuous result.

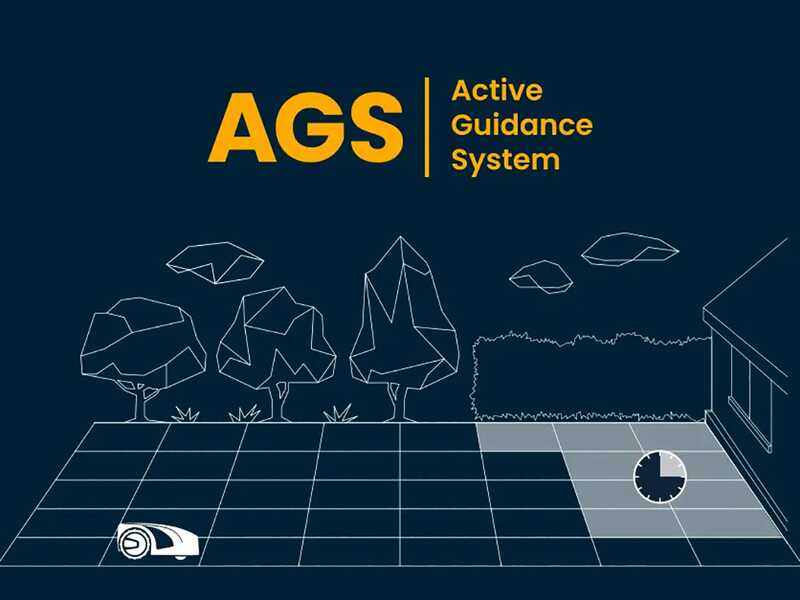

This model is equipped with an innovative system patented by Stiga, called Active Guidance System (AGS).
This system allows the robot to store important information such as satellite trajectories, signal strength, and points where the signal is disturbed, for every moment of the day. Consequently, the robot updates the map daily, avoiding areas with weak signals just when needed. This helps the robot work more efficiently and prevents potential blockages caused by lack of signal.

It can autonomously manage cutting sessions and create a virtual map of the garden while working, knowing exactly where to start cutting.

Includes various direction change programs, eliminating the risk of overcutting. They can be programmed to operate in multiple cutting areas, with the possibility of setting up to 10 different zones. Thanks to the STIGA.GO application, the user can choose from a wide range of pattern combinations, thus ensuring the well-being of the lawn and customizing the appearance of the lawn. It can also be managed via Alexa.

There is no perimeter cable, so you can modify the virtual perimeter of your STIGA A 5000 with a simple touch. You can also manage other robot functions, such as excluding specific areas from cutting cycles and setting times when the robot should not cut, even in certain zones only.

To use the GPS RTK technology, the robot needs a continuous connection with its reference station. This connection is guaranteed by 4G data traffic and constant communication between the lawn mower robot, STIGA Cloud, and the reference station. The reference station is included with the purchase of the robot.

An app usable on both Apple and Android, integrated with Amazon Alexa, for complete management of your robot!

The application allows you to:

• easily schedule cutting sessions,
• switch to ECO mode,
• manage cutting parameters,
• manage zones,
• Receive notifications,
• Use voice commands,
• Activate the robot remotely.

- Easily downloadable application via the QR code on the robot.

Through the STIGA.GO app, you can quickly access STIGA support information and services.

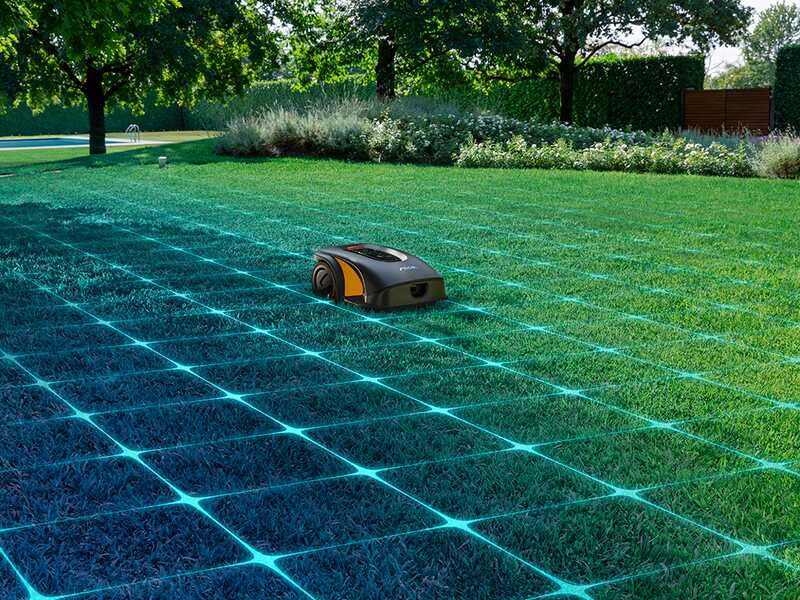

The 4G data traffic ensures a continuous and reliable communication between the robotic lawn mower, the STIGA Cloud, and the reference base, overcoming physical obstacles such as walls and vegetation.
Thanks to this, the robot operates with maximum autonomy, caring for the lawn with precision. A data package is required for the optimal operation of the robot.

The connection of the robotic lawn mower with the STIGA.GO app on the phone uses the device's mobile data.

The autonomous STIGA robotic lawn mowers come with a free data package for the entire duration of the device, eliminating the need for additional expenses. Data consumption varies based on the size of the garden and the frequency of cutting sessions.

STIGA has chosen Vodafone as the data provider for extended coverage in Europe, with guaranteed security and privacy in communication between the robot and the network.

At least one provider is assured to provide the necessary support for the autonomous robotic lawn mower to operate efficiently. Depending on the country, different operators will be available for reliance.

Data security is a priority: the STIGA Cloud servers, located in Europe, adhere to strict data protection regulations.
STIGA guarantees the compatibility and effective operation of the robot in numerous European countries, although functionality may depend on various factors such as service provider, GPS and 4G coverage, and garden configuration. It is recommended to consult the retailer before installation.

The beating heart of the A 5000 robot is the E-Power Stiga battery.

This battery is made up of premium lithium-ion cells, containing a chemistry designed to increase reliability and longevity.

Tested in all conditions, the battery will still perform at its best even after 600 recharges, comparable to two recharges a week, over a span of six years.

• High-performance blades: powerful and effective. Six central blades that ensure fast and quality cutting.
• Easy to use: Thanks to the simple control panel and the convenient STIGA.GO app, programming the robot will be simple and intuitive.
• Eco-friendly and quiet: does not pollute thanks to the electric charging system and is extremely quiet, staying below 60 dB(A).
• Helps nourish the soil: Chops the grass and lets the residues fall to the ground, adding extra nourishment to the lawn.
• Safe: If lifted, the robot stops the blades, for always safe use.
• It is independent: works without your help and recharges itself. When the battery is about to run out, the Robot will return to its station for recharging completely autonomously.

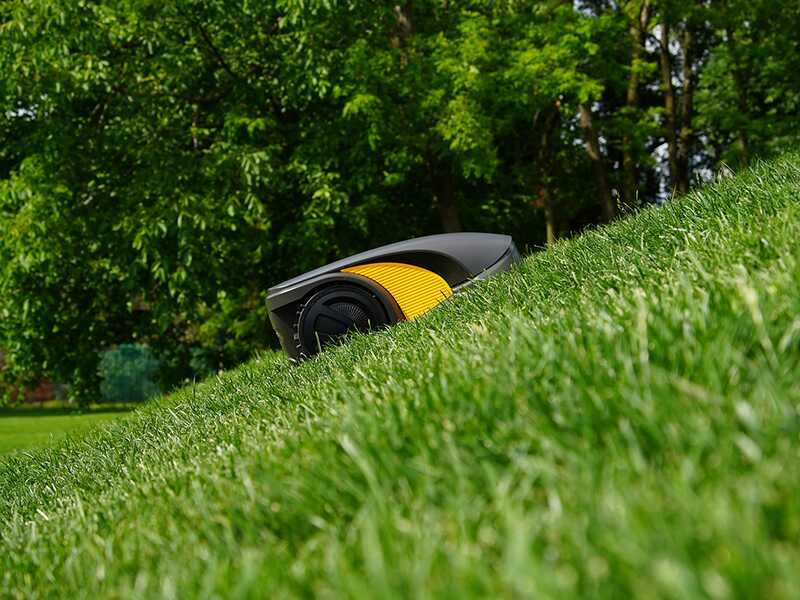

• Powerful: It can handle slopes up to 50% - 26.5°
• Easily removable shell, for better cleaning and maintenance.

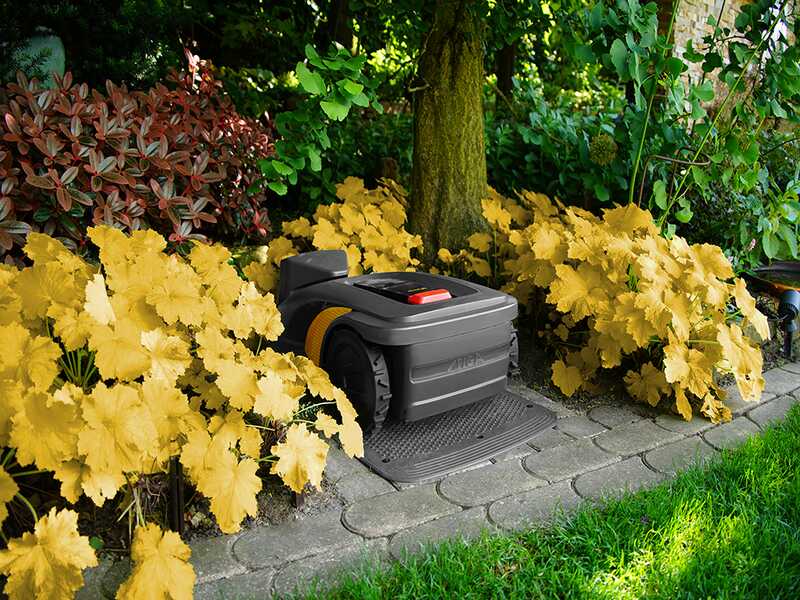

An intuitive control panel, allowing you to manually instruct the robot when you don't have your phone at hand. With the buttons on the panel, you can:

• Switching on and off A 5000
• Activate the Bluetooth functionality
• Make it return to the charging base
• Tell it to cut according to the set program
• Tell it to start cutting immediately

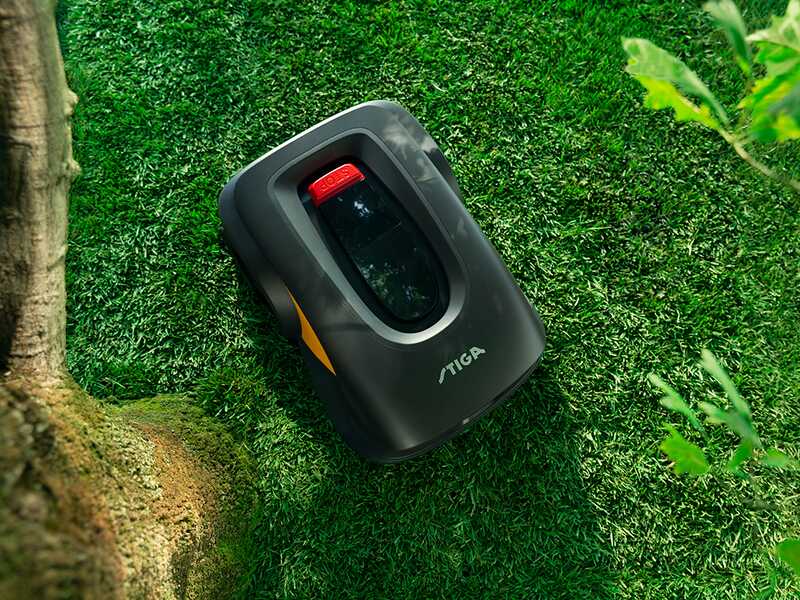

Pressing the large red button labelled STOP will immediately stop the robot.

- Detail of the control panel and STOP button

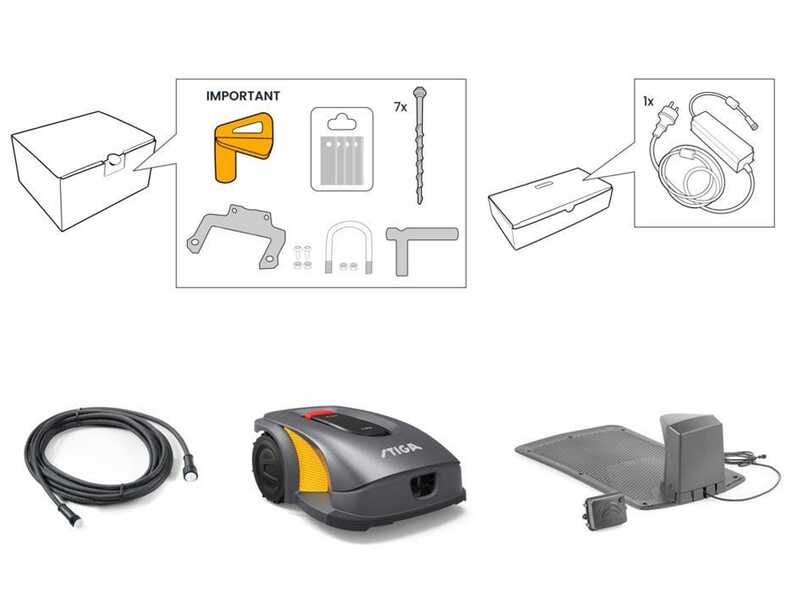

The product that will arrive at your home will be easy to start, and even the least experienced user can begin to take advantage of the A 5000 robot, also following the included instruction booklet.

The installation is completely virtual.
The working perimeter can be set via the STIGA.GO app and is updatable at any time.

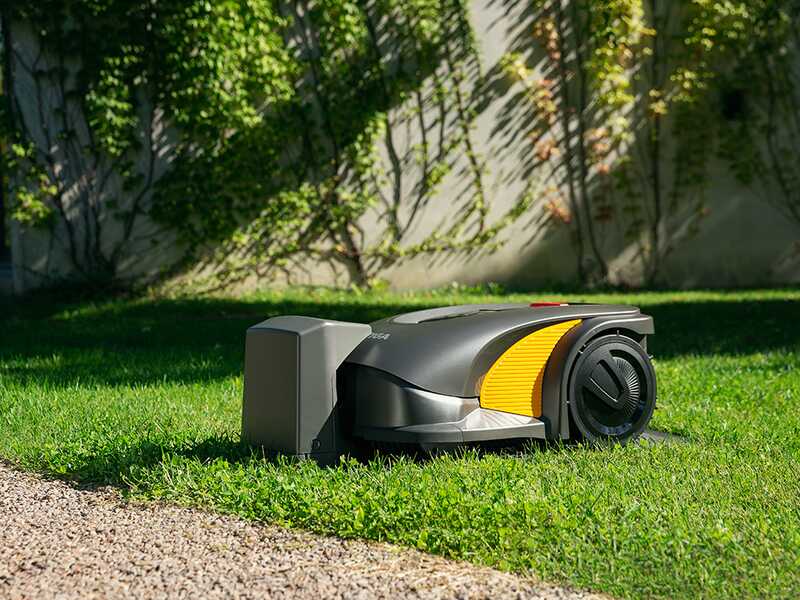

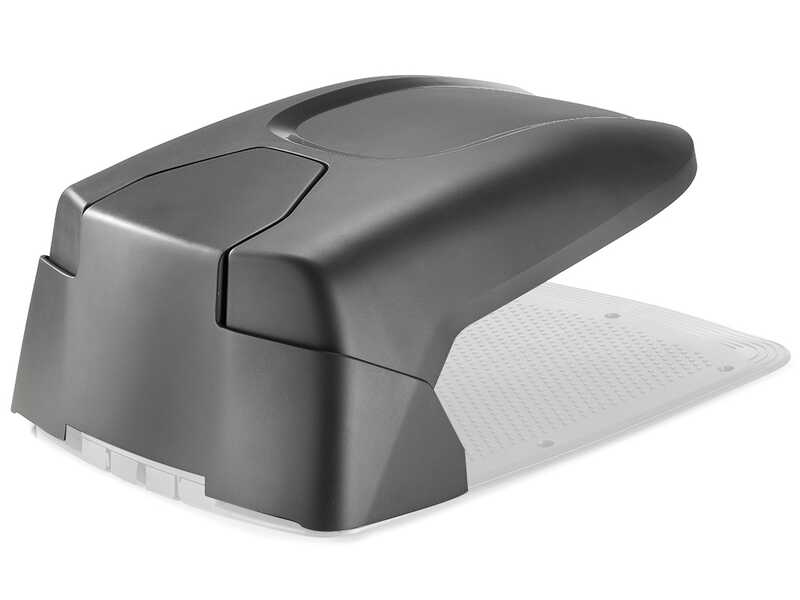

Once the charging base (equipped with a charger) is installed, the robot will be ready to go as it does not require a perimeter wire.

The charging base must be positioned in a place with a clear view of at least 120°. If the view is limited, the antenna can be extracted from the charging base and positioned at a height with a clear view of the sky.

The supplied cable is 5 meters long. However, STIGA makes a 15-metre cable available for more complicated situations.

Extension cables can be used for various purposes:

• Power the charging base
• Power the satellite reference station installed separately from the charging base, directly from the latter.
• Power the satellite reference station installed separately from the charging base, using an external power supply.

A maximum of two 5-metre cables or one 15-metre cable can be used.

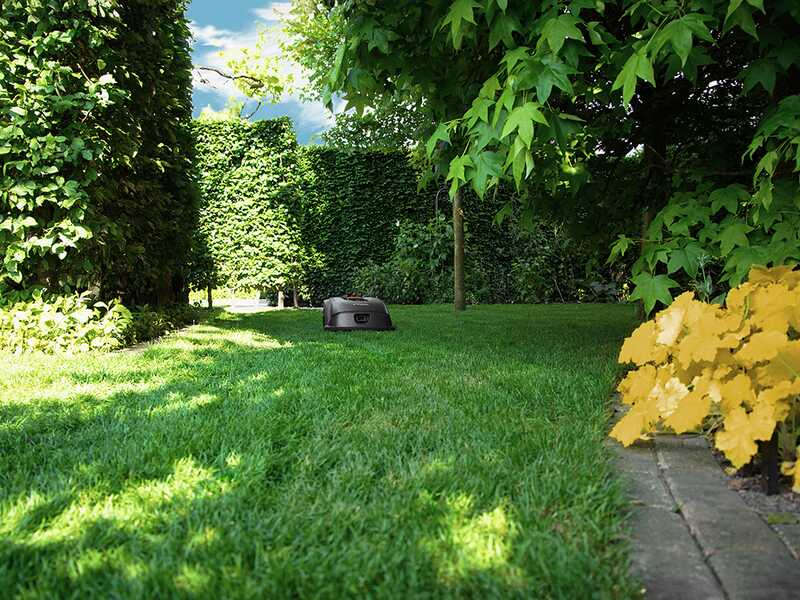

Main properties:

• Engine type: Brushless
• Charging system: Automatic
• Power Kit: Included
• Battery voltage: 25.2 V
• Maximum slope: 50%
• Battery: Lithium-ion
• Battery capacity: 5 Ah
• Charging time: 120 minutes
• Noise level: 60 dB
• Weight: 13.4 Kg

Other features:

• Quick stop command: Pressing the large STOP button will stop the robot, ensuring safety for any eventuality.
• Obstacle detection sensor
• Anti-tilt sensor
• Rain sensor
• Lifting sensor: if the robot is lifted it will shut down, to be manually restarted
• Stiga Soft Lawn Touch: the machine is so light it leaves no trace on the lawn, the central battery then improves balance and ensures agile cutting.

The robot features electronic cutting height adjustment, which can vary from a minimum of 20 to a maximum of 65 mm.

The mulching cut: 6 pivoting steel blades finely chop the grass, leaving it on the ground.
This decomposes and becomes a nutrient element for the lawn itself, creating a completely natural cycle. With this cutting method, the grass does not need to be collected.

It is possible to set up to 10 different cutting zones in the garden. However, it is advisable to schedule only 2 daily cutting sessions.

The maximum cutting area is 7000 m² (5000 m² Recommended)

Cutting width of 26 cm

Maximum cutting speed: 24m/min

Blade speed: 2400 rpm

Also included are two large rubber wheels, for effective and durable ground grip, and two small front swivel wheels, allowing it to overcome slopes and obstacles.

The edge cutting is programmable via the app. It can be set on the days when cutting sessions are scheduled.

- Detail of front wheels

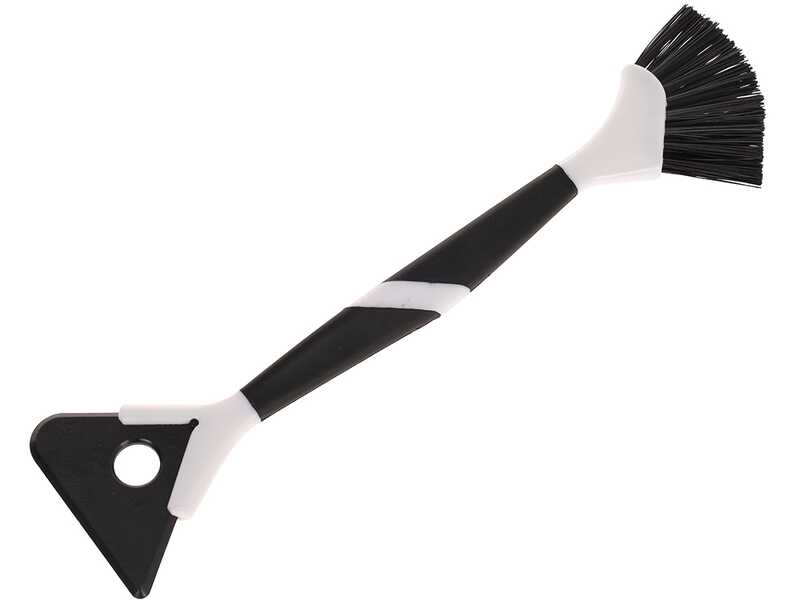

If ONLY the blades need cleaning, with the robot upside down, use a brush.
