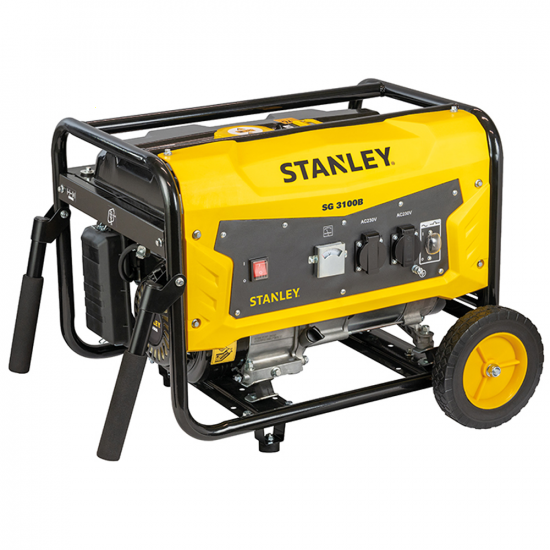

Stanley SIG 3100B - Petrol Power Generator - AVR 2.9 kW - DC 2.6 kW Single-phase

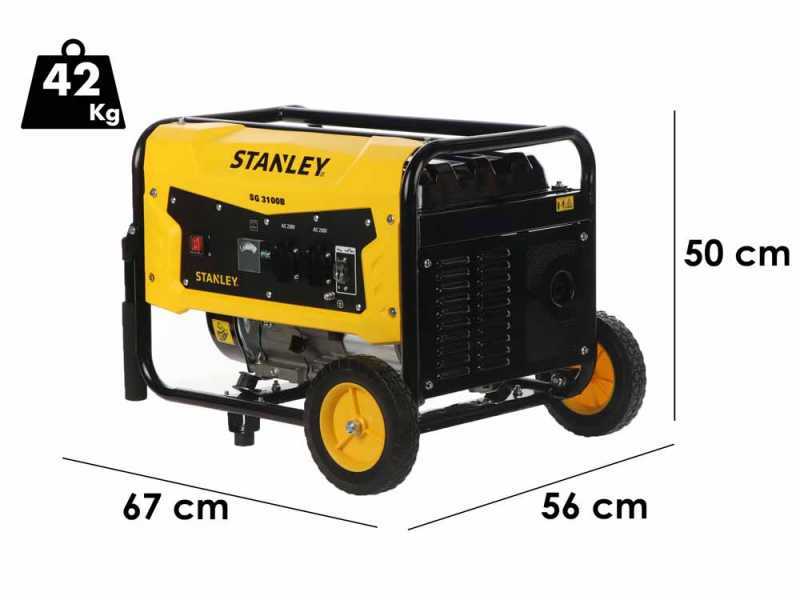

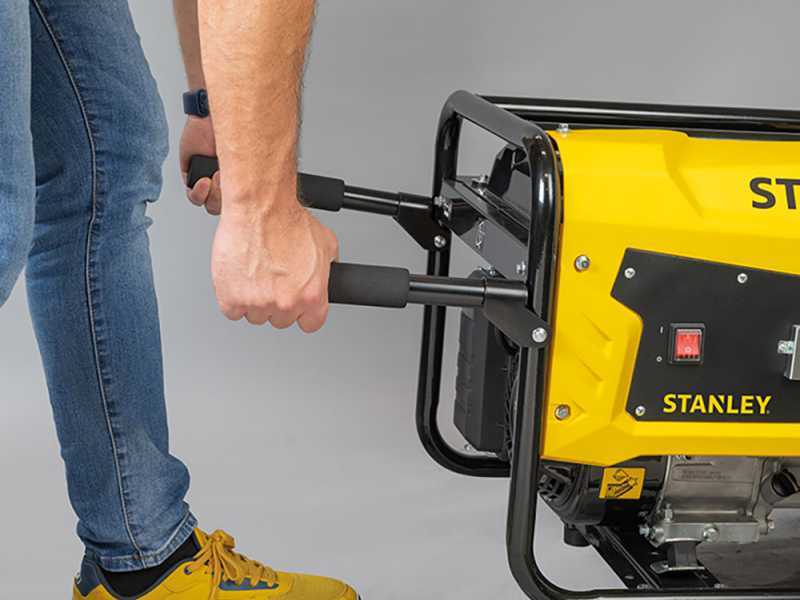

The petrol power generator Stanley SIG 3100B is a powerful and reliable solution for providing electrical power in emergency situations or areas with no power supply. It is simple and practical to use due to its small size. Two convenient handles are located on the sides, making it very easy to carry.

It delivers a nominal output of 2.6 kW and a maximum output of 2.9 kW, and is suitable for both domestic use and small construction sites.

It has an air-cooled 4-stroke engine with a displacement of 212 cm³ and is powered by petrol.

It is equipped with two 230V Schuko sockets, allowing multiple devices to be connected simultaneously. With a 15-litre fuel tank, the generator provides a range of up to 8.2 hours, making it ideal for extended work sessions without the need for frequent refuelling.

The inclusion of the AVR board automatically adjusts the output voltage according to the load, ensuring a constant and safe power supply, which is essential for applications requiring greater energy stability.

Designed to withstand harsh environmental conditions, this generator can operate up to 40°C and at a maximum altitude of 1000 metres above sea level. IP23M protection ensures weather resistance, making it suitable for outdoor use. With a 71 dB(A) noise level at 7 metres, operation is fairly quiet, reducing the noise impact on the surrounding environment.

All in all, the Stanley SIG 2400B petrol-powered power generator stands out for:

• Generator type : Synchronous
• Protection class: IP23M
• Rated AC power: 2.6 kW
• Maximum AC power : 2.9 kW
• Start-up type: Recoil starter
• Operating autonomy: 8.2 hours
• Socket type: 2 x 230V Schuko
• Engine: Air cooled, 1 cylinder, 4-stroke, OHV
• Cubic capacity: 212 cm³
• Fuel: Green petrol
• Fuel tank capacity: 15 L

The generator is not designed for energy production, charging or maintaining batteries for the photovoltaic or solar panels systems (or similar); this can seriously damage the generator.

WARNING: All power generators like this one, belonging to one of the lower product levels of the PROFESSIONAL (reference to the product level rating scale used on this site) must not work for sessions longer than 3–4 hours continuously, in order not to compromise in the medium to long term durability of the alternator and other components due to overheating or wear. The same problem would present itself if these products were to be used daily or at least frequently. In all these cases, we recommend opting for generators classified as least as PROFESSIONAL, as listed on the rating scale on this website.

The gen set alternator features a copper winding.

Maximum power rating* in LTP emergency service: 2.6 KW

* in an emergency, the generator can deliver this amount of power

Power rating* in continuous variable duty PRP: 2.9 KW

* This is the data that must be taken into account as an actual and constant data in the generator’s output (it guarantees it unlimited hours)

The alternator is secured to the frame with sturdy vibration dampers.

The power generator is equipped with AVR board: an electronic device that automatically adjusts the output voltage, making it constant as the load changes

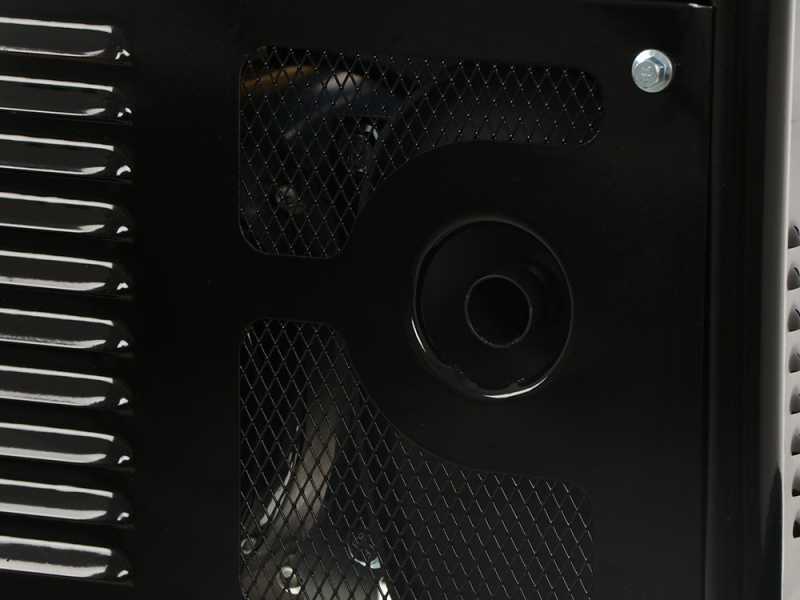

Detail of the muffler with protective grid.

Main engine features:

Type: 4-stroke, single-cylinder, air-cooled, OHV

Cylinder capacity: 212 cc

Nominal power: 7 HP

Fuel: Petrol

Tank: 15 L

The engine is equipped with a 15 litre metal tank.

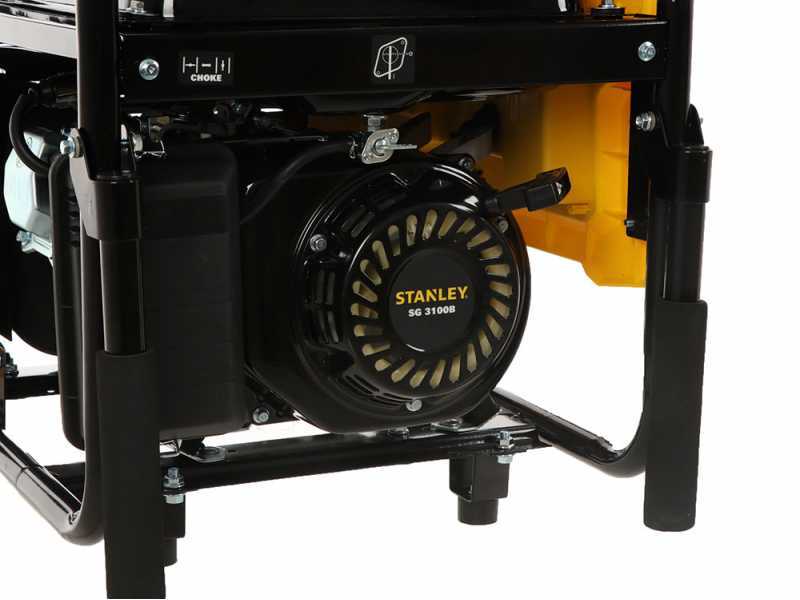

Recoil start.

OHV Technology.

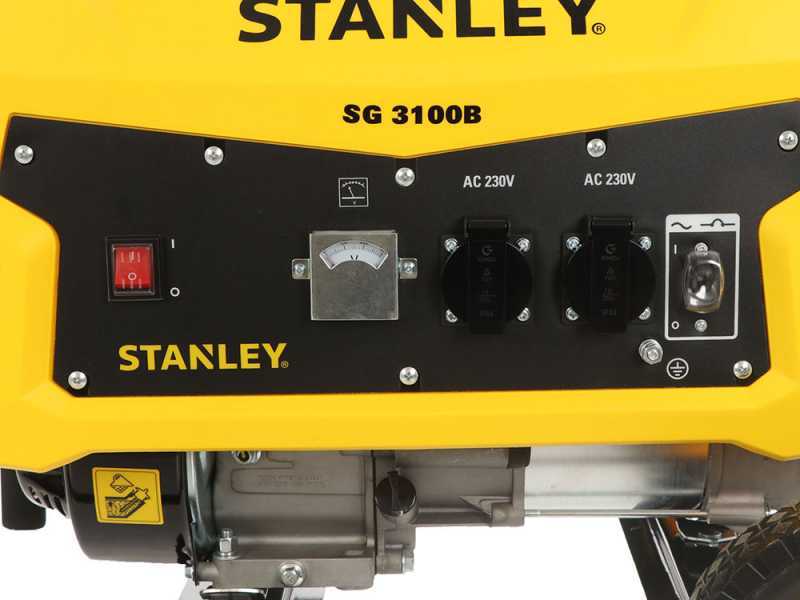

Extremely comprehensive and feature-rich control panel.

• LED VOLTMETER to display the output voltage at the outlet
  and the Hz frequency.
• Earthing system
• No. 2x 16A single-phase Shuko sockets
• Reducer

Further generator features

Tank cap

Sight glass to check the fuel level

Support rubbers

Wheels for transportation

As far as the needed power is concerned, we now provide you with an handy chart to help you navigate among consumption, starting coefficients and watt.

The best criteria is to pinpoint first which are the instruments we need to power with the generator and, consequently perform a simple calculation, as explained below, to identify the needed power that the generator need to eject.

Power required = Electric appliance consumption X Breakaway starting coefficient

The starting coefficient is a fundamental characteristic of any instrument which works with electric current because it indicates how much the consumption of the object increases. Therefore, this is needed to concretely determine how many WATT are necessary during the start up operations.

Example: Compressor (1500 Watt ) X Starting coefficient (2) = 3000 Watt Hence you should orientate towards a generator which has a WATT power equal or superior to the result (*)

Check the consumption of the appliance on the instruction and maintenance manual or on the plate attached to the machine.

WARNING: the chart is purely indicative. Thanks to the formula above you can easily calculate the power a generator should deliver to connect and start some specific products and select the model of generator which best suits your needs.

• The generator can be exclusively used to power single electrical appliances (with respect to the produced KW power in relation to the absorption during the starting phase that must be lower than the power supplied by the generator).

• The generator can be used to power household device in emergency conditions (no current service provided by the domestic household), exclusively on the models that are specifically provided with ATS (Automatic Transfer Switch) device (specifically designed for this purpose and provided with connecting systems to your household electrical power).

• The generator was NOT designed for PROFESSIONAL use, it is therefore apt for occasional use (not frequent). The working sessions must no be over 3-4 continuous hours (which would cause the alternator to overheat and wear, especially in its internal components rotor and stator) If you need a generator for frequent use (for example once a week), the user should look towards another type of generator, specifically intended for a frequent use and precisely a PROFESSIONAL or even INDUSTRIAL quality-level generator (that is not provided with a standard 3000 rpm alternator as this models is, but one which is designed with a professional alternator with low speed; 1500 rpm - with liquid-cooled engine and alternator - which have a level of specific characteristic and price point very different from this model’s);

The generator is not designed to be installed in photovoltaic or solar energy systems for energy production nor for the recharging or maintenance of batteries of these specific or other electric systems. Indeed, it may damage seriously the generator on its internal components (alternator, engine and electrical component). Each photovoltaic system requires a generator for INDUSTRIAL use (not for domestic use as this present model), specifically designed and manufactured for this purpose. WE DO NOT PROVIDE WARRANTY on generators connected to photovoltaic systems, as this entails an IMPROPER USE OF THE UNIT.
