Stanley SIG 2400B - Petrol-powered power generator - AVR 2.3kW Single-phase

Add a question
ID: K608810

EAN: 4250116821815

MPN: 604800010

7,0/10
After-sales assistance & Spare parts
Stanley SIG 2400B - Petrol-powered power generator - AVR 2.3kW Single-phase
FREE
2 bottles of 1 L oil each2 bottles of 1 L oil each
Cover sheetCover sheet
Power supply
Petrol
Electric Current
Single-phase
Single-phase rated power
2.1 kW
Max. power
2.3 kW
AVR technology
Yes
Alternator casing
copper
Motor brand
Producer-manufactured
Cubic capacity
212 cm³
Product Features
Model:
SIG 2400B
Power supply:
Petrol
Type:
Fixed
Electric Current:
Single-phase
Voltage stabiliser:
AVR
Alternator casing:
copper
Single-phase power supply 220 V:
Yes
Three-phase power supply 400 V:
Yes
Frequency:
50 Hz
AVR board:
Yes
Single-phase rated power :
2.1 kW
Max. power:
2.3 kW
Manufacturing country:
China
Motor data
Motor brand:
Stanley
Cubic capacity:
212 cm³
No. of cylinders:
1
Fuel:
Petrol
Power supply:
Overhead valve OHV
Engine lubrication system:
Oil bath
Decompression system:
Automatic
Tank capacity:
15 L
Working autonomy:
8 h
Noise level:
71 dB(A)
Manufacturing country:
China
Equipment
AVR technology:
Yes
Recoil start system (with rope):
Yes
Tank level indicator:
yes
Voltmeter:
yes
Free gifts/extra features
Engine oil bottle for free:
2
Wooden pallet (safe shipping):
Yes
Maintenance tool kit:
Yes
Instructions manual:
Yes
Dimensions and logistics

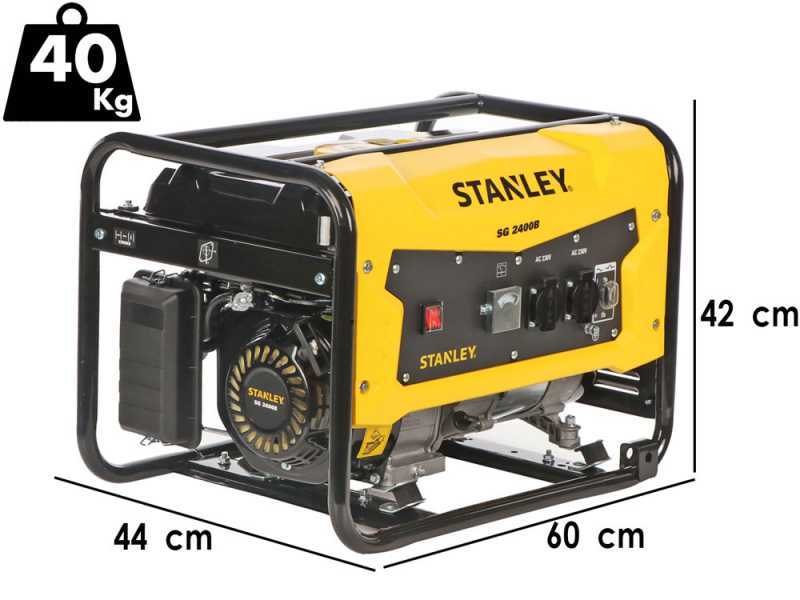

Product dimensions in cm (L x W x H):
61x44.5x43 cm
Net weight:
40 Kg
Packaging:
On pallet
Original packaging/s dimensions in cm (L x W x H):
61x44.5x45 cm
Gross weight (packaging included) :
40.5 Kg
Unloading with hydraulic tail lift:
Yes
Assembly time:
Assembled
Prompt Delivery
4 items in stock
Free Shipping
Estimated delivery: 26/02/2025 - 28/02/2025
Suggested price:
€ 347,65
€ 333,74
Vat included
You're viewing:
Customers also viewed:
Description

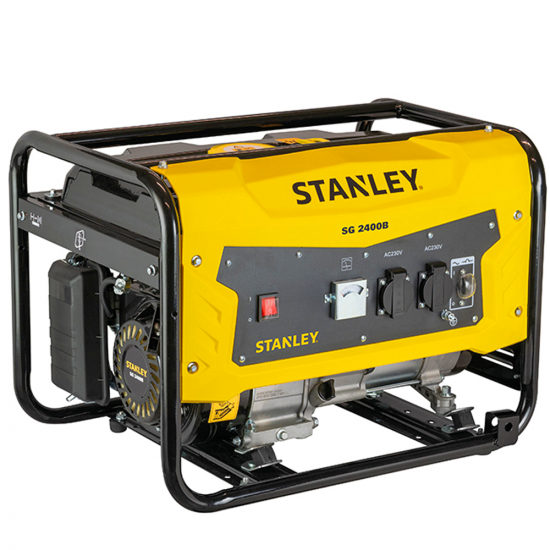

Stanley SIG 2400B power generator

The petrol power generator Stanley SIG 2400B is a powerful and reliable solution for providing electrical power in emergency situations or areas with no power supply. This synchronous generator is equipped with a 4-stroke, air-cooled engine with a 212 cm³ displacement, powered by petrol. The nominal output of 2.1 kW and the maximum output of 2.3 kw make it suitable for domestic use and small construction sites.

The Stanley SIG 2400B generator features a pull start, ensuring easy commissioning. It is equipped with two 230V Schuko sockets, allowing multiple devices to be connected simultaneously. The 15-litre fuel tank capacity offers a usage range of up to 8.2 hours, ideal for extended work sessions without the need for frequent refuelling.

The unit is designed to operate in harsh ambient conditions, with a maximum operating temperature of 40°C and a maximum altitude of 1000 meters above sea level. IP23M protection ensures weather resistance, making it suitable for outdoor use. The sound pressure level of 71 dB(A) at 7 metres ensures relatively quiet operation, minimising noise impact on the surrounding environment.

All in all, the Stanley SIG 2400B petrol-powered power generator stands out for:

  • Generator type : Synchronous
  • Protection class: IP23M
  • Rated AC power: 2.1 kW
  • Maximum AC power : 2.3 kW
  • Start-up type: Recoil starter
  • Operating autonomy: 8.2 hours
  • Socket type: 2 x 230V Schuko
  • Engine: Air cooled, 1 cylinder, 4-stroke, OHV
  • Cubic capacity: 212 cm³
  • Fuel: Green petrol
  • Fuel tank capacity: 15 L

WARNING: All power generators like this one, belonging to one of the lower product levels of the PROFESSIONAL (reference to the product level rating scale used on this site) must not work for sessions longer than 3–4 hours continuously, in order not to compromise in the medium to long term durability of the alternator and other components due to overheating or wear. The same problem would present itself if these products were to be used daily or at least frequently. In all these cases we recommend opting for generators classified as least as PROFESSIONAL, as listed on the rating scale on this website.






The generator is not designed for energy production, charging or maintaining batteries for the photovoltaic or solar panels systems (or similar); this can seriously damage the generator.

CAUTION: All power generators like this, belonging to one of the lowest levels of the PROFESSIONAL level products (refer to the product level rating scale used on this site) should not work for longer sessions of 3-4 hours continuously, in order to not to compromise in the medium-long term durability of the alternator and other components due to overheating or to wear. The same problem would present itself if these products were to be used daily or at least frequently. In all these cases we recommend to opt for generators classified as least as PROFESSIONAL, as listed on the rating scale on this website.

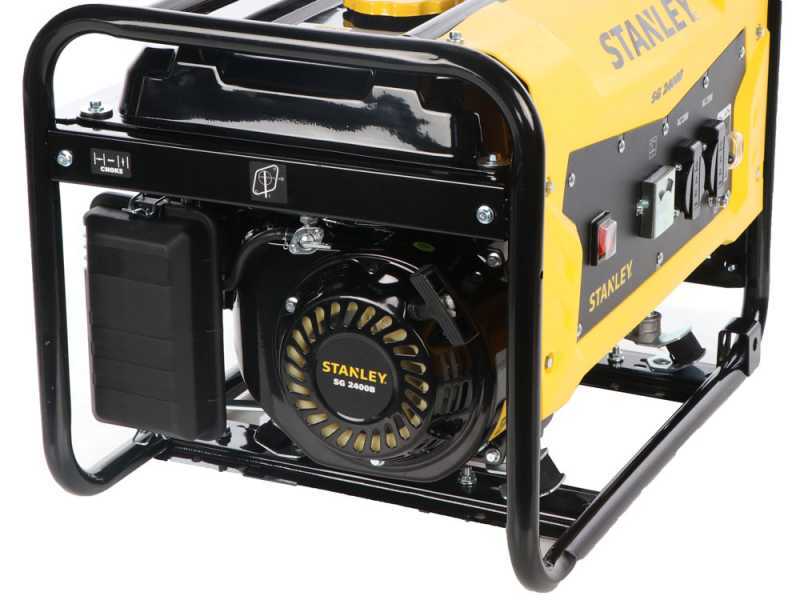

Alternator and Power Output

The generator set alternator has a copper winding.

Maximum power rating* in LTP emergency service: 2.1 KW

* in an emergency, the generator can deliver this amount of power

Power rating* in continuous variable duty PRP: 2.3 KW

* This is the data that must be taken into account as an actual and constant data in the generator’s output (it guarantees it unlimited hours)

The alternator is secured to the frame with sturdy vibration dampers.

The power generator is equipped with AVR board: an electronic device that automatically adjusts the output voltage, making it constant as the load changes

Detail of the muffler with protective grid.

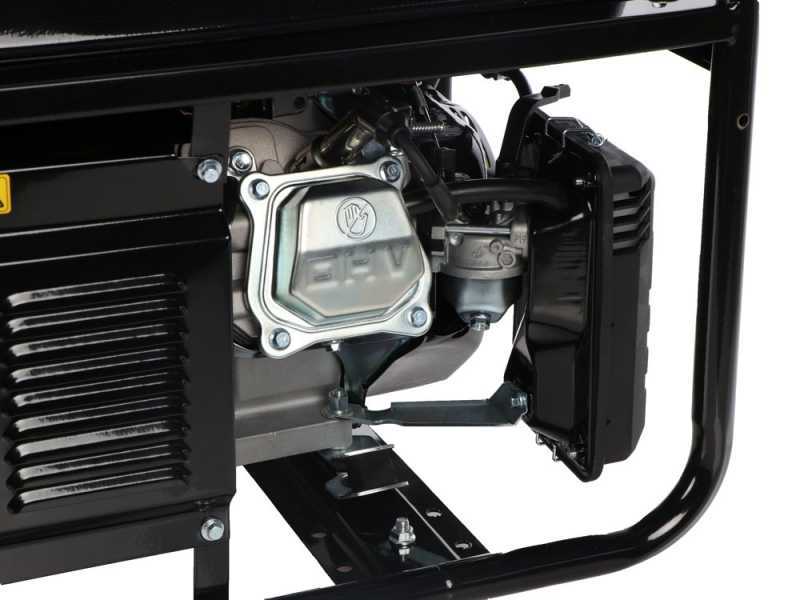

Engine Technical Features

Main engine features:

Type: 4-stroke, single-cylinder, air-cooled, OHV

Cylinder capacity: 212 cc

Power: 5.4 Hp

Fuel: Petrol

Tank: 15 L

The engine is equipped with a 15 litre metal tank.

Recoil start.

OHV Technology.

Oil level plug.

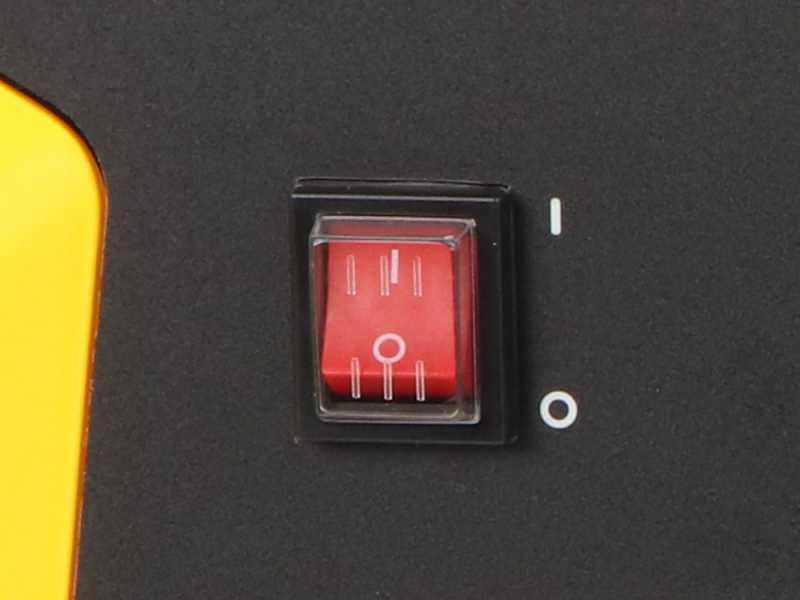

Control Panel

Extremely comprehensive and feature-rich control panel.

  • LED VOLTMETER to display the output voltage at the outlet
    and the Hz frequency.
  • Earthing system
  • No. 02 16A single-phase F Shuko sockets
  • Reducer

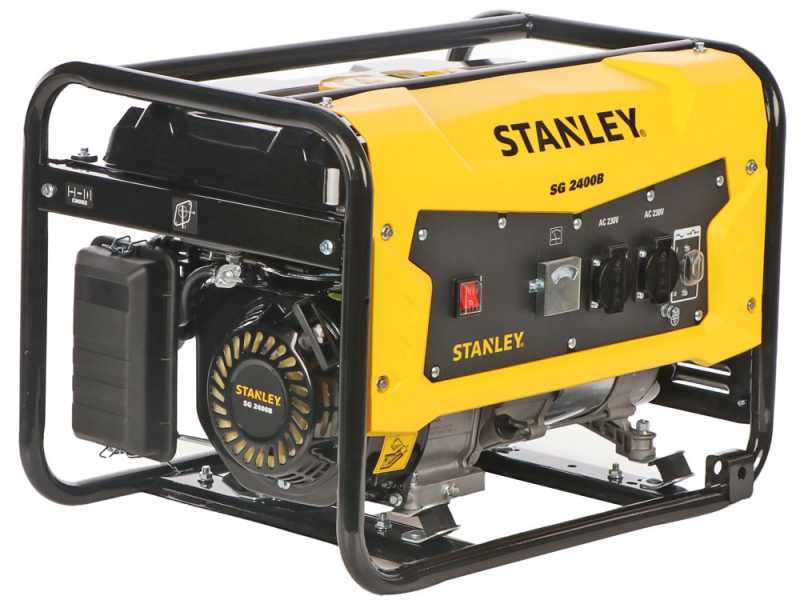

Additional Features

Further generator features

Tank cap

Sight glass to check the fuel level

Reinforced frame

How to choose the right power of a power generator?

As far as the needed power is concerned, we now provide you with a handy chart to help you navigate among consumption, starting coefficients and watt.

The best criterion is to pinpoint first which are the instruments we need to power with the generator and, consequently, perform a simple calculation, as explained below, to identify the needed power that the generator need to eject.

Power required = Electric appliance consumption X Breakaway starting coefficient

The starting coefficient is a fundamental characteristic of any instrument which works with electric current because it indicates how much the consumption of the object increases. Therefore, this is needed to concretely determine how many WATT are necessary during the start-up operations.

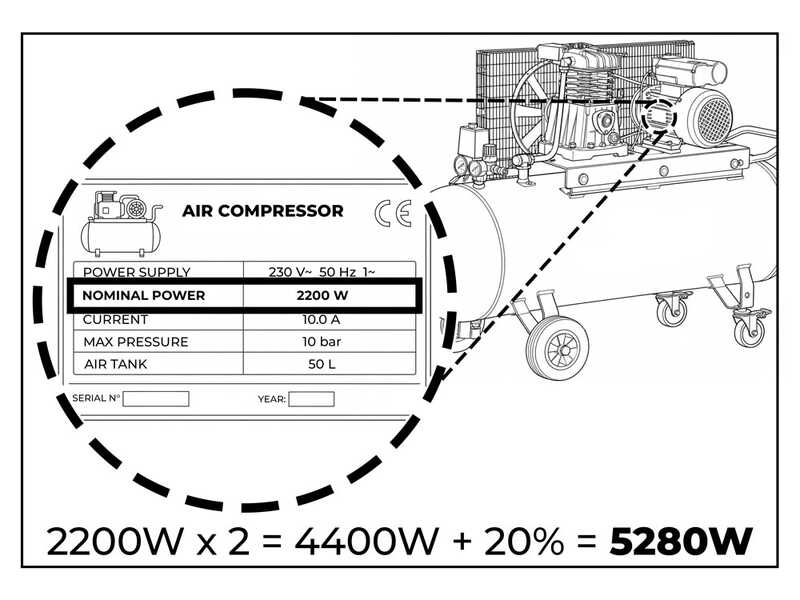

Example: Compressor (1500 Watt) X Starting coefficient (2) = 3000 Watt, hence you should orientate towards a generator which has a WATT power equal or superior to the result (*)

Check the consumption of the appliance on the instructions and maintenance manual or on the plate attached to the machine.

WARNING: the chart is purely indicative. Thanks to the formula above, you can easily calculate the power a generator should deliver to connect and start some specific products and select the model of generator which best suits your needs.

Current generator - Recommendations and fields of application

  • The generator must only be used to power individual pieces of electrical equipment (within the limits of its power output in KW, in relation to the in-rush absorption of this equipment, which must be less than the power output of the generator);

  • The generator can be used to supply power to domestic systems in the event of emergency (lack of power supply service from one's own electricity supplier in the household), only in versions specifically equipped with the ATS automatic start-up device (specially made for this purpose and equipped with the systems for connection to the domestic meter)

  • The generator was NOT designed for PROFESSIONAL use, and is therefore only suitable for occasional (non-frequent) use. Operating sessions must not exceed 3-4 continuous hours (which would lead to overheating or wear of the alternator, particularly its stator and rotor components). If a generator is needed for frequent use (e.g. one use per week), the user will have to look for another type of generator, specifically designed for frequent use, and more precisely a PROFESSIONAL or even better an INDUSTRIAL level generator (equipped not with a standard 3000 RPM alternator like this one, but with a professional alternator at low rpm: 1500 rpm - equipped with both liquid-cooled engine and alternator - having a very different level of specifications and price);

The generator is not designed to be installed in photovoltaic or solar panel systems for energy production, nor for recharging or maintenance of batteries of these specific or other electric systems. This use can seriously damage the generator on its internal components (alternator, engine and electrical component). All photovoltaic systems require a generator for INDUSTRIAL use (and not for domestic use like the present model), specifically designed and manufactured for this purpose. WE DO NOT PROVIDE WARRANTY on generators connected to photovoltaic systems, as this entails an IMPROPER USE OF THE UNIT.

Free items & Standard equipment

Free Items Included

Complimentary:

2 bottles of 10W40 oil, specific for 4-stroke engines

FREE: Heavy-duty cover for generator covering and storage

Perfect to protect your generator when it is not in use.

This cover is fast and easy to place: only few seconds to protect your machinery from dust and humidity.

Design to fit any generator size with its 73 cm length and 53 cm width.

It has been specifically designed to perfectly fit with your generator shape.

Easy to fold and store thanks to its small overall size.

Standard Equipment

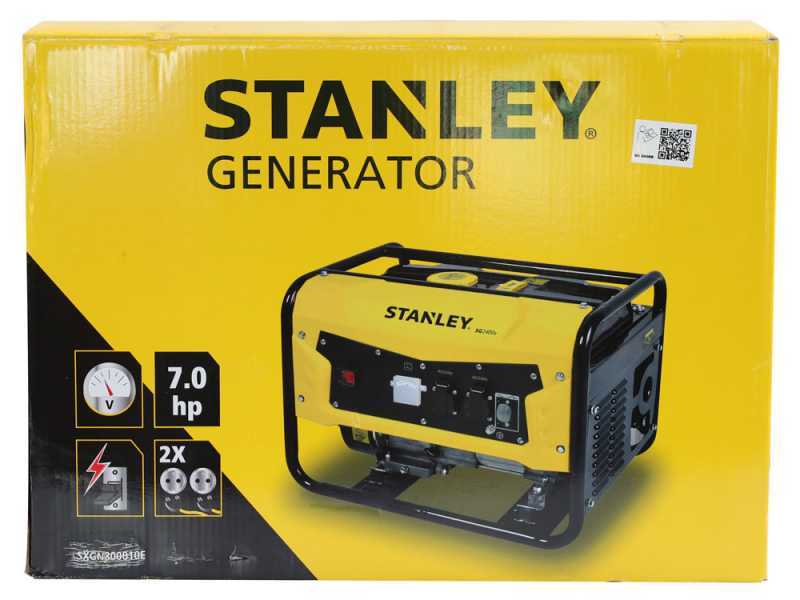

The power generator is shipped with not only its original packaging, but also a sturdy wooden pallet that guarantees absolute integrity of the product during transportation.

Instruction manual included.
