Stanley SIG 2000-1 - 2 kW Inverter Power Generator - DC 1.8 kW Single-phase

The Stanley SIG 2000-1 inverter power generator is an ideal device for those looking for a portable, reliable and user-friendly solution for powering various electrical devices. Weighing only 21 kg, it is designed to be easily transportable, making it suitable for a variety of applications, both for home use and for outdoor activities, such as camping or yard work.

This generator delivers a maximum power output of 2 kW, which is enough to power household appliances, power tools and other electronic devices in emergency situations or when far from the power grid. The control panel is simple and intuitive, with two 16A Schuko sockets for easy device plug-in.

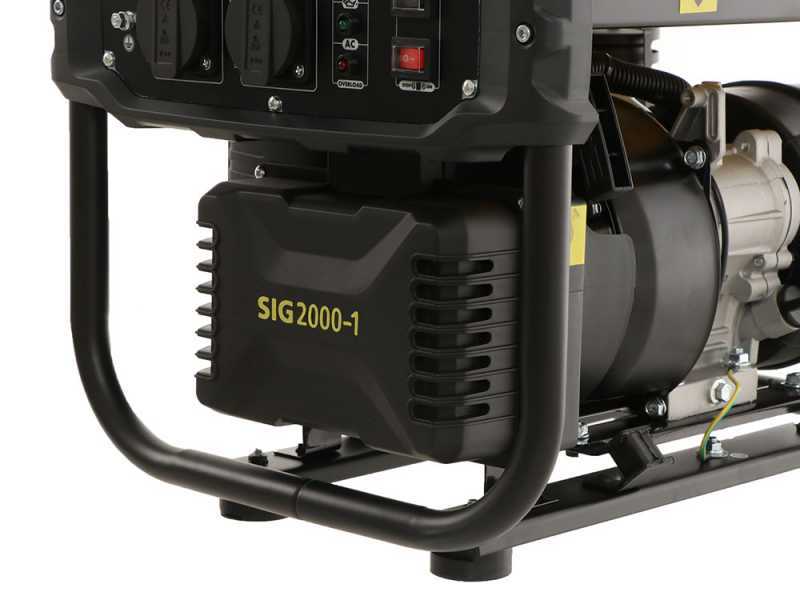

The robust and reliable 119 cc engine is designed for efficient and long-lasting operation. Thanks to its displacement, the generator can operate constantly and reliably. The petrol tank, with a 10-litre capacity, provides extended autonomy, reducing the need for frequent refuelling and ensuring greater convenience during extended use.

All in all, the Stanley SIG 2000-1 is a great choice for those who need a powerful yet easy-to-carry and user-friendly power generator with features that ensure reliable performance and long service life.

Inverter technology:

This generator produces electrical energy with a constant frequency and voltage, regardless of the variation of the load and the engine speed; this is made possible by the use of an electronic converter that disengages the amplitude of the input voltage from the output.

Unlike traditional generators, a permanent magnet generator is used together with a speed monitoring system of the engine rpm according to the actually used power, which allows a significant reduction of fuel consumption and less noise with the use of average loads downs.

The reliability and the quality of the energy produced with this system allows the power supply of electronic equipment such as computers, medical equipment, measuring instruments and any special equipment that is particularly sensitive to voltage and frequency variations.

Silenced generator:

This allows it to be used on campsites, campers, in public places, homes, flat blocks, town houses, hobbies or wherever silent electricity is required.

The generator is not designed for energy production, charging or maintaining batteries for the photovoltaic or solar panels systems (or similar); this can seriously damage the generator.

WARNING: All power generators like this one, belonging to one of the lower product levels of the PROFESSIONAL (reference to the product level rating scale used on this site) must not work for sessions longer than 3–4 hours continuously, in order not to compromise in the medium to long term durability of the alternator and other components due to overheating or wear. The same problem would present itself if these products were to be used daily or at least frequently. In all these cases, we recommend opting for generators classified as least as PROFESSIONAL, as listed on the rating scale on this website.

Maximum nominal power: 2 kW

Nominal power in continuous running (COP): 1.8 KW

* This is the data that must be taken into account as an actual and constant data in the generator’s output (it guarantees it unlimited hours)

Voltage: 230V

Operating frequency: 50 Hz

Fuel tank capacity: 10 L

Running time: 8 hours

Weight: 21 kg

Noise emissions: 93dBa

Engine type: 4-stroke petrol

Cylinder capacity: 119 cc

No. of cylinders: 1

Frequency: 50 Hz

Fuel tank capacity: 10 L

Type of cooling: air

MAX power autonomy: 8 hours
Start type: recoil start with self-recovery

WARNING: engine without oil
(fill with 4-stroke oil before starting the unit)

Major advantages over conventional 2-stroke mixture engines:

• Greater reliability
• Higher durability
• Easier start-up (especially after long periods of storage)
• Lesser problems related to the preparation and to the fuel freshness
• Lower fuel consumption (less than half!).
• Less maintenance

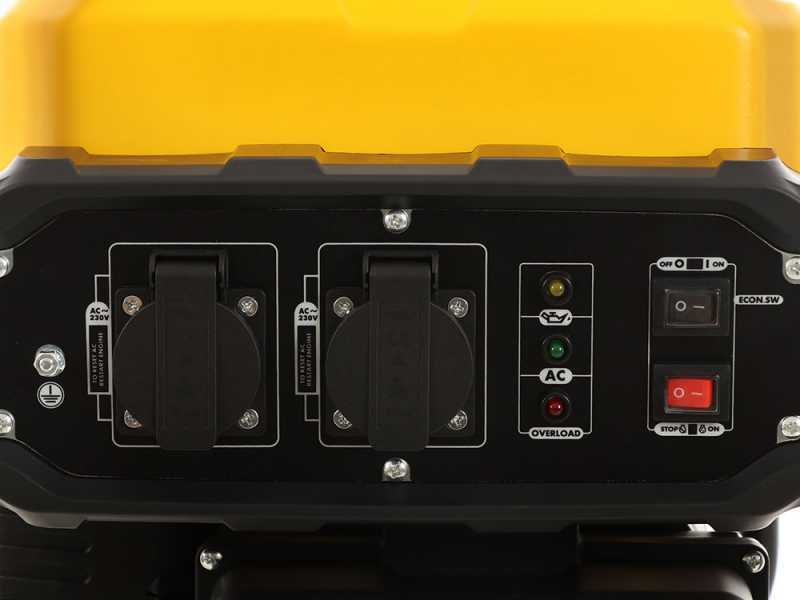

No. 2x Schuko IP44 16A power socket with 220 volts supply

Energy-saving button

Power button

INDICATOR LIGHTS:

- LEFT LIGHT: Oil warning system. Designed to prevent engine damage caused by an insufficient amount of oil. Before the oil level can drop below the safety limit, the red oil warning light turns on and the oil alarm system will automatically stop the engine. * Caution: the engine is supplied without oil

- RIGHT LIGHT: Power output. It switches on after the power switch is activated. Normally, only this green light should be on.

- MIDDLE LIGHT: - Overload warning. If the generator is overloaded, or if there is a malfunction or short-circuit in a connected piece of equipment, this red overload lamp lights up. In a few seconds time, the power supply is cut off and the green light goes out.
In this case, the engine must be switched off and the reason for the overload must be identified.

Among the additional features there are:

• Sight glass for checking the fuel level
• Tank plug
• Upper structure that facilitates transportation

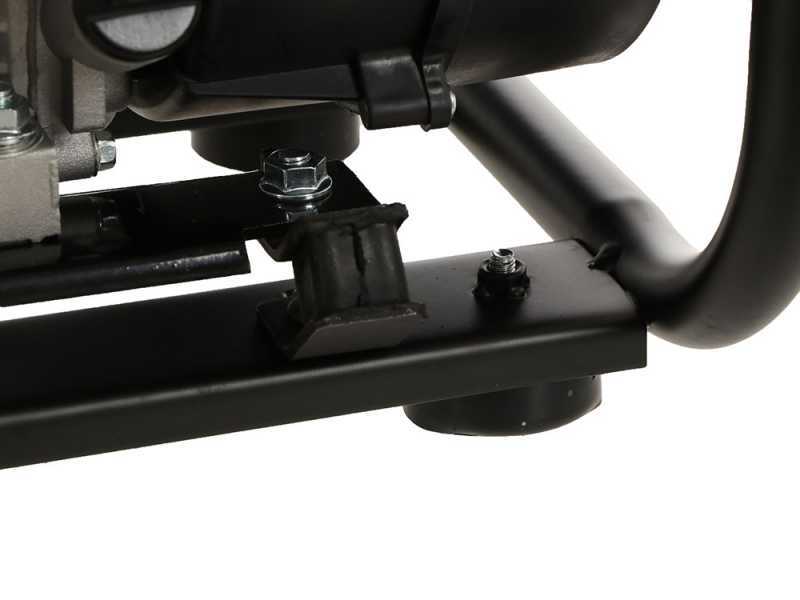

• Vibration dampers
• Grommets
• Earthing system

Exceptionally low weight: only 21 kg!

As far as the needed power is concerned, we now provide you with a handy chart to help you navigate among consumption, starting coefficients and watt.

The best criterion is to pinpoint first which are the instruments we need to power with the generator and, consequently, perform a simple calculation, as explained below, to identify the needed power that the generator need to eject.

Power required = Electric appliance consumption X Breakaway starting coefficient

The starting coefficient is a fundamental characteristic of any instrument which works with electric current because it indicates how much the consumption of the object increases. Therefore, this is needed to concretely determine how many WATT are necessary during the start-up operations.

Example: Compressor (1500 Watt) X Starting coefficient (2) = 3000 Watt, hence you should orientate towards a generator which has a WATT power equal or superior to the result (*)

Check the consumption of the appliance on the instructions and maintenance manual or on the plate attached to the machine.

WARNING: the chart is purely indicative. Thanks to the formula above, you can easily calculate the power a generator should deliver to connect and start some specific products and select the model of generator which best suits your needs. And remember that to operate the electronic equipment (computers, televisions and all the equipment equipped with an electronic card) must purchase a current with "inverter" generator (which stabilizes the output current).

• This inverter generator is equipped with an ELECTRONIC CARD in order to stabilise the output current, generating an almost perfect wave.
  This makes it particularly suitable for application in certain uses, but also not suitable for others.

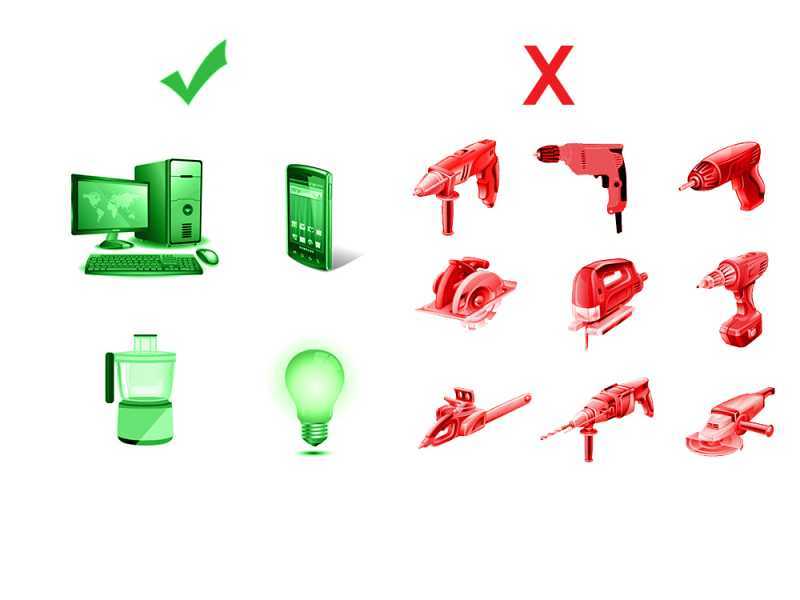

  Some examples of FIELD OF APPLICATION: Feeding of all kinds of electronic equipment (being equipped with electronic card which consequently require a very stable power to avoid the risk of damaging such cards), appliances, equipment and kitchen and domestic equipment, lights and lamps; In conclusion they are specific to a strictly domestic use or for holiday and leisure use (in a camper, boat, etc ...)

  Some examples of NON APPLICATION FIELDS: Construction equipment, workshop equipment, do-it-yourself, welding machines, equipment of any kind equipped with brush motors (which in the event of wear on the brushes can move back towards the generator some power surges that can damage the generator electronic card); basically, for all this list of working, construction or artisan equipment, an inverter generator is too delicate and therefore inadequate, therefore it is necessary to focus on a classic generator, not with inverter card, but equipped with the classic alternator with stator and heavy rotor, most suitable for powering this equipment.

  We remind you that the inverter generator was designed for NOT PROFESSIONAL use, it is therefore apt for occasional use (not frequent). The working sessions must not be over 3-4 continuous hours (which would cause the alternator to overheat and wear) If you need a generator for frequent use (for example once a week), the user should look towards another type of generator, specifically intended for a frequent use and precisely a PROFESSIONAL or even INDUSTRIAL quality-level generator;

  The generator is not designed to be installed in photovoltaic or solar energy systems for energy production nor for the recharging or maintenance of batteries of these specific or other electric systems. Indeed, it may damage seriously the generator on its internal components (alternator, engine and electrical component). Each photovoltaic system requires a generator for INDUSTRIAL use (not for domestic use as this present model), specifically designed and manufactured for this purpose. WE DO NOT PROVIDE WARRANTY on generators connected to photovoltaic systems, as this entails an IMPROPER USE OF THE UNIT.
