Stanley SIG 1200S - 1,02 kW Inverter Power Generator - DC 1 kW Single-phase

Add a question
ID: K608866

EAN: 4250116825493

MPN: 604800070

7,0/10
After-sales assistance & Spare parts
Stanley SIG 1200S - 1,02 kW Inverter Power Generator - DC 1 kW Single-phase
FREE
2 bottles of 1 L oil each2 bottles of 1 L oil each
Cover sheetCover sheet
Power supply
Petrol
Type
Portable
Electric Current
Single-phase
Single-phase rated power
1 kW
Max. power
1.02 kW
Inverter technology
Yes
Silenced
Yes
Motor brand
Producer-manufactured
Cubic capacity
53.5 cm³
Nominal power
2 HP
Product Features
Model:
SIG 1200S
Power supply:
Petrol
Type:
Portable
Electric Current:
Single-phase
Voltage stabiliser:
Inverter
Single-phase power supply 220 V:
Yes
Frequency:
50 Hz
Inverter board:
Yes
Single-phase rated power :
1 kW
Max. power:
1.02 kW
Tank capacity:
4.5 L
Electric start:
No
Manufacturing country:
China
Motor data
Cubic capacity:
53.5 cm³
No. of cylinders:
1
Nominal power:
2 HP
Silenced:
Yes
Fuel:
Petrol
Engine lubrication system:
Oil bath
Decompression system:
Automatic
Tank capacity:
4.5 L
Manufacturing country:
China
Equipment
Automatic Transfer Switch (ATS):
No
Inverter technology:
Yes
Battery charger:
No
Shuko power outlet:
1
Recoil start system (with rope):
Yes
Free gifts/extra features
Instructions manual:
Yes

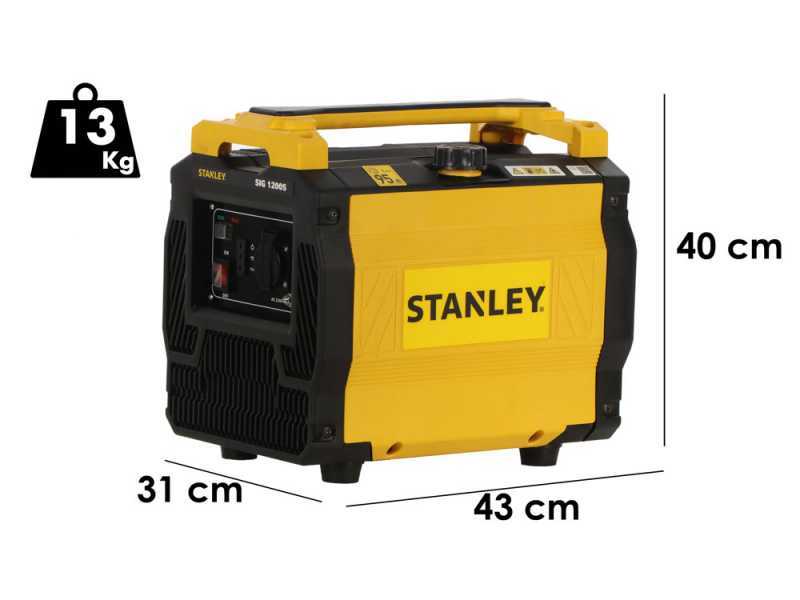

Dimensions and logistics
Product dimensions in cm (L x W x H):
43x31x40 cm
Net weight:
13 Kg
Packaging:
Original packaging
Original packaging/s dimensions in cm (L x W x H):
45x33x43 cm
Gross weight (packaging included) :
15 Kg
Assembly time:
Assembled
Prompt Delivery
5 items in stock
Free Shipping
Estimated delivery: 25/02/2025 - 27/02/2025
€ 324,92
Vat included
You're viewing:
Customers also viewed:
Description

Stanley SIG 1200S Inverter Power Generator

The Stanley SIG 1200S inverter power generator is extremely easy to use and practical to transport, thanks to its compact design and low weight of only 13 kg.

This model is able to deliver a maximum power of 1.02 kW.

The control panel includes a 16A Schuko socket, signal lights, and buttons for switching on and selecting the power supply mode.

It is equipped with an engine with a 53.5 cc displacement and a 2 HP power rating, while the fuel tank can hold up to 4.5 litres.

Inverter technology:

This generator produces electrical energy with a constant frequency and voltage, regardless of the variation of the load and the engine speed; this is made possible by the use of an electronic converter that disengages the amplitude of the input voltage from the output.

Unlike traditional generators, a permanent magnet generator is used together with a speed monitoring system of the engine rpm according to the actually used power, which allows a significant reduction of fuel consumption and less noise with the use of average loads downs.

The reliability and the quality of the energy produced with this system allows the power supply of electronic equipment such as computers, medical equipment, measuring instruments and any special equipment that is particularly sensitive to voltage and frequency variations.

Silenced generator:

Silenced Generator: This aspect allows the use in camping sites, mobile homes, in public places, homes, condos, villas, town houses, hobby or wherever it is required silent electricity.


The generator is not designed for energy production, charging or maintaining batteries for the photovoltaic or solar panels systems (or similar); this can seriously damage the generator.

WARNING: All power generators like this one, belonging to one of the lower product levels of the PROFESSIONAL (reference to the product level rating scale used on this site) must not work for sessions longer than 3–4 hours continuously, in order not to compromise in the medium to long term durability of the alternator and other components due to overheating or wear. The same problem would present itself if these products were to be used daily or at least frequently. In all these cases, we recommend opting for generators classified as least as PROFESSIONAL, as listed on the rating scale on this website.

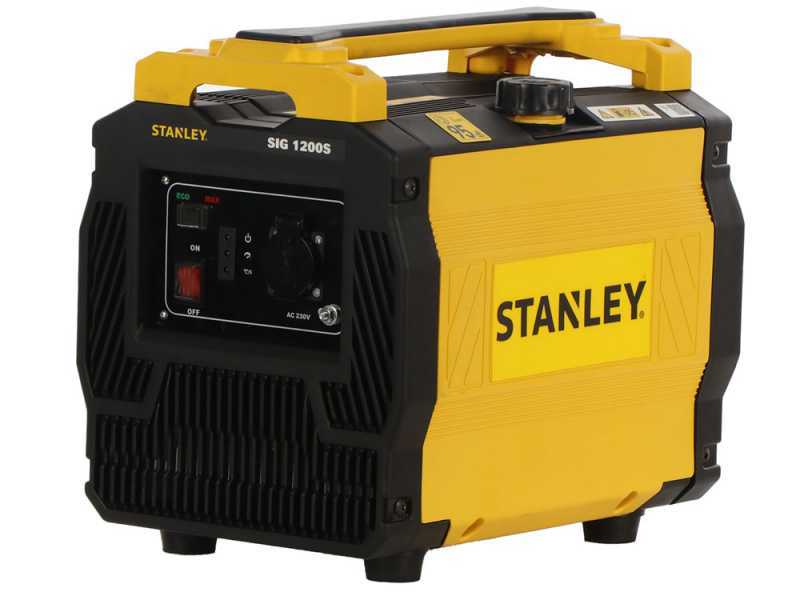

Technical Features

Maximum nominal power: 1.02 kW

Nominal power in continuous running (COP): 1 KW

* This is the data that must be taken into account as an actual and constant data in the generator’s output (it guarantees it unlimited hours)

Voltage: 230V

Operating frequency: 50 Hz

Fuel tank capacity: 4.5 L

Running time: 5 hours

Weight: 13 kg

The Engine and Muffler

Engine type: 4-stroke petrol

Cylinder capacity: 53.5 cc

No. of cylinders: 1

Frequency: 50 Hz

Nominal power: 2 HP

Fuel tank capacity: 5 L

Type of cooling: air

Max power autonomy: 5 hours

Starter type: recoil start with self-recovery

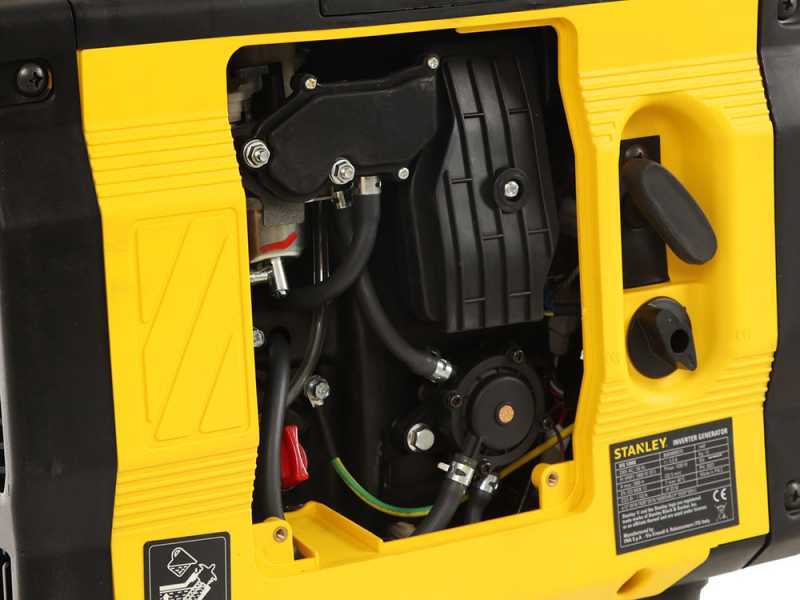

Equipped with a practical opening front door for easy access and maintenance of internal components.

WARNING: the engine is provided without oil
(fill with 4-stroke oil before starting the unit)

Major advantages over conventional 2-stroke mixture engines:

  • Greater reliability
  • Higher durability
  • Easier start-up (especially after long periods of storage)
  • Lesser problems related to the preparation and to the fuel freshness
  • Lower fuel consumption (less than half!).
  • Less maintenance

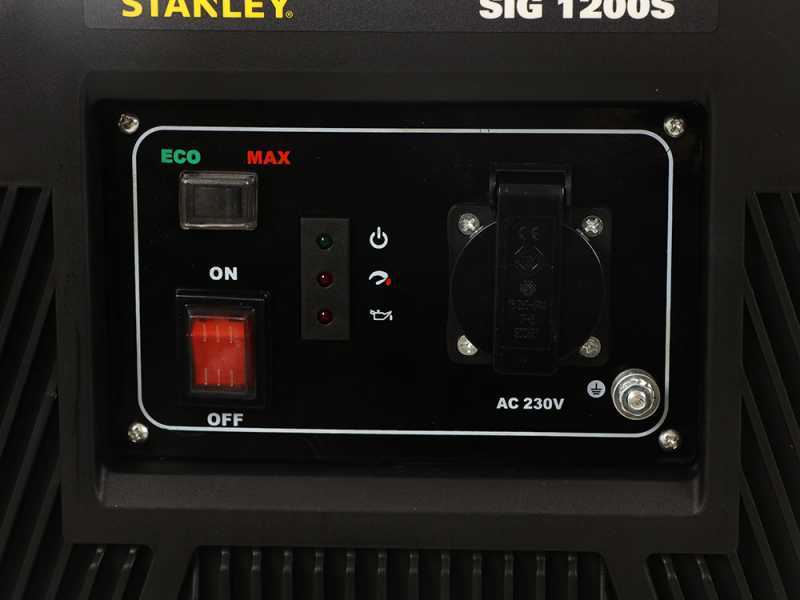

Control Panel

No. 1 Schuko power socket IP44 16A with 220 volts supply

Energy-saving button

Power switch

INDICATOR LIGHTS:

- BOTTOM LIGHT: Oil warning system. Designed to prevent engine damage caused by an insufficient amount of oil. Before the oil level falls below the safety limit, the red oil warning light switches on and the oil alarm system automatically stops the engine. * Caution: the engine is supplied without oil

- TOP LIGHT: Power output. It switches on after the power switch is activated. Normally, only this green light should be on.

- MIDDLE LIGHT: - Overload warning. If the generator is overloaded (more than 1.7 kW), or if there is a malfunction or short-circuit in a connected equipment, this red overload lamp lights up. In a few seconds time, the power supply is cut off and the green light goes out.
In this case, the engine must be switched off and the reason for the overload must be identified.

Additional Features

Other details include:

  • Equipped with rubber support feet for maximum stability

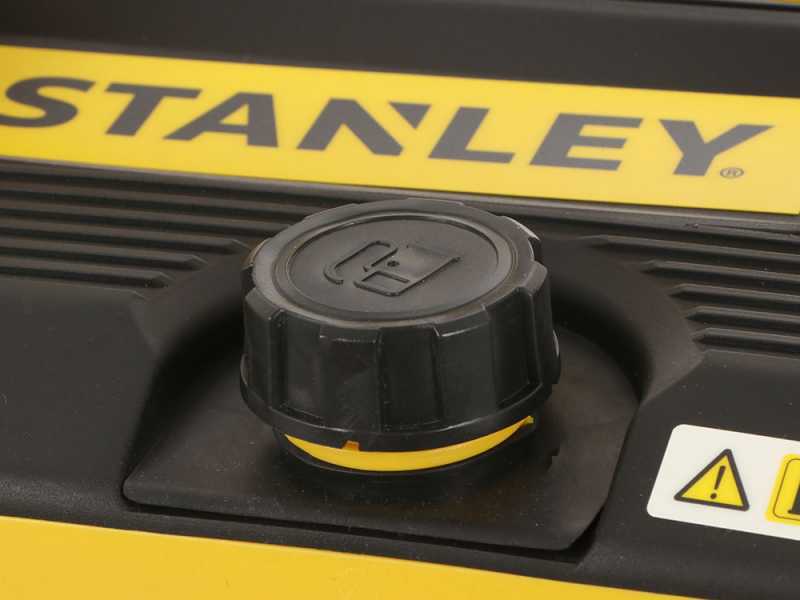

  • Detail of the tank cap
  • Carrying handle

Exceptionally low weight: only 13 kg!

How To Select The Correct Power Rating Of The Generator

As far as the needed power is concerned, we now provide you with an handy chart to help you navigate among consumption, starting coefficients and watt.

The best criterion is to pinpoint first which are the instruments we need to power with the generator and, consequently perform a simple calculation, as explained below, to identify the needed power that the generator need to eject.

Power required = Electric appliance consumption X Breakaway starting coefficient

The starting coefficient is a fundamental characteristic of any instrument which works with electric current because it indicates how much the consumption of the object increases. Therefore, this is needed to concretely determine how many WATT are necessary during the start-up operations.

Example: Compressor (1500 Watt) X Starting coefficient (2) = 3000 Watt, hence you should orientate towards a generator which has a WATT power equal or superior to the result (*)

Check the consumption of the appliance on the instructions and maintenance manual or on the plate attached to the machine.

WARNING: the chart is purely indicative. Thanks to the formula above you can easily calculate the power a generator should deliver to connect and start some specific products and select the model of generator which best suits your needs. And remember that to operate the electronic equipment (computers, televisions and all the equipment equipped with an electronic card) must purchase a current with "inverter" generator (which stabilizes the output current).

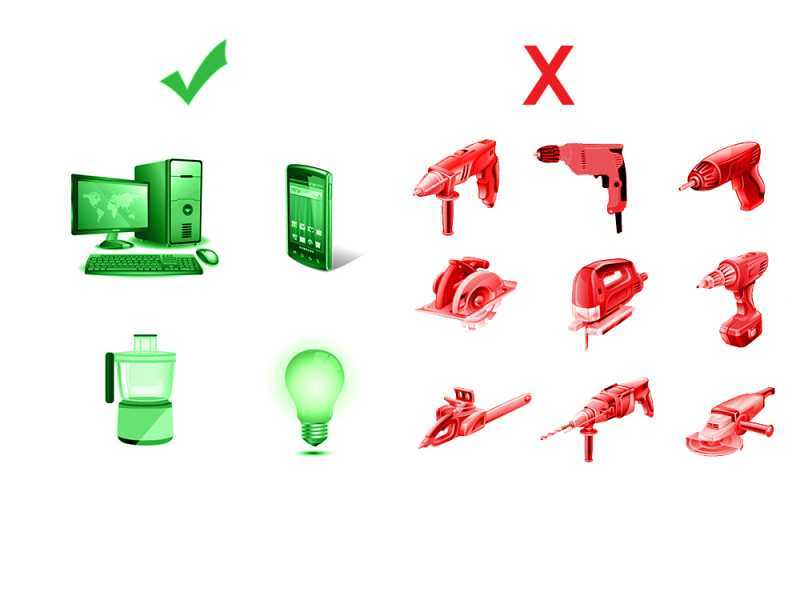

Power Generator – Recommendations and Scope

  • This inverter generator is equipped with an ELECTRONIC CARD in order to stabilise the output current, generating an almost perfect wave.
    This makes it particularly suitable for application in certain uses, but also not suitable for others.
    Some examples of FIELD OF APPLICATION: Feeding of all kinds of electronic equipment (being equipped with electronic card which consequently require a very stable power to avoid the risk of damaging such cards), appliances, equipment and kitchen and domestic equipment, lights and lamps; In conclusion they are specific to a strictly domestic use or for holiday and leisure use (in a camper, boat, etc ...)

    Some examples of NON APPLICATION FIELDS: Construction equipment, workshop equipment, do-it-yourself, welding machines, equipment of any kind equipped with brush motors (which in the event of wear on the brushes can move back towards the generator some power surges that can damage the generator electronic card); basically, for all this list of working, construction or artisan equipment, an inverter generator is too delicate and therefore inadequate, therefore it is necessary to focus on a classic generator, not with inverter card, but equipped with the classic alternator with stator and heavy rotor, most suitable for powering this equipment.

    We remind you that the inverter generator was designed for NOT PROFESSIONAL use, it is therefore apt for occasional use (not frequent). The working sessions must not be over 3-4 continuous hours (which would cause the alternator to overheat and wear) If you need a generator for frequent use (for example once a week), the user should look towards another type of generator, specifically intended for a frequent use and precisely a PROFESSIONAL or even INDUSTRIAL quality-level generator;

    The generator is not designed to be installed in photovoltaic or solar energy systems for energy production nor for the recharging or maintenance of batteries of these specific or other electric systems. Indeed, it may damage seriously the generator on its internal components (alternator, engine and electrical component). Each photovoltaic system requires a generator for INDUSTRIAL use (not for domestic use as this present model), specifically designed and manufactured for this purpose. WE DO NOT PROVIDE WARRANTY on generators connected to photovoltaic systems, as this entails an IMPROPER USE OF THE UNIT.

Free items & Standard equipment

Free Items Included

Complimentary:

2 bottles of 10W40 oil, specific for 4-stroke engines

FREE: Heavy-duty cover for generator covering and storage

Perfect to protect your generator when it is not in use.

This cover is fast and easy to place: only few seconds to protect your machinery from dust and humidity.

Design to fit any generator size with its 73 cm length and 53 cm width.

It has been specifically designed to perfectly fit with your generator shape.

Easy to fold and store thanks to its small overall size.

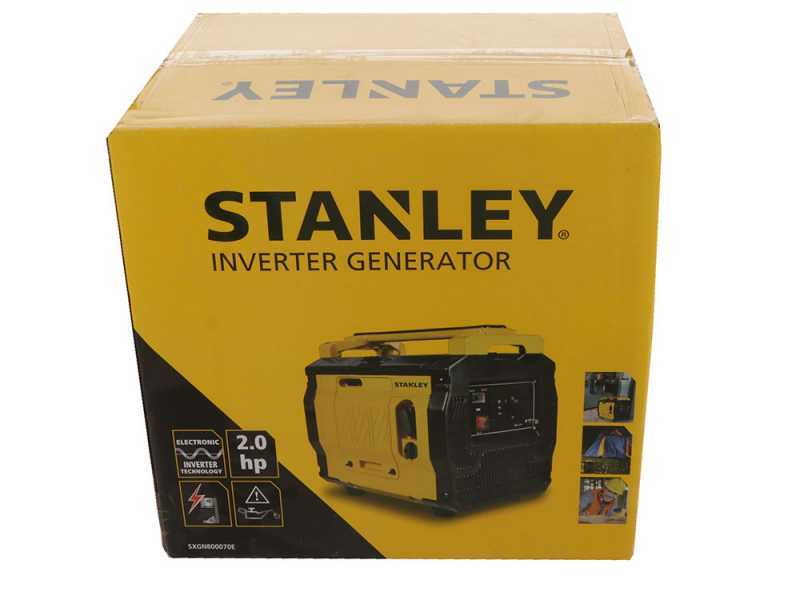

Standard Equipment

The generator is shipped in its original packaging that includes:

  • Spark plug wrench
  • Screwdriver
  • Funnel
  • Instruction manual
