Name: Stanley Fatmax B 400/10/100 - Belt-driven Electric Air Compressor - 3HP Motor - 100 L
Brand: Stanley
Price: 705.89 EUR
Availability: InStock
Rating: 4 (6 reviews)

Description

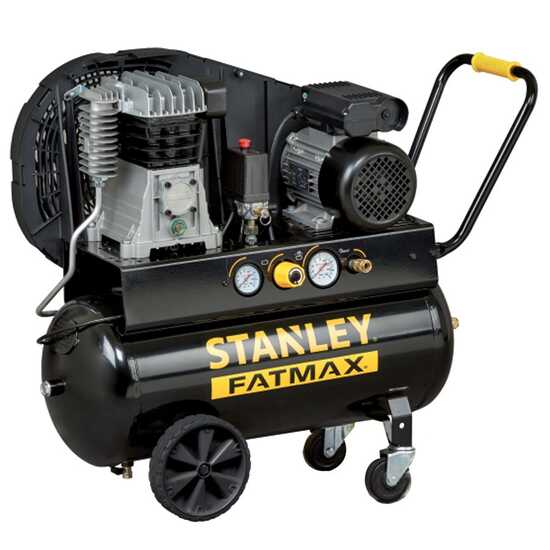

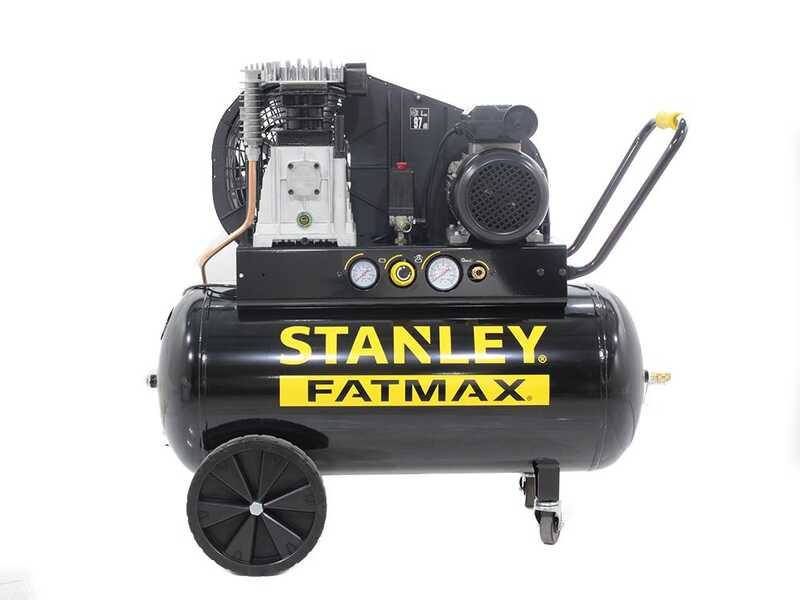

Stanley B 400/10/100 Twin-cylinder Electric Air Compressor

Stanley B 400/10/100 Air Compressor
Main features:

B 400 (Air intake flow 390 L/min)

10 - 10 bar Maximum pressure

100 - Tank capacity in litres 100 L

The Stanley B 400/10/100 air compressor is regarded as the best choice among hobbyists looking for a reliable, silent and high-performing equipment.

Powered by a 3 Hp single-phase electric motor, this air compressor features a compressed air suction capacity of 390 L/min. It is capable of reaching a maximum pressure of 10 bar.

It comes with a large-sized compressed air storage tank of 100 L.

The air compressor weighs 66 Kg and can be easily transported thanks to its three wheels and the upper handle.

Suitable for a number of applications:

Air blowing
Inflation
Air brushing
Nailing - Stapling
Spraying treatments
Painting
Professional painting
Screw driving
Washing operations
Chiselling
Polishing
Grinding

Stanley Fatmax B 400/10/100 - Belt-driven Electric Air Compressor - 3HP Motor - 100 L

Technical features

Air intake flow: 390 L/min

Pumping unit type: belt-driven

Pressure: 10 bar

Electric motor power: 3 Hp

Tank: 100 L

Overall dimensions:
- Width: 1025 mm
- Height: 925 mm
- Depth (or thickness): 435 mm

Weight: 66 kg

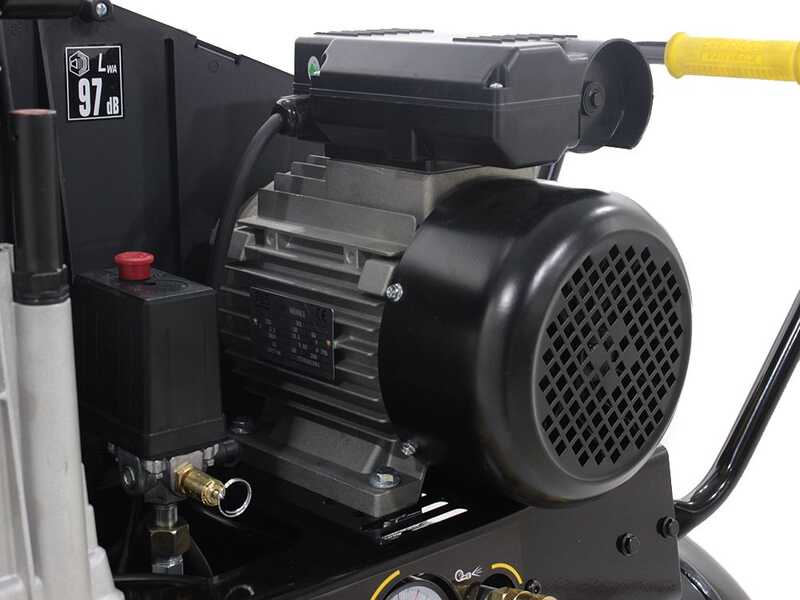

3 Hp single-phase electric induction motor

Power supply: 230 V single-phase

Power: 3 Hp
The induction motor is characterised by a very long service life and low maintenance requirements.

In fact, this motor is brushless, the brushes being the main component subject to wear in electric motors. The absence of this component grants high durability to the motor.

It is a top product in terms of reliability, low noise, durability, energy efficiency and maintenance.

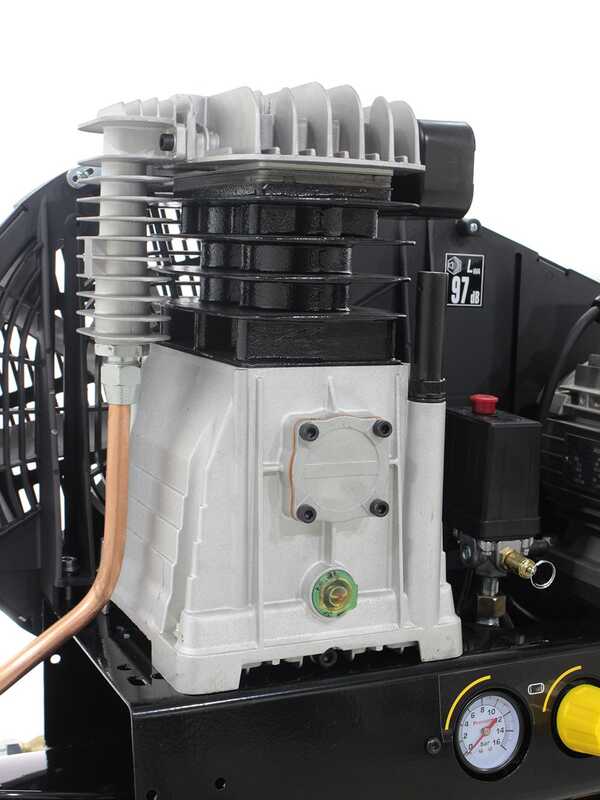

B3800B cylinder head

Air intake flow: 390 L/min
Cylinder head type: twin-cylinder with cast iron cylinders
Suction type: single stage
Lubrication: oil
No. of revolutions: 1100 rpm

The degree of professionalism and more generally the life of the air compressor is largely determined by the number of revolutions per minute of the cylinder head.

The lower the rpm, the longer the life of the air compressor. The reduction ratio of the number of revolutions is obtained by the pulleys of different diameter that are fitted to the motor and to the cylinder head respectively.

The pumping unit is equipped with porthole for oil level control

Focus on the side cooling manifold, it keeps the compressed air outlet temperature low.

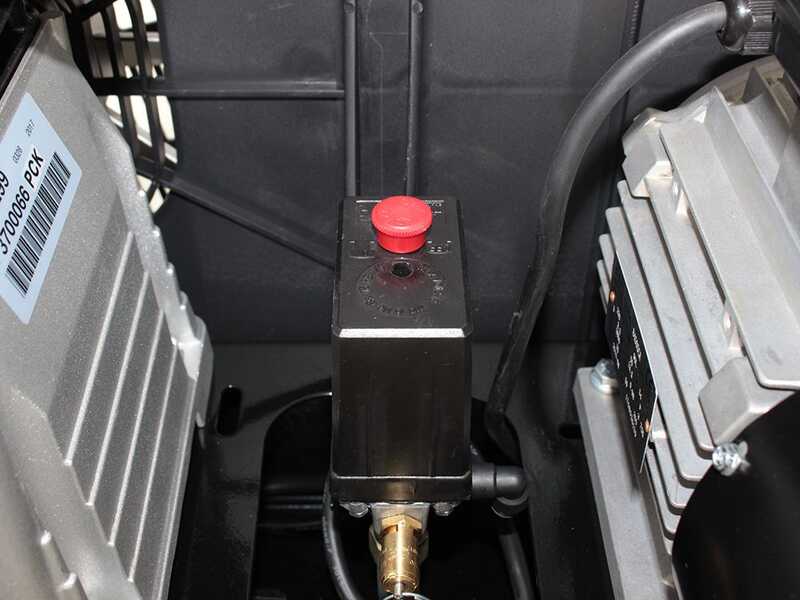

Controls

The B 400/10/100 air compressor features easy and user-friendly controls, which are divided into:

Power switch

Output air pressure gauge

Tank air pressure gauge

Air compressor female outlet fittings

Pressure adjusting knob

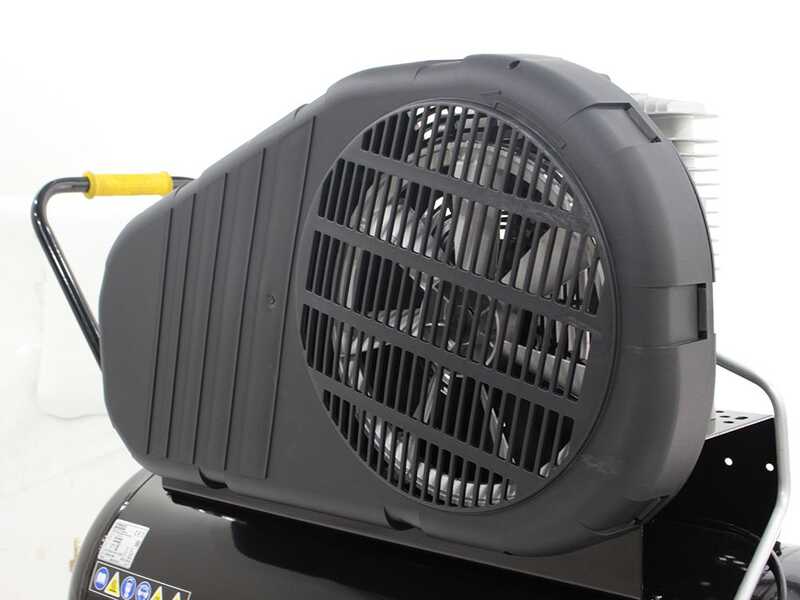

Belt drive

These Stanley air compressors feature a belt drive.

The use of the belt, combined with an induction motor, contributes to the durability of this air compressor, drastically reducing the number of revolutions of the cylinder head, increasing its life and reducing wear.

The grid protection serves to prevent the drive belt and the transmission from being damaged by external objects that might hit it during operation. It also allows the status of the drive belt to be continuously checked.

Other features

Single phase cable

Ergonomic handle

Large sturdy plastic wheels

Front swivelling wheels

Tank quick coupling

Condensate drain valve

Free items & Standard equipment

1° GIFT: air compressor maintenance kit with oil bottle and joints

Maintenance kit provided on standard equipment includes:

Air compressor spare/replacing female output joint
Air compressor spare/replacing male output joint (replaceable on equipment with bayonet cap) or usable as spare joint
Quick joint to convert all the machineries fitted with standard bayonet cap. It allows easily connecting the units to hoses with female quick joint.
Quick joint for converting the female output joint supplied on the air compressor into the traditional bayonet cap (also allows the use of the standard hoses with bayonet system)
Repair/Junction fitting for Ø 8 hoses

Repair/Junction fitting for Ø 10 hoses

Lower tank discharge valve replacement air compressor

Teflon roll, ideal for the main maintenance operations

2° GIFT: 600 ml "COMPRIX” oil bottle

COMPLIMENTARY: 600 ml "COMPRIX” oil bottle, professional oil specifically designed for air compressor cylinder heads. Very useful for oil refill and first oil replacement (the air compressor is shipped already filled with oil).

Standard equipment

The air compressor is shipped in its original packaging.

Instructions manual included.
