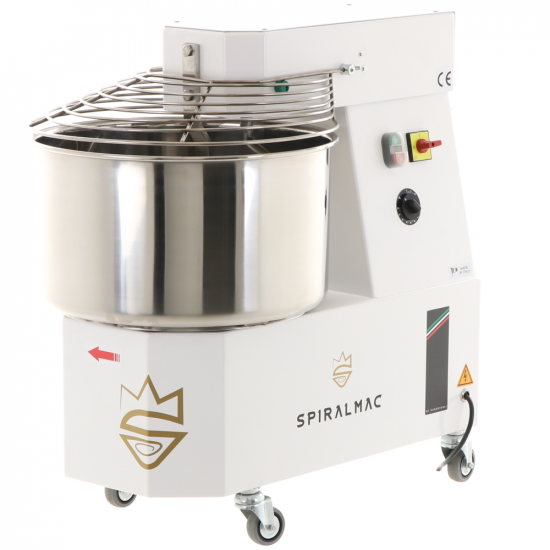

SPIRALMAC SV38 - Spiral mixer - Single phase - 38 Kg - 2 HP

Add a question
ID: K603281

EAN: 9999991095212

MPN: 02-SV38M-B

7,8/10
After-sales assistance & Spare parts
SPIRALMAC SV38 - Spiral mixer - Single phase - 38 Kg - 2 HP
Free gifts from AgriEuro
Free items: Chef's hatFree items: Chef's hat
Chef's apronChef's apron
Out of stock
Free Shipping
€ 1.535,38
Vat included
Technical data
Spiral hook
yes
Dough Capacity
38 Kg
Tank capacity
41 L
Speed levels
1
hydration max
70 %
Medium doughs
yes
Hard doughs
yes
Minimum dough
4 Kg
Operating mode
Single-phase 230 V
Nominal power
2 HP
Induction
Offset breaker bar
Yes
Electronic timer
Yes
Recommended for
Pizza
Recommended for
Bread
Recommended for
Focaccia bread
Recommended for
Breadsticks
Recommended for
Piadina
Recommended for
Taralli
Recommended for
Biscuits
Recommended for
Egg mixtures
Recommended for
Fresh pasta
Warranty
2 years
Manufacturing country
Italy
Product Features
Model
SV38
Body material
Enamelled steel
Typology
Wheeled
Medium doughs
yes
Hard doughs
yes
Spiral hook
yes
Mixing head type
Fixed
Dough Capacity
38 Kg
hydration max
70 %
Speed levels
1
Tank capacity
41 L
Operating mode
Single-phase 230 V
Flour quantity
22 Kg
Water quantity
16 L
Hourly output
114 kg/h
Minimum dough
4 Kg
Spiral - rpm (min)
90 rpm
Spiral - rpm (max)
90 rpm
Bowl - rpm (min)
10 rpm
Bowl - rpm (max)
10 rpm
Offset breaker bar
Yes
Warranty
2 years
Dough mixing time
Standard
Manufacturing country
Italy
Motor data
Induction
Nominal power
2 HP
Nominal power (W)
1500 W
Power supply
220 V electric
Manufacturing country
Italy
Transmission data
Transmission type
Chain
Cutting data
Recommended for
Pizza
Recommended for
Bread
Recommended for
Focaccia bread
Recommended for
Breadsticks
Recommended for
Piadina
Recommended for
Taralli
Recommended for
Biscuits
Recommended for
Egg mixtures
Recommended for
Fresh pasta
Equipment
CE-compliant safety switch
CE-compliant
Wheeled trolley for transport
Yes
Electronic timer
Yes
Rotating Bowl
Stainless steel
Rotating spiral arm
stainless steel
Central breaker bar
Stainless steel
Lifting safety grid
Stainless steel
24 V electric system
Yes
Free gifts/extra features
Apron
Yes
Instructions manual
Yes
Dimensions and logistics

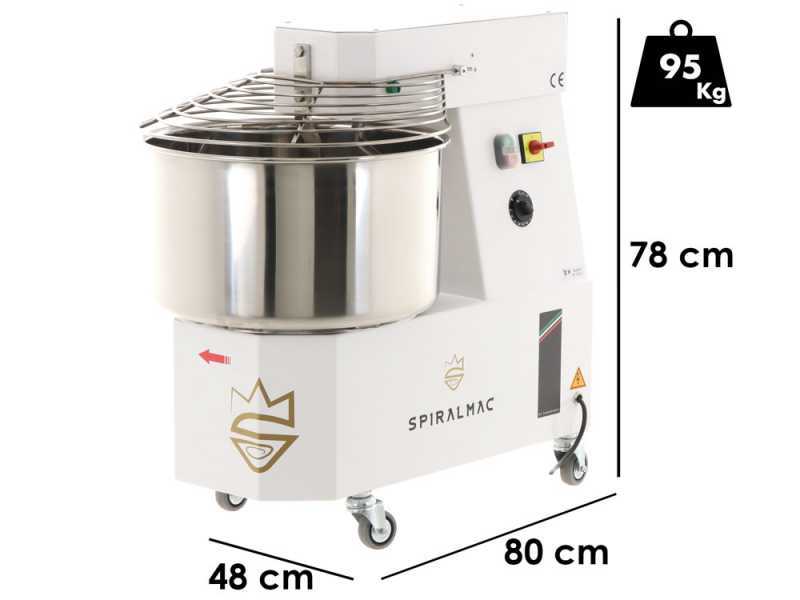

Product dimensions in cm (L x W x H)
80x48x78 cm
Net weight
95 Kg
Packaging
On pallet
Original packaging/s dimensions in cm (L x W x H)
81x50x85 cm
Weight including packaging
100.5 Kg
Assembly time
Assembled
Add Accessories and get a discount
You're viewing:
Customers also viewed:
Description

Heavy-duty SPIRALMAC SV38 Spiral Mixer - 38 Kg - 2 hp

The SPIRALMAC SV38 spiral kneading machine has been designed to meet the needs of customers who want an effective and long-lasting product.

High-performing results, even thanks to the specially designed spiral.

The SPIRALMAC SV38 spiral mixer is equipped with:

  • stainless steel protection grid
  • Curved central stainless steel breaker bar
  • excellent spiral speed
  • exceptional hourly yield

The SPIRALMAC SV38 is intended for both home and professional use.


All SPIRALMAC spiral mixers are equipped with the following features, which make the product among the best mixers on the market:

  • Oversized motor power to process any type of dough without any difficulty, even the most demanding dough processing
  • Oversized chain for greater reliability and durability
  • Drive with oil-bath gear motor, which results in high power, sturdiness, reliability and, quietness
  • EC-compliant 24 V PROFESSIONAL power supply
  • All the components of the machine are MADE IN ITALY to guarantee a very high-quality product.

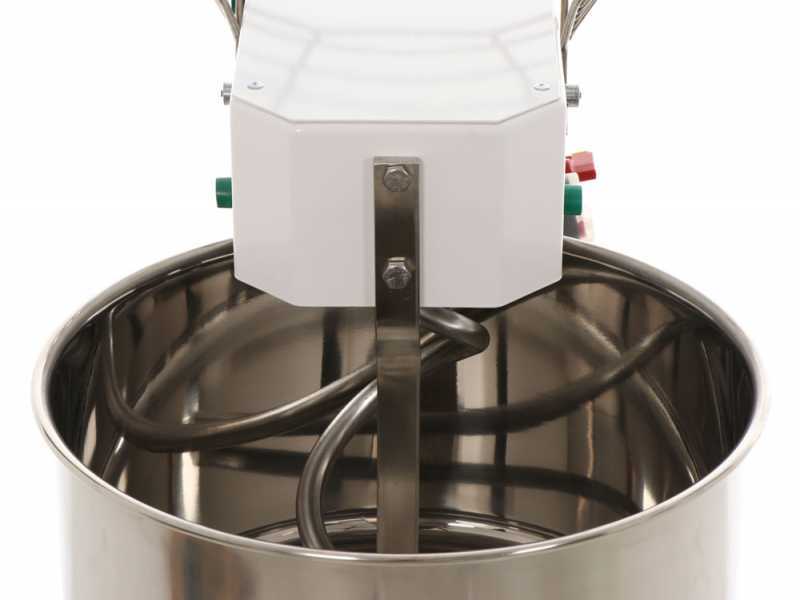

Main Features

The SPIRALMAC SV38 single-phase spiral mixer is one of the best benchtop machines, which allow you to work even the most complex doughs in the best possible way.

The SV38 single-phase model, part of the Professional is intended for even processing complex doughs.

Conceived and designed as the best spiral mixers, the SV38 is suitable for both excellent professional use.

The extreme attention to the smallest details makes the machine reliable, silent and with low consumption.

Excellent to prepare baked goods, doughs and confectionery products.

The SPIRLMAC SV38 single-phase has a maximum flour capacity of 22 Kg, an hourly dough of 114 Kg/h making it a simple machine that can be used for professional use in professional kitchens but also in small bakeries.

It also features the option to rotate the spiral at a maximum of 90 rpm.

This spiral mixer is equipped with automatic stop device that stops its running when the stainless steel grid is raised during use.

The internal chain transmission ensures resistance to wear and extremely reduced noise level.

All the components directly touching the dough are made of INOX stainless steel.

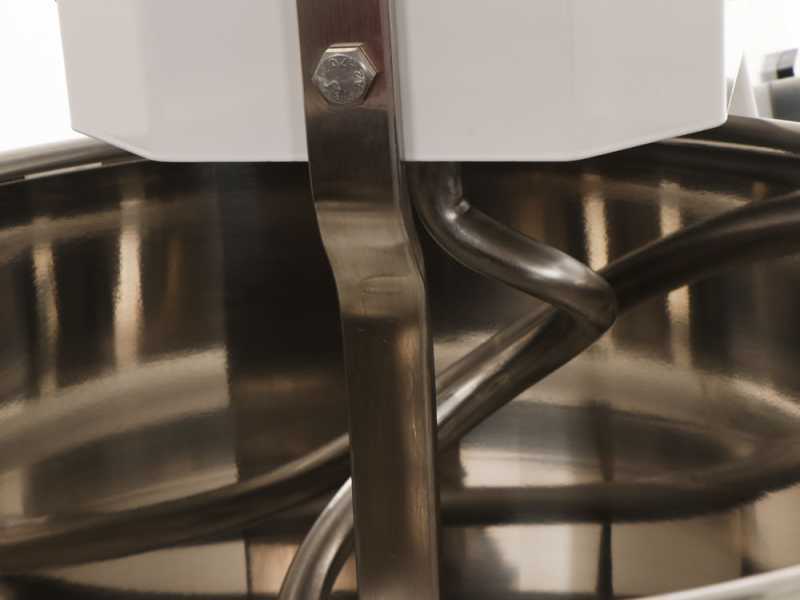

Technical Specifications

  • Dough capacity: 38 KG
  • Flour: 22 kg
  • Water: 13 L
  • Engine power: 2 hp
  • Curved central stainless steel breaker bar
  • "CE”-compliant safety system
  • “CE” safety micro-switch
  • Power supply: 230 V
  • CE Certification
  • Weight: 95 kg
  • Size: 48x80x78 cm
Free items & Standard equipment

Complimentary chef's hat and apron

1 Chef's hat:

  • 24 cm high double fabric band
  • Upper part sewn with pleats
  • Total height in cm. 43
  • 100% non-shrink cotton, 190 g/m2 weight
  • One size

1 Chef's apron:

  • Same fabric for neck and hip strings
  • 1 cm perimeter edge
  • 100% non-shrink cotton,260 g/m2 weight - drill 3/1
  • Size: 70x85 cm
  • Colour: white

Free Items included

The spiral mixer is shipped in its original packaging together with the instruction manual.
