SPIRALMAC SV20 - Spiral Mixer - Three-Phase - 20 Kg

Add a question
ID: K603251

EAN: 9999991095144

MPN: 02-SV20T-B

7,8/10
After-sales assistance & Spare parts
SPIRALMAC SV20 - Spiral Mixer - Three-Phase - 20 Kg
Free gifts from AgriEuro
Free items: Chef's hatFree items: Chef's hat
Chef's apronChef's apron
Technical data
Dough Capacity
20 Kg
Tank capacity
24 L
Speed levels
1
hydration max
70 %
Medium doughs
Hard doughs
Minimum dough
2 Kg
Operating mode
Three-phase 400 V
Nominal power
1.5 HP
Motor type
Induction
Electronic timer
Yes
Recommended for
Pizza
Recommended for
Bread
Recommended for
Focaccia bread
Recommended for
Breadsticks
Recommended for
Piadina
Recommended for
Taralli
Recommended for
Biscuits
Recommended for
Egg mixtures
Recommended for
Fresh pasta
Warranty
2 years
Manufacturing country
Italy
Product Features
Model
SV20
Body material
Enamelled steel
Typology
Wheeled
Medium doughs
Hard doughs
Mixing head type
Fixed
Dough Capacity
20 Kg
hydration max
70 %
Speed levels
1
Tank capacity
24 L
Operating mode
Three-phase 400 V
Flour quantity
13 Kg
Water quantity
7 L
Hourly output
60 kg/h
Minimum dough
2 Kg
Spiral - rpm (min)
90 rpm
Spiral - rpm (max)
180 rpm
Bowl - rpm (min)
10 rpm
Bowl - rpm (max)
20 rpm
Warranty
2 years
Dough mixing time
Standard
Manufacturing country
Italy
Motor data
Motor type
Induction
Nominal power
1.5 HP
Nominal power (W)
1100 W
Power supply
400 V electric
Manufacturing country
Italy
Transmission data
Transmission type
Chain
Cutting data
Recommended for
Pizza
Recommended for
Bread
Recommended for
Focaccia bread
Recommended for
Breadsticks
Recommended for
Piadina
Recommended for
Taralli
Recommended for
Biscuits
Recommended for
Egg mixtures
Recommended for
Fresh pasta
Equipment
CE-compliant safety switch
CE-compliant
Wheeled trolley for transport
Yes
Electronic timer
Yes
Rotating Bowl
Stainless steel
Rotating spiral arm
stainless steel
Central breaker bar
Stainless steel
Lifting safety grid
Stainless steel
24 V electric system
Yes
Free gifts/extra features
Apron
Yes
Instructions manual
Yes
Dimensions and logistics
Product dimensions in cm (L x W x H)
70x40x80 cm
Net weight
65 Kg
Packaging
On pallet
Original packaging/s dimensions in cm (L x W x H)
60x40x80 cm
Weight including packaging
70.5 Kg
Assembly time
Assembled
Prompt Delivery
1 item in stock
Free Shipping
Estimated delivery: 16/09/2025 - 18/09/2025
€ 1.131,48
Vat included
You're viewing:
Customers also viewed:
Description

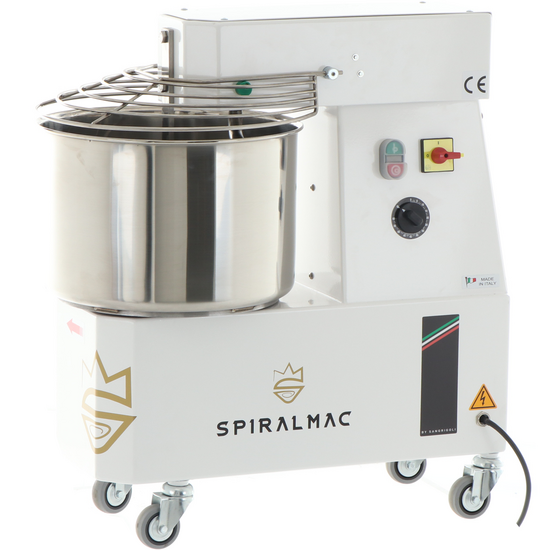

SPIRALMAC SV20 Heavy-duty Spiral Mixer three-phase

SPIRALMAC SV20 Three-phase spiral mixer

SPIRALMAC SV20 three-phase spiral mixer is for those customers who need to create and experiment with particular doughs

The SV20 three-phase model, part of the professional line, was created to satisfy a type of customer who seeks an efficient and long-lasting product.

The SV20 line is ideal for any type of dough, hard, soft, elastic (bread, buns, pizza, pasta, biscuits, pastries) and dough with special flours such as gluten, bran, durum wheat, stone ground flour and so on.

The final result is almost guaranteed, thanks to the specially designed spiral.

The SPIRALMAC SV20 three-phase spiral mixer is equipped with:

  • stainless steel protection grid
  • central stainless steel breaker bar
  • excellent spiral speed
  • exceptional hourly dough processing

The SPIRALMAC SV20 is used to make high-quality dough with extreme simplicity, even thanks to its 24 L bowl, which is suitable for both home and professional use.


All SPIRALMAC spiral mixers are equipped with the following features, which make the product among the best mixers on the market:

  • Oversized motor power to process any type of dough without any difficulty, even the most demanding dough processing
  • Oversized chain for greater reliability and durability
  • Drive with oil-bath gear motor, which results in high power, sturdiness, reliability and, quietness
  • EC-compliant 24 V PROFESSIONAL power supply
  • All the components of the machine are MADE IN ITALY to guarantee a very high-quality product.

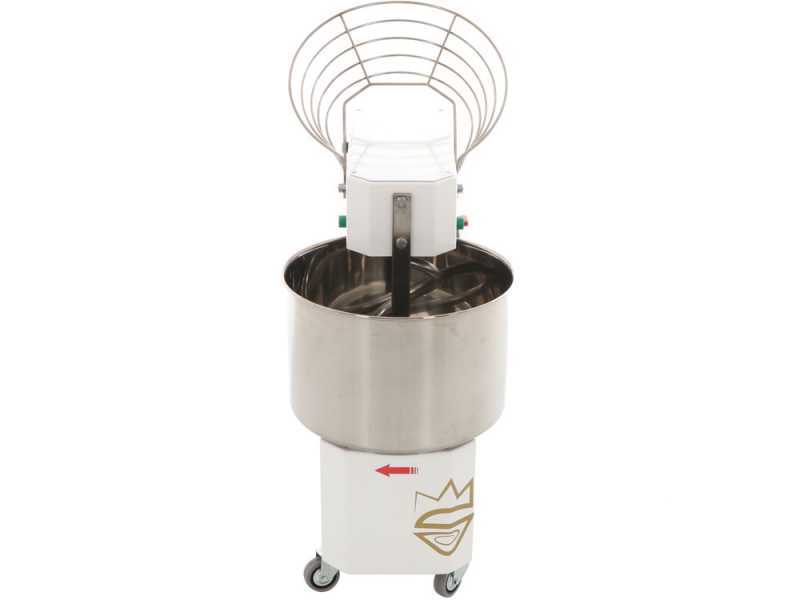

Main Features

The SPIRALMAC SV20 three-phase spiral mixer is one of the best benchtop machines, which allow you to work even the most complex doughs in the best possible way.

The SV20 model Three-phase, part of the Professional can work complex doughs, which require greater hydration, in the best possible way. Conceived and designed as the best spiral mixers, the SV20 is suitable for both excellent professional use.

The extreme attention to the smallest details makes the machine reliable, silent and with low consumption. Strong and resistant, excellent to prepare baked goods, doughs and confectionery products.

The SPIRLMAC SV20 has a maximum flour capacity of 13 Kg, an hourly production of 60 Kg/h and 10-20 bowl revs, making it a simple and usable machine for professional use.

Intended for professional kitchens but also in small bakeries.

It also features the option to rotate the spiral at a maximum of 90-180 rpm.

This spiral mixer is equipped with automatic stop device that stops its running when the stainless steel grid is raised during use.

The internal chain transmission ensures resistance to wear and extremely reduced noise level.

All the components directly touching the dough are made of INOX stainless steel.

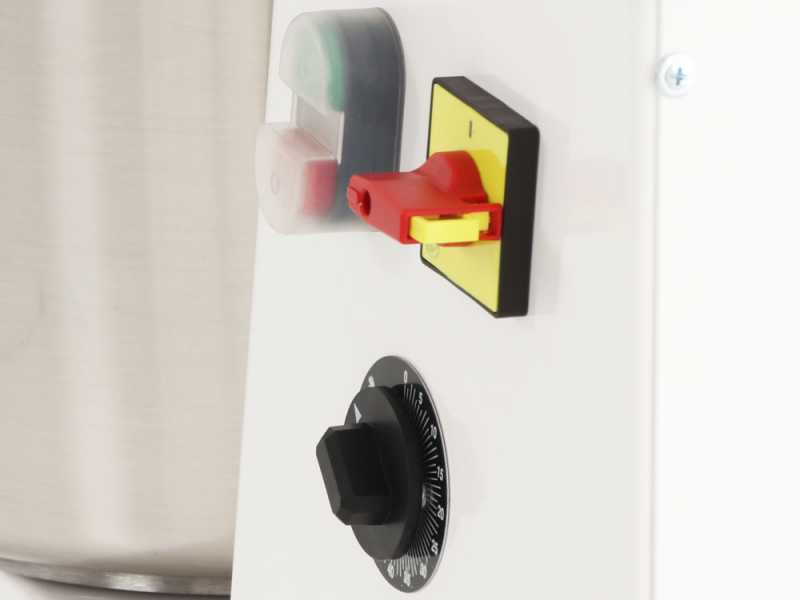

Technical Specifications

  • Dough capacity: 20 KG
  • Flour: 13 kg
  • Water: 7 L
  • Engine power: 1.5 hp
  • "CE”-compliant safety system
  • “CE” safety micro-switch
  • Power supply: 380 V
  • CE Certification
  • Weight: 65 kg

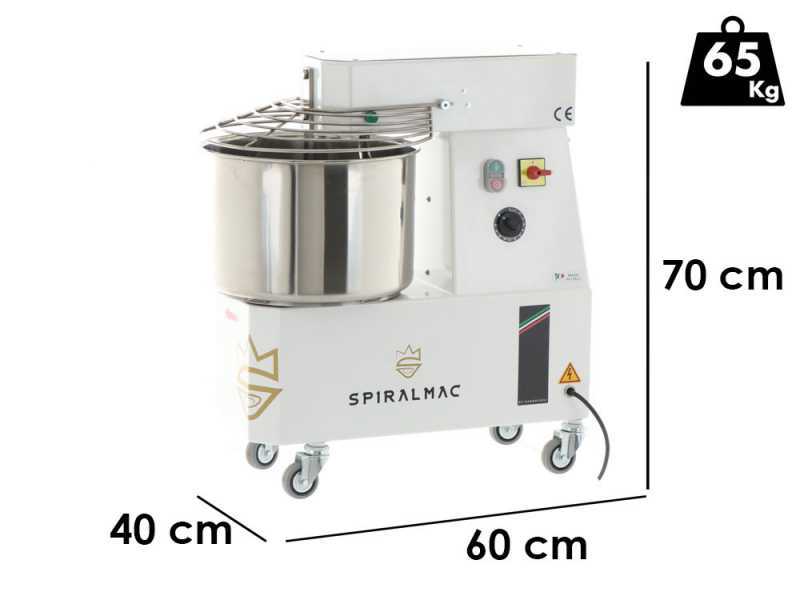

  • Size: 40x60x70 cm

The machine will be supplied without the electric plug.

Free items & Standard equipment

Complimentary chef's hat and apron

1 Chef's hat:

  • 24 cm high double fabric band
  • Upper part sewn with pleats
  • Total height in cm. 43
  • 100% non-shrink cotton, 190 g/m2 weight
  • One size

1 Chef's apron:

  • Same fabric for neck and hip strings
  • 1 cm perimeter edge
  • 100% non-shrink cotton,260 g/m2 weight - drill 3/1
  • Size: 70x85 cm
  • Colour: white

Free Items included

The spiral mixer is shipped in its original packaging together with the instruction manual.
