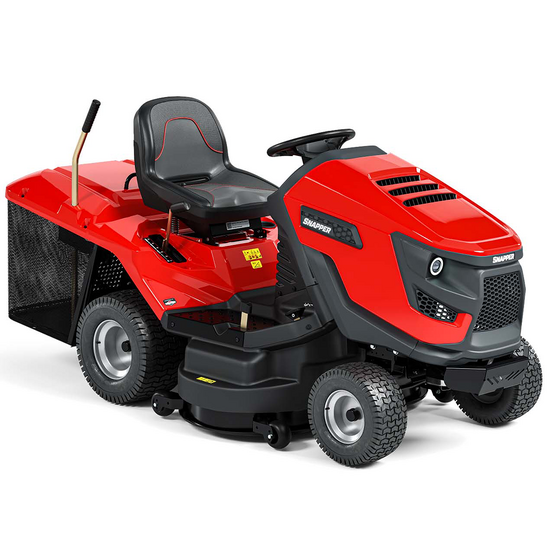

Snapper RPX102 - Lawn Tractor - Briggs&Stratton 656cc - Collection Basket

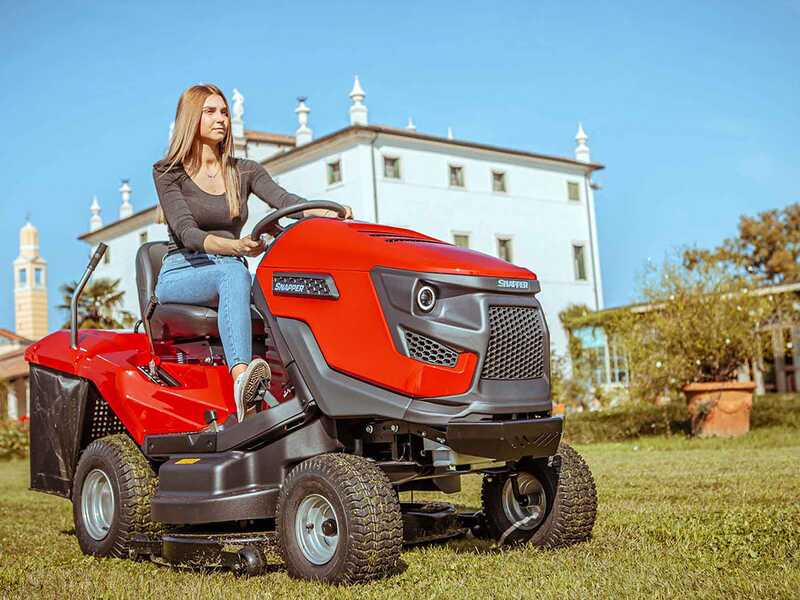

Snapper RPX102 lawn tractor, a machine designed to combine durability, efficiency and ease of use in one sturdy device.

This model stands out for its modern design and superior performance ensured by the 656cc Briggs & Stratton Series 7220 EXi V-Twin OHV engine, a symbol of reliability and power.

The Snapper RPX102 is equipped with a large 102cm, 2-blade cutting deck, combined with a large 300-litre collection box, to maximise work efficiency by reducing emptying time. Practicality is further emphasised by the possibility of emptying the basket directly from the driver's seat via a convenient lever.

A further noteworthy feature is the presence of the reverse cutter, which allows even the most complex spaces to be handled with ease.

Its ability to adjust the cutting deck in 6 different positions, from 30 to 85 mm, guarantees a flawless result on various types of surface. In addition, the introduction of a speed selector enriches the user experience, allowing users to adapt the cutting speed to the specific needs of the ground.

Ideal for large spaces and without too many obstacles, the Snapper RPX102 lawn tractor is suitable for both domestic and professional use. Thanks to the electromagnetic blade activation system, cutting becomes even easier and more intuitive.

The hydrostatic transmission, which can be controlled with a pedal, facilitates manoeuvrability in forward and reverse, providing a comfortable, safe and precise driving experience. The four integrated anti-scalp wheels and special finned blades prevent damage on delicate surfaces, ensuring an even, high-quality cutting result.

To further enhance its functionality, the Snapper RPX102 is equipped with a tow hitch, thus expanding its versatility and allowing the use of additional garden care accessories. This feature makes it not only an efficient lawn tractor but also a multifunctional tool for all green maintenance needs.

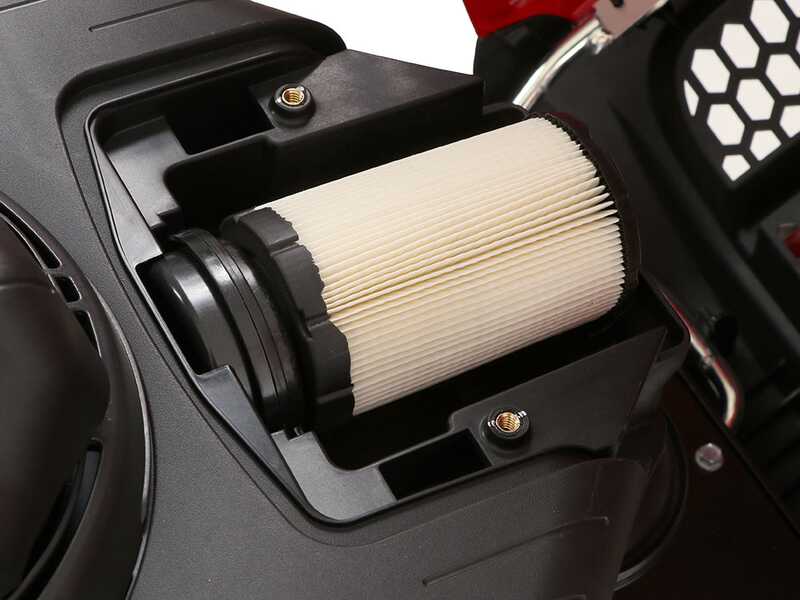

The Briggs & Stratton 7220 EXi Series OHV V-Twin engine is high-performing, suitable for jobs which require high working power.

This engine offers continuous, reliable power and ensures superior performance and durability.
With overhead valve technology (OHV) together with the V-Twin cylinder design, this engine offers reliable power in a well-balanced design.
The main features are:

Nominal Power: 22 HP
The correct term would be "Commercial” Power, meaning the standard definition used until a few years ago by all well-known engine manufacturers.

* This figure is the one that is most widely used and publicised in the main sales channels, even if it is higher than the real power of the engine.

Actual power: 15.4 Hp (at 2700 rpm)
It refers to the real power of the engine. This is the power indicated as official in the engine instructions manual.

* This technical feature may vary from an engine model to another according to the rotation speed provided by the manufacturer.

WARNING!

The engine is PROVIDED WITHOUT OIL.
Make sure to carefully read the instructions manual before starting the

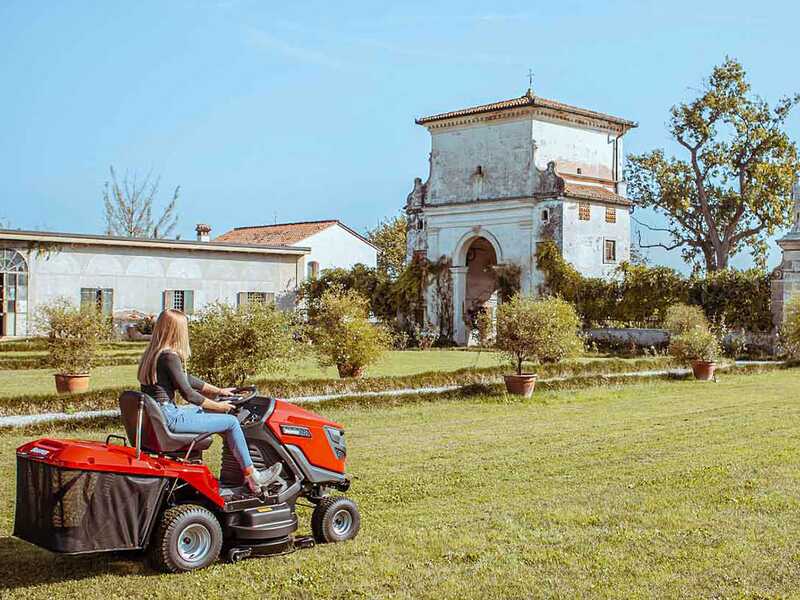

1- GRASS COLLECTION SYSTEM (on standard equipment):

Brand new capacious grass collection basket, with a capacity of no less than 300 L, among the largest in its class.

Easy grass collector emptying system: done through a very effective system, by levering the removable handle. Thus, it will be possible to empty the grass collector at any time while working, without any effort.

The grass collector is easy removable at any time: simply lift it upwards to remove it from its bridge-type housing through the two handles on top of the basket.

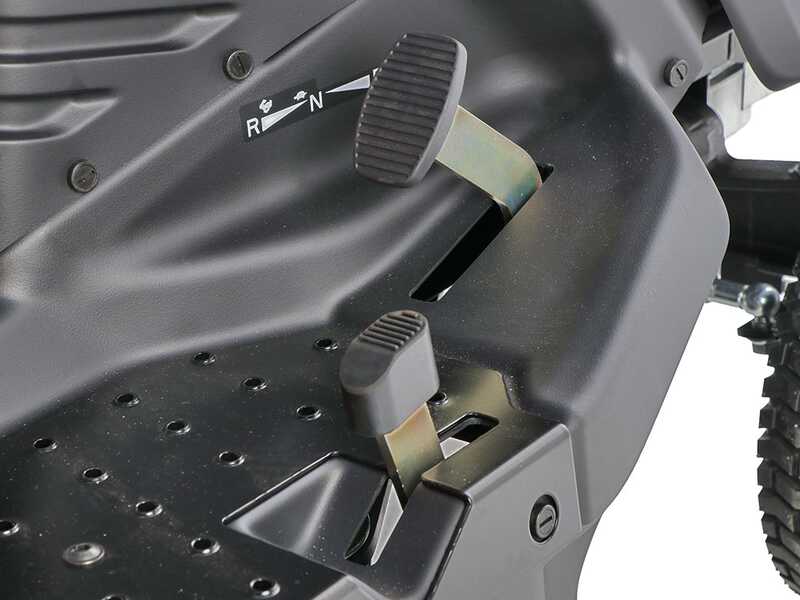

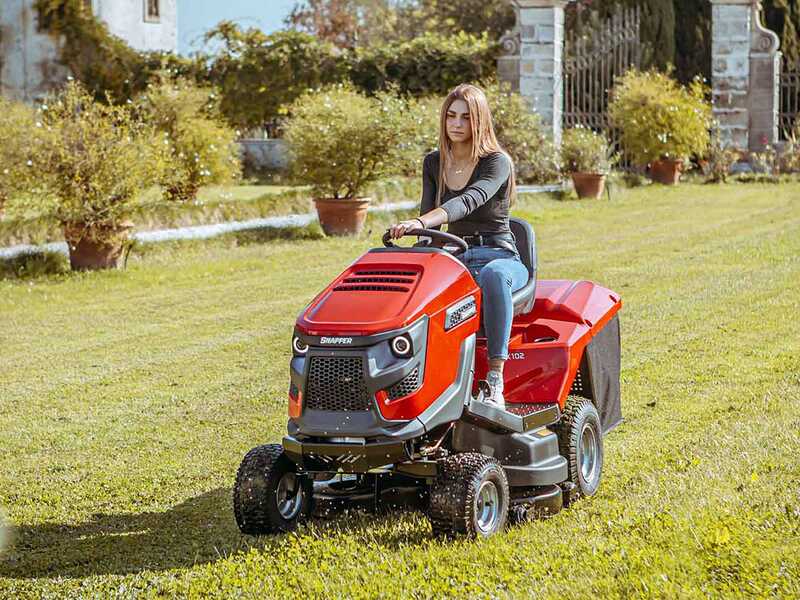

Thanks to the new 2-pedal Tuff Torq® K46 hydrostatic gearbox, riding the mower tractor will be easy and intuitive. Everything can be easily controlled with your right foot resting on the pedal.

Can reach speeds of up to 8 km/h and 5 km/h in reverse gear

The sturdy gears make the gearbox difficult to break. The hydrostatic transmission is by far the most modern and functional (although more expensive) compared to standard manual transmission gears. The latter model, whenever it is necessary to adjust the speed, obliges the operator to stop, change gear (because in all the riding-on mowers with a manual or mechanical gearbox, the gear change takes place when the machine is stationary), leaving the clutch and then restart at the desired speed. In case of frequent speed variations (e.g. in gardens with trees, vases or other types of obstacles) the standard gear transmission wouldn’t be practical at all. The hydrostatic transmission, on the other hand, allows immediate speed changes, without ever stopping, in absolute convenience, in a totally automatic way, simply by varying the pressure on the accelerator pedal.

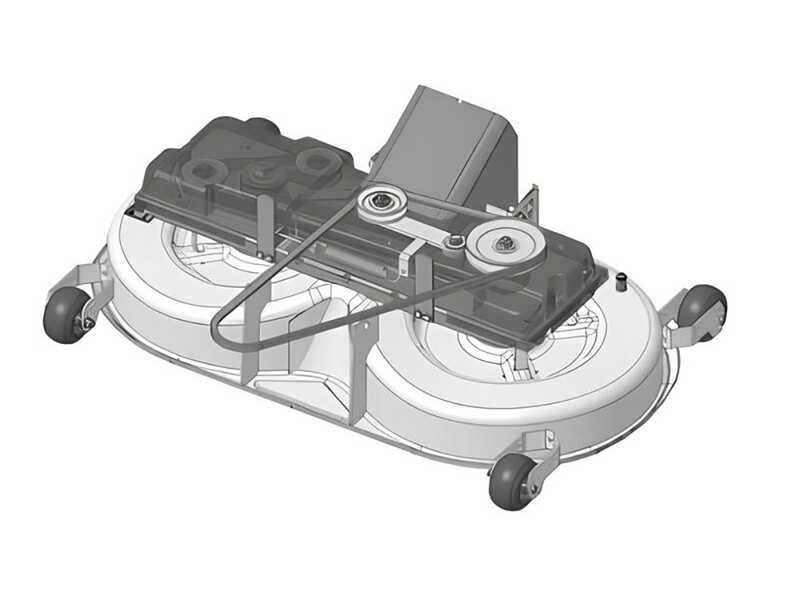

The pressed steel cutting deck is equipped with 2 finned blades that create a powerful airflow necessary to collect the grass in all conditions.
The asymmetric cutting deck has an optimal cutting overlap, avoiding the need to keep the blades synchronised.

The machine comes with the blades already mounted.

A 102cm cutting deck width

The mower tractor is equipped with cutting system in reverse gear

The cutting deck is tilting: it adapts easily to the undulations of the ground (as long as they are not overly sharp). Furthermore, this model features a large protection which wraps up the cutting deck entirely.

The electromagnetic blade engagement is operated via the button on the right side of the steering wheel. This system avoids the manual engagement by means of the standard lever which many models of riding-on mowers are equipped with and works thanks to an electromagnetic clutch that allows easy and quick engagement of the blades.

The cutting deck height can be adjusted through a lever.

There are 6 different cutting height available, that can be ranged from a maximum of 85 mm to a minimum of 30 mm.

Focus on the washing connection on both sides of the plate and the four anti-scalp wheels.

The controls are very simple and make it easy to operate the tractor: hour meter, ignition key, throttle lever, parking brake and blade engagement switch.

For maximum safety there is also a reverse mowing consent switch, if this is not activated the tractor shuts down.

• Speed controller
• Parking brake
• ignition block with key, red button for electromagnetic blade engagement and black button for reverse cut activation
• Braking pedal
• Hydrostatic transmission
• Cutting height adjustment lever
• Handle for grass collector emptying
• Hour meter

Further features of the Snapper RPX102 riding-on mower:

• Stainless steel openable engine cover for cleaning and maintenance operations.

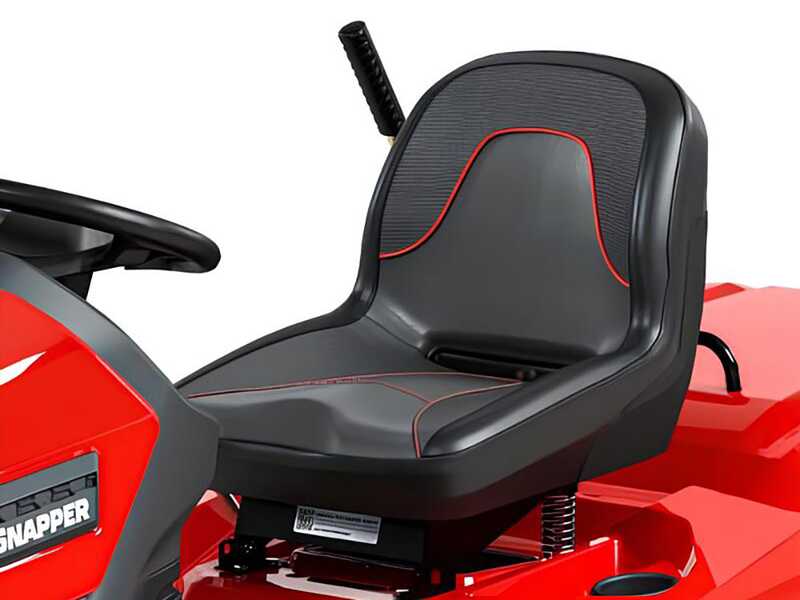

• Comfortable Operator’s seat and springs for maximum comfort during use, with mechanism to detect the presence of the operator during use.
• Ergonomic steering wheel
• Large rear wheels size: 18"x 8.5".
• Front wheels size: 15"x 6".
• Focus on the LED front headlamps
• Focus on the additional storage compartment
• ''Full bag'' indication sensor
• Cast-iron front axle
• Anti-scalp wheels
• Bullbar
• Cupholder
• Tow hitch
