Simatech S350 Tractor-mounted Horizontal Log Splitter - 35 Tons - 1200 mm Piston Stroke

Questions & Answers (4)
ID: 1723

EAN: 9900000001964

MPN: 001354

8,3/10
After-sales assistance & Spare parts

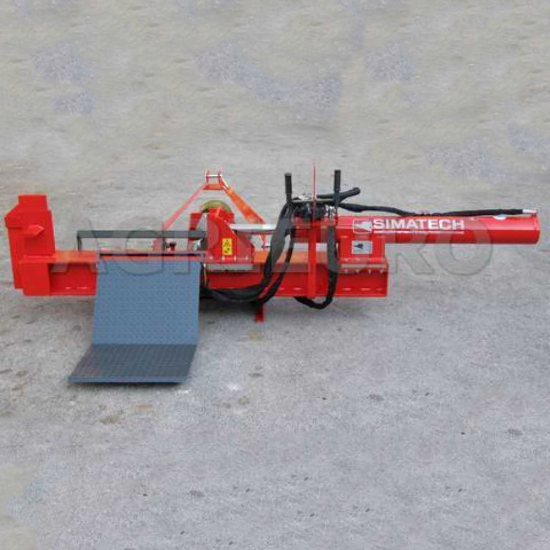

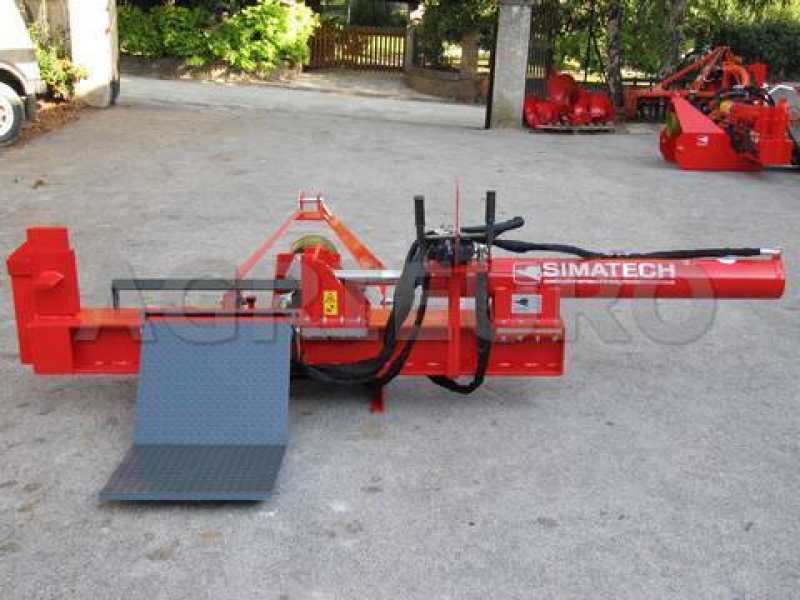

Simatech S350 Tractor-mounted Horizontal Log Splitter - 35 Tons - 1200 mm Piston Stroke
+80 sold
Max. trunk diameter
70 cm
Piston stroke
120 cm
Max. pressure
250 bar
Trunk lifting system
Yes
Retractable piston for transport
Yes
Operating mode
Tractor-driven PTO
Nominal splitting force
35 t
Pump
Maxi - professional
Tractor three-point hitch
Yes
Manufacturing country
Italy
Product Features
Model:
ST 350 - self loader
Type:
Horizontal
Double speed:
No
Operating mode:
Tractor-driven PTO
Nominal splitting force:
35 t
Piston stroke:
120 cm
Adjustable piston stroke (for short logs):
No
Trunk self-loading with hydraulic lifting platform:
Yes
Worktop log cutting:
No
Ground splitting system:
No
Manufacturing country:
Italy
Motor data
Oil tank capacity:
40 L
Manufacturing country:
Italy
Pump data
Pump type:
Hydraulic
Flow rate:
46 L/min
Max. pressure:
250 bar
Oil tank:
Yes
Hydraulic cylinder outer diameter:
150 mm
Piston diameter:
60 mm
Manufacturing country:
Italy
Cutting data
Max. trunk length:
125 cm
Max. trunk diameter:
70 cm
Equipment
Hydraulic loader:
Yes
Frame:
Standard
Pump:
Maxi - professional
Vertical log splitter safety lever:
No
Retaining side supports:
Yes
Trunk lifting system:
Yes
Retractable piston for transport:
Yes
Tractor three-point hitch:
Yes
Replaceable wedge guides:
Yes
Cartridge oil filter :
No
Free gifts/extra features
Splitting wedge:
No
Instructions manual:
Yes
Dimensions and logistics
Product dimensions in cm (L x W x H):
210x100x90 cm
Net weight:
500 Kg
Packaging:
On pallet
Gross weight (packaging included) :
510 Kg
Unloading with hydraulic tail lift:
Yes
Assembly time:
Assembled
Prompt Delivery
1 item in stock
Free Shipping
Estimated delivery: 25/07/2024 - 29/07/2024
€ 4.670,03
VAT Included
You're viewing:
Customers also viewed:
Description

Tractor-mounted horizontal log splitter

Tractor-mounted horizontal log splitter

Model ST 350
Piston stroke 120 cm
-- MADE IN ITALY --

DESCRIPTION:

... the most powerful on the market ...

35 tons splitting force
Piston stroke: 120 cm

Max. splitting length: cm 125

Certainly the largest piston stroke on the market, which makes this log splitter suitable for any type of operation, even for splitting large-sized and long logs.
The piston can be opened and closed in a few seconds, reducing the space required for transport and storage.

The width of the machine closed for storage is only 210 cm!
The machine can be easily closed just in a few seconds.

To fasten the sliding piston in the "closed" or "open" position, simply remove and then replace the 2 fastening pins.
Large-sized heavy-duty hydraulic pump

(100% made in Italy)


Undoubtedly the largest and most professional pump ever mounted on a log splitter.

43 L/min

Among other advantages, it ensures a great splitting speed.

It is equipped with a very large-sized cylinder, the largest among its category.

Cylinder diameter: 150 mm

Piston diameter: 60 mm
SELF LOADING SYSTEM

Equipped with cutting plate featuring hydraulic loading system operated by means a lever on the distributor
Side loader operated by hydraulic piston


The cutting plate is reinforced in the lower part with a sturdy steel frame

It allows the logs (even and especially the largest and heaviest ones) to be lifted and automatically loaded onto the cutting plate.
It is operated by means of a control lever on the hydraulic distributor unit (the lever at the bottom in the picture).
Highly sturdy sliding push plate
Sturdy, interchangeable, hardened steel guides of exceptional thickness
Equipped with a grease nipple for internal slide lubrication

Sliding guides on the rear part of the piston (equally strong as the front ones)
Extremely high-strength steel H-shaped frame
(the strongest and most professional profile)
Focus on the supporting beam steel thickness
Heavy-duty large-sized hydraulic distributor (100% Made in Italy)
Equipped with removable log holder side supports (they keep the log steady and centred on the supporting beam after loading it with the loader)
Double lever for splitting operation according to CE safety regulations.

Strictly manufactured according to CE regulations.
Equipped with three-point hitch PTO unit for cardan shaft attachment to tractor
Focus on the large oil tank mounted on the machine frame
Large, sturdy and sharp cutting wedge

WEIGHT: 520 KG

This is a truly heavy-duty tractor-mounted horizontal log splitter.
It represents the maximum reference point on the market thanks to the 5 main components that every log splitter must have:

  • Pump
  • Piston
  • Distributor
  • Frame
  • Guides


CE MARKING
