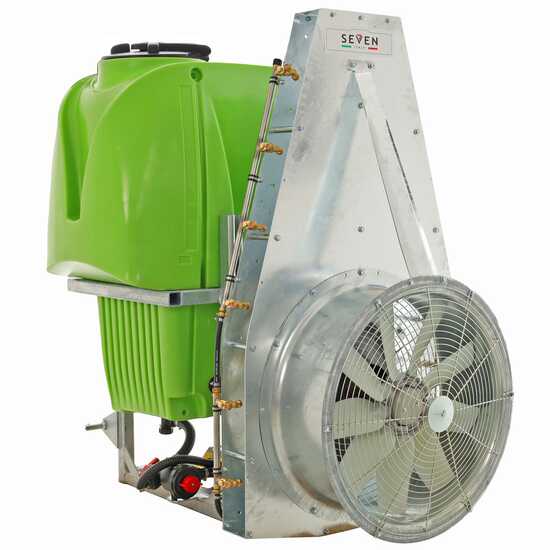

Seven Italy 600 - Tower Mounted Sprayer for Spraying - Capacity 600 L - APS 71 Pump

The new agricultural tractor sprayer Seven Italy is a device used for spraying plant protection products and other chemicals on the surface of plants. The sprayer is connected to the agricultural tractor through a three-point hitch, making it easy to transport and use.

The operation of the sprayer is quite simple: the product is mixed with water inside the sprayer's tank, and then sprayed onto the surface of the plants through the large 700mm fan that generates a strong circular air jet that propels the droplets already emitted and atomized by the jets. The nozzles are designed to create a very fine mist, which settles evenly on the surface of the plants.

The tower conveyor present on this sprayer is a system that allows the product to be distributed evenly over the entire plant, even in the most difficult-to-reach areas, compared to a sprayer without the tower. The tower consists of 6 nozzles per side arranged to allow uniform distribution of the product. This type of sprayer is particularly useful as it saves time and energy, thanks to its ability to cover large areas quickly. Furthermore, the uniform coverage of the product reduces the risk of product efficiency loss and the need for repeated applications.

One of the advantages of the agricultural tractor sprayer is its versatility. It can be used for spraying a wide range of chemical products, such as fungicides, insecticides, and herbicides. Additionally, the sprayer is capable of covering large areas quickly and efficiently, making it an ideal option for farmers cultivating large fields through its 600lt tank.

Frame made of Swedish steel with hot-dip galvanizing treatment, making it a very rust-resistant machine over time.

However, it is important to use the sprayer responsibly, avoiding excessive use of chemicals and adhering to safety standards and local regulations.

Thanks to its versatility and ability to cover large areas quickly and efficiently, it has become a popular choice among farmers worldwide.

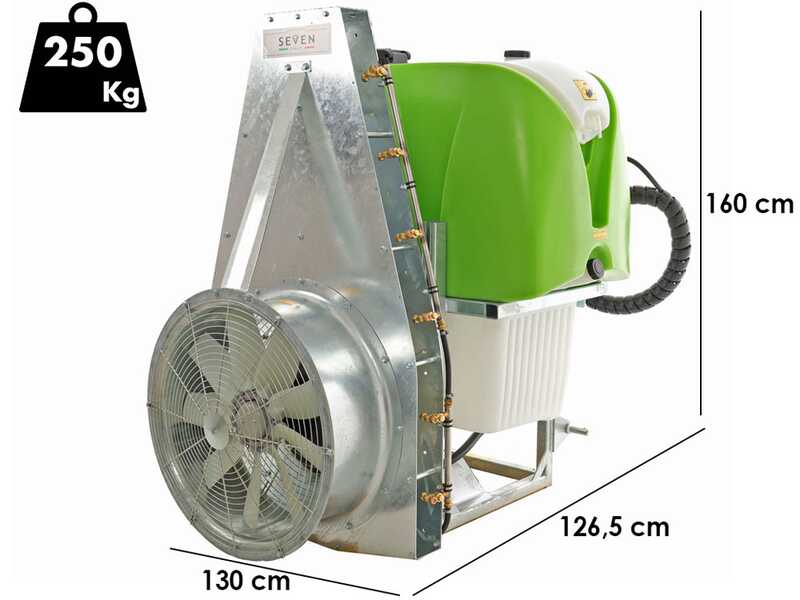

WARNING: It is strongly recommended to carefully check the lifting capacity of your tractor, taking into account the total weight of the machine when fully loaded.

Fan group in Swedish steel with hot-dip galvanizing treatment, equipped with oil bath gear multiplier.

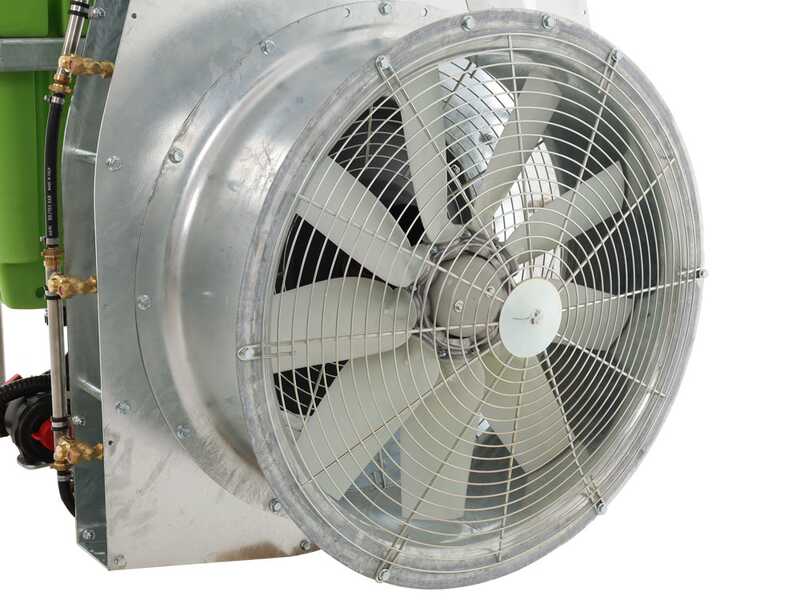

Front suction fan with a diameter of 700mm (9 blades).

Tower conveyor

The sprayer's fan is the essential element that determines the power of the sprayer, thus determining the ability to push the atomized product in width and height. Blades made of nylon that ensure excellent resistance to weather conditions.

Thanks to the characteristic of the tower conveyor, the sprayer is more effective in orchard and vineyard cultivation, as it allows the spraying of plant protection products on the branches and leaves of trees and vines, without risking contamination of operators or nearby crops.

The sprayer's transmission is gear-driven in an oil bath, to ensure maximum reliability over time.

The gearbox is produced in Italy by CMV. (gearbox made of cast iron)

Made in Italy guarantees excellent construction quality and materials for this component, as well as easy availability of spare parts if needed.

, via an extension lever.

Detail of the lever extension holder.

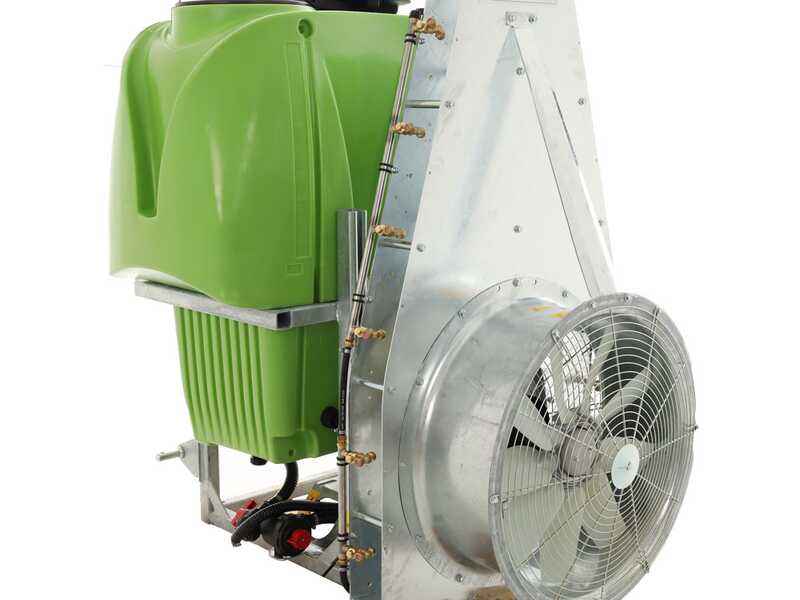

Jet holder rods in stainless steel divided into two sectors, one left with 6 jets and one right with the other 6 jets.

Double brass anti-drip jets with quick closure.

Ceramic nozzles 1.0 / 1.2

It has three clicks that coincide with the positions:

• jet with larger hole (greater liquid delivery)
• central position = closed jet
• jet with smaller hole (less liquid delivery)

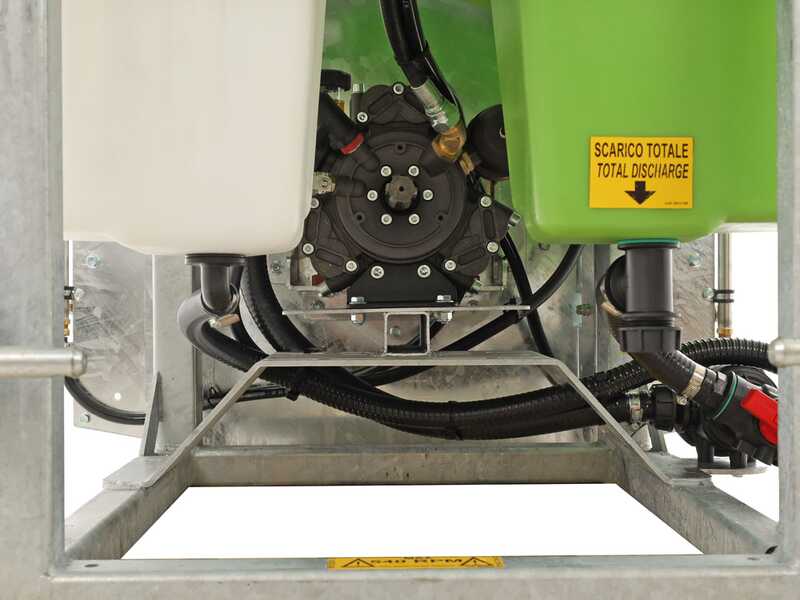

The Comet APS 71 pump is a diaphragm piston pump designed for use in agricultural and gardening spraying applications. Built with high-quality materials, ensuring high resistance to corrosion and high pressures.

Parts in contact with the liquid made of anodized aluminium. Valve with seat and disc in stainless steel.

It is equipped with an automatic lubrication system that reduces wear and extends the life of the pump.

Performance

• Number of diaphragms/pistons: 3
• Flow rate: 67.2 l/min
• Pressure: 50.0 bar
• Power: 9.1 HP
• RPM: 550
• Weight: 18.4 Kg

Allows operation of:

• up to 7 manual lever (or knob) lances simultaneously
• 3 MITRA lances simultaneously
• 2 side spraying booms with 5 butterfly jets each
• Pair of cannons up to 4 jets each
• 1 weed control bar up to 12 meters

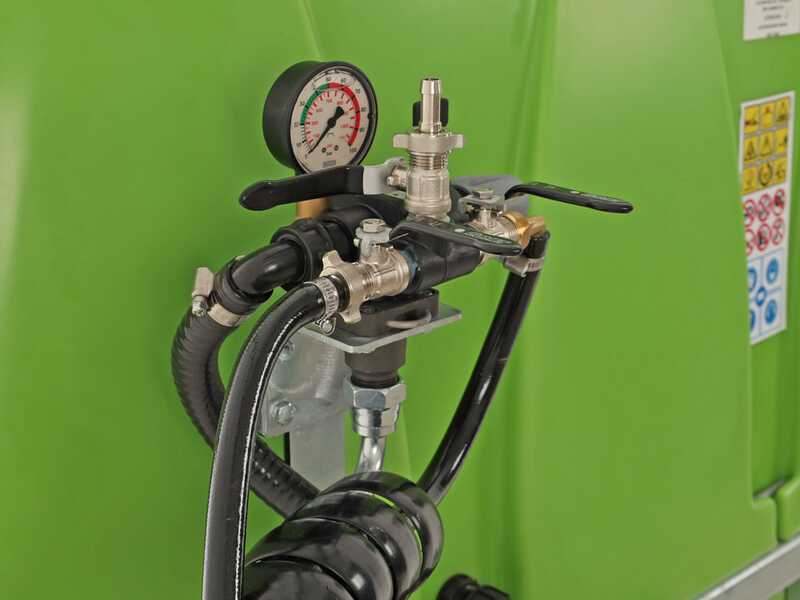

Comet GCP 3V Control Group is a three-way control system designed for use in combination with pumps for agriculture and industry, produced by the Italian company Comet S.p.A.

Pressure adjustment knob.

Pressure gauge.

The two side taps respectively feed the right sector of the fan and the left sector. Generally, the two horizontal outlets are used to connect, for example, a pair of orchard/olive grove spraying cannons, or stainless steel bars for vineyards, etc...

This means that the delivery of the two sectors can also be activated separately, for example, activating only the jets on the right side or only on the left side (for example when treating the boundary of one's plot).

Max pressure: 50 bar

Max flow rate: 100L/min

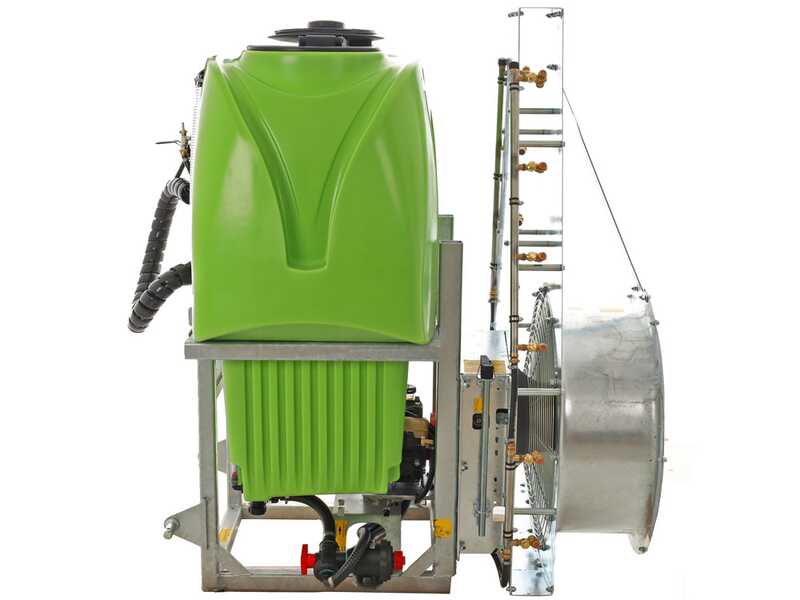

Reinforced frame in Swedish steel with complete hot-dip galvanizing treatment with three-point hitch for tractor connection.

The hitch points to the lift, in three positions, are complete with pins. 1st and 2nd category.

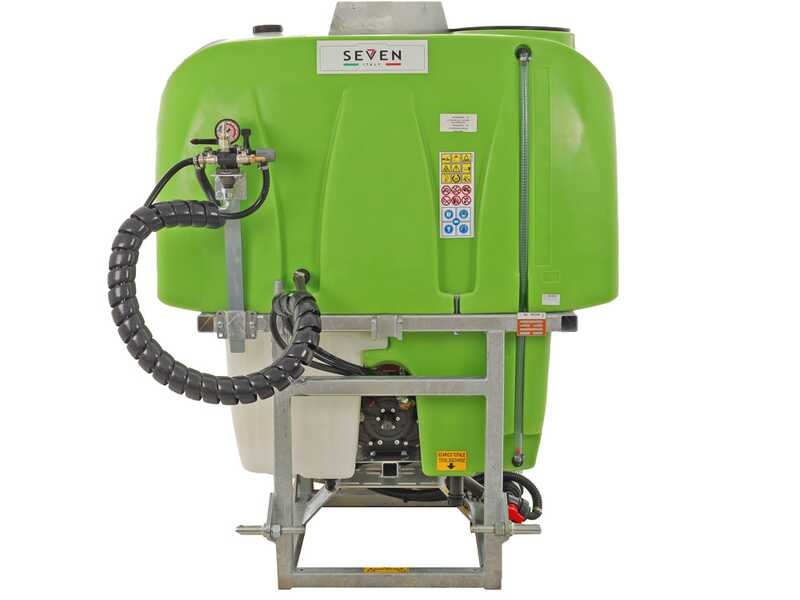

Polyethylene tank with total emptying, 600L.

Supplementary tank for operator handwashing.

External level with graduated scale for quick visualization of the liquid level in the tank.

Hydraulic agitator, to constantly mix the solution inside the tank, equipped with a high-pressure jet that shoots to the centre of the tank.

External suction filter equipped with a self-filling system.

Internal filter that cleans the liquid of any residues or dirt during the tank filling phase.

Total tank drain plug.

Detail of the power take-off.
