Seven Italy 400L - Tractor Sprayer Tank Group - Comet BP75 Pump

Questions & Answers (1)
ID: 115928

EAN: 9990000001033

MPN: 400L

8,9/10
After-sales assistance & Spare parts
Seven Italy 400L - Tractor Sprayer Tank Group - Comet BP75 Pump
Tank capacity
400 l
Pressure regulator
Yes
Pump brand
Comet
Flow rate
68 L/min
Max. operating pressure
15 bar
Distributor
Volumetric
Tool boom
In steel
Circuit washing tank
Yes
Hand washing tank
Yes
Manufacturing country
Italy
Product Features
Model:
Gruppo botte per diserbo 400L
Type:
For weeding
Operating mode:
tractor-mounted
Frame type:
Hot-dip galvanised steel
Flow rate:
68 L/min
Max. operating pressure:
15 bar
Tank capacity:
400 l
Tank capacity:
400 L
Manufacturing country:
Italy
Pump data
Pump brand:
Comet
Pump brand:
Comet
Model:
BP75
Pump type:
three diaphragms
Flow rate:
68 lt/min
Operating pressure:
15 bar
Pressure regulator:
Yes
Manufacturing country:
Italy
Equipment
Equipment:
Optional accessories
Tool boom:
In steel
Internal hydraulic shaker:
Yes
Distributor:
Volumetric
Circuit washing tank:
Yes
Hand washing tank:
Yes
Removable cartridge filter:
Yes
Free gifts/extra features
Instructions manual:
Yes
Dimensions and logistics
Product dimensions in cm (L x W x H):
90x73x145 cm
Net weight:
121 Kg
Packaging:
Original packaging
Original packaging/s dimensions in cm (L x W x H):
117x79x190 cm
Weight including packaging:
121 Kg
Assembly time:
5 minutes
Prompt Delivery
2 items in stock
Free Shipping
Estimated delivery: 27/06/2025 - 01/07/2025
€ 2.134,17
Vat included
You're viewing:
Customers also viewed:
Description

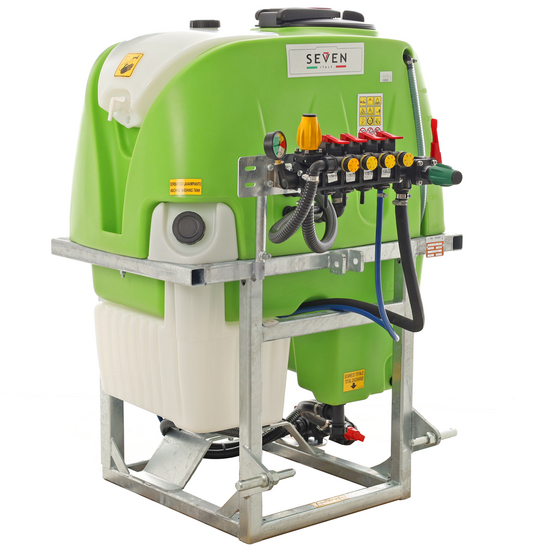

Seven Italy 400 L Mounted Sprayer Group

The Seven Italy 400 L Sprayer Group represents an advanced and highly efficient solution for crop treatment, ideal for medium to large areas. This sprayer is designed to offer high performance, thanks to a four-way constant pressure volumetric distributor, which allows precise and optimal control of liquid delivery. It is the perfect machine for those who need uniform and fast treatment on agricultural land, minimizing work time.

The polyethylene tank with a capacity of 400 litres is robust and durable, capable of ensuring a long life even in difficult conditions. The Comet BP75 pump is one of the key elements of the Seven Italy 400 L sprayer group, allowing a maximum flow rate of 67 litres per minute and a maximum pressure of 15 bar, ensuring effective product distribution over large areas. These values allow large areas to be treated in less time, optimizing resources and labour.

This sprayer group is designed to be easily connected to the tractor thanks to a three-point hitch, ensuring a stable and secure connection during use. The hot-dip galvanized steel frame provides rust resistance and long-lasting durability, even in particularly aggressive working environments.

Main Features:

  • 400-litre tank capacity: Allows long autonomy in spraying operations.

  • Comet BP75 Pump: Ensures smooth and constant delivery with a flow rate of 67 l/min.

  • Three-point hitch: Easy connection to the tractor for practical and safe use.

  • Hot-dip galvanized steel frame: Protects the machine from rust, improving durability over time.

  • Maximum pressure of 15 bar: Optimizes liquid distribution even over large surfaces.

Seven Italy 400 L Mounted Sprayer Group

For weeding treatments and liquid fertilization with solutions. Applications on mounted and wheeled sprayers.
The parts directly touching the liquid are made of plastic and plastic-coated aluminium, resistant to chemicals used in agriculture.

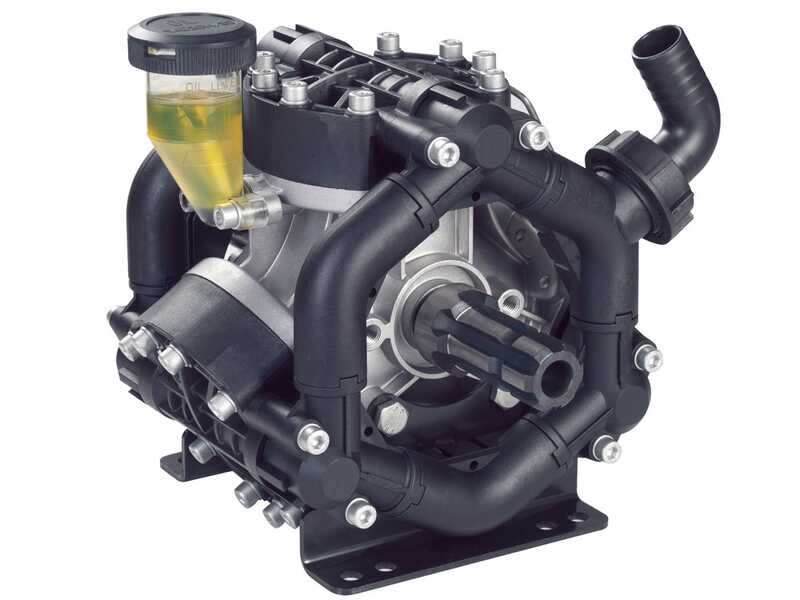

3-membrane Desmopan® configuration

Plastic heads and manifolds (Nylon)

Main features:

N. membrane / pistons: 3
Flow rate: 68.0L/min
Pressure: 15.0 bar
Power: 2,7 CV
RPM: 550
Weight: 12 Kg

A weed killing boom up to 12 m can be mounted with this pump.

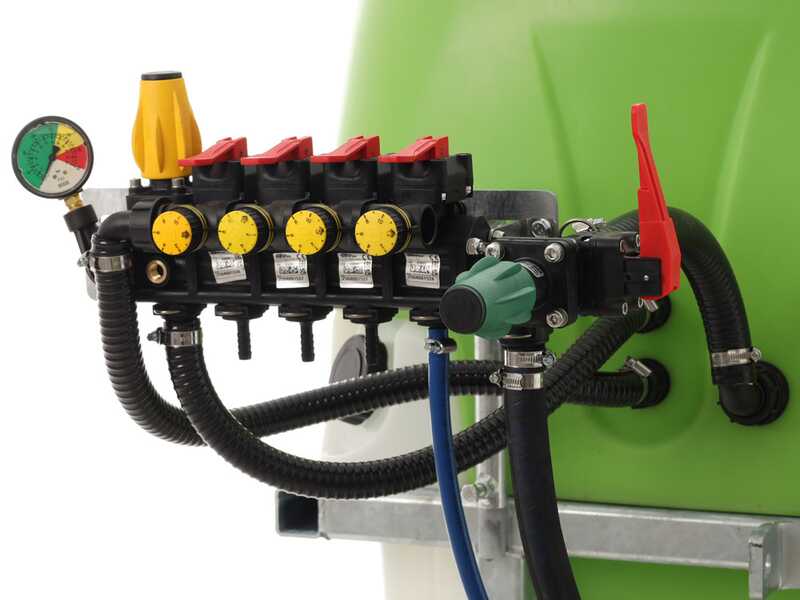

Pressure Regulation Group

This sprayer tank group has a four-way constant pressure volumetric distributor.

VOLUMETRIC: allows the liquid delivery to remain perfectly constant for each nozzle, even when the pump speed or speed changes.

CONSTANT PRESSURE: allows the pressure to remain perfectly constant and equal on each of the outlets, so each nozzle on the spray boom will deliver a perfectly equal amount of liquid to the other nozzles.

Therefore, the two aforementioned systems that this distributor is equipped with allow for the most uniform and regular distribution of the treatment possible, without waste, minimizing costs and reducing environmental damage.

Detail of the adjustable compensators (via a special front wheel) with which each of the four outlets is equipped, allows the calibration of the individual sections.

Pressure regulator knob and Bypass lever that opens and closes the liquid flow to the boom.

Proportional valve to adjust the general working pressure and manometer.

Manometer

Hot-dip Galvanized Steel Frame

Reinforced steel frame Swedish steel with hot-dip galvanizing treatment complete with three-point hitch for tractor connection.

. 1st and 2nd category.

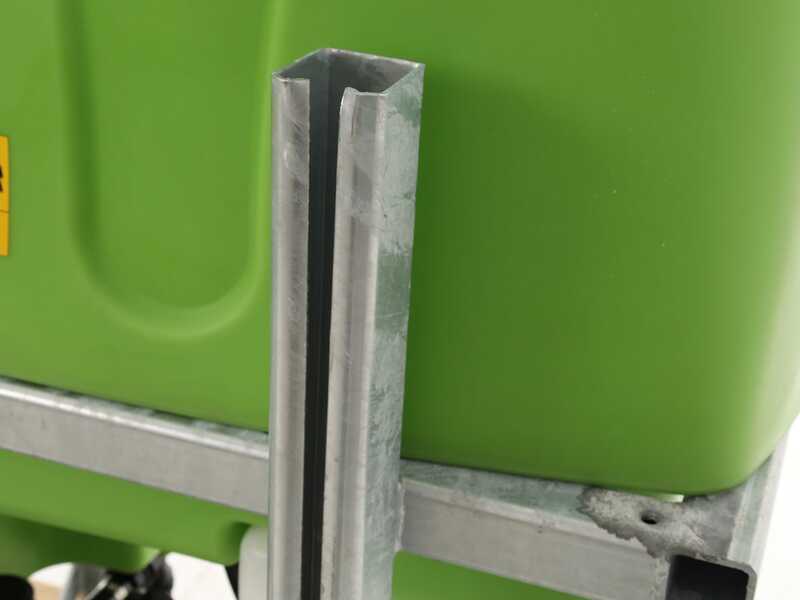

This tank is equipped with two vertical bars designed for the application of spray booms, also allowing height adjustment to the desired position. Detail.

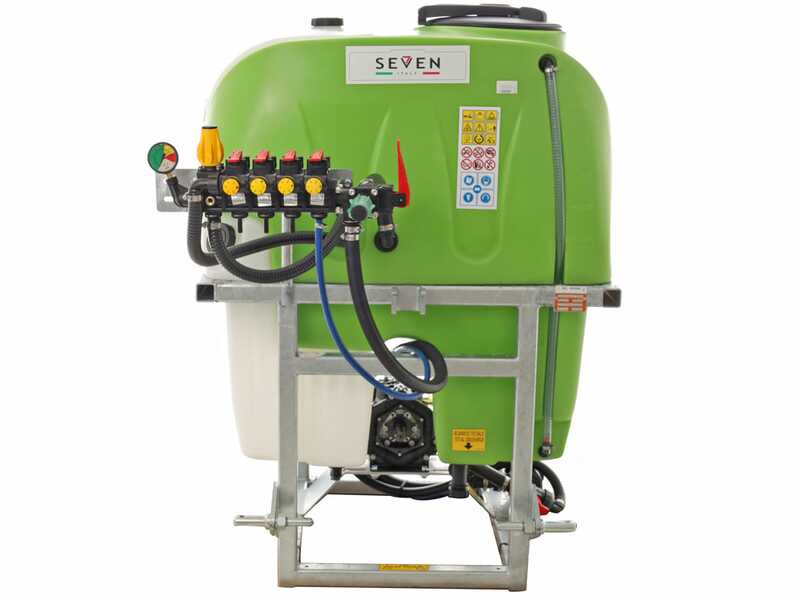

Other Features

Polyethylene tank with total emptying, 400L

Supplementary tank for operator handwashing.

External level with graduated scale for quick visualization of the liquid level in the tank.

Hydraulic agitator, to constantly mix the solution inside the tank, equipped with a high-pressure jet that shoots to the center of the tank.

External suction filter equipped with a self-filling system

Internal filter that cleans the liquid from any residues or dirt during the tank filling phase.

Total tank drain plug

Detail of the power take-off

Free items & Standard equipment

Free items included

The barrel is shipped on a pallet and includes careful packaging with an instruction manual
