Seven Italy 300L - Compact Tractor Sprayer Tank Group - APS71 Pump

Add a question
ID: 115925

EAN: 9990000000845

8,9/10
After-sales assistance & Spare parts
Seven Italy 300L - Compact Tractor Sprayer Tank Group - APS71 Pump
New products
Tank capacity
300 l
Pressure regulator
Yes
Pump brand
Comet
Flow rate
67 L/min
Max. operating pressure
50 bar
Tool boom
In steel
Hand washing tank
Yes
Manufacturing country
Italy
Product Features
Model:
300L
Type:
For spraying treatments
Operating mode:
Tractor-mounted
Frame type:
Hot-dip galvanised steel
Flow rate:
67 L/min
Max. operating pressure:
50 bar
Tank capacity:
300 l
Tank capacity:
300 L
Fixed 3-point hitch:
Yes
Manufacturing country:
Italy
Pump data
Pump brand:
Comet
Pump brand:
Comet
Model:
APS 71
Pump type:
three-diaphragm
Flow rate:
67 L/min
Operating pressure:
50 bar
Pressure regulator:
Yes
Manufacturing country:
Italy
Equipment
Tool boom:
In steel
Internal hydraulic shaker:
Yes
Hand washing tank:
Yes
Free gifts/extra features
Self-filling joint:
Yes
Instructions manual:
Yes
Dimensions and logistics

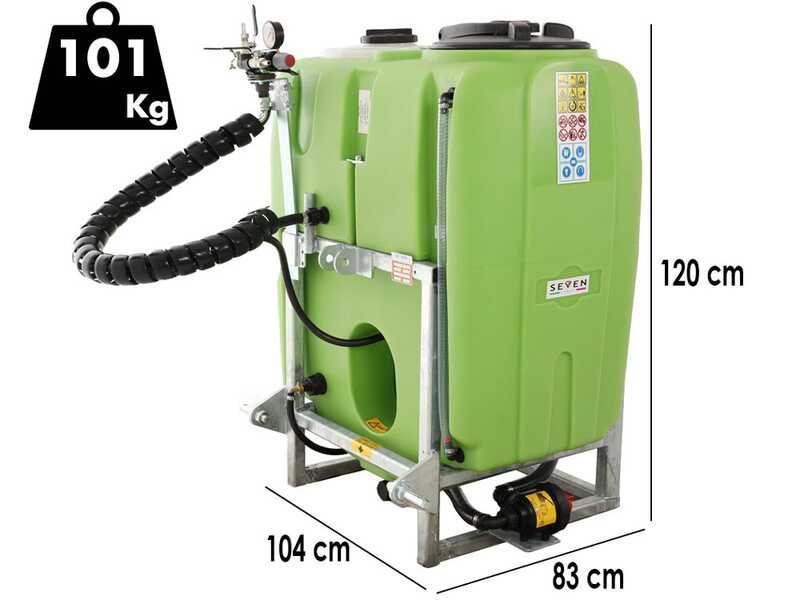

Product dimensions in cm (L x W x H):
83x104x120 cm
Net weight:
101 Kg
Packaging:
On pallet
Original packaging/s dimensions in cm (L x W x H):
119.5x79.5x130 cm
Weight including packaging:
116 Kg
Unloading with hydraulic tail lift:
Yes
Assembly time:
5 minutes
Prompt Delivery
3 items in stock
Free Shipping
Estimated delivery: 16/06/2025 - 18/06/2025
€ 1.871,21
Vat included
You're viewing:
Customers also viewed:
Description

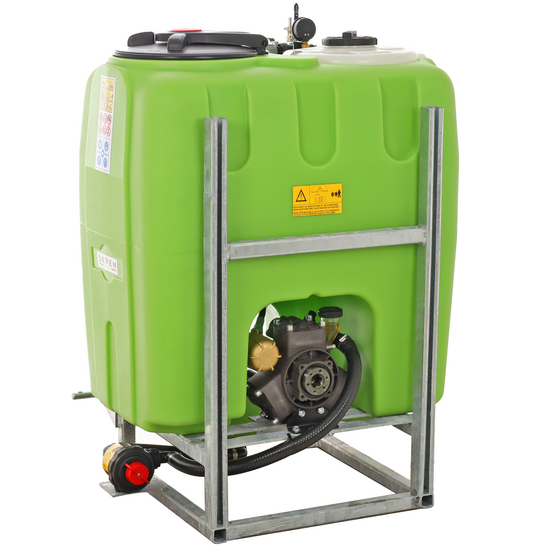

Seven Italy Tractor Sprayer Tank Group

The new sprayer tank group of the Seven Italy 300 is designed for the distribution of liquid fertilizers, herbicides, and pesticides on cultivated fields and gardens.

The spraying group consists of a polyethylene tank with a capacity of 300L and a Comet AP71 pump with three diaphragms complete with a three-outlet pressure regulator.

The machine is capable of covering large areas of land with a maximum flow rate of 67 litres/minute and a maximum pressure of 50 bar. This allows farmers to work efficiently and effectively, reducing the time and resources needed for the distribution of chemicals on cultivated fields.

Moreover, the Seven Italy sprayer is designed to ensure maximum safety during use. The machine is equipped with a pump lock system in case of lack of liquid in the tank, and an automatic rinsing system that reduces the risk of chemical contamination.

It connects to the tractor via a three-point hitch.

Frame made of hot-dip galvanized steel which makes the machine very resistant to rust over time.

In summary, it is a reliable and efficient solution for the distribution of chemicals on cultivated fields. Thanks to its advanced technology and guaranteed safety, this sprayer is a popular choice among farmers and industry professionals.

APPLICATIONS:

  • Vegetable crops
  • Cereal crops
  • Espalier orchard
  • Espalier vineyard
  • Kiwi GDC
  • Vineyard and Kiwi pergola
  • Olive grove Serra

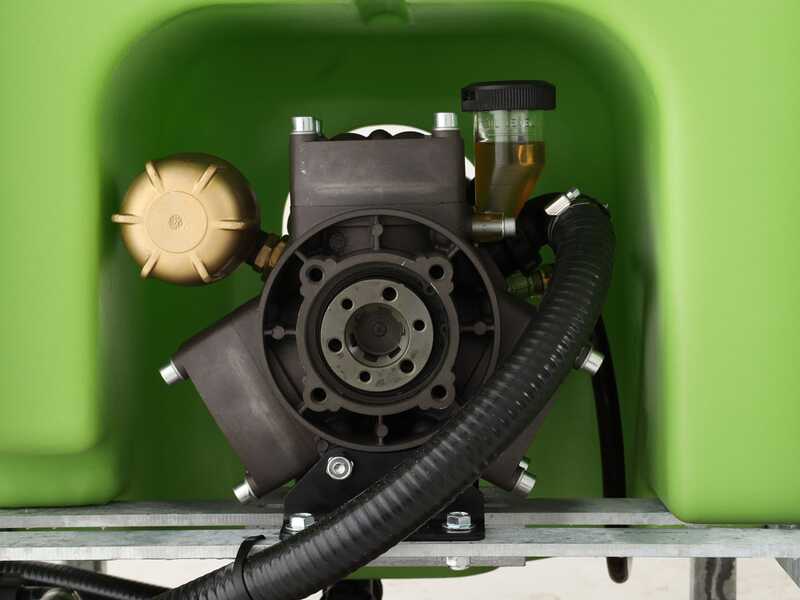

Comet APS 71 Pump

The Comet APS 71 pump is a piston diaphragm pump designed for use in agricultural and gardening spraying applications. Built with high-quality materials, ensuring high resistance to corrosion and high pressures.

Parts in contact with the liquid are made of anodized aluminum. Valve with seat and disc in stainless steel.

It is equipped with an automatic lubrication system that reduces wear and extends the life of the pump.

Performance

  • Number of diaphragms/pistons: 3
  • Flow rate: 67.2 l/min
  • Pressure: 50.0 bar
  • Power: 9.1 HP
  • RPM: 550
  • Weight: 18.4 Kg

Allows operation of:

  • up to 7 manual lever (or knob) lances simultaneously
  • 3 MITRA lances simultaneously
  • 2 side spraying booms with 5 butterfly nozzles each
  • Pair of cannons with up to 4 nozzles each
  • 1 weed control bar up to 12 meters

Comet GCP 3V Control Group

Comet GCP 3V Control Group is a three-way control system designed for use in combination with pumps for agriculture and industry, produced by the Italian company Comet S.p.A.

Pressure adjustment knob.

Manometer.

The two side taps respectively supply the right sector of the fan and the left sector. Generally, the two horizontal outlets are used to connect, for example, a pair of orchard/olive grove spraying cannons, or stainless steel bars for vineyards, etc...

This means that the delivery of the two sectors can also be activated separately, for example, activating only the jets on the right side or only on the left side (for example when treating the boundary of one's plot).

Max pressure: 50 bar

Max flow rate: 100L/min

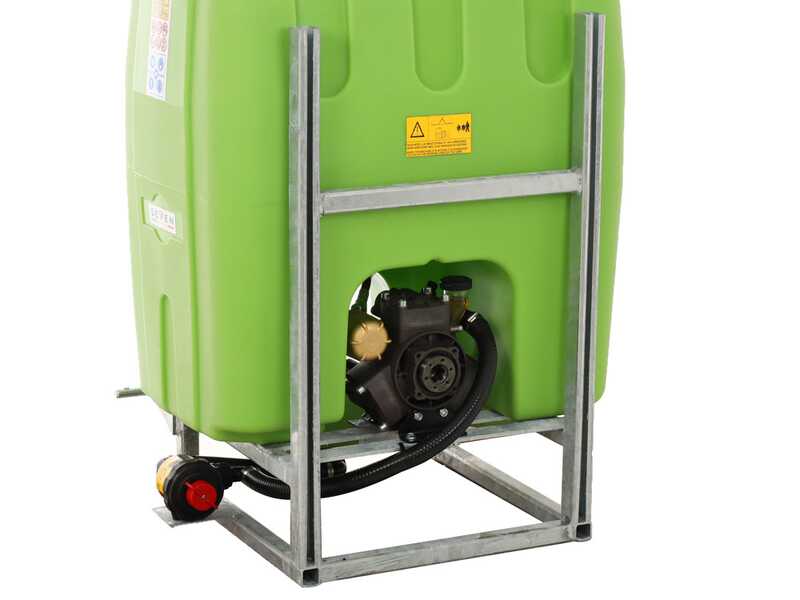

Hot-Dip Galvanized Steel Frame

Reinforced Swedish steel frame with hot-dip galvanizing treatment complete with three-point hitch for tractor connection.

, with three positions, are complete with pins. 1st and 2nd category.

This weeding tank is equipped with two vertical barsdesigned for the application of spraying devices, also allowing height adjustment to the desired position.

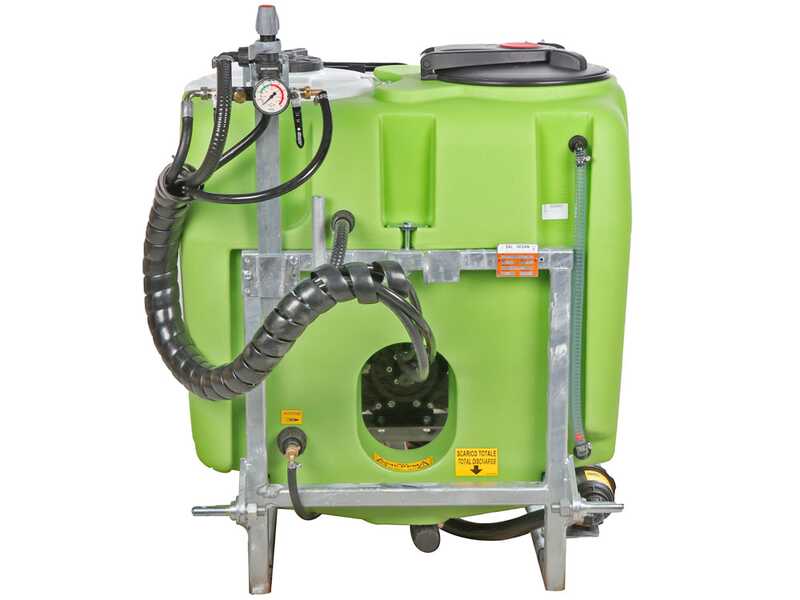

Other Features

Polyethylene tank with total emptying, 200L

Supplementary tank for operator handwashing.

External level with graduated scale for quick visualization of the liquid level in the tank.

Hydraulic agitator, to constantly mix the solution inside the tank, equipped with a high-pressure jet that shoots to the centre of the tank.

External suction filter equipped with a self-filling system

Internal filter that cleans the liquid from any residues or dirt during the tank filling phase.

Total tank drain plug

Detail of the power take-off

Free items & Standard equipment

Free Items Included

The barrel is shipped via pallet and careful packaging included with instruction manual.
