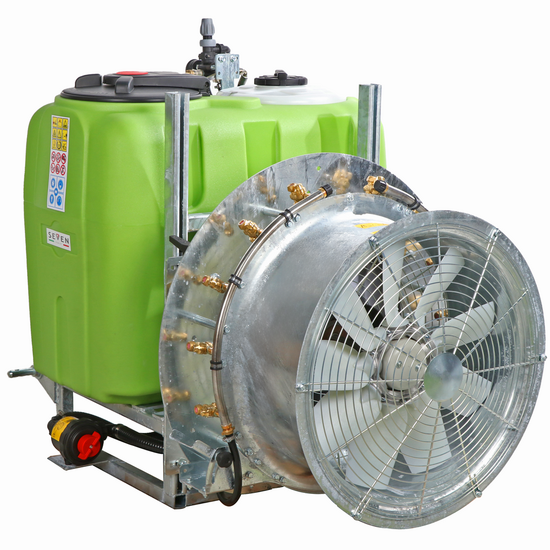

Seven Italy 200 - Tractor-mounted sprayer with tractor hitch for spraying - Capacity 200 L - APS 51 Pump

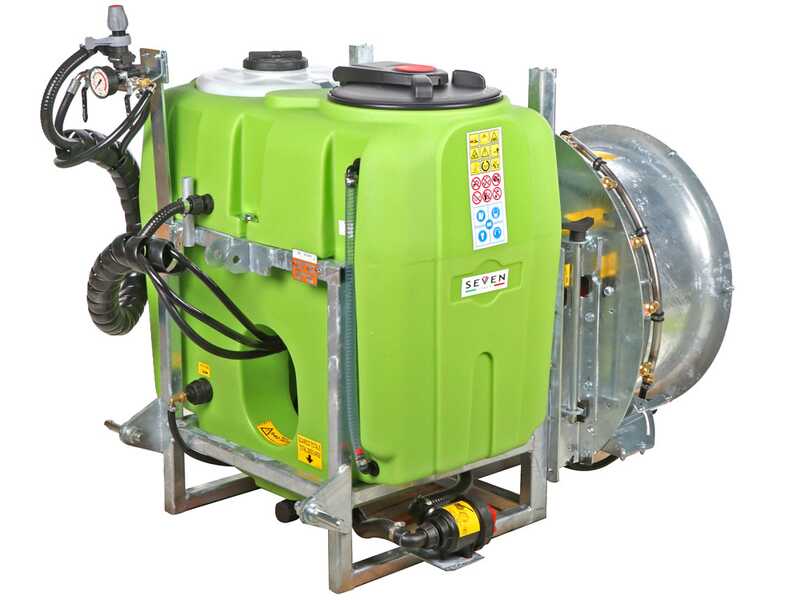

The new agricultural tractor sprayer Seven Italy is a device used for spraying plant protection products and other chemicals on the surface of plants. The sprayer is connected to the agricultural tractor through a three-point hitch, making it easy to transport and use.

The operation of the sprayer is quite simple: the product is mixed with water inside the sprayer's tank, and then sprayed onto the surface of the plants through the large 600mm fan that generates a strong circular air jet pushing the droplets already emitted and atomized by the jets. The nozzles are designed to create a very fine mist, which settles evenly on the surface of the plants.

One of the advantages of the agricultural tractor sprayer is its versatility. It can be used for spraying a wide range of chemicals, such as fungicides, insecticides, and herbicides. Moreover, the sprayer is capable of covering large areas quickly and efficiently, making it an ideal option for farmers cultivating large fields through its 200lt tank.

Frame made of Swedish steel with hot-dip galvanizing treatment, making it a machine highly resistant to rust over time.

However, it is important to use the sprayer responsibly, avoiding excessive use of chemicals and complying with safety standards and local regulations.

Thanks to its versatility and ability to cover large areas quickly and efficiently, it has become a popular choice among farmers worldwide.

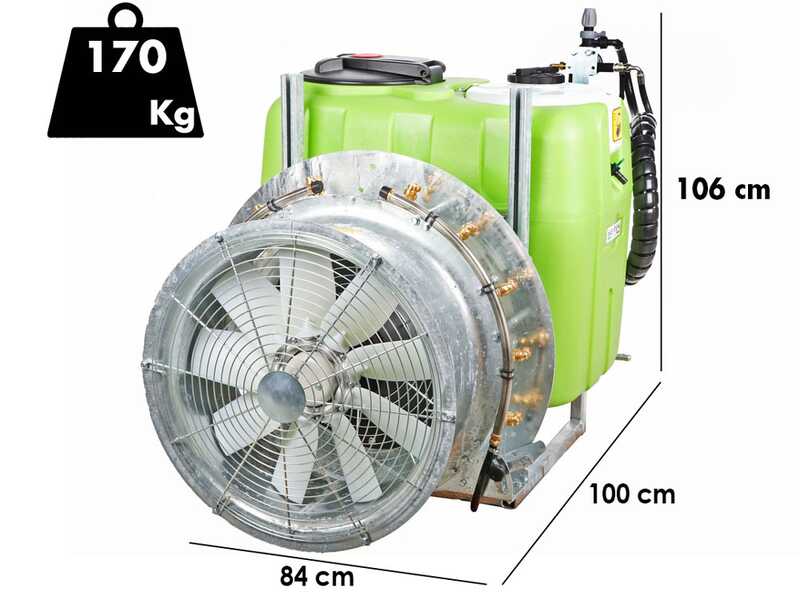

WARNING: It is strongly recommended to carefully check the lifting capacity of your tractor, taking into account the total weight of the machine when fully loaded.

Fan group in Swedish steel with hot-dip galvanizing treatment, equipped with oil bath gear multiplier.

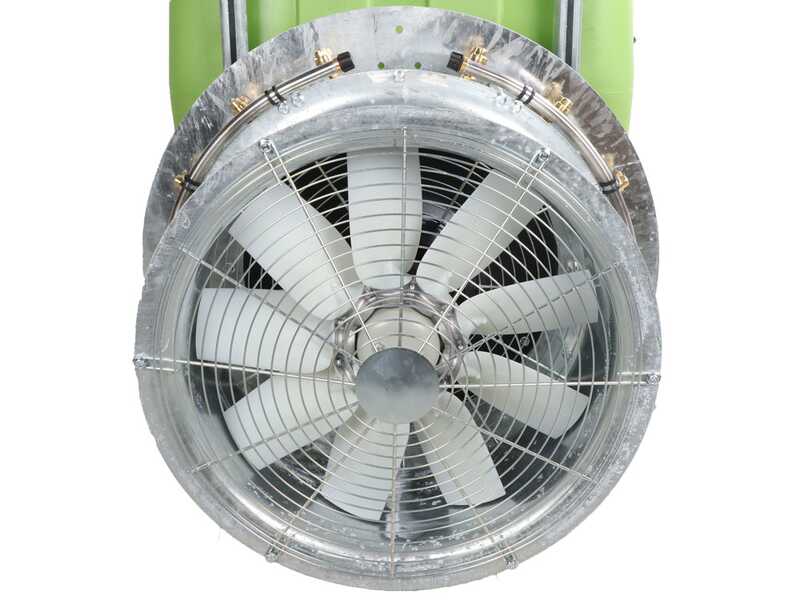

Axial fan with rear suction of diameter 600mm (9 blades).

The sprayer's fan is the essential element that determines the power of the sprayer, thus determining the ability to push the atomized product in width and height. Blades made of nylon ensure excellent resistance to atmospheric agents.

Detail of the geometric rotation system of the propeller blades.

Thanks to the characteristics of the fan, it is possible to use the product in the following fields:

• Citrus groves
• Orchards
• Vineyards
• Greenhouse crops
• Olive groves
• Tall trees
• Berries, blueberries, avocados
• Banana plantations

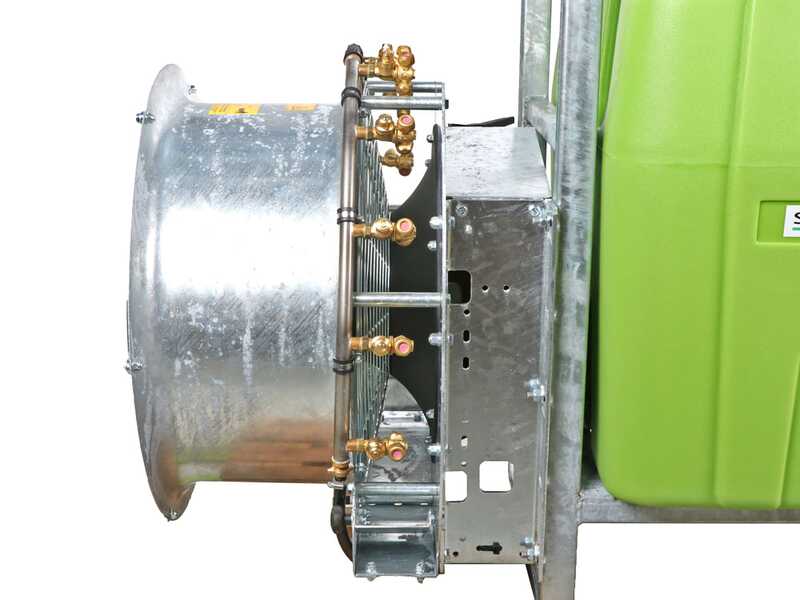

The sprayer's transmission is oil bath gears, to ensure maximum reliability over time.

The gearbox is produced in Italy by CMV. (gearbox made of cast iron)

Made in Italy guarantees excellent construction quality and materials for this component, as well as easy availability of spare parts if needed.

, via an extension lever.

Detail of the extension lever holder.

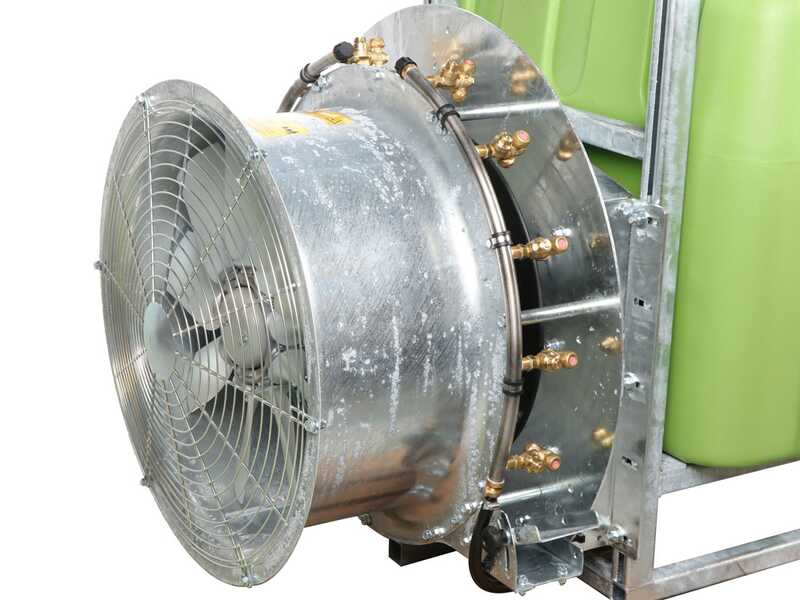

Jet holder rods in stainless steel divided into two sectors, one left with 5 jets and one right with the other 5 jets.

Double brass anti-drip jets with quick closure.

Ceramic nozzles 1.0 / 1.2

It has three clicks that coincide with the positions:

• jet with larger hole (greater liquid delivery)
• central position = closed jet
• jet with smaller hole (less liquid delivery)

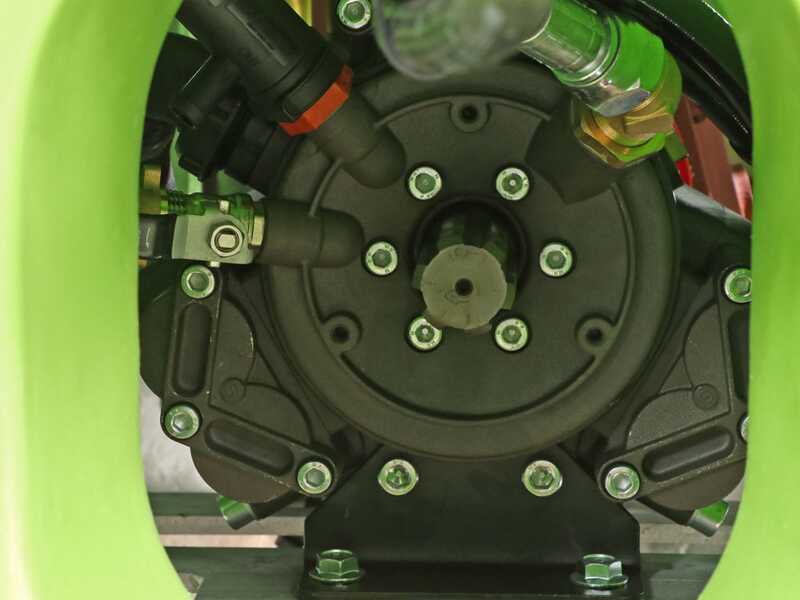

Comet pump APS 51 for spraying treatments in medium and large-sized crops. Application on mounted and trailed sprayers and atomizers. Built with high-quality materials, ensuring high resistance to corrosion and high pressures.

Internal collectors. Quick inspection of suction-delivery valves, all arranged on the delivery side. Valve with seat and disc in stainless steel.

Parts in contact with the liquid made of anodized aluminium, resistant to corrosion.

Performance

Comet Polaris 2 Control Group is a three-way control system designed for use in combination with pumps for agriculture and industry, produced by the Italian company Comet S.p.A.

Pressure adjustment knob.

Pressure gauge.

The two side taps respectively feed the right sector of the fan and the left sector.

This means that the delivery of the two sectors can also be activated separately, for example activating only the jets on the right side or only on the left side (for example when treating the boundary of one's plot).

Membrane organizes pipes.

Max pressure: 40 bar

Max flow rate: 50L/min

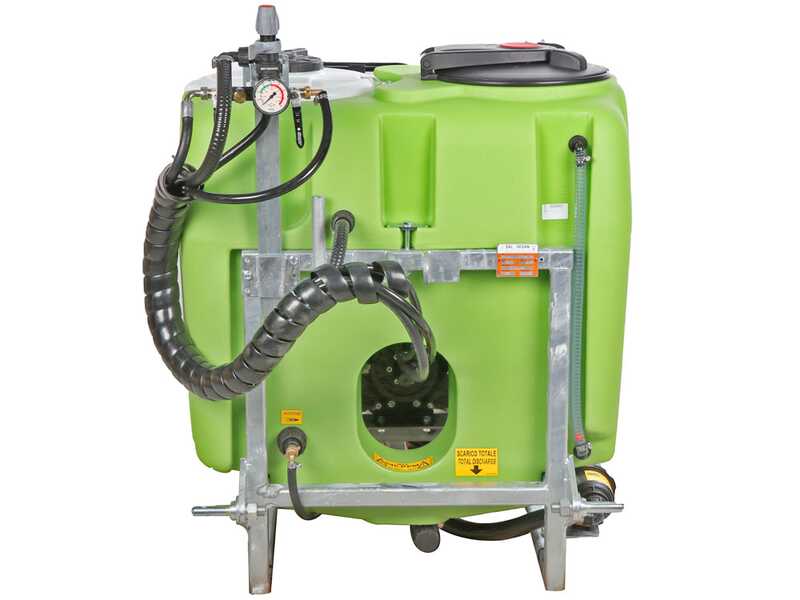

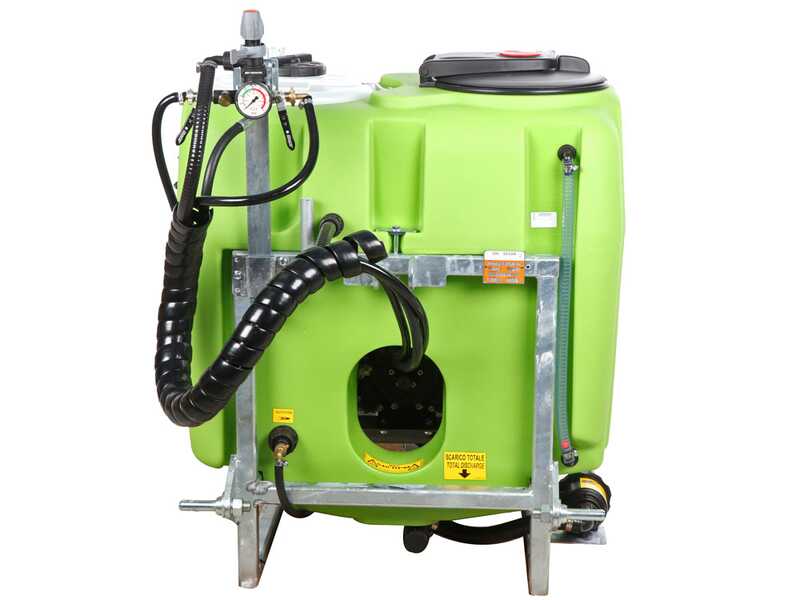

Reinforced steel frame Swedish steel with complete hot-dip galvanizing treatment equipped with three-point hitch for tractor connection.

Attachment points for the tractor's lift of 1st category.

Polyethylene tank with total emptying, 200L

Supplementary tank for operator handwashing.

External level with graduated scale for quick visualization of the liquid level in the tank.

Hydraulic agitator, to constantly mix the solution inside the tank, equipped with a high-pressure jet that shoots to the centre of the tank.

External suction filter equipped with self-filling system

Internal filter that cleans the liquid from any residues or dirt during the tank filling phase.

Total tank drain cap

Detail of the power take-off
