Sbaraglia VOLARE CARBON Pneumatic Carbon Olive Harvester - 8 Bar - 1800 bpm

Add a question
ID: K605879

EAN: 2000000006017

MPN: A40C

7,3/10
After-sales assistance & Spare parts
Sbaraglia VOLARE CARBON Pneumatic Carbon Olive Harvester - 8 Bar - 1800 bpm
FREE
Lubricant for olive harvestersLubricant for olive harvesters
Noise-canceling earmuffsNoise-canceling earmuffs
Protective gogglesProtective goggles
Cotton glovesCotton gloves
Head material
Aluminium
Motion
Double side
Speed (bpm)
1800 bpm
Max. prongs opening
63 cm
Max. operating pressure
8 bar
Air consumption
180 L/min
Olive harvester head weight
850 g
Motor speed levels
1
Carbon prongs
Manufacturing country
Italy
Product Features
Model:
Volare Carbon
Head material:
Aluminium
Type:
Pneumatic
Motion:
Double side
Speed (bpm):
1800 bpm
No. of prongs:
4+4
Prongs length:
30 cm
Prongs material:
Carbon
Carbon prongs:
Max. prongs opening:
63 cm
Max. operating pressure:
8 bar
Minimum operating pressure:
6 bar
Air consumption:
180 L/min
Olive harvester head weight:
850 g
Manufacturing country:
Italy
Motor data
Motor speed levels:
1
Power supply:
Compressed air
Dimensions and logistics

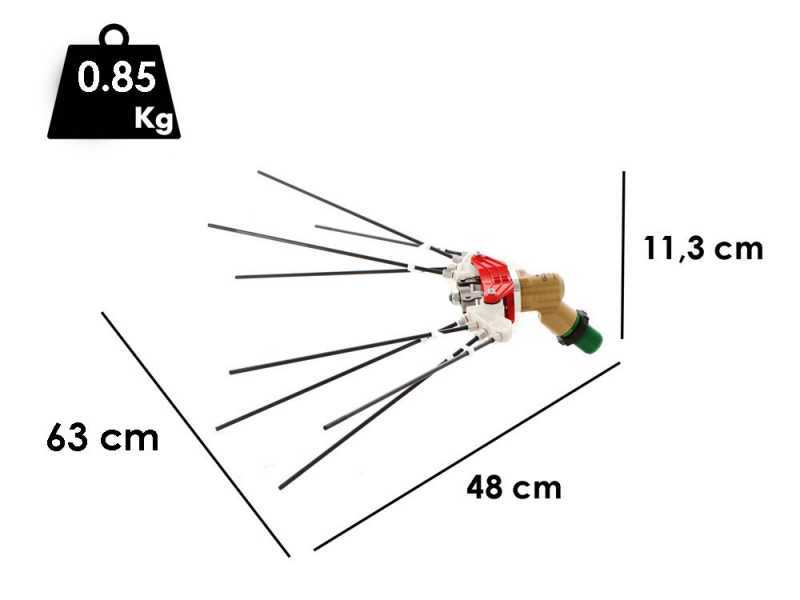

Product dimensions in cm (L x W x H):
48x63x11.3 cm
Net weight:
0.85 Kg
Packaging:
Original packaging
Original packaging/s dimensions in cm (L x W x H):
35.2x14.5x28.4 cm
Gross weight (packaging included) :
1.3 Kg
Assembly time:
Assembled
Available in 7 days
Free Shipping
Estimated delivery: 28/11/2024 - 02/12/2024
€ 320,07
VAT Included
You're viewing:
Customers also viewed:
Description

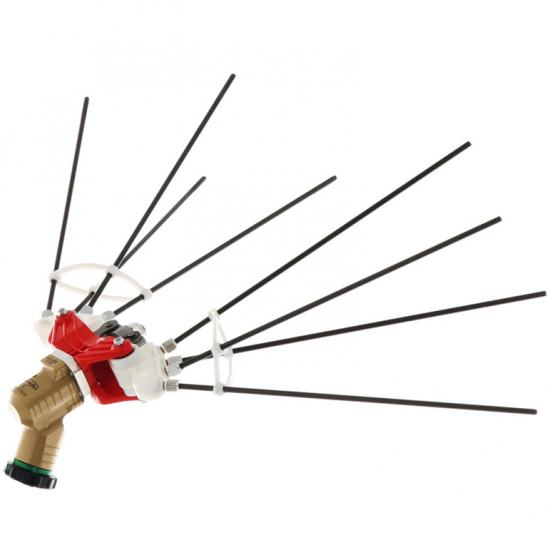

Sbaraglia Volare Carbon Pneumatic Olive Harvester

The Volare Carbon pneumatic olive harvester ensures a motion with horizontal rakes, featuring a fully innovative system and design. The effectiveness of the long, symmetrically-inclined prongs, combined with the light weigh of the tool, helps considerably reducing the vibrations that normally affect the Operator.

Pneumatically-operated tool intended for harvesting olives, the vibration of the pair of rakes with which it is equipped is transmitted to the tree branches, causing them to detach.

This product features an innovative design with prongs intended for horizontal motion that pick up even the hardest-to-reach olives, increasing reach and productivity.

Thanks to its totally symmetrical shape, this olive harvester can easily rotate inside the plants, guaranteeing excellent efficiency in harvesting.

The harvester model consists of a pin with two rakes formed by a high-strength aluminium support where carbon prongs are attached, co-moulded onto anodised aluminium ends in order to extend the life of the prongs by reducing their stresses.

The exhaust air is directed towards the moving components. This helps cooling and lubrication.

These olive harvesters generally have a very low air consumption (180 L/min).

This model has a beating frequency speed of 1800 rpm, one of the highest speed for a pneumatic olive harvester.

With a total weight of only 850 gr, the Sbaraglia Volare Carbon stands out to be extremely handy and easily manageable.

WARNING: pole not included

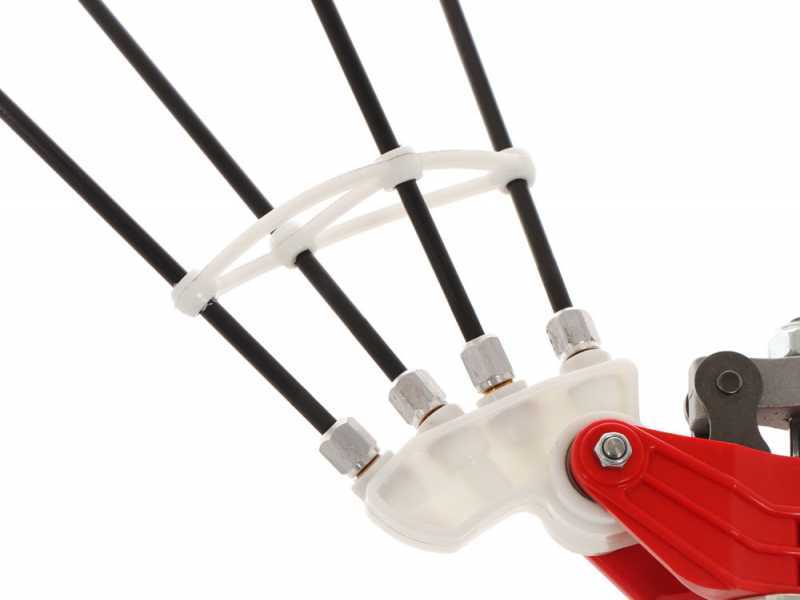

Prongs

This olive harvester is equipped with rakes in technopolymer with long, elastic prongs, which guarantee good performance without any damage.

All these characteristics make it particularly suitable for working on all types crops at all levels of ripeness, especially in thick foliage.

Thanks to the aluminium rakes and the carbon prongs, vibrations are dampened and wear is minimized.

Moreover, it does not damage the olives and does not cause breakage or damage to the twigs.

WARNING: pole not included

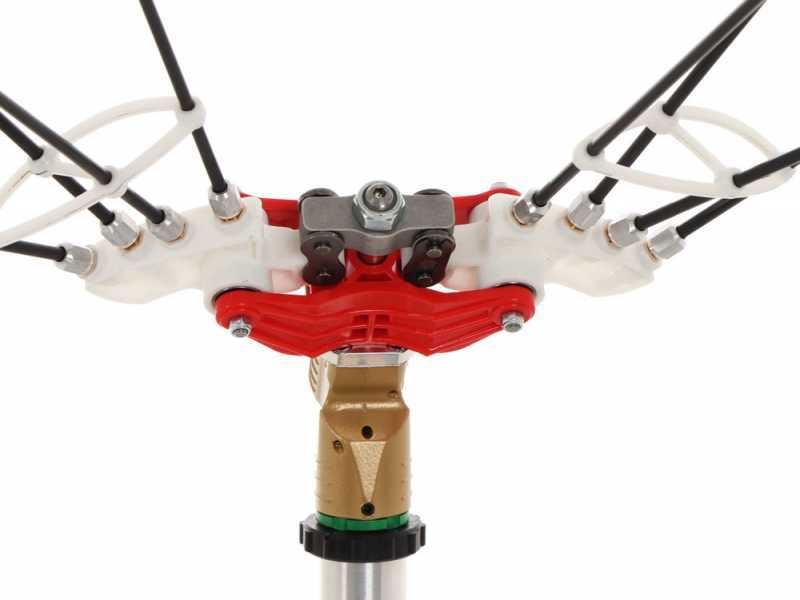

Technical features

The great strength of these harvesters is certainly the speed of beating, thanks to the short stroke of the pistons and rakes.

Moreover, it does not damage the olives and does not cause breakage or damage to the twigs.

Made with components in ALUMINIUM and CARBON.

Weight: only 850 g. Simply Among the lightest on the market, although the considerable length of the combs.

Operating pressure: 8 bar

Air consumption: 180 L/min

WARNING: pole not included

Free items & Standard equipment

FREE:Kit for pneumatic olive harvesters: ear protections, goggles, Gloves, Headscarf and Lubricant

FREE ITEMS:

Ear protections to work in total comfort.

Ear protection has to be appropriate: these standard supplied ear muffs are esepcially designed to destroy the noise level of the machine.

Protective goggles

Made of polycarbonate provided with anti-mist and scratch-resistant shield. Ventilation is granted by holes directly placed on the goggle frame to avoid mist and enhance the working comfort.

Cotton gloves with rubber waves, for greater comfort and a secure and stable grip on the equipment

1 L professional lubricant for pneumatic equipment for the lubrication of internal transmission gear of the olive harvester.

Standard equipment

The product is shipped in its original packaging.

The package also contains the user manual.

WARNING: pole not included
