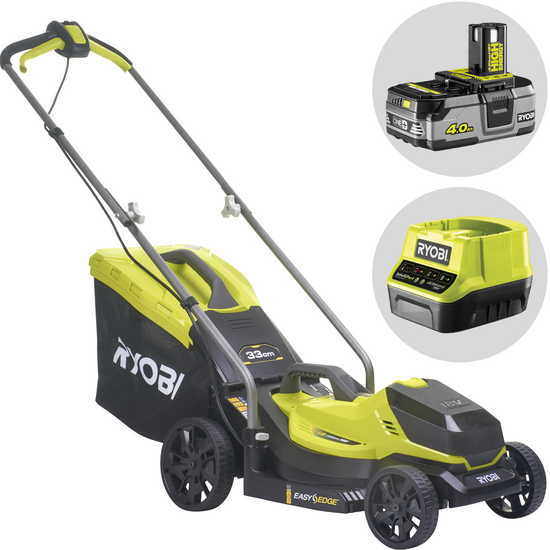

RYOBI OLM1833B - 18V/4Ah Battery-powered Lawn Mower - 33 cm Cutting Width

The RYOBI OLM1833B battery-powered lawn mower is a compact machine designed for mowing small surfaces. Its lightweight construction, featuring a plastic chassis and wheels of different sizes, makes it easy to manoeuvre even in tight spaces.

It is ideal for maintaining domestic gardens of up to approximately 150 m², even where there are narrow paths or uneven edges. It is intended for domestic use, suitable for those who need equipment that is easy to manoeuvre and store away after use.

The Ryobi OLM1833B cordless lawn mower operates via an 18V battery-powered motor that drives a rotating blade positioned beneath the housing. As the mower is pushed forward, the blade cuts the grass, which is either collected in the rear grass collector or shredded via the mulching plug and redistributed onto the ground. The side combs channel the grass into the blade even close to edges, reducing the need for manual trimming along walls and fences.

Technical specifications

The main technical specifications of the RYOBI OLM1833B battery-powered lawn mower are:

• 33 cm cutting deck: compact size that makes it easy to manoeuvre in tight spaces; allows for precise cutting on small surfaces;
• Centralised cutting height adjustment: 5 positions from 25 to 65 mm; allows you to adapt the cut to the condition of the lawn;
• EasyEdge™ system: integrated side combs channel the grass into the blade along the edges;
• Dual collection mode: 35-litre grass collector or mulching function; allows you to choose between collecting or releasing the chopped grass;

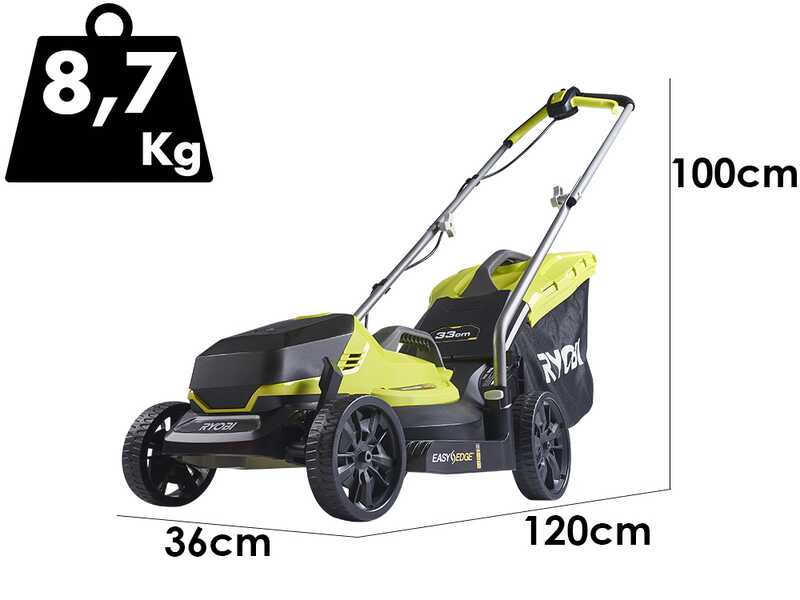

• Lightweight 8.7 kg design: makes transport and handling easy; useful for frequent use in small gardens;
• Adjustable and foldable handle: three heights available; allows adjustment to the user’s height and reduces storage space.

Push mower without self-propulsion, suitable for flat surfaces or surfaces with gentle slopes.

The 18V 5Ah battery slots are located at the centre of the front part .

The second battery storage compartment allows you to keep a spare battery ready for use, avoiding interruptions while working.

When the main battery runs out, it can be quickly replaced with the spare, ensuring uninterrupted operation. This feature is particularly useful for long-duration jobs or when working away from power sources.

Simply lift the cover and remove the battery to recharge it.

The 18V lithium-ion battery can be recharged at any time (like modern smartphone batteries, it has no memory effect) so it is always ready for use. It lasts on average three times longer than a standard battery. The battery is equipped with a convenient charge indicator and an activation button to prevent the tool from being switched on accidentally.

Equipped with a protective key to prevent unauthorised operation.

Advantages of the battery-powered electric motor

• More reliable than an internal combustion engine. No spark plug, filters, oil dipstick, carburettors, etc. that is components which can cause problems.
• Lighter
• Zero maintenance, for the same reasons given before.
• Lower consumption and drastically reduced operating costs compared to internal combustion engines (great results with minimal power required). In addition, the operator won’t have to constantly buy fuel (that should always be fresh).
• Zero vibrations, thanks to the electric motor. Instead, almost all combustion machines, which are not equipped with an anti-vibration system on steel springs, have a very high degree of vibrations, making the work quite unpleasant.
• Zero fumes, zero impact on the environment and, above all, zero repercussions on the operator’s health.
• Much quieter and therefore more pleasant to use than an internal combustion engine.
•

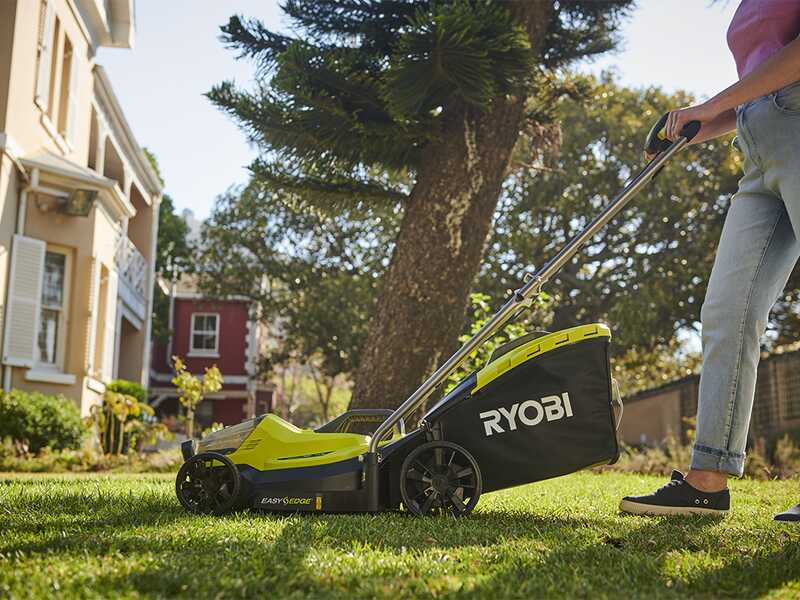

The mower is a traditional 2-in-1 model, with rear discharge, grass collection in the grass box and mulching.

GRASS COLLECTION:

This allows grass to be collected in the dedicated 35-litre grass collector. This grass collector is designed to be easily removed and emptied, improving efficiency and convenience during use. The grass collector’s large capacity reduces downtime, making the entire lawn mowing process quicker and less tiring.

MULCHING:

Instant conversion: simply remove the grass collector,insert the supplied mulching plug and lower the rear deflector to activate the mulching system.

WHAT IS MULCHING:
a cutting system that allows the grass clippings to be shredded and then released back onto the lawn, so finely mulched that they appear as if they had been collected. This eliminates the problem of disposal, reducing effort and mowing time. The grass decomposes and will subsequently turn into nutrients for the lawn and into water (grass is 80% water), ensuring a perfectly balanced biological cycle. However, it is important to remember that, to ensure the system works as efficiently as possible, the lawn should still be watered, and the grass should be cut at least once a week.

Using a mulching plug allows the cut grass to be deposited back onto the lawn, naturally fertilising the soil

Centralised cutting height adjustment: a single lever adjusts all four wheels simultaneously.

This model allows you to choose from five different height settings, ranging from a minimum of 25 mm to a maximum of 65 mm. Adjustment is quick and easy, thanks to a single lever that controls all four wheels simultaneously.

Centralised cutting height adjustment not only improves cutting quality but also simplifies the use of the lawn mower. With a single operation, you can change the height of all the wheels, avoiding the need to adjust each wheel individually.

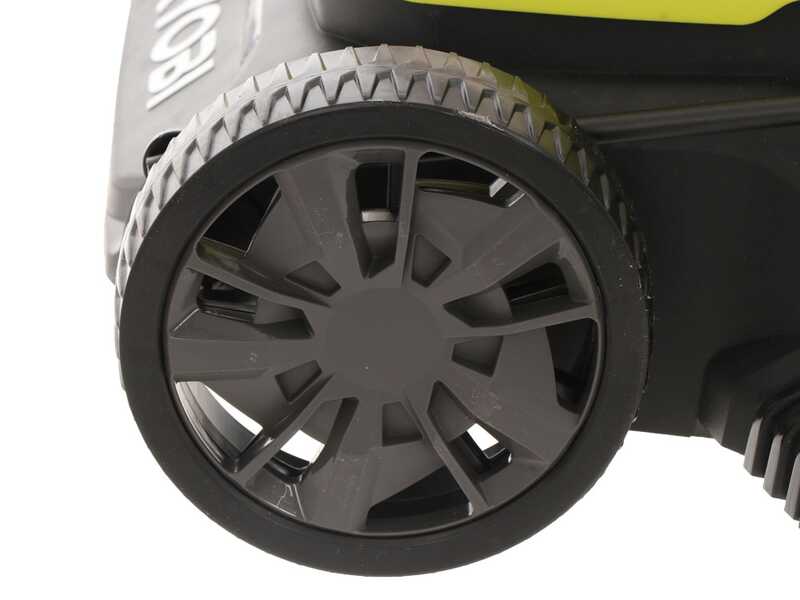

Detail of the front wheel.

Detail of the rear wheel.

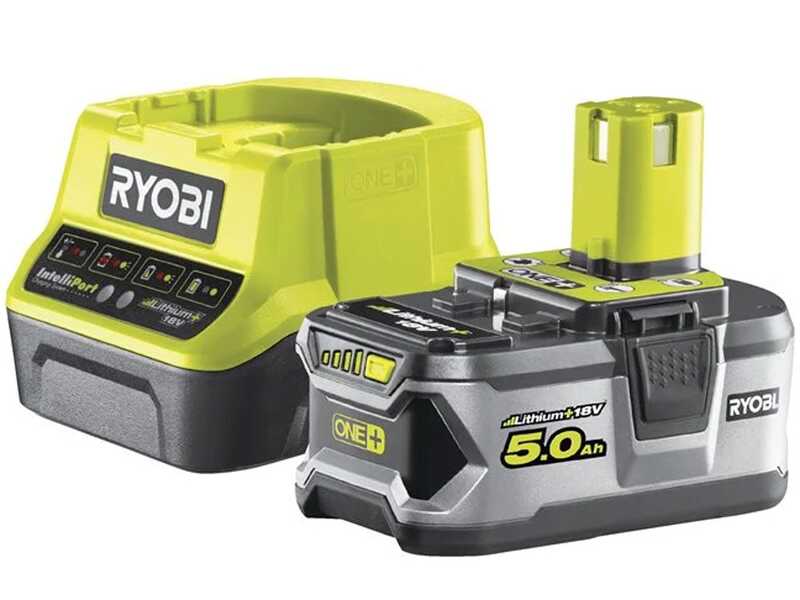

LONGER LIFE: up to three times longer than traditional nickel-cadmium batteries, reducing the need for recharging during prolonged periods of use.
Ideal for medium to large gardens.

FULL CHARGE THROUGHOUT THE BATTERY’S LIFE: the charge in lithium-ion batteries does not diminish. Unlike nickel-cadmium batteries, whose power gradually decreases, lithium battery cells maintain constant power throughout the entire cycle. You get virtually the same charge from start to finish, without any reduction in engine speed. The battery operates at full
power until it is completely depleted.

LONG CHARGE LIFE: lithium batteries boast 3-4 times more recharge cycles than traditional nickel-cadmium batteries, while also offering longer storage times with
less charge loss. With lithium batteries, you can achieve up to 2,000 charge cycles.

LOWER WEIGHT: lithium batteries offer the best power-to-weight ratio. On average, they weigh one-third of nickel-cadmium batteries.

ENVIRONMENTALLY FRIENDLY: lithium-ion battery-powered tools are recyclable and are manufactured without heavy metals.

NO MEMORY EFFECT: lithium batteries can be recharged at any time without any negative memory effect: they continue to deliver maximum power even after hundreds of charge cycles.
Just a few minutes of charging is enough to provide the power needed to finish the job.

LOW DISCHARGE RATE: low run down rate (up to 5 times lower than nickel-cadmium batteries), so your tool will be ready for use even after months of inactivity.

BATTERY CHARGERS: lithium battery chargers reduce energy consumption by an average of 35%.

The actual cutting area may be significantly lower than the value stated by the manufacturer, which is calculated based on standard operating conditions of dry grass of medium to low height. In the presence of tall or wild grass, grass that has not been mowed to a short length, damp grass or particularly dense grass, the workload increases and the motor requires more absorption of power, resulting in a reduction in the batteries’ actual running time.

However, the manufacturer’s stated value is fully reliable under favourable cutting conditions, namely on a regularly maintained lawn with dry grass that is not excessively tall or wild, which correspond to the standard conditions used in laboratory tests.

If mowing is carried out regularly on a thin layer of grass that is well-maintained, preferably in the afternoon when the turf is virtually free of moisture, performance may be in line with the stated figures and, in some cases, even exceed the manufacturer’s specifications.

The cutting system also affects energy consumption: collection and mulching require greater blade thrust than simple discharge. The condition of the blade has a further impact: a blunt blade increases friction and reduces the number of metres that can actually be mowed on a single charge.

Other factors depend on the terrain. Slopes and uneven ground require higher torque, and engaging the traction drive (if available) results in continuous absorption of power, significantly reducing the actual working time. Sub-optimal temperatures, battery-powered age and repeated sequences of restarting or tight manoeuvres further reduce the available runtime.

Under sub-optimal operating conditions, the difference between the stated area and the area that can actually be mowed is therefore due to the increased load placed on the motor, the blade and the drive system.

The cutting surface that can be covered based on the battery amperage used is listed below:
