Ripartrak Agrotechnic X.32 Mark II - Electric Olive Harvester - Roto-vibratory Motion - 200 cm Carbon Pole

Add a question
ID: 114788

EAN: 8050246351666

MPN: 3013

7,5/10
After-sales assistance & Spare parts
Ripartrak Agrotechnic X.32 Mark II - Electric Olive Harvester - Roto-vibratory Motion - 200 cm Carbon Pole
Head material
ABS
Motion
Oscillatory
Speed (bpm)
1850 bpm
Pole material
Carbon
Max. length
20 cm
Motor type
Brush
Voltage
12 V
Nominal power (W)
400 W
Motor position
At the bottom of extension pole
Motor speed levels
1
Motor type
Battery-powered
Battery type
Car type
ABS Prongs
Manufacturing country
Europe
Product Features
Model:
X.32 Mark II
Power supply:
Lead-acid battery 12 V
Head material:
ABS
Type:
12 V battery-powered
Motor position:
At the bottom of extension pole
Motion:
Oscillatory
Speed (bpm):
1850 bpm
No. of prongs:
16+16
Prongs length:
10 cm
Prongs material:
Rubber
ABS Prongs:
Max. length:
20 cm
Pole material:
Carbon
Carbon pole:
Adjustable head:
no
Removable harvesting head for direct use:
No
Max. power even with low battery:
No
Energy Saving System:
No
Pole type:
Fixed
Manufacturing country:
Europe
Motor data
Motor position:
At the bottom of extension pole
Motor type:
Battery-powered
Motor type :
Brush
Battery type:
Car type
Motor speed levels:
1
Nominal power (W):
400 W
Power supply:
12 V battery-powered
Fuse:
Yes
Voltage:
12 V
Recommended battery:
90 Ah
Motor power:
12 V
Manufacturing country:
Europe
Equipment
Extension power cable:
14 m
Free gifts/extra features
Ear muffs:
yes
Instructions manual:
Yes
Dimensions and logistics

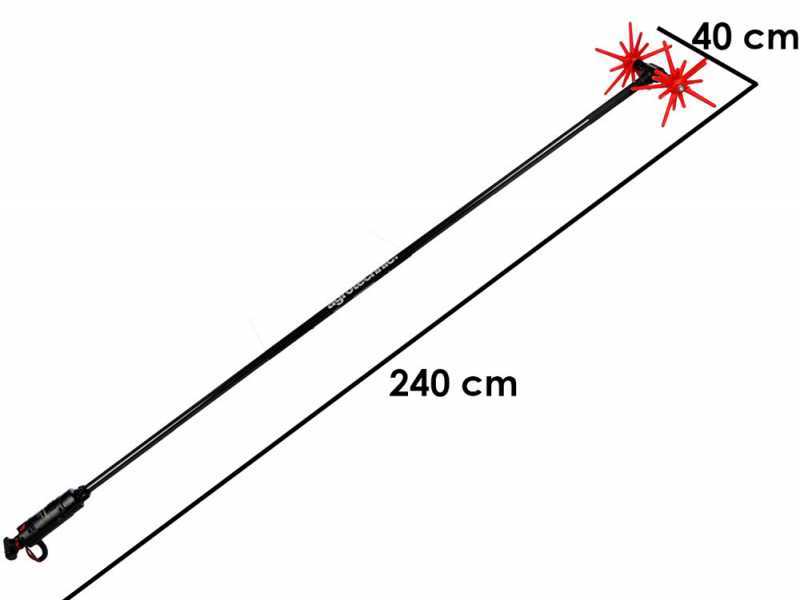

Product dimensions in cm (L x W x H):
240x40x25 cm
Net weight:
2.5 Kg
Packaging:
Original packaging
Original packaging/s dimensions in cm (L x W x H):
222x33x12 cm
Gross weight (packaging included) :
6.5 Kg
Assembly time:
5 minutes
Prompt Delivery
1 item in stock
Free Shipping
Estimated delivery: 25/02/2025 - 27/02/2025
Suggested price:
€ 561,71
€ 500,63
Vat included
You're viewing:
Customers also viewed:
Description

Agrotechnic X.32 Mark II Electric Olive Harvester

The Agrotechnic X.32 Mark II electric harvester is an advanced olive harvesting solution, combining high-quality technology and materials.

Designed to meet the needs of both professionals and hobbyists, this harvester offers high performance thanks to its 12V brush motor with 400 Watts of power.

This motor allows the head to reach a rotation speed of 1850 rpm, ensuring an efficient olive harvesting.

The harvesting system is based on a 360° roto-vibratory head, equipped with 32 thermoplastic prongs, which ensures excellent penetration between the branches, minimising stress on the plant.

The carbon pole, with the possibility of adding extensions, the harvester lightness and manoeuvrability, weighing only 2.8 kg without cable.

The 14-metre-long silicone power cable ensures great mobility during use, while power consumption is low: 10A at 12VDC at full speed.

The Agrotechnic X.32 Mark II also offers a yield of between 150 and 250 kg of olives per hour, depending on the external factors, making it ideal for those looking for a high-performance and durable tool.

Main features:

  • 360° roto-vibratory motion: for efficient harvesting without damaging the plants.
  • 400W brush motor: with 12V power supply for optimal performance.
  • Carbon pole: lightweight and strong, with the possibility of extension.
  • Lightweight: 2.8 kg without cable for long-term use without fatigue.
  • High yield: up to 250 kg of olives per hour in optimal conditions.

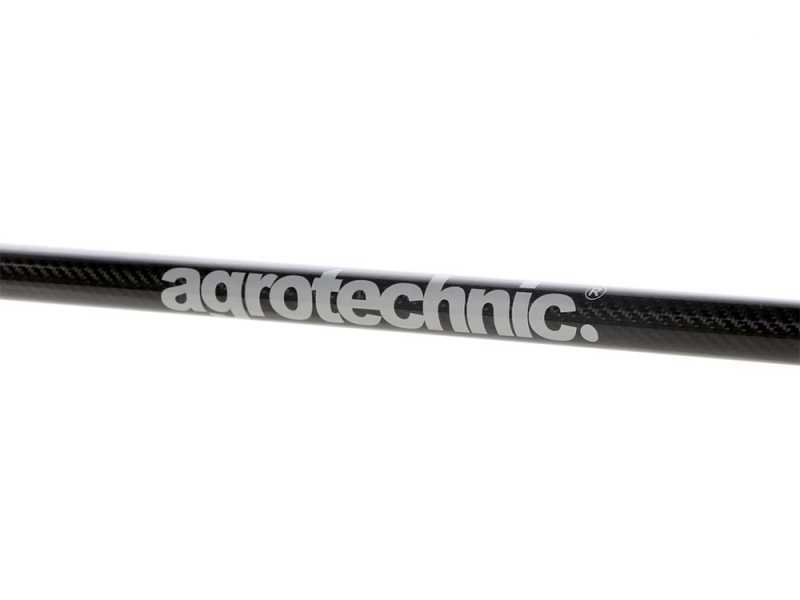

200 cm Long Fixed Carbon Pole

The carbon fibre pole of the Agrotechnic X.32 Mark II electric harvester is one of the hallmarks that make this tool lightweight, durable and easy to handle.

Made of carbon fibre, a material known for its high strength-to-weight ratio, the pole allows operation in intense working conditions, minimising operator fatigue.

The choice of carbon fibre is crucial for olive harvesting operations, as it ensures a significant reduction in the overall weight of the harvester, without compromising the robustness and durability of the tool.

Weighing a total of 2.8 kg without cable, the Agrotechnic X.32 Mark II is designed for extended and intensive use, allowing operators to work for hours without excess fatigue.

Another important feature of the carbon pole is its flexibility in length.

This modularity offers great versatility during harvesting, adapting perfectly to different field requirements.

Additionally, the carbon pole is equipped with a 14-metre-long power cable, made of silicone and highly flexible, with clamps and battery fuse holder.

This long cable allows a large working area to be covered, avoiding the need for frequent battery relocation, and making harvesting operations more efficient and less disrupted.

Main features:

  • Made of carbon fibre: for a perfect balance between lightweight and durable.
  • Low weight: the body of the harvester weighs only 2.8 kg without cable.
  • 14-metre-long power cable: made of flexible silicone for greater mobility.

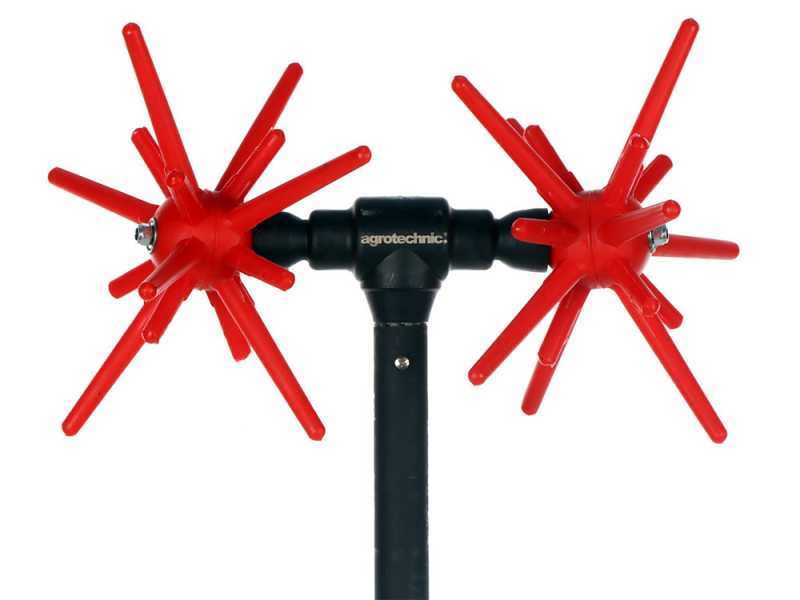

Rake Motion

Unique and exclusive ROTO-VIBRATORY 360° motion.

The head with the rotating spheres manages to penetrate into the foliage and make sure that when the olives are shaken, they fall perpendicularly over the harvesting net, without falling out, and without being bruised at all.

The rakes are fitted on an axis that allows them to rotate on themselves, thanks to the help of two small bearings placed at the end of the prongs. Besides a rotating move, the prongs perform an elliptical motion, which allows optimal penetration into the plant, given by the motor, while the 360° motion occurs freely on one axis.

The rakes are fitted equally on the two spheres, 16 prongs on each side, the longer ones are 10 cm while the shorter ones are 4 cm long.

The Motor at the Bottom of the Pole

At the bottom of the Agrotechnic X.32 Mark II electric catcher is its powerful 12V brush motor with a power rating of 400 Watts.

This engine is designed for reliable, high performance when harvesting olives, ensuring an optimal combination of power, efficiency and durability.

One of the most important aspects of this engine is its ability to reach a head rotation speed of 1850 rpm.

This high speed is essential to ensure effective olive harvesting, reducing working time and increasing operator productivity.

The brush motor, while robust and durable, was chosen for its balance of price, performance and easy maintenance.

The Agrotechnic X.32 Mark II engine is powered by a 12V battery that provides enough energy for a full day's work in the field.

The recommended battery is 90Ah, ideal for up to 8 hours of uninterrupted operation.

This makes the harvester particularly suitable for extended operations, without the need for frequent recharging or interruptions, thus optimizing harvesting operations.

Furthermore, the motor's power consumption is low, requiring 10A at 12VDC at full speed.

This feature, combined with battery life, allows for efficient and uninterrupted work, minimizing downtime and increasing the hourly yield, which can vary between 150 and 250 kg of olives depending on external factors.

Main features:

  • 400 Watt brush motor: powerful and reliable for high harvesting performance.
  • Speed of 1850 rpm: for efficient olive harvesting and increased productivity.
  • Optimized power consumption: only 10A at 12VDC at maximum speed.
  • Extended runtime: up to 8 hours of continuous work with a 90Ah battery.
Free items & Standard equipment

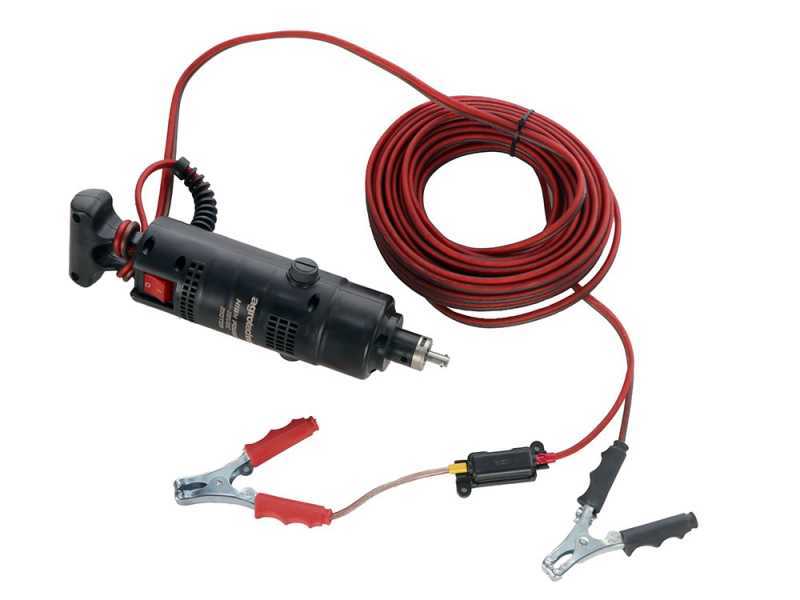

Standard Equipment

The product is shipped in its original packaging.

Extremely sturdy 14 m long connection cable with battery terminal clamps.

Instructions manual.

WARNING: Battery not included
