RF150 Power Harrow - 150 cm Working Width -14 Blades Light Series- Cage Roller

Description

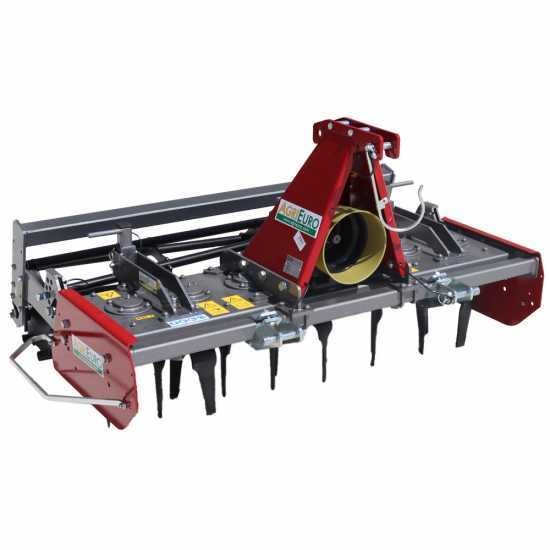

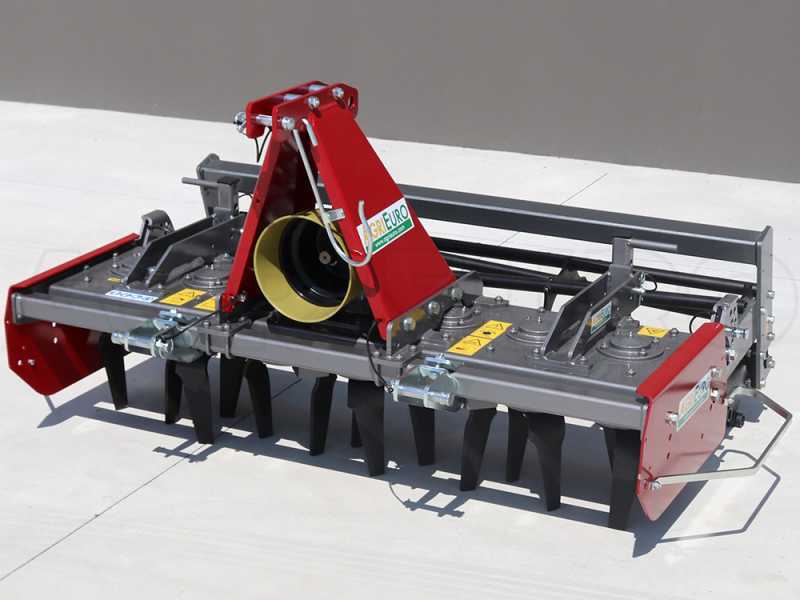

RF150 Rolling Harrow

The RF150 rolling harrow is an effective and long-lasting machine for soil refinement.

Of innovative design, its gears have a smaller diameter compared to competitors, allowing not only to have a lower overall power consumption, but also to use many blades in the same space.

14 knives for a 150 cm work area which, combined with the special adjustable refining bar , allow a better clod crumbling and make RF150 an excellent tool for seedbed preparation.

Its blades, with a rotational and vertical movement in relation to the ground, make the soil porous and extremely permeable.

Also, thanks again to the blades, this tool is able to uprooting the turf rather than cutting it, preventing its regrowth for a long period of time.

RF150 Power Harrow - 150 cm Working Width -14 Blades Light Series- Cage Roller

Technical Features

Technical features of the harrow:

Total width: 190 cm (with bars mounted)
Operating width: 150 cm
Weight: 337 kg
Required power 30 - 50 HP
Number of blades per rotors: 2
Number of blades: 14
Rotor Number: 7

Blades and Transmission

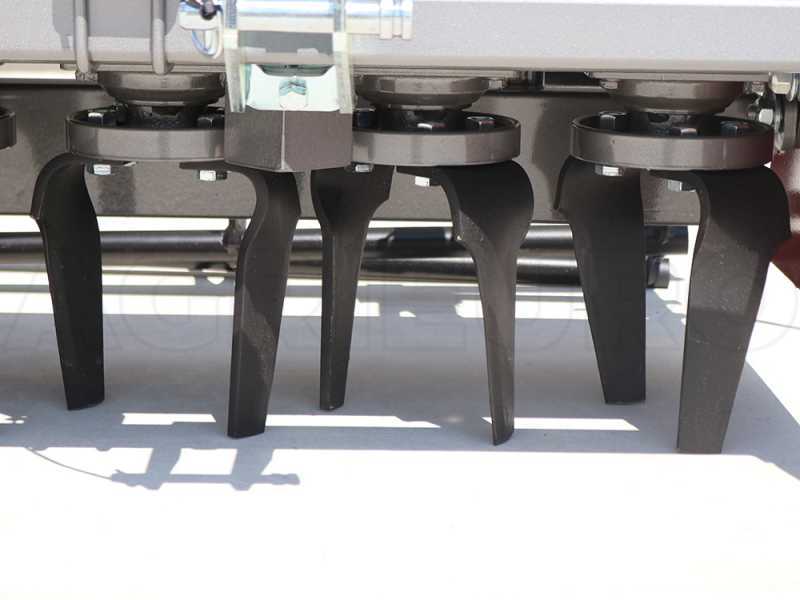

Steel blades:

Nr. 7 discs
with 2 blades each (14 blades in total)

Focus on the single grease nipple for each rotor, each one with its own bearing.

Casing of the transmission with cast iron gearbox.

Gear transmission in oil bath.

Side Roller Adjustment, Refining Bar and 3-Point Hitch

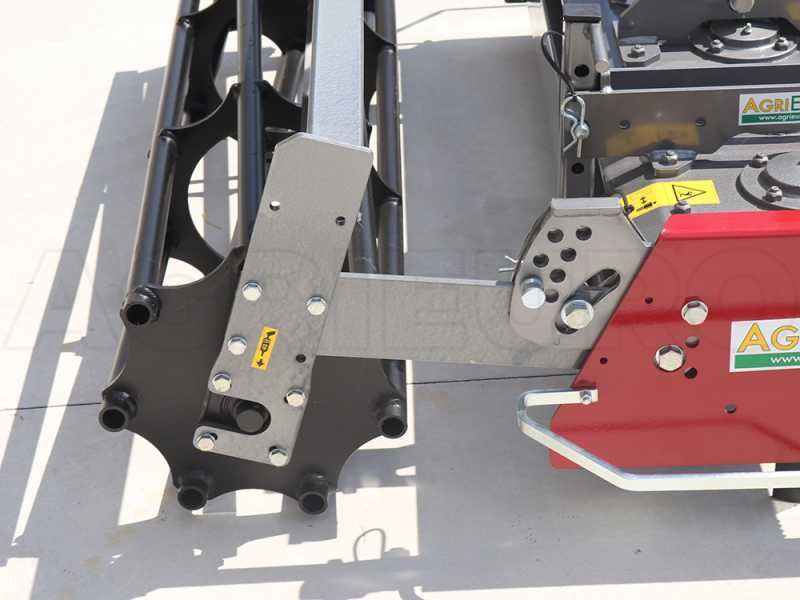

The harrow is equipped with manual roller adjustment.

Focus on the quick adjustment pins.

The export roller slightly compacts the soil freshly tilled by the blades, making it airy on several levels and avoiding the "brick" effect

The shock-absorbing side carters allow to uniformly work the soil, preventing the clods from leaving the work surface but adapting to the unevenness of the soil without stopping.

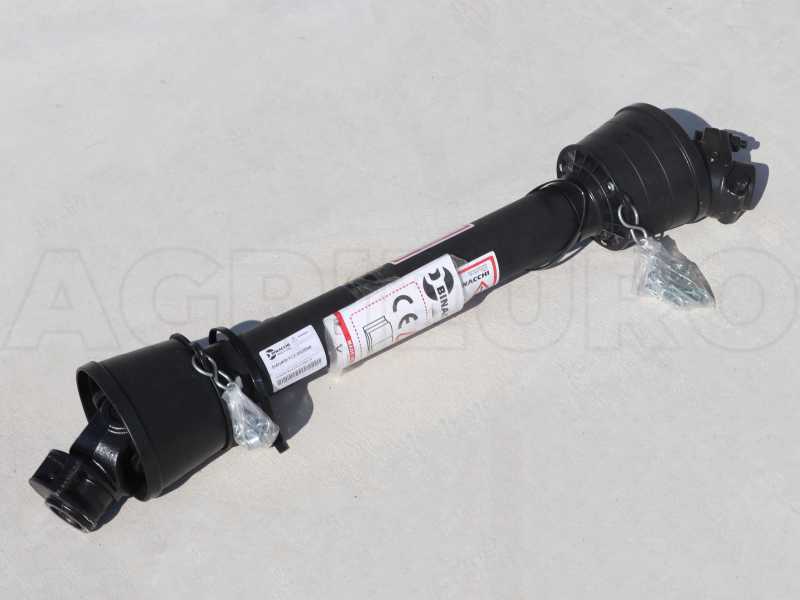

Universal joint support for storage periods.

3-Point Hitch

Adjustable refining bar
