Removable Mounted Sprayer Unit with 200 L Tank for Power Barrow Platforms

Questions & Answers (5)
ID: K0607

EAN: 9993089181030

MPN: 0607

Removable Mounted Sprayer Unit with 200 L Tank for Power Barrow Platforms
+100 sold
Configuration
For platforms
Tank capacity
200 l
Hose reel
Manufacturing country
Italy
Product Features
Model:
200L
Type:
For load platforms, wheelbarrow
Configuration:
For platforms
Motor type:
4-stroke
Configuration:
For load platforms
Tank capacity:
200 l
Applicable pump:
Up to 45 L/min
Manufacturing country:
Italy
Equipment
Hose reel:
Free gifts/extra features
Hose length:
50 m
Instructions manual:
Yes
Dimensions and logistics
Product dimensions in cm (L x W x H):
(L x W x H) 100 x 50 x 75 cm
Net weight:
30 Kg
Packaging:
Original packaging
Assembly time:
30 minutes
Prompt Delivery
8 items in stock
Free Shipping
Estimated delivery: 29/04/2024 - 02/05/2024
€ 1.121,54
VAT Included
You're viewing:
Customers also viewed:
Description

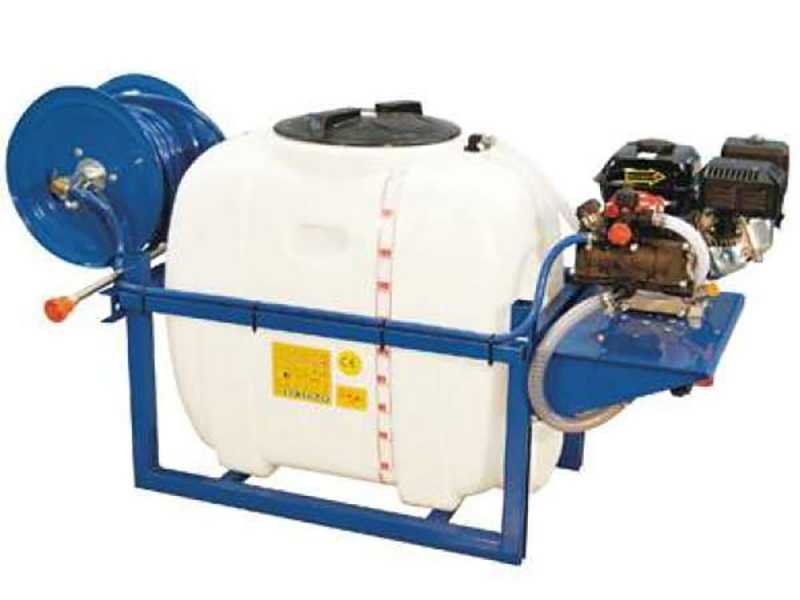

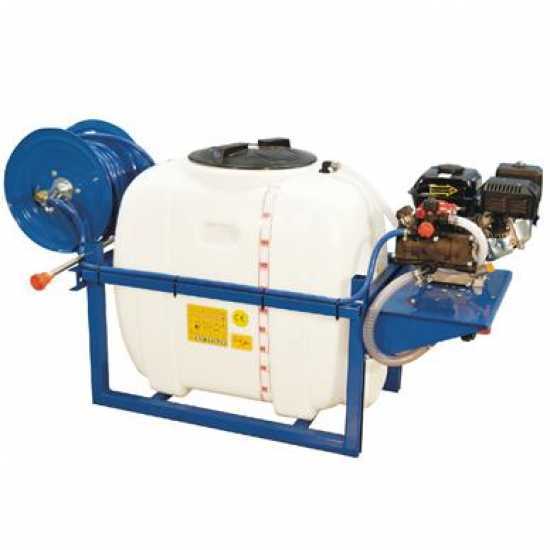

Removable Mounted Sprayer Unit with 200 L Tank

It is a movable spray unit for spraying, weeding and localised spray treatments with plant protection products through a hand-operated lance. Specifically designed to be placed on the platform of power barrows and mini-transporters. Steel section frame painted with blue epoxy powders.
Polyethylene tank with graduated scale of 200 L capacity, accessible suction filter with closing valve for cleaning when the tank is full.

This mounted spray unit is specific for spraying or weeding treatments, in medium or large crops, parks, gardens, vegetable gardens, greenhouses.

WARNING:

The frame, depending on the supplies, can be painted in blue or red. This in no way affects the overall quality of the product.

Heavy-duty manual steel hose reel complete with 50 m of hose included.

Suitable for mounting a medium-sized sprayer pump (not included). Generally, a pump with performance up to 45 L/min - 40 bar is recommended.

Our catalogue includes many models of engine-powered sprayer pumps available in prompt delivery that can be combined with this spray unit. To check the compatible models, simply click on top on the "RELATED PRODUCTS" tab and you will see the full list with prices.

This removable spray unit for spraying treatments with 200 L tank is supplied complete with all hoses to connect it to the pump (that can be purchased separately), fittings, clamps and 50 m hose.

Basically, to complete the machine, simply select the desired sprayer pump and lance.

MAIN FEATURES: High-strength thick polyethylene tank

CAPACITY: 200 L

Equipped with graduated scale to immediately check the liquid level. Self-supporting frame with painted steel sections.

Footprint: 800 x 500 mm

This footprint makes it suitable for the platform of any power barrow on the market, even the smallest ones with a load capacity of 200-300 Kg. However, we recommend to always check the dimensions of the platform inside the side panels of your power barrow.

Pair of sliding side arms for mounting the hose reel and, on the other side, for mounting the base for the application of the sprayer pump.

Simply loosen 2 screws to raise or lower both the hose reel and the sprayer pump. Equipped with a wide perforated base which allows you to use many different sprayer pumps.

The holes make this spray unit with tank suitable for different types of engine-powered Comet pumps in our website.

We remind you that you can find the pumps suitable for this spray unit in the "RELATED PRODUCTS" section.

This is an example of a large petrol sprayer pump, placed on a pump-holder base.

Professional galvanised steel hose reel.

Equipped with 50 m 40 bar high-pressure hose.

Suitable to operate all high-pressure petrol sprayer pumps that can be applied to the spray unit with tank and all related attachments (lever lances such as the one supplied with the power barrow, gun spraying lances, mitra lances, etc.).

Focus on the large lid that covers the tank opening.

Focus on the mesh filter placed under the lid for the first filtration of the liquid for treatments inside the tank of the spray unit.

Heavy-duty external cartridge filter, easily accessible for cleaning, placed at one end of the suction hose (allows total protection of the membrane pump). The advantage of this removable unit is that it can work independently.

In fact, having its own tank and an engine-powered pump, once positioned on the platform of your mini-transporter it allows working in complete autonomy, even very far from your own garage or home.

Click “ADD TO CART” to purchase this item, in the following page you will find again all the suitable sprayer pumps and lances. You can then add the desired sprayer pump to the purchase and the system will show you the total price (unit complete with sprayer pump). You will therefore be able to complete the purchase process.

You will receive your product at home, 90% assembled. You will only have to fix the hose reel and the sprayer pump base on the frame (8 bolts) You also need to fix the sprayer pump (4 screws) and the 3 connecting hoses with the relative clamps.
The assembly is therefore very short and very simple, and does not require any mechanical skills, but the simple use of wrenches for screwing the screws.

TROLLEY WEIGHT: Approx. 60 Kg

* (with a medium-sized pump)

DIMENSIONS: 100 x 50 x 75 cm

3 types of lances that can be combined with this trolley:

* also available in the RELATED PRODUCTS section. You can select them after adding to the cart the spray unit.

- Standard brass lever lance

- Spray gun lance for tall trees

*it requires a pump of at least 25 bar

- Professional mitra lance for tall trees

* it requires a pump of at least 30 bar

Free items & Standard equipment

Free items included

50 m hose, 40 bar max. pressure.

The package includes fittings, metal and plastic clamps and everything needed to operate the machine correctly.

Instructions manual

The removable mounted sprayer unit with 200 L tank is shipped in its original packaging on pallet.
