Reber 9504N INOX Meat Mincer - N.32 - 1200W Professional Induction Electric Motor - Gear Motor with Steel Gears

Questions & Answers (4)
ID: K600901

EAN: 8013152960315

MPN: 9504N

Reber 9504N INOX Meat Mincer - N.32 - 1200W Professional Induction Electric Motor - Gear Motor with Steel Gears
+100 sold
FREE
Universal cover for storageUniversal cover for storage
Motor type
Induction
Operating mode
Single-phase 230 V
Rated power
1.5 Hp
Certifications
CE domestic
Multi tool
5 in 1
Attachment dimensions
No.32
Accessory material
Cast iron - short
Hourly output
160 Kg/h
Transmission type
Gears
Funnel material
Stainless steel
Manufacturing country
Italy
Product Features
Model:
9504N
Machine body material:
Cast iron
Certifications:
CE domestic
Power output:
1200 W
Operating mode:
Single-phase 230 V
Hourly output:
160 Kg/h
Multi tool:
5 in 1
Manufacturing country:
Italy
Motor data
Motor type:
Induction motor
Motor type:
Induction
Rated power:
1.5 Hp
Power supply:
220 V electric
Transmission data
Transmission type:
Gears
Gear unit type :
With gears
Gear material:
High-strength steel
Cutting data
Accessory material:
Cast iron - short
Attachment dimensions:
No.32
No.32 Accessory:
Funnel material:
Stainless steel
Blade material:
hardened steel
Free gifts/extra features
Instructions manual:
Yes
Dimensions and logistics
Product dimensions in cm (L x W x H):
58x26x36
Net weight:
29 Kg
Packaging:
On pallet
Original packaging/s dimensions in cm (L x W x H):
75x42x60 cm
Gross weight (packaging included) :
32 Kg
Assembly time:
5 minutes
Prompt Delivery
3 items in stock
Free Shipping
Estimated delivery: 24/05/2024 - 28/05/2024
Suggested price:
€ 721,67
€ 699,63
VAT Included

Available versions
You're viewing:
Customers also viewed:
Description

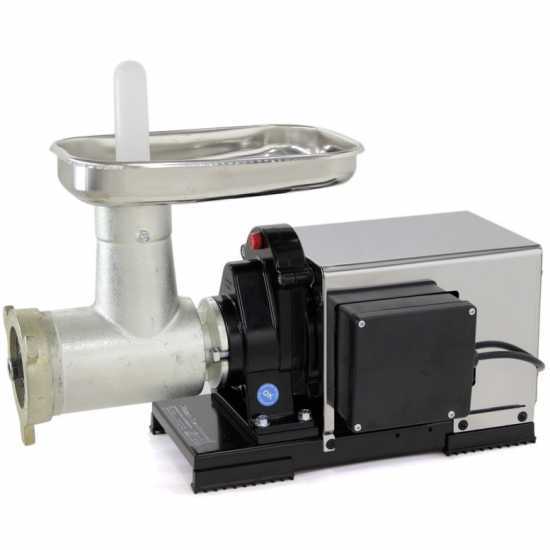

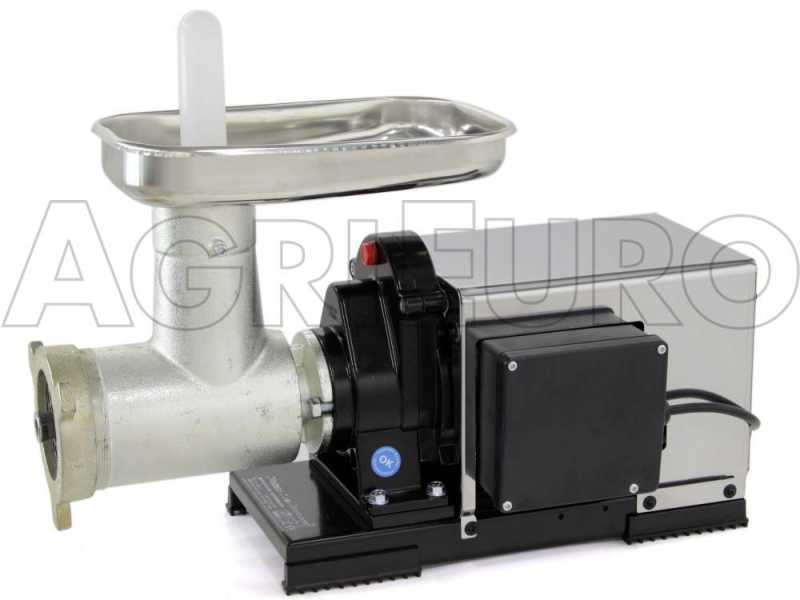

Reber 1,5 HP Table-top Meat Mincer

The Reber N.32 1,5HP (1200W) meat mincer is a high-performance multi-tool machine designed for domestic use, with a simple but extremely functional design. It’s an essential accessory for all domestic processes such as mincing or, using the appropriate accessories, for tomato pressing, grating etc...

To be used placed on top of a table, the Reber meat mincer, is extremely easy and practical to use.

The motor is completely covered by a stainless steel carter. this ensures high protection against external elements, making the machine extremely robust and with a much higher ease of cleaning than the average meat grinders on the market.

The components that make up the meat mincer, such as the propeller and the ring nut, are in tin-plated cast iron for food use. The very large hopper plate is in stainless steel, while the pestle is made of food-grade plastic.

The die plate with 10 mm holes and the self-sharpening blade are in tempered steel.

Equipped with continuous service induction electric motor with a power of 1200 W powered at 220V, this meat mincer is suitable for all particularly demanding hobbyists or for professional use.

The hourly output is 100~160 Kg/h

The Reber meat mincer is multi-functional: by purchasing the special kit sold separately, it can perform as:

  • Tomato press
  • Pasta press
  • Cheese grater
  • Dough mixer

FOR FREE: cover for easy storage!

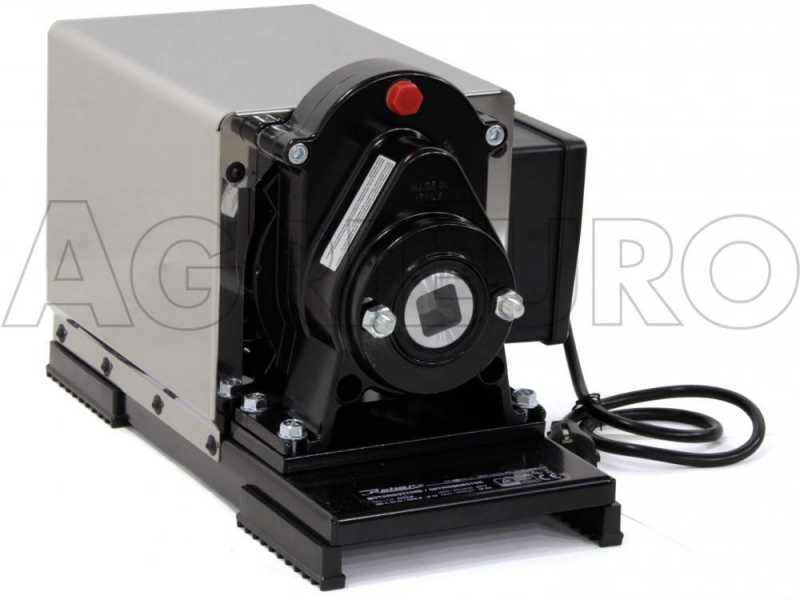

Heavy-duty motor and transmission in steel - Machine body

This machine is equipped with a powerful 1200 W continuous service electric induction motor powered at 220 V.

  • The motor is equipped with forward-reverse gear switch to unlock the meat grinder accessory without disassembling it.
  • Completely covered with an stainless steel carter.
  • IPX5 protection class
  • Axial reduction steel gears in oil bath.

Unlike the standard ones, the machine body gears of this version are made of sturdy steel, thus making the gear motor extremely resistant.

Detail of the tow pin housing, the transmission sturdy construction is entirely made in metal.

The motor body is fully protected by the steel crankcase to guarantee an optimal cleaning and protection from breakages and accidents.

The transmission is in an oil bath and needs no topping or replacement (we use ''Long Life'’ oil type, which is suitable for any accidental contact with food).

All machine components are of high quality and made in Italy.

WARNING: In this new gear motor model Reber uses a new lubricant for the transmission that does not require discharge valves. Is NOT necessary to remove or replace the red cap before starting the machine.

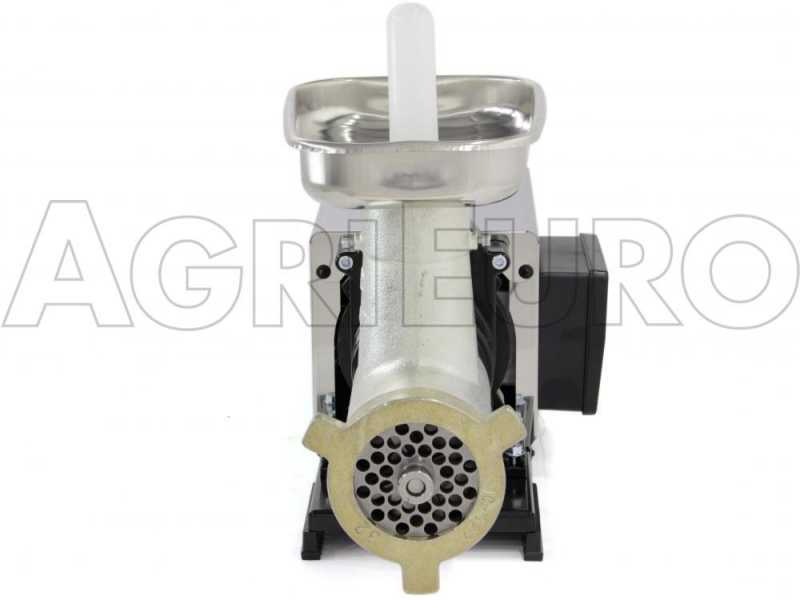

Meat mincer

The Reber N.32 meat mincer machine body, propeller and ring nut are in food-grade tin-plated cast iron, while other elements, such as the pestle, are made of food-safe plastic.

The die plate with 10 mm holes supplied is made of tempered steel, as well as the self-sharpening blade.

The large stainless steel hopper plate measures approximately 20x30 cm.

Machine operation is extremely simple and intuitive.

Thanks to the numerous die plates (sold separately) you can grind the meat with different grains.

The meat mincer can be  for a more comfortable cleaning of all its parts. The machine has a IP X5 protection class, thus allowing for thorough cleaning without the risk of damaging the machine’s electronics.

The propeller is equipped with ball bearings to reduce friction and the resulting noise.

Free items & Standard equipment

COMPLIMENTARY: Heavy-duty cover cloth for storage

Perfect for protecting your equipment when stored.


This cloth is fast and easy to apply; within seconds your machine is protected from dust and moisture.

It is suitable for small-sized machinery.

Easy to fold and store inside its packaging as it takes up very little space!

Free items included

The machine is shipped in its original packaging

Included are:


Instructions manual
