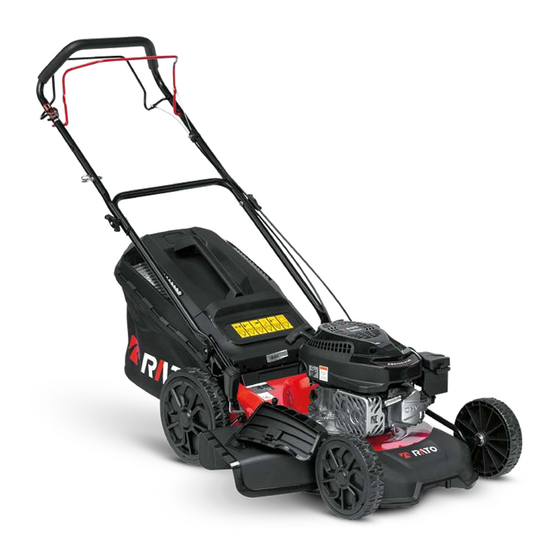

Rato Multipower RMS51Q-V170 - Traction petrol lawnmower - 170cc Rato engine

The Rato Multipower RMS51Q-V170 power power mower is an ideal tool for those looking for a powerful and versatile lawn care device.

Equipped with a 170cc Rato RV170 s-V engine that delivers 5.5HP, this mower delivers high performance in a range of terrain sizes and conditions.

Thanks to its rear-wheel drive and cutting width of 51 cm, this mower can cover large areas in fewer passes, making work more efficient and faster.

The 4-in-1 cutting system offers maximum flexibility, allowing you to choose between:

1. Collection in the large 60L basket
2. Side discharge
3. Rear discharge
4. Mulching

The central cutting height adjustment offers 7 different positions, allowing you to adapt the cut to different lawn conditions with a simple gesture, from a minimum of 20mm to a maximum of 65mm.

Main features of the Rato Multipower RMS51Q-V170 powered power mower:

• Rato 170cc engine : Powerful 5.5hp motor for high performance.
• Cutting width: 51 cm. Efficient coverage of large surfaces.
• Rear-wheel drive: Better maneuverability on uneven ground.
• 4 in 1 cutting system: Collection, side discharge, rear and mulching.
• Centralised cutting height adjustment: Six settings for a customised cut.

It also features a foldable handle that saves space, making it easy to carry and store.

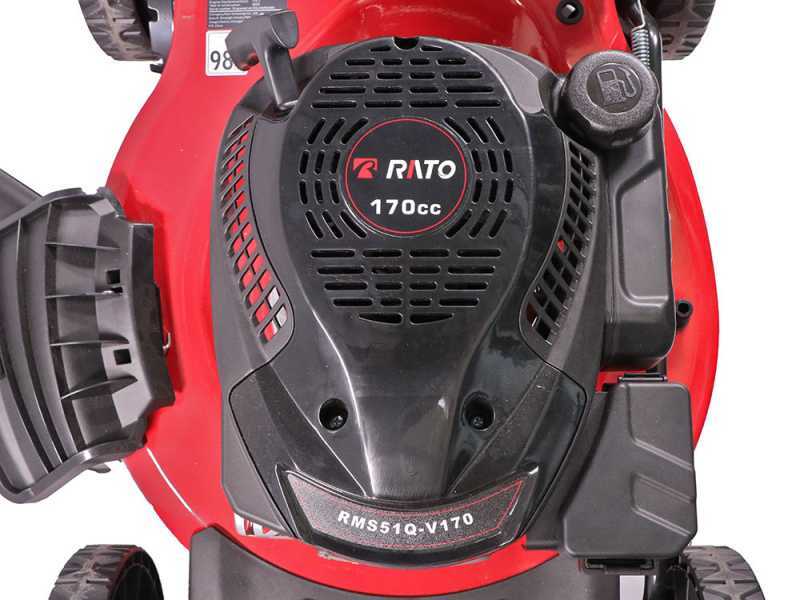

McColluch RV170 OHV air-cooled 4-stroke petrol engine with an aluminium cylinder, 170 cc and a nominal power of 5.5 Hp.

The engine is easy to start thanks to the handy recoil starter.

Primer bulb to make starting the engine even easier

ATTENTION:

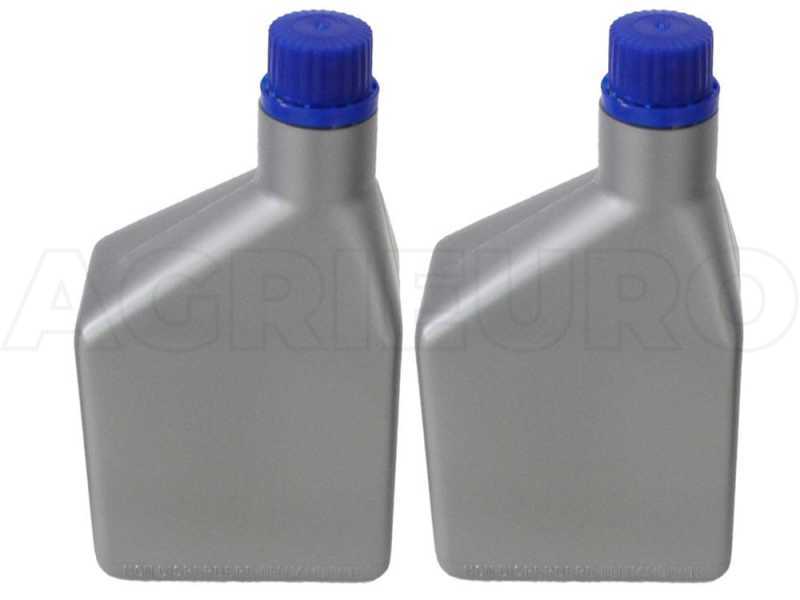

The engine is provided without oil. Check the oil level before the first starting.

Nominal Power: 5.5 Hp
The correct term would be "Commercial” Power, meaning the standard definition used until a few years ago by all well-known engine manufacturers.

* This technical feature is the one indicated in the main sales channels, even if it is higher than the real power of the engine.

Rated power: 4.02 Hp (at 2800 rpm)
It refers to the real power of the engine. This is the power indicated as official in the engine instructions manual.

* this is a figure that can vary for the same engine model depending on the rpm the equipment manufacturer has decided to have the applied engine deliver

• Useful blade cutting width: 51 cm
• Steel body width: 53 cm

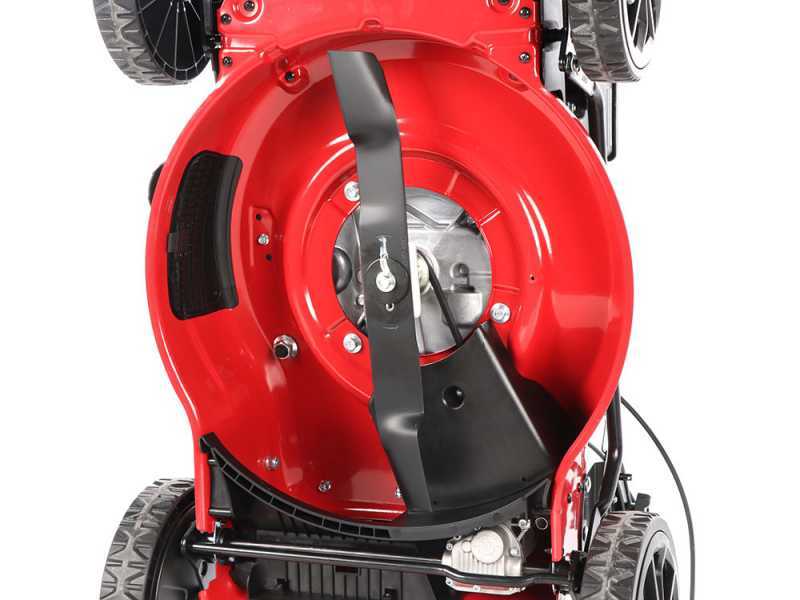

Universal hardened steel blade, suitable for all the cutting systems the lawn mower is equipped with.

High strength painted steel body with side protectors

Rear-wheel drive mower

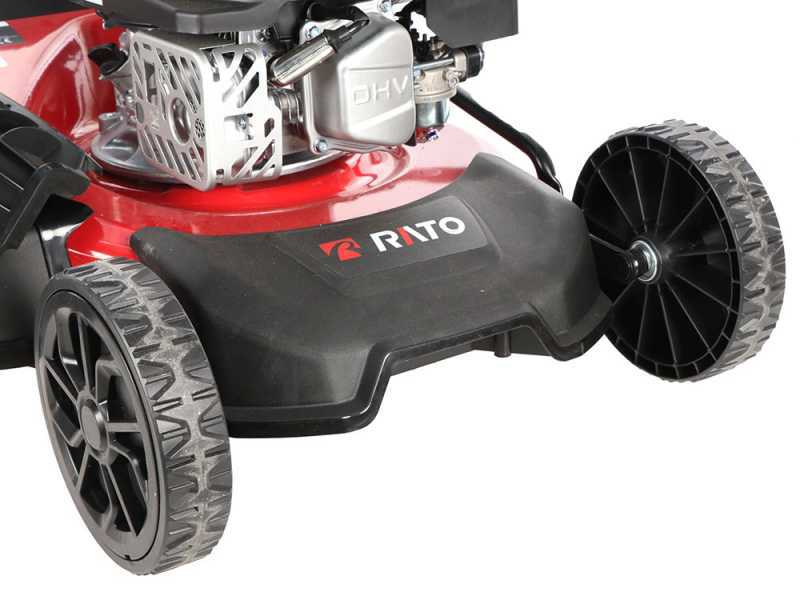

Additional protection in the front of the machine to better cushion any impact.

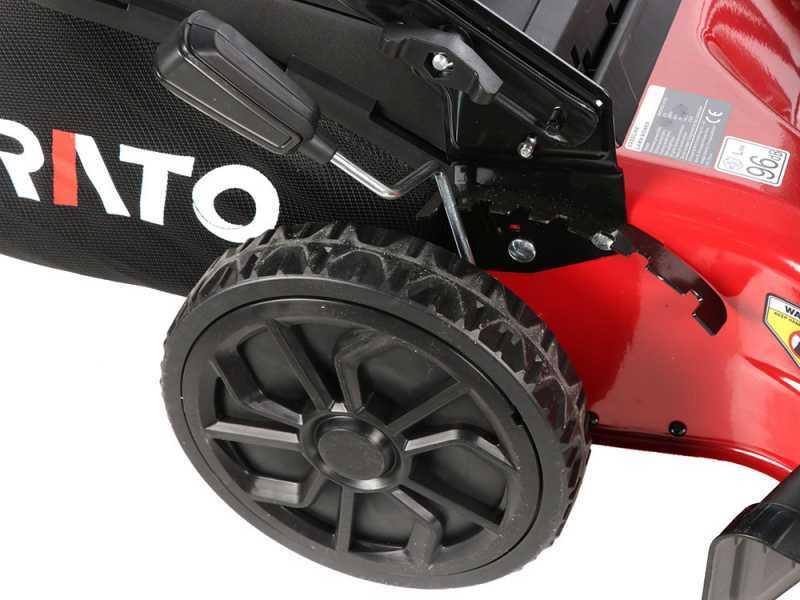

This lawn mower is equipped with 7 cutting height adjustments,

from 20 mm to 65 mm.

The centralised cutting height adjustment system by means a single lever is incredibly fast and intuitive.

Simply grab the proper lever, pull it and lift the machine until it reaches the desired height.

Double bearing wheel dimensions:

• Rear wheels: 250 mm
• Front wheels: 200 mm

GRASS COLLECTION SYSTEM

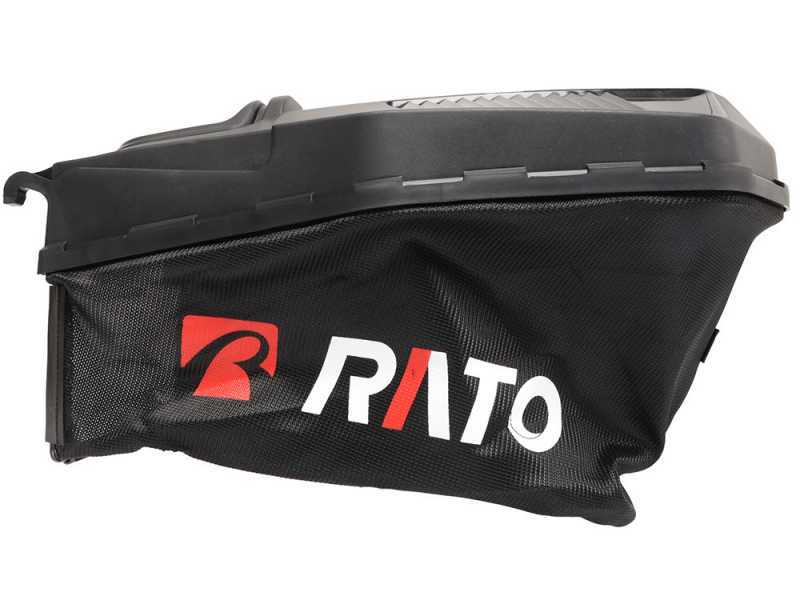

The lawn mower is equipped with a large 60 L canvas grass collector, easy to remove and empty. The grass collector is made of fabric.

It is made of reinforced double layer plastic in its upper part, The lower part is made of mesh. The net flexibility allows easy emptying the grass collector when full.

Comfortable handle on the upper side of the grass collector in order to facilitate the collector removal.

Bag equipped with bag full indicator

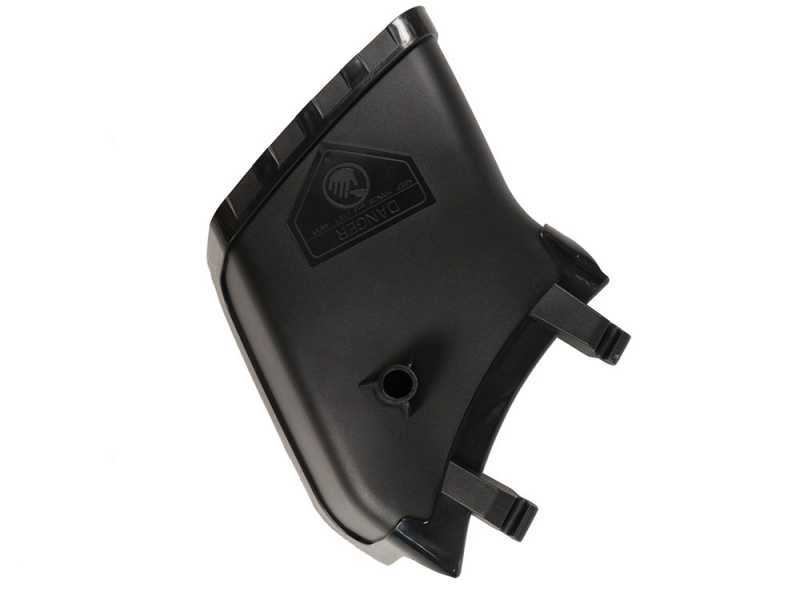

SIDE DISCHARGE SYSTEM
This system allows mowing grass without collecting the clippings inside the grass collector (it is also possible to collect grass a bit higher than normal, due to the high disposal capacity of the side discharge deflector).

Leaving the mulching plug entered, in order not to occlude the rear discharge of the grass, simply lift the cover on the housing side and enter the side deflector supplied with a simple gesture.

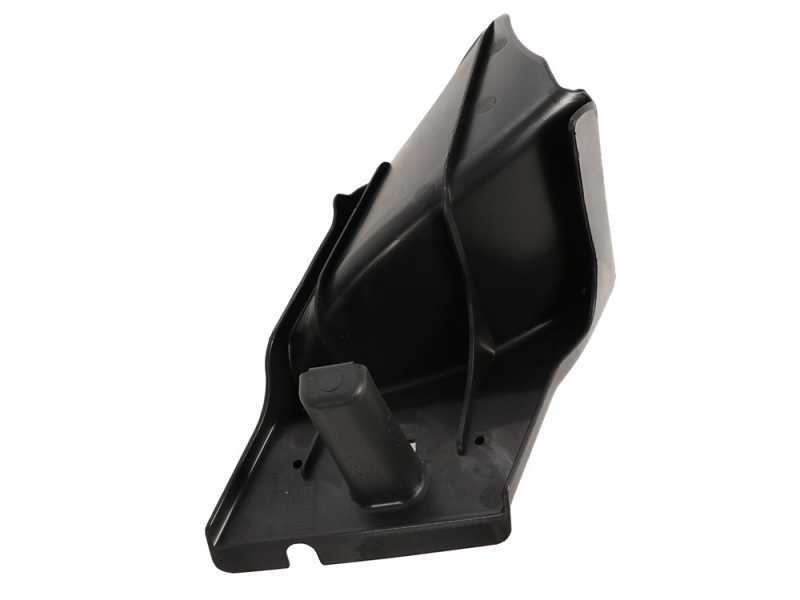

MULCHING CUTTING SYSTEMThis system allows cutting grass without catching it inside the collector, and crushing the clippings into a fine powder before dropping them on the lawn.

Immediate conversion: you will just need to pull out the grass collector, enter the standard-supplied mulching plug and lower the rear deflector in order to engage the mulching system.

MAIN SPECIFICATIONS OF THE MULCHING CUTTING SYSTEM: This grass mowing system allows crushing grass clippings and dropping them on the ground. The resulting grass particles are so small, they will be barely noticeable on the lawn. This eliminates the problem of its disposal (reducing any effort and shortening the time-saving). Moreover, grass clippings will break down into nutrients and water for the lawn (grass is 80% water) and will thus ensure a perfectly balanced biological cycle. However, it is worth remembering that, to ensure the greatest mulching results, the lawn should be irrigated and the grass needs cutting at least once a week.

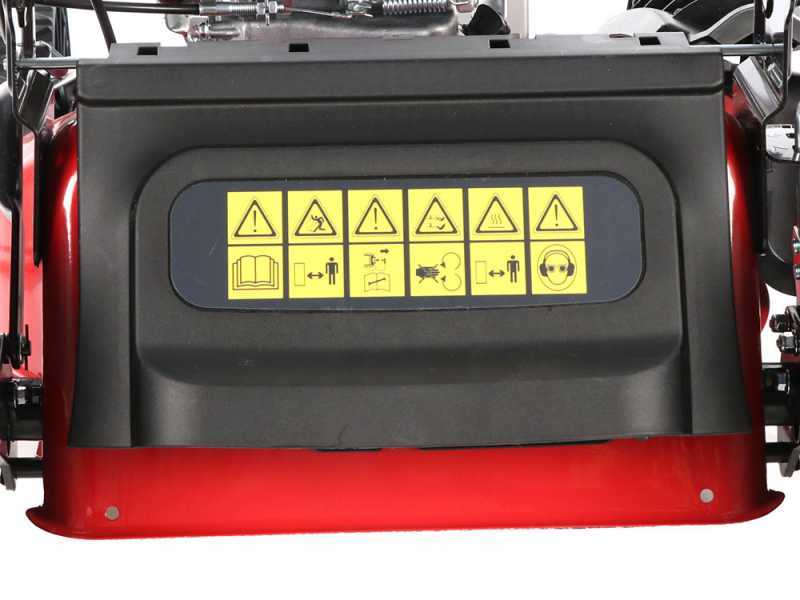

REAR DISCHARGE SYSTEM
This system allows mowing grass without using the grass collector, discharging the grass clippings directly from the back of the lawn mower.

Simply remove the grass collector, leaving the rear discharge opened.

Simple and intuitive handlebar controls.

The handlebar is coated for maximum comfort.

• Blade and drive engagement lever
• Adjusting the height of the handlebar in two different positions
• Engine start rope
• Handlebar fixing knobs
• Centralised cutting height adjustment lever.

Detachable handlebar for easy storing.
