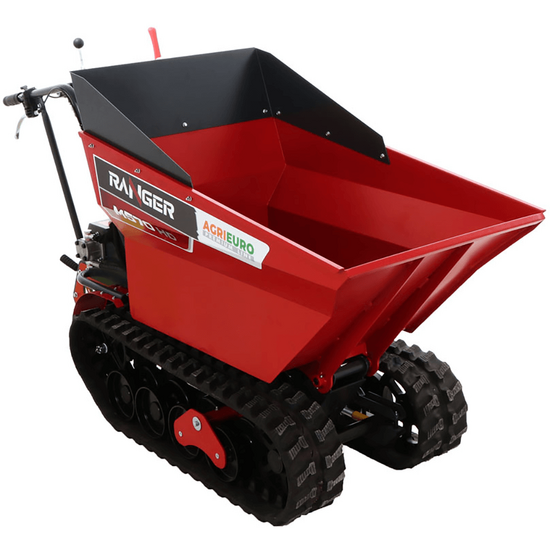

Ranger M570 HD Dumper Tracked Power Barrow - Honda GX200 Engine

The Agrieuro RANGER M570 HD tracked power barrow is a very robust machine. It has a hydraulic circuit that allows the dumper body to be lifted effortlessly, thus facilitating every work situation.

The tracked power barrow is a very sturdy machine, suitable for transporting all types of material in agriculture, construction and forestry.

The controls are simple and intuitive, the lever at the top of the machine allows easy control of tipping. The power barrow is equipped with a mechanical gearbox, consisting of 6 forward and 2 reverse gears.

The tracked power barrow has a load capacity of up to 500 kg on level ground and up to 350 kg on slopes.

Among the other features of this power barrow it is possible to find its tracks, that ensure stability and safety during use of the machine even with a heavy load and gradients that normal wheelbarrow fail to address.

Thanks to the self-propulsion on tracks and to the powerful HONDA engine, this power barrow is intended for carrying loads.

• Up to a maximum of 500 kg on flat ground
• Up to a maximum of 350 kg on terrain with a maximum slope of 30%, making it an indispensable tool for all types of transport.

The machine is equipped with a powerful HONDA GX200 petrol engine, capable of delivering:

• 6.5 HP of power

We remind that it is always good to:

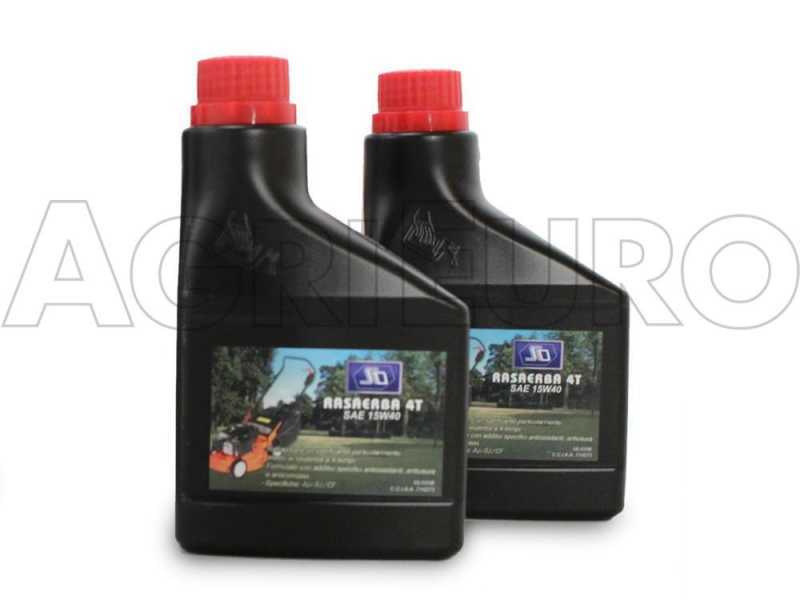

1) check the engine oil level
2) put oil in the filter because it is not present (in case of filter in oil bath)
3) carefully read the instructions manual before carrying out any oil check and topping up operation (the manufacturer can modify the supply modalities specified in the two upper points without any prior notice).

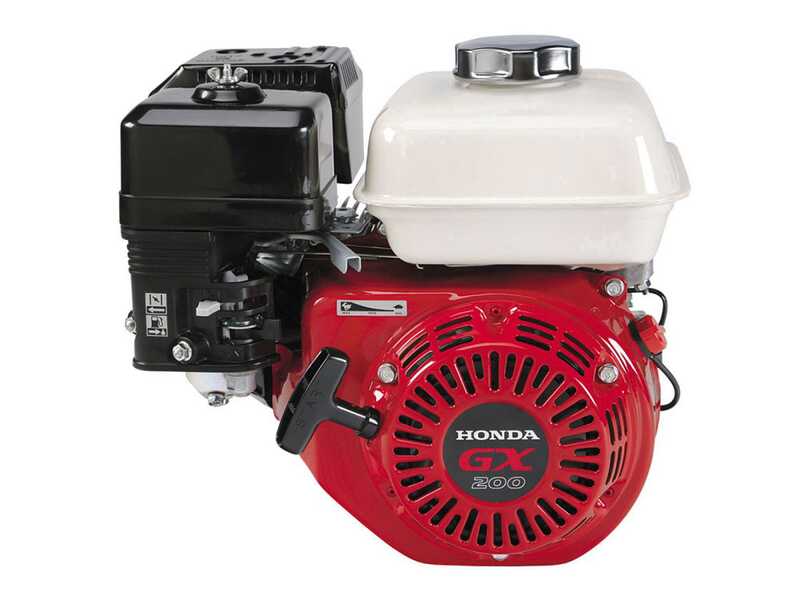

Honda GX 200
Powerful and professional, with the latest generation technology in OHV valve head.

Features:

The Honda “GX” series is highly professional and was developed for heavy-duty woks in the building and agricultural field for generators, welders etc. It is characterised by great durability and reliability.

Rated Power: 6.5 HP
The correct term would be "Commercial” Power, meaning the standard definition used until a few years ago by all well-known engine manufacturers.

* This technical feature is the one indicated in the main sales channels, even if it is higher than the real power of the engine.

Effective power: 5.5 Hp
It corresponds to the real power expressed motor shaft. This is the power indicated as official in the engine instructions manual.

* This technical feature may vary from a an engine model to another according to the speed of rotation provided.

Gearbox: large, reliable and accurate.

The power barrow is provided with reducer gears, which allows him to double the gears and get to 6 for the advancement and 2 for reverse. Thanks to the regulator will be able to always have the right traction in any situation. It uses the same concept as off-road vehicles.

The engageable gears are a total of 8 ( 6 + 2 ) Allowed by this adjustable speed from low to high of each gear. Using the lever to the right of the gearbox, you can choose between two speeds. The fastest gears are indicated for the sliding portions while setting the low speed (Low range) it will be possible to cross with ease even the roughest spots. The two new levers allow a fast and convenient insertion of the desired gear. One to enter the 3 gears (forward and reverse), the other to select fast or slow mode.

Parking brakes :
annexes to the gearbox, for greater stability and security.
These are automatically activated when the controls are released (if the machine is left in neutral position, even on a steep slope, it remains perfectly locked).

Transmission:
Sturdy and resistant, it allows managing the steering by acting on the single track, deactivating its rotation.

The power barrow is equipped with tilting tracks. The two central rollers, unlike the others, are mobile and can move according to the obstacle in front of them, thus allowing the machine to always have maximum grip on the ground.

The shape of the tracks allows the wheelbarrow to easily pass over even the most insidious obstacles such as walls and steps, while still guaranteeing safety and stability. Thanks to the width and the tread configuration, they guarantee perfect grip and stability on all types of terrain. Made of special reinforced rubber with excellent grip, they are able to tackle any type of surface or step.

Body made in high-resistance steel, is reinforced with tubular cross members in the lower part, which make it suitable for any load or stress. The loading platform is at the minimum distance from the ground to facilitate loading/unloading operations

In addition, the body structure is completely welded and free of holes, making it watertight, which allows the transport of any material with a high liquid content.

Barrow thickness 2 mm

The load capacity of the power barrow is 500 Kg on level ground and 350 kg on slope (maximum slope 30%)

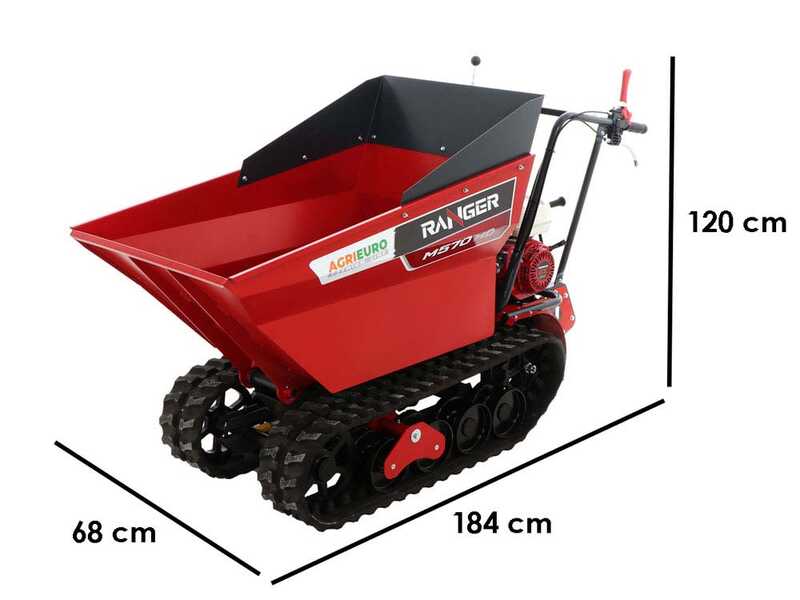

Barrow dimensions: 112x69x72 cm

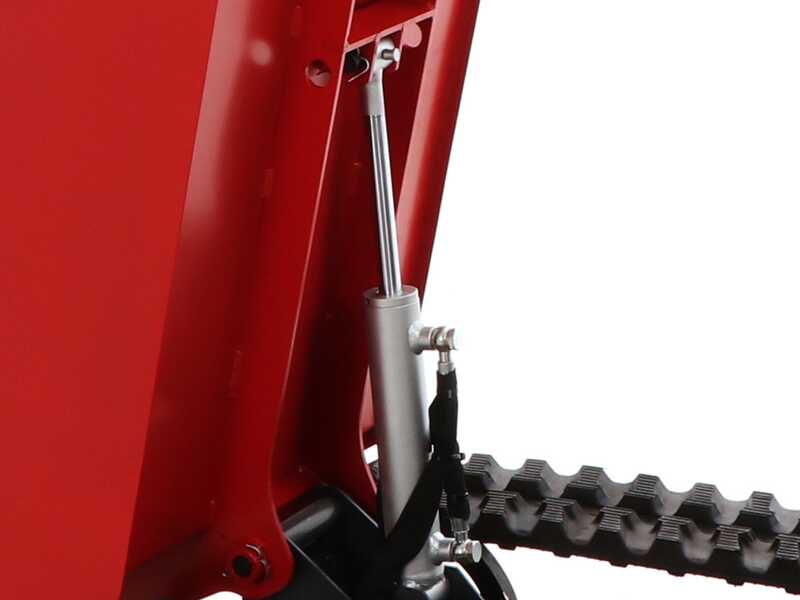

Powerful hydraulic circuit that allows the lifting of both the barrow and the shovel through the use of the levers present on the control panel.

It is characterized by:

• Hydraulic pump
• Distributor equipped with practical actuation lever of the pump positioned under the control panel
• Sturdy hydraulic cylinder

Maximum tilting angle 90°

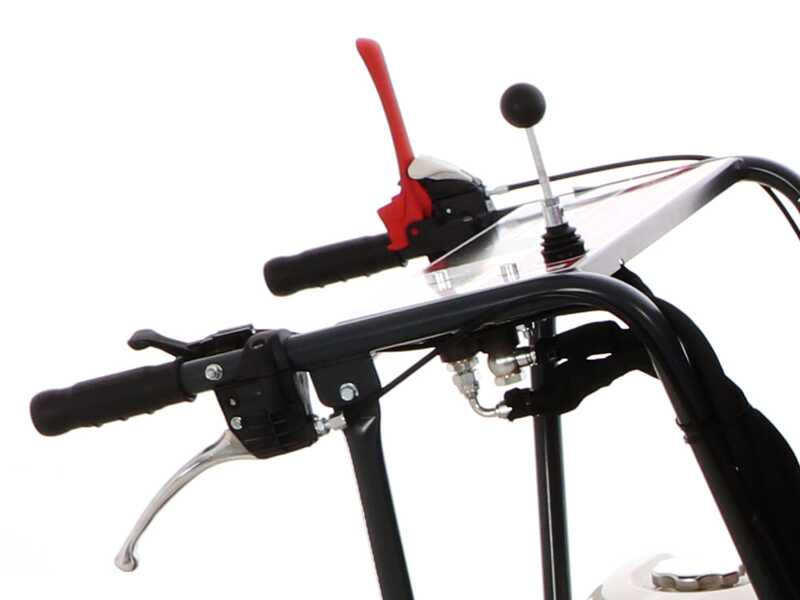

Controls: easy to operate and ergonomic, they offer precision and controllability in the work

Large red lever for motion activation.

The machine is provided with two lower levers for steering, respectively on the right and on the left.

The steering can be adjusted depending on the control lever and it allows moving smoothly. By partially pulling either lever, the steering of the track concerned, right or left, will also be partial.
This allows the power arrow to be steered extremely smoothly, without causing abrupt movements.

Safety brake allowing immediate stop.

Throttle lever

Dumper tipping lever
