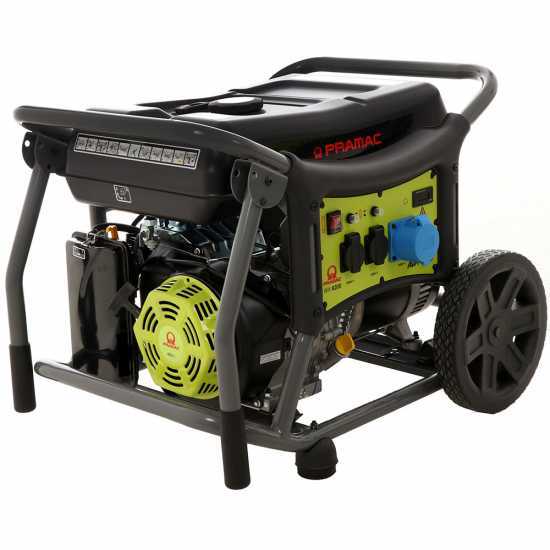

Pramac WX6200 - 5.8 kW Wheeled Power Generator with AVR - DC 5.4 kW Single-phase

The Pramac WX 6200 single-phase petrol powered generator with high performance evaluation and small overall size. The large-sized wheels it comes complete with allow its easy transport.

It is also equipped with a 26 L tank.

Max rated power * in emergency conditions LTP: 5.8 KW

This generator consists of an AVR alternator with copper winding and an engine featuring a capacity of 420 cc.

Focus on the generator AVR card: it allows an automatic output voltage regulation maintaining it constant even in case of sudden changes in load.

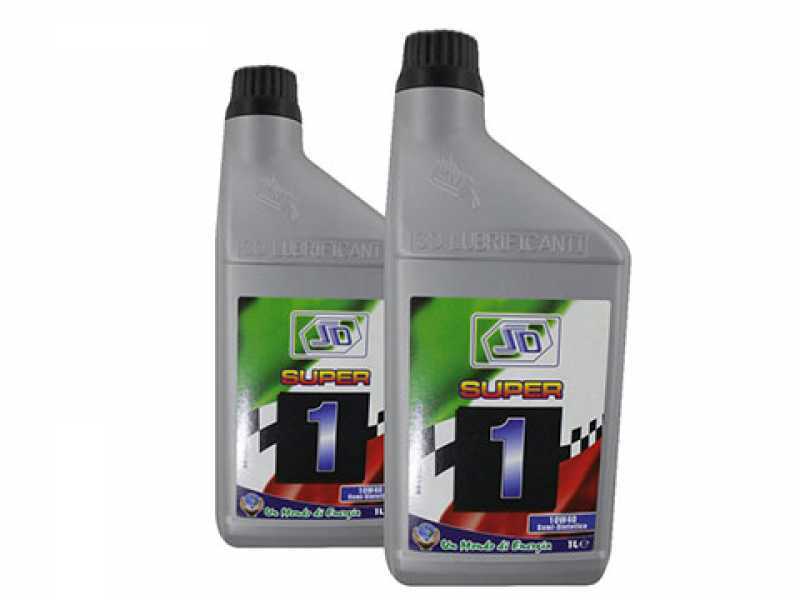

An assembly and maintenance kit is also included on standard equipment.

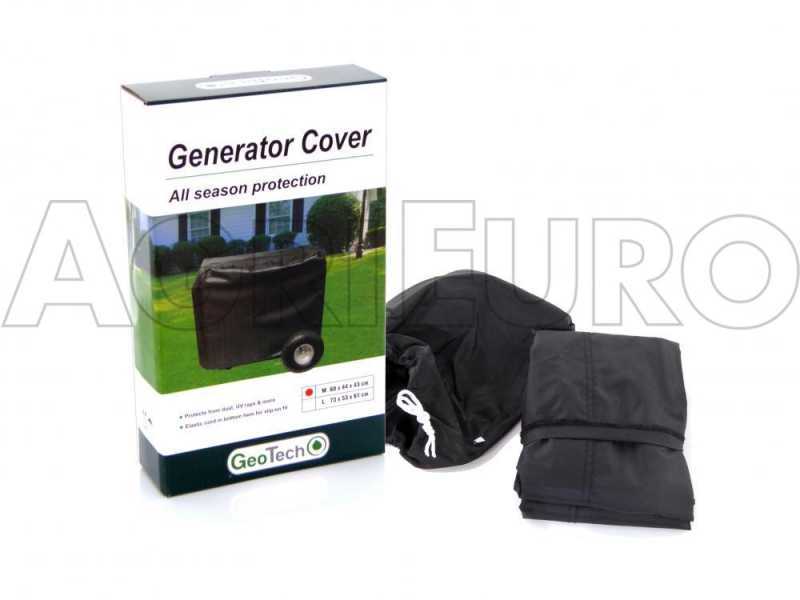

GENERATOR COVER IS PROVIDED ON STANDARD EQUIPMENT.

The generator is not designed for energy production, charging or maintaining batteries for the photovoltaic or solar panels systems (or similar); this can seriously damage the generator.

WARNING: all these models of generators that do not belong to the PROFESSIONAL series (considering the product level evaluation used by our website) are not intended for more than 3-4 hours continuous work in order not to reduce the alternator durability as well as that of one of the other machine components due to the unit overheating or wear. As regards a home or intensive use of these generators, it is important to follow the indications mentioned above. In all these conditions, we highly recommend focusing the attention on the purchase of generators renowned as PROFESSIONAL by the product level classification made in our website.

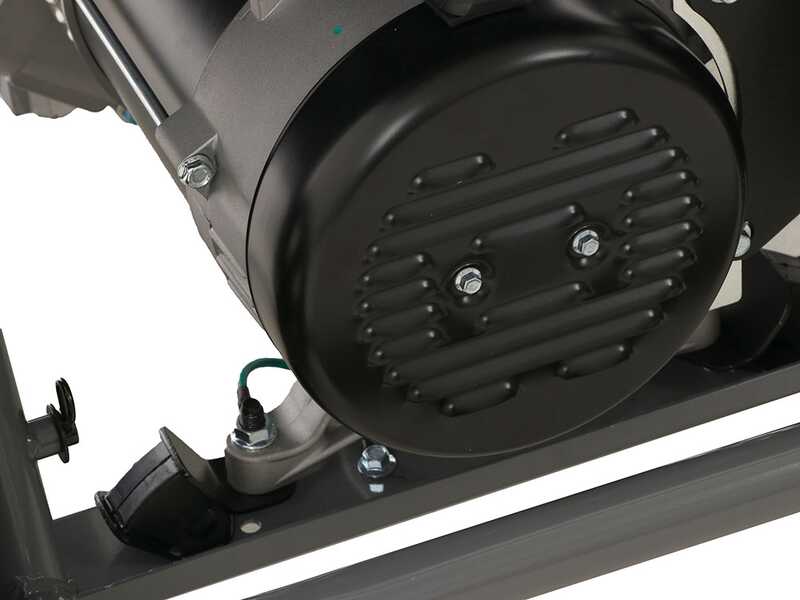

The alternator of this WX 6200 generator features a copper case.

Max rated single-phase power output: * in emergency conditions LTP: 5.8 KW

* In emergency conditions, the generator is able to generate this maximum output power.

Max. rated single-phase power output * in continuous running LTP: 5.3 KW

* This last feature represents the technical data to take into account as effective when you are going to purchase a generator according to its voltage and to its capacity of generating electric power (since it allows the generator running for an unlimited period of time).

This WX 6200 wheeled generator is also equipped with AVR card that allows an automatic output voltage regulation maintaining it constant even in case of sudden changes in load.

The generator is built into a heavy-duty frame through sturdy anti-vibration rubber pads.

Focus on the muffler.

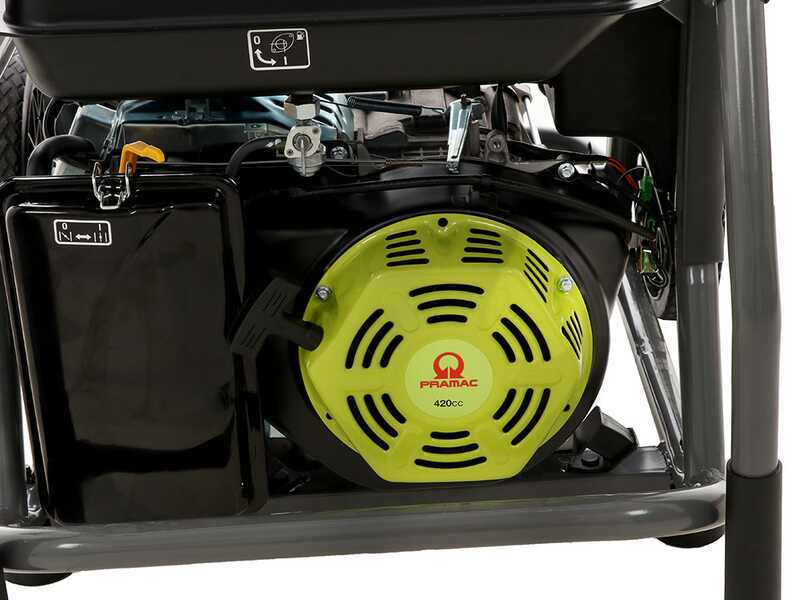

Motor technical specifications:

Type: Single-cylinder, four-stroke, air-cooled petrol engine, OHV, horizontal shaft

Capacity: 420 cc

Power: 7.7 Hp

Fuel type: Petrol

Fuel tank capacity: 26 L

Start type: Electric key start

The generator is provided with 26 L metal tank with fuel shut off valve.

The generator AVR allows to automatically regulate the gas rate and it is responsible for the engine acceleration in case of sudden changes in load.

OHV technology

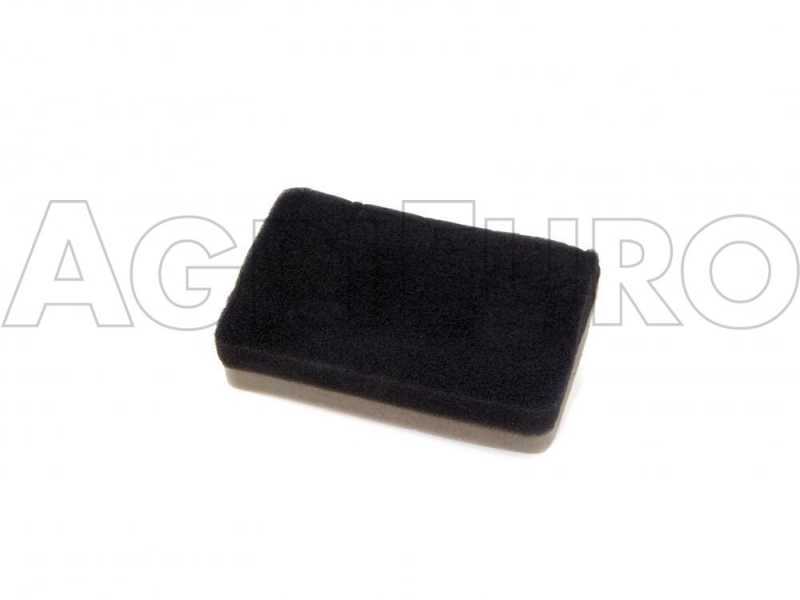

Focus on the air filter

Focus on the lever for fuel flow

Focus on the recoil start

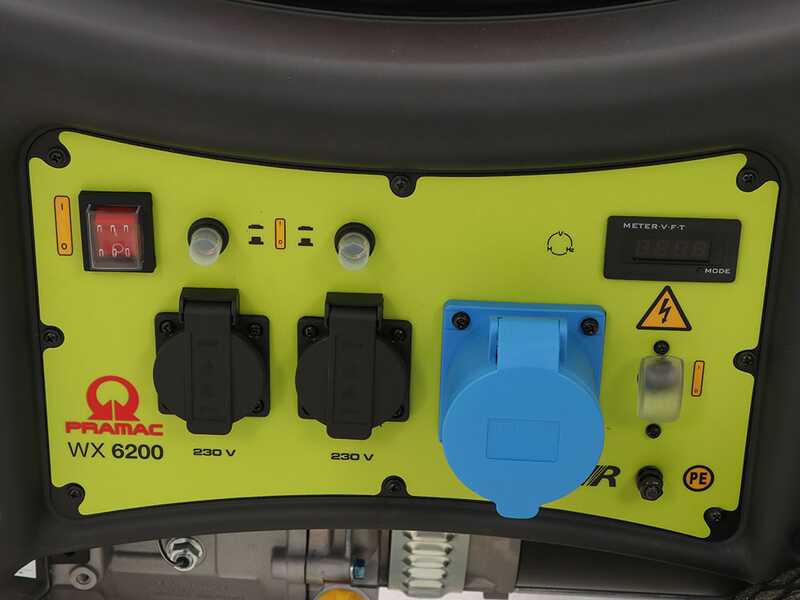

This generator control panel shows a number of different functions.

• VOLTMETER with LED display, which is used for measuring the output power into the power outlet and the generator frequency in Hz.
• Engine start push button. When the engine has started, by pressing this switch the generator starts to supply power (and the voltmeter display indicates 230V).
• 2 Schuko power outlets 16A
• 1 CEE power outlet 230V 32A.

Focus on the rod for level control in the tank

Additional features of the WX 6200 ES generator.

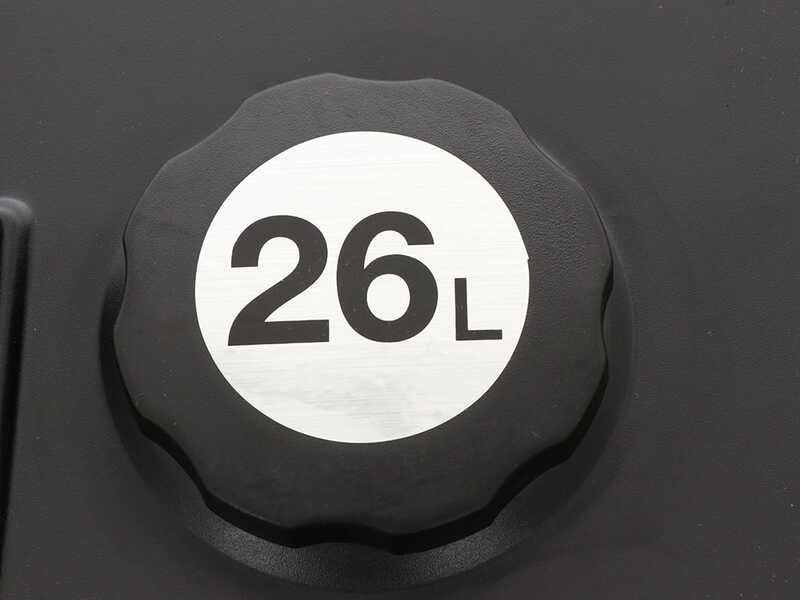

Roomy 26 L tank

Comfortable transport handles

General machine instructions

Anti-vibration pads

Large-sized wheels.

As regards the power needed referring to the use you will make of your generator, here below an extremely useful table to guide you among consumptions, starting coefficient and watt. Firstly, the highest-quality method is to identify which are the electric appliances we need to power with the generator and then perform a simple calculation to identify the necessary power that the generator must supply, as explained below.

Power required = Electric appliance consumption X Breakaway starting coefficient

The starting coefficient represents a fundamental feature for all the electric equipment as it indicates how much the consumption of the electric appliance increases. Therefore, it allows to concretely determine how many WATTs are necessary during the start-up operations.

Example: Air compressor ( 1500 Watt ) X Starting coefficient ( 2 ) = 3000 Watt

Hence, it is important to address your choice on a generator featuring equal or higher WATT-rated electric power than the result obtained from the calculation made.

( * ) Check the consumption of the electric appliance on the operator’s use and maintenance manual or on the plate attached to the machine.

WARNING! Purely indicative table. Thanks to the formula indicated above you can easily calculate the electric power that the generator has to supply in order and connect to the generator specific electric appliances and select the model of generator which best suits your needs.

• The generator can only be used to power individual electrical equipment (respecting the rated power in KW produced by the generator in relation to the absorption of the appliances during the starting phase that must be lower than the power supplied by the generator).

• The generator can be used to power household device in emergency conditions (no current service provided by the domestic household), exclusively on the models that are specifically provided with ATS (Automatic Transfer Switch) device (specifically designed for this purpose and provided with connecting systems to your household electrical power).
• The generator is NOT intended for PROFESSIONAL use. It means that it is exclusively designed for occasional use (infrequent use of the unit). The working hours must not exceed 3-4 of continuous running (which may lead to the alternator overheating or wear, especially to its internal components: alternator stator and rotor). Whether you’re looking for a generator for intensive use (once a week, for instance), the operator should address the choice to a different type generator specifically designed for a more intensive use. Indeed, you should focus the attention on PROFESSIONAL or even INDUSTRIAL quality-level generator (that is not provided with standard 3000 rev/min alternator as this specific model, but it is designed with professional alternator with low speed: 1500 rev/min – with liquid-cooled engine and alternator – in this case you’ll see that the unit specifications and price are much different from this model).

The generator is not designed to be installed in photovoltaic or solar energy systems for energy production nor for the recharging or maintenance of batteries of these specific or other electric systems. Indeed, it may damage seriously the generator on its internal components (alternator, engine and electrical component). Each photovoltaic system requires a generator for INDUSTRIAL use (not for domestic use as this present model), specifically designed and manufactured for this purpose. WE DO NOT PROVIDE WARRANTY on generators connected to photovoltaic systems, as this entails an IMPROPER USE OF THE UNIT.
