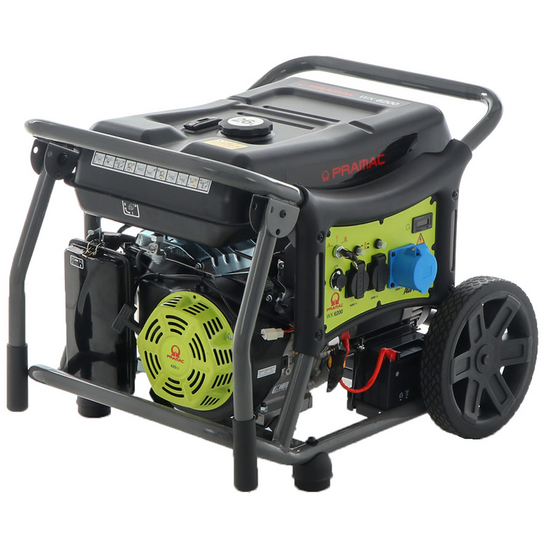

Pramac WX 6200 ES - 5.8 kW Wheeled Petrol Power Generator - DC 5.3 kW Single-phase

The Pramac WX 6200 ES ATS single-phase petrol generator is equipped with an AVR card that provides automatic regulation of the output voltage, making it perfectly constant at all times as the load changes

It has a powerful 420 cc engine with electric start.

The generator is able to generate a maximum rated power of 5.8 kW.

It is renowned as a product that ensures excellent performance in a small size. It is also easily transportable thanks to its wheels and practical handles for transport.

On the control panel, in addition to the three sockets, two Schuko and one 32A industrial CEE, there is also the possibility of connection to an ATS panel.

It features a tank with a 26 L capacity.

In the standard equipment there is a kit with tools for mounting and maintenance of the generator.

The generator is not designed for energy production, charging or maintaining batteries for the photovoltaic or solar panels systems (or similar); this can seriously damage the generator.

WARNING: all these models of generators that do not belong to the PROFESSIONAL series (considering the product level evaluation used by our website) are not intended for more than 3-4 hours continuous work in order not to reduce the alternator durability as well as that of one of the other machine components due to the unit overheating or wear. As regards a home or intensive use of these generators, it is important to follow the indications mentioned above. In all these conditions, we highly recommend focusing the attention on the purchase of generators renowned as PROFESSIONAL by the product level classification made in our website.

The WX 6200 ES generator alternator is made of a copper winding.

Maximum nominal single-phasepower * emergency conditions LTP: 5.8 KW

* in case of an emergency the generator can reach this maximum power

Maximum nominal single-phase power * in continuous running LTP: 5.3 KW

*This is the data that should be taken into consideration as an effective and constant data for the generator output (it guarantees the product an infinite duration)

The WX 6200 ES wheeled generator is equipped with AVR board: an electric device which automatically regulates the output of tension, making it constant as the load varies.

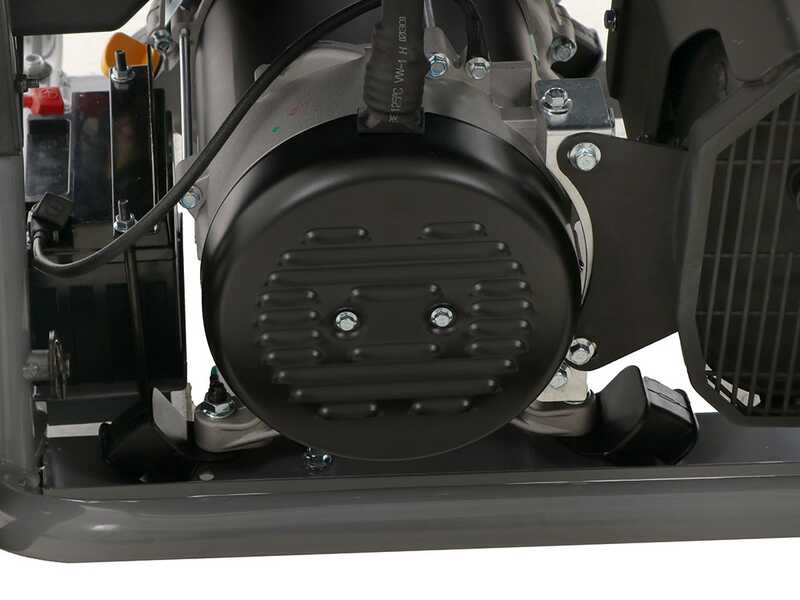

The alternator is fixed to the frame by robust anti-vibration grommets

Focus on the muffler

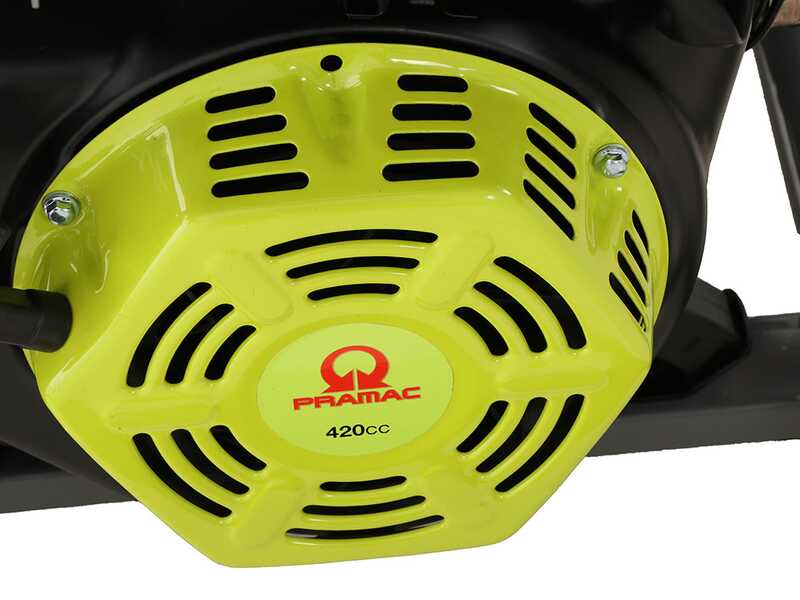

Main features of the engine:

Type: 4 stroke, single-cylinder, air-cooled, OHV, horizontal shaft

Displacement: 420 cc

Power: 7.7 HP

Fuel: Petrol

Tank: 26 L

Ignition mode: Electric with key

The engine is equipped with a 26 L steel tank with tap to stop the petrol.

The gas-regulating and the acceleration of the engine is made in a automaticmanner via the AVR card to vary the load connected.

OHV technology

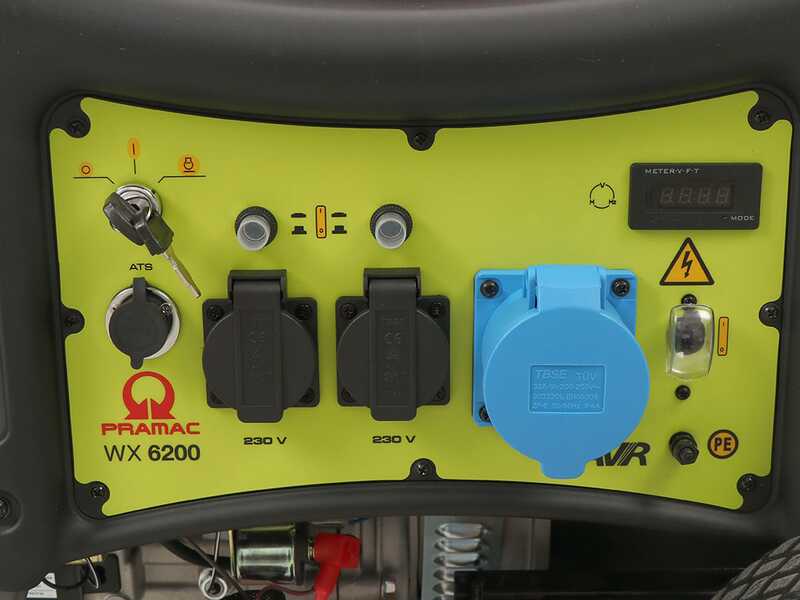

The control panel of this generator is rich in functions . Among the various commands we find:

• VOLTMETER with LCD display to see the power voltage output on the outlet
  and the frequency in Hz.
• Start with key
• Power switch
• ATS board connection
• 2 16A Schuko power outlet
• 2 230V 32A CEE power outlet

Additional features of the WX 6200 ES generator

Capacious 26 L tank, equipped with a side lancet to always keep the fuel level under control.

Focus on the air filter.

Fuel stop lever

Comfortable handle for transport

Oil tank plug

General instructions

Anti-vibration grommets

Large wheels

Hooks for filter access

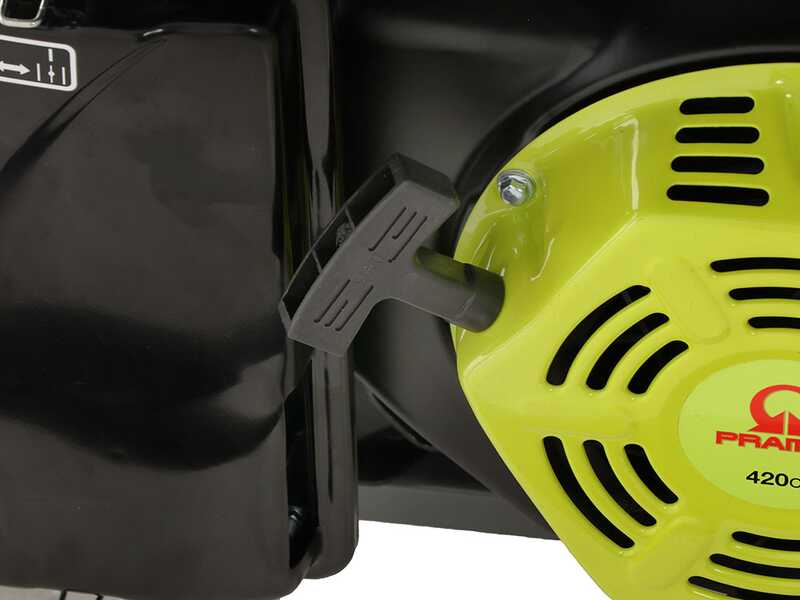

Recoil start

Air lever

As far as the needed power is concerned, we now provide you with an handy chart to help you navigate among consumption, starting coefficients and watt.

The best criteria is to pinpoint first which are the instruments we need to power with the generator and, consequently perform a simple calculation, as explained below, to identify the needed power that the generator need to eject.

Power required = Electric appliance consumption X Breakaway starting coefficient

The starting coefficient is a fundamental characteristic of any instrument which works with electric current because it indicates how much the consumption of the object increases. Therefore, this is needed to concretely determine how many WATT are necessary during the start up operations.

Example: Compressor (1500 Watt ) X Starting coefficient (2) = 3000 Watt Hence you should orientate towards a generator which has a WATT power equal or superior to the result (*)

Check the consumption of the appliance on the instruction and maintenance manual or on the plate attached to the machine.

WARNING: the chart is purely indicative. Thanks to the formula above you can easily calculate the power a generator should deliver to connect and start some specific products and select the model of generator which best suits your needs.

• The generator can be exclusively used to power single electrical appliances (with respect to the produced KW power in relation to the absorption during the starting phase that must be lower than the power supplied by the generator).

• The generator can be used to power household device in emergency conditions (no current service provided by the domestic household), exclusively on the models that are specifically provided with ATS (Automatic Transfer Switch) device (specifically designed for this purpose and provided with connecting systems to your household electrical power).

• The generator was NOT designed for PROFESSIONAL use, it is therefore apt for occasional use (not frequent). The working sessions must no be over 3-4 continuous hours (which would cause the alternator to overheat and wear, especially in its internal components rotor and stator) If you need a generator for frequent use (for example once a week), the user should look towards another type of generator, specifically intended for a frequent use and precisely a PROFESSIONAL or even INDUSTRIAL quality-level generator (that is not provided with a standard 3000 rpm alternator as this models is, but one which is designed with a professional alternator with low speed; 1500 rpm - with liquid-cooled engine and alternator - which have a level of specific characteristic and price point very different from this model’s);

The generator is not designed to be installed in photovoltaic or solar energy systems for energy production nor for the recharging or maintenance of batteries of these specific or other electric systems. Indeed, it may damage seriously the generator on its internal components (alternator, engine and electrical component). Each photovoltaic system requires a generator for INDUSTRIAL use (not for domestic use as this present model), specifically designed and manufactured for this purpose. WE DO NOT PROVIDE WARRANTY on generators connected to photovoltaic systems, as this entails an IMPROPER USE OF THE UNIT.
