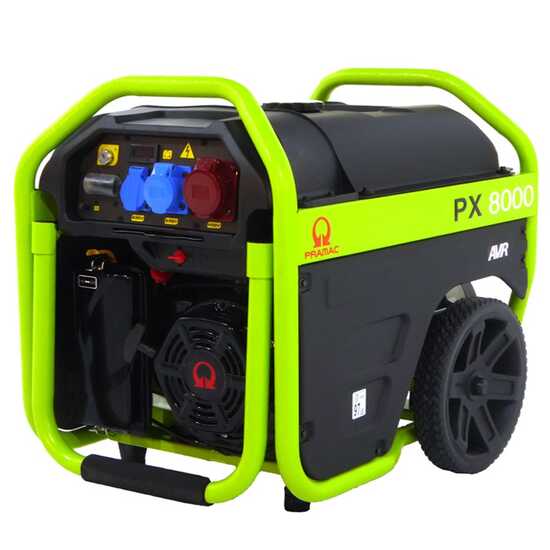

Pramac PX 8000 - Wheeled Power Generator with AVR 4.8 kW - Continuous 4 kW Three-phase

The Three-phase petrol PRAMAC PX8000 electric generator is an ideal product for bringing electrical power wherever it is needed. Thanks to the foldable handle and large diameter wheels, it can be easily transported even on slightly uneven terrain.

The generator has an exceptional tank capacity of 25.5 litres!

This model is very easy and convenient to start thanks to the battery provided for the electric start of the engine.

With copper alternator winding and a 14 hp engine

Equipped with an AVR board: provides automatic voltage regulation, making it perfectly constant regardless of load variations.

The generator is not designed to be integrated into a photovoltaic or solar panel system for energy production, nor for the charging or maintenance of batteries of these systems or other types of systems; such use can seriously damage the generator.

Maximum three-phase power output: 4.8 KW

Effective three-phase power: 4.0 KW

Maximum single-phase power output: 1.6 KW

Effective single-phase power: 1.2 KW

Voltage: 400 V - 230 V

Operating frequency: 50 Hz

Petrol tank capacity: 25.5 litres

Autonomy (at 75% load): 11.8 hours

Weight: 97 kg

Noise level: 72 dB[A]/7m

Engine type: 4-stroke single-cylinder air-cooled petrol

Displacement: 420 cc

Nominal power: 14 hp

Petrol tank capacity: 25.5 litres

Starting type: electric with battery key

WARNING: engine without oil
(add 4-stroke engine oil before starting)

Main advantages over traditional 2-stroke engines:

• Greater reliability
• Longer lifespan
• Easier starting (especially after long periods of inactivity)
• Fewer issues related to fuel preparation and freshness
• Lower consumption (less than half!).
• Less maintenance

Noise level: 72 dB[A]/7m

Practical instructions:

The practical instructions (always at hand thanks to the removable panel) help less experienced users to use the generator easily and safely.

Digital panel:

By pressing the appropriate selection button on the multifunction digital panel, you can view the Volts, HZ, H.

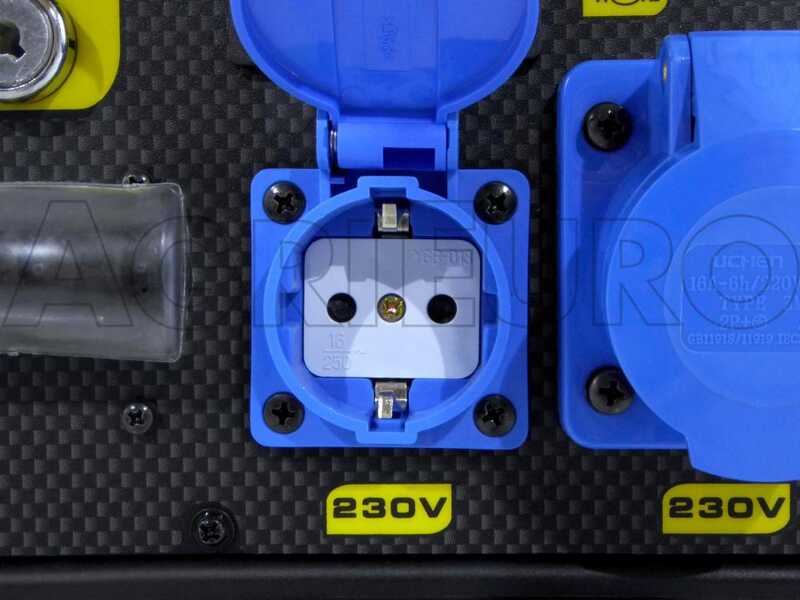

Power outlets:

- Nr. 1 Schuko power outlet CE with 220 volts supply

- Nr. 1 industrial power outlet 230V 16A CE

- Nr. 1 three-phase industrial power outlet 400V 16A CE

Detail of the manual switch

Detail of the tank opening tap

Detail of the fuel level indicator

Detail of the ignition key knob

Detail of the recoil start

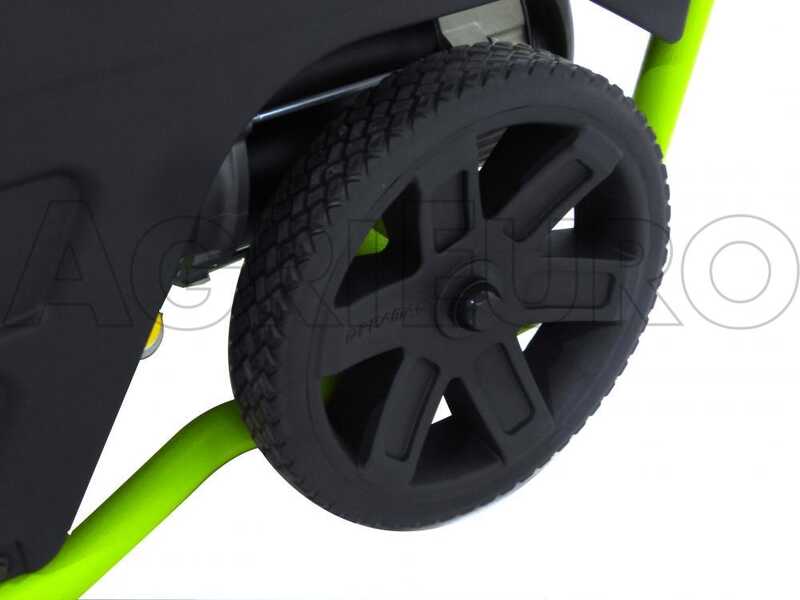

Detail of the rubber wheels with tread

Foldable transport handle

Regarding the power needed for your intended use, we provide a handy table to guide you through consumption, starting coefficients, and watts.

The best criterion is to first identify which tools you need to power with the generator, and then perform a simple calculation, as explained below, to determine the necessary power the generator must be able to deliver.

Required power = Object consumption X Starting coefficient

The starting coefficient is a fundamental characteristic of every electrically powered tool that indicates how much the object's consumption increases during startup and thus helps determine how many WATTS are needed for its startup.

Example: Compressor (1500 Watts) X Coefficient (2) = 3000 Watts Therefore, choose a generator with a power in WATTS equal to or greater than the result obtained (*)

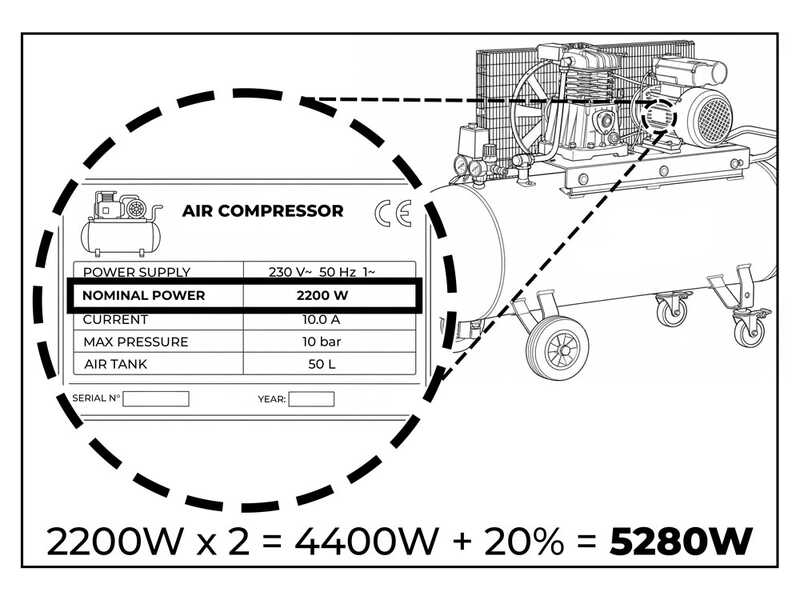

Check the consumption of your object in the user and maintenance manual or on the label attached to it

WARNING: the table is purely indicative. Using the above formula, you can easily calculate the power a generator must deliver to connect and operate certain products and thus identify the most appropriate model for your needs.

• The generator can only be used to power individual electrical equipment (within the power limits produced by it in KW, in relation to the starting absorption of this equipment, which must be less than the power delivered by the generator);

• The generator can be used to power domestic systems in case of emergency (absence of power supply service from your electricity provider in the domestic user), only in versions specifically equipped with an ATS automatic start device (specifically made for this purpose and equipped with connection systems to the domestic meter);

• The power generator is designed for NON-PROFESSIONAL use, so it is suitable only for occasional use (not frequent). Operating sessions should not exceed 3-4 continuous hours (which would cause overheating or wear of the alternator, particularly its stator and rotor components). If a generator is needed for frequent use (e.g., weekly use), the user should opt for another type of generator, specifically designed for frequent use, and more precisely a PROFESSIONAL or even INDUSTRIAL level generator (equipped not with a standard alternator at 3000 rpm like this one, but with a professional low-speed alternator: 1500 rpm - equipped with both engine and alternator liquid-cooled – having a very different level of specific characteristics and price from this one);

The generator is not designed to be integrated into a photovoltaic or solar panel system for energy production, nor for the charging or maintenance of batteries of these systems or other types of systems; such use can seriously damage the generator, both in the alternator part, in the engine part, and in the electrical part; all photovoltaic systems require an INDUSTRIAL use generator (and not domestic like this one), specifically designed and made for this function. NO WARRANTY is provided on power generators integrated into a photovoltaic system, as this constitutes an IMPROPER USE OF THE DEVICE.
