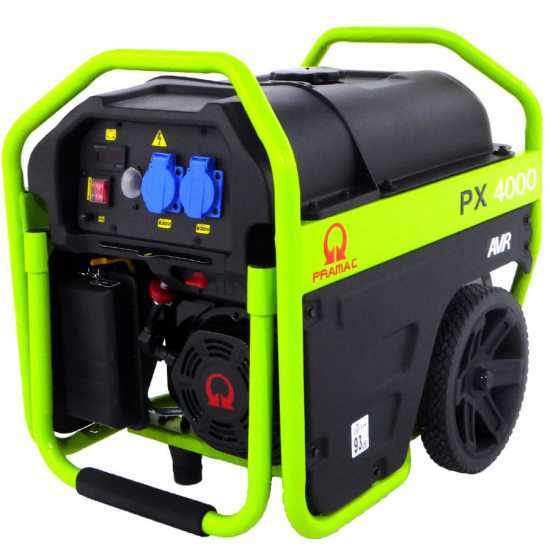

Pramac PX 4000 - Trolley-mounted Power Generator with AVR 2.7 kW - Continuous 2.3 kW Single-phase

The Single-phase petrol power generator PRAMAC PX4000 is an ideal product for bringing electricity wherever it is needed.

Thanks to the foldable handle and large diameter wheels, it can be easily transported even on slightly uneven terrain.

The generator has an exceptional tank capacity of 18.5 litres!

With copper winding alternator and 7 hp engine

Equipped with AVR board: provides automatic voltage regulation, making it perfectly constant regardless of load changes

FREE GENERATOR COVER + COMPLETE MAINTENANCE KIT FOR THE GENERATOR!!!

The generator is not designed to be integrated into a photovoltaic or solar panel system for energy production, nor for the charging or maintenance of batteries of these systems or other types of systems; this use can seriously damage the generator.

WARNING: all power generators like this one, belonging to one of the lowest product levels of the PROFESSIONAL level (reference to the product level evaluation scale used on this site) should not operate for sessions longer than 3-4 hours continuously, in order not to compromise the medium to long-term durability of the alternator and other components due to overheating or wear. The same applies if used daily or frequently. In all these cases, we recommend opting for generators classified at least as PROFESSIONAL, according to the product level scale applied on this site.

Maximum Single-phase power output: 2.7 KW

Nominal continuous power (COP) Single-phase: 2.3 KW

This is the data to be considered as the actual and constant output of the generator (ensures unlimited hours of operation).

Voltage: 230 V

Operating frequency: 50 Hz

Petrol tank capacity: 18.5 litres

Autonomy (at 75% load): 16.6 hours

Weight: 53 kg

Noise level: 71 dB[A]/7m

Engine type: 4-stroke single-cylinder air-cooled petrol

Displacement: 207 cc

Nominal power: 7 hp

Petrol tank capacity: 18.5 litres

Starting type: recoil start with self-recovery

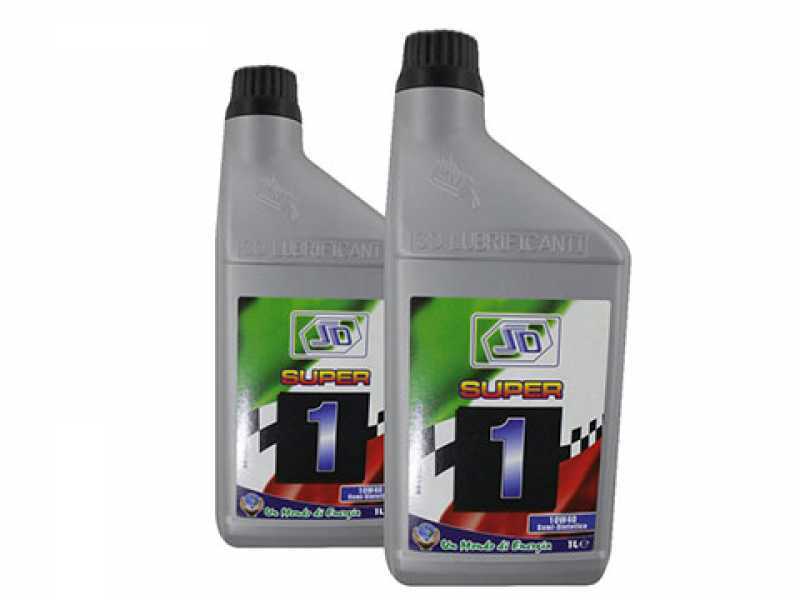

WARNING: engine without oil
(add 4-stroke engine oil before starting)

Main advantages over traditional 2-stroke engines:

• Greater reliability
• Longer lifespan
• Easier starting (especially after long periods of inactivity)
• Fewer issues related to fuel preparation and freshness
• Lower consumption (less than half!).
• Less maintenance

Noise level: 71 dB[A]/7m

Practical instructions:

The practical instructions (always at hand thanks to the removable panel) help less experienced users to use the generator easily and safely.

Digital panel:

By pressing the appropriate selection button on the multifunction digital panel, you can view the Volts, the frequency expressed in HZ, and the usage hours H.

Power outlets:

- Nr. 2 Schuko power outlet CE with 220 volts output

Detail of the manual switch

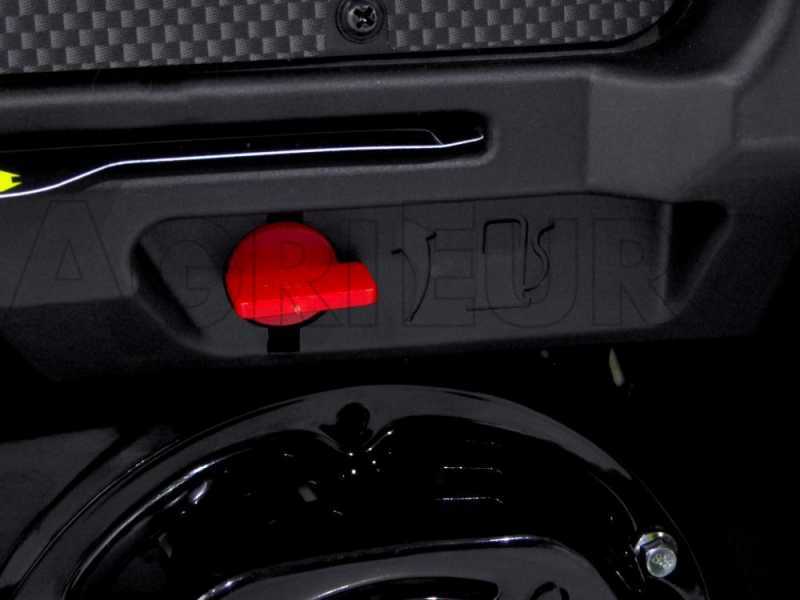

Detail of the fuel tank opening tap

Detail of the fuel level indicator

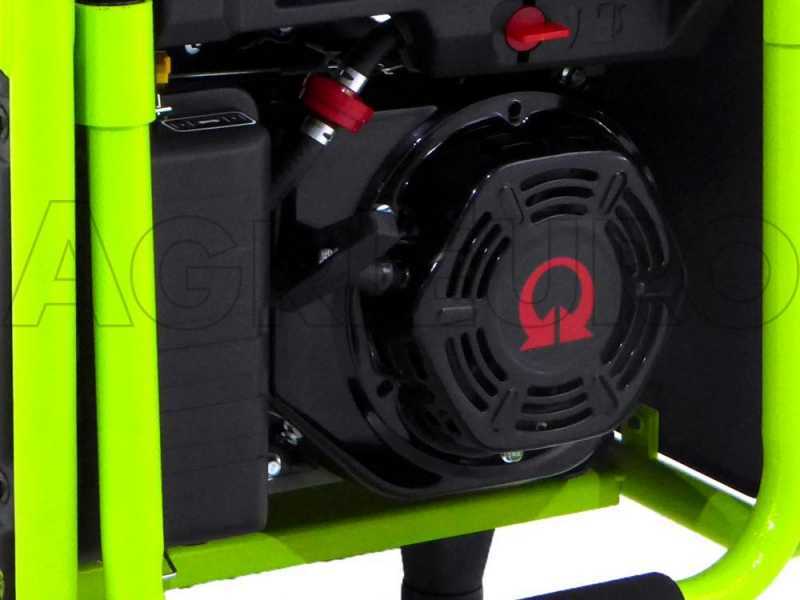

Detail of the recoil start

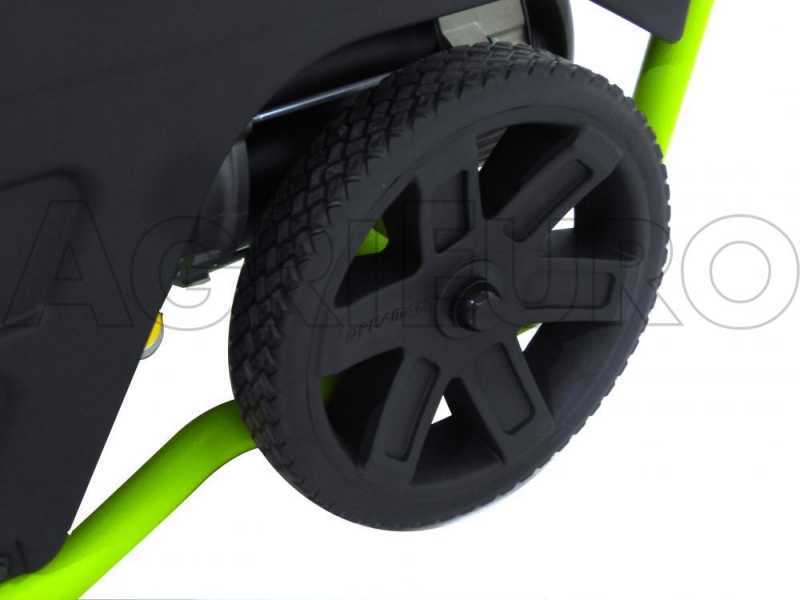

Detail of the rubber wheels with treads

Foldable transport handle

Regarding the power required for your intended use, we provide a handy table to guide you through consumption, starting coefficients, and watts.

The best criterion is to first identify which tools you need to power with the generator, and then perform a simple calculation, as explained below, to determine the necessary power the generator must be able to deliver.

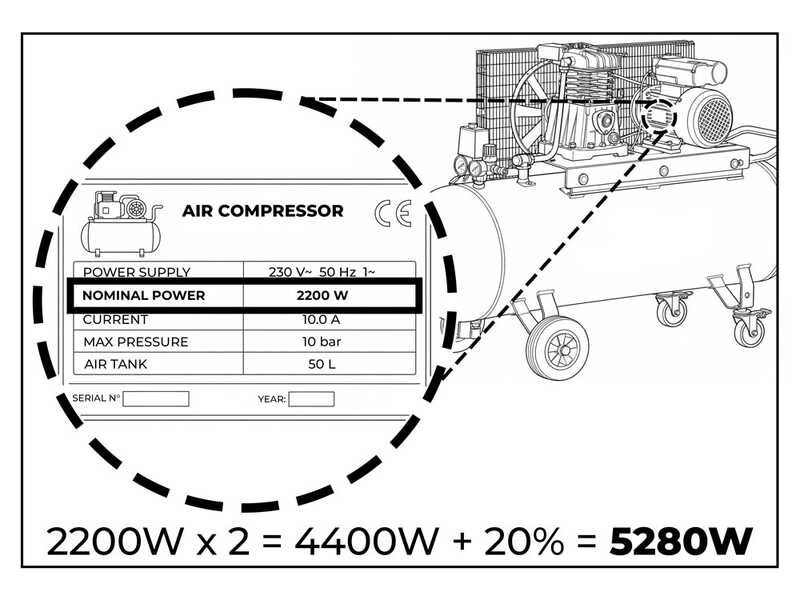

Required power = Object consumption X Starting coefficient

The starting coefficient is a fundamental characteristic of every electrically powered tool that indicates how much the object's consumption increases during startup and thus helps determine how many WATTS are needed for its startup.

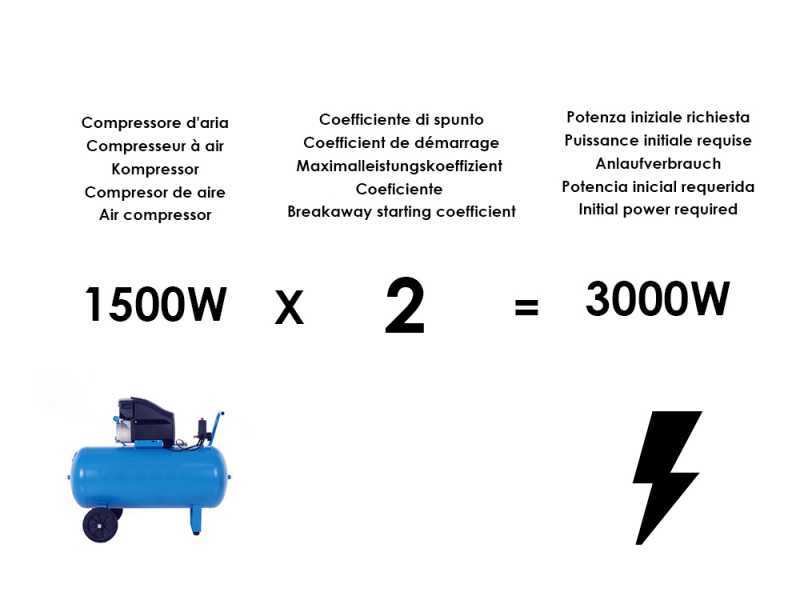

Example: Compressor (1500 Watts) X Coefficient (2) = 3000 Watts Therefore, opt for a generator with a WATT power equal to or greater than the result obtained (*)

Check the consumption of your object in the user and maintenance manual or on the label attached to it

WARNING: the table is purely indicative. Using the aforementioned formula, you can easily calculate the power a generator must deliver to connect and operate certain products and thus identify the most appropriate model for your needs.

• The generator can be used exclusively to power individual electrical equipment (within the power limits produced by it in KW, in relation to the starting absorption of these devices, which must be less than the power delivered by the generator);

• The generator can be used to power domestic systems in emergencies (absence of electricity supply service from your energy provider in the domestic user), only in versions specifically equipped with an ATS automatic start device (specifically designed for this purpose and equipped with systems for connection to the domestic meter);

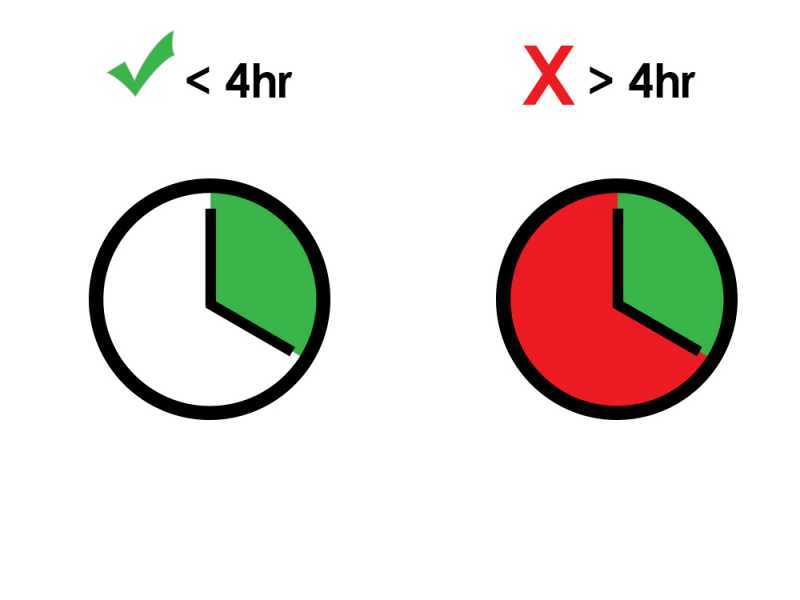

• The power generator is designed for NON-PROFESSIONAL use, and is therefore suitable only for occasional (not frequent) use. Operating sessions should not exceed 3-4 continuous hours (which would cause overheating or wear of the alternator, particularly its stator and rotor components). If a generator is needed for frequent use (e.g., weekly use), the user should opt for another type of generator, specifically designed for frequent use, and more precisely a PROFESSIONAL or even INDUSTRIAL level generator (equipped not with a standard 3000 rpm alternator like this one, but with a professional low-speed alternator: 1500 rpm - equipped with both engine and alternator liquid-cooled – having a very different level of specific characteristics and price from this one);

The generator is not designed to be integrated into a photovoltaic or solar panel system for energy production, nor for the charging or maintenance of batteries of these systems or other types of systems; this use can seriously damage the generator, both in the alternator part, the engine part, and the electrical part; all photovoltaic systems require an INDUSTRIAL use generator (and not domestic like this one), specifically designed and manufactured for this function. NO WARRANTY is provided on power generators integrated into a photovoltaic system, as this constitutes an IMPROPER USE OF THE DEVICE.
