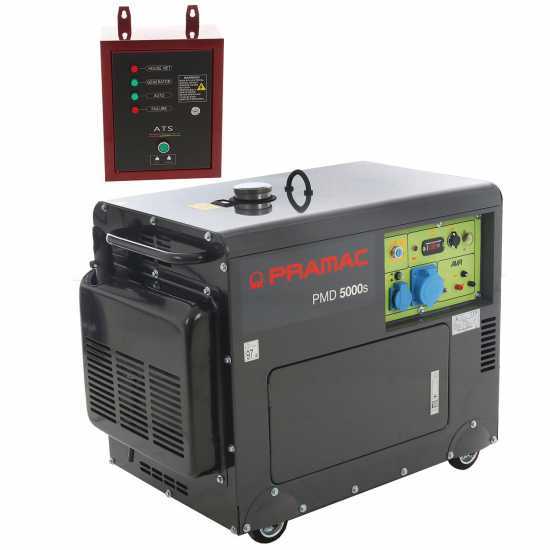

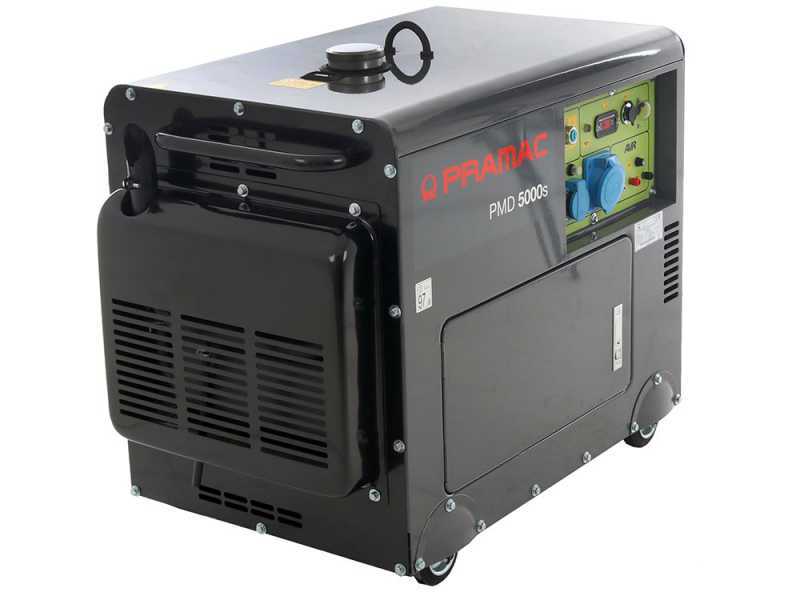

Pramac PMD5000s - 5 kW Silenced Diesel Power Generator with AVR - DC 4.2 kW Single-phase + ATS

The Pramac PMD5000s silenced single-phase generator is an ideal semi-professional product for private users. Large product particularly suitable to be used in construction sites, roads, workshops, laboratories and is able to deliver power in a constant, clean, without power surges way thus also ensuring great safety for the products it feeds. The ignition is facilitated thanks to a convenient electric start with keys

Equipped with AVR board: It provides an automatic adjustment of output voltage, making it always perfectly constant under varying load conditions Also equipped with two comfortable handles and 4 wheels that allow a comfortable movement.

It is possible to connect the generator directly to the home network, through an ATS panel, to be able to power everything we need in case of emergency. It is advisable to have a qualified professional perform this operation to avoid unpleasant inconveniences on the machine.

INCLUDED ATS BOARD

The generator is not designed for energy production, charging or maintaining batteries for the photovoltaic or solar panels systems (or similar); this can seriously damage the generator.

WARNING: all these models of generators that do not belong to the PROFESSIONAL series (considering the product level evaluation used by our website) are not intended for more than 3-4 hours continuous work in order not to reduce the alternator durability as well as that of one of the other machine components due to the unit overheating or wear. As regards a home or intensive use of these generators, it is important to follow the indications mentioned above. In all these conditions, we highly recommend focusing the attention on the purchase of generators renowned as PROFESSIONAL by the product level classification made in our website.

Maximum single-phase power: 5.0kW

Nominal single-phase power: 4.2kW

It has a large tank of 14.5 l.

This product is equipped with AVR board: It provides an automatic adjustment of output voltage, making it always perfectly constant under varying load conditions

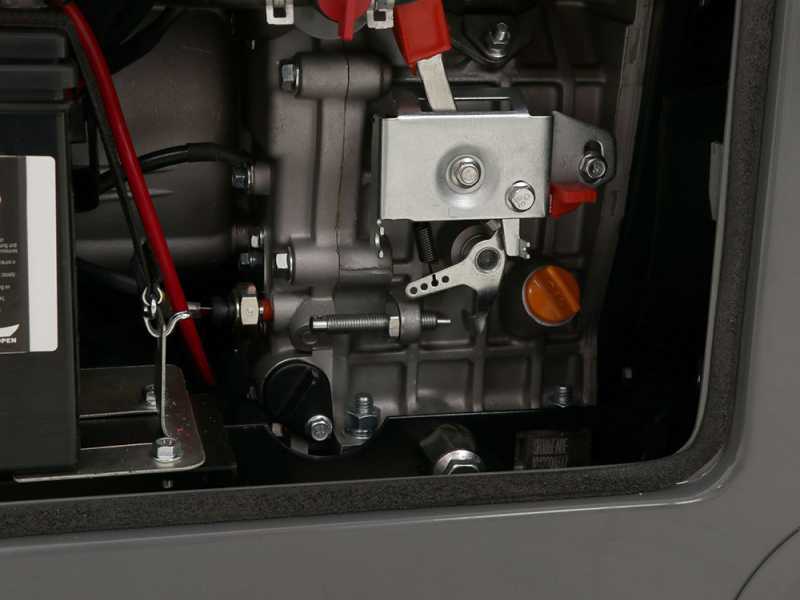

Engine specifications:

Engine type: 186FAD, 4-stroke, air-cooled, OHV, with overhead valves.

Engine power: 8.4 HP

Displacement: 418 cc

Engine RPM 3600 rpm

Oil tank: 1.65l

The engine is equipped with recoil starter

The engine features a battery.

The engine is PROVIDED WITHOUT OIL.
Make sure to carefully read the instructions manual before starting the unit.

SILENCED: acoustic emissions extremely reduced, 72 dBA to 7m

It is especially ideal to work nearby people and residential areas.

Residential silencer

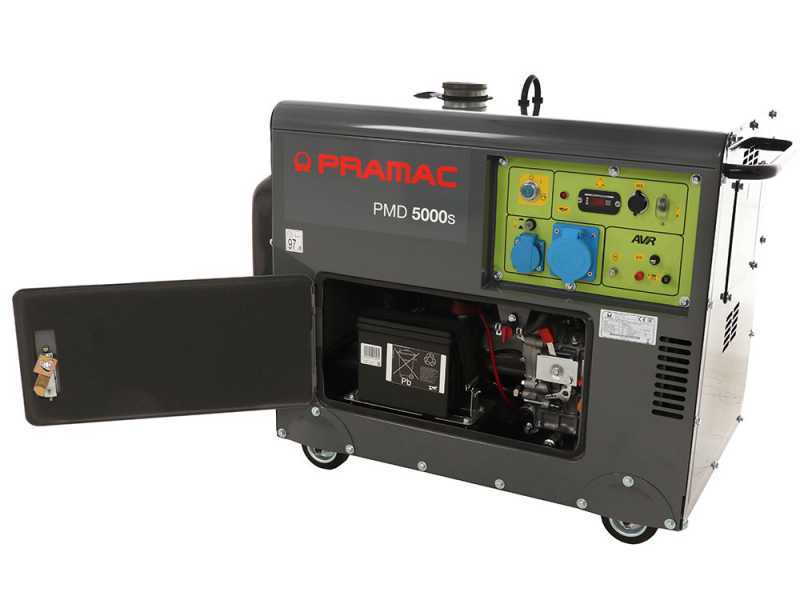

The engine is equipped with an electric start with key on the control panel.

Standard battery

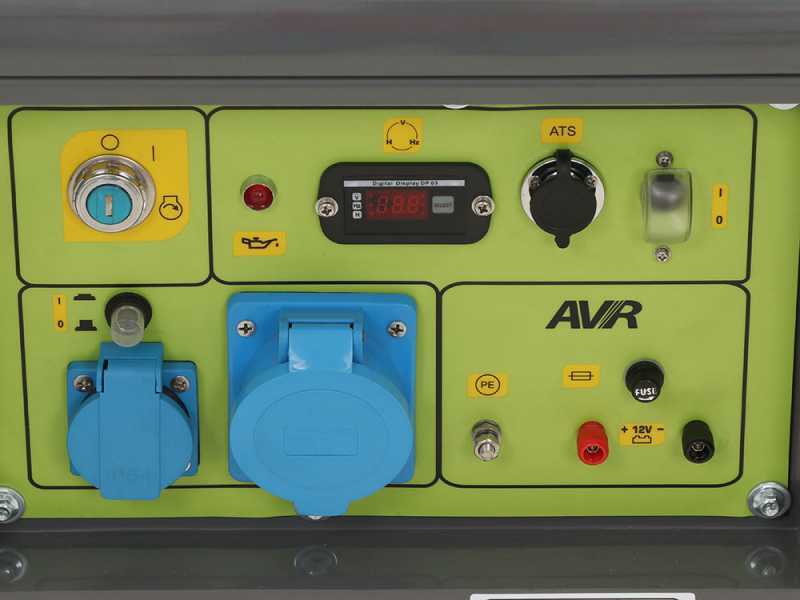

Extremely complete and rich in functions control panel.

• Electric engine start with key
• General switch and connector for ATS
• 12V Charger sockets
• 1 single-phase Schuko power outlets
• Nr. 01 single-phase industrial power outlets
• Digital screen and indicator light for oil control

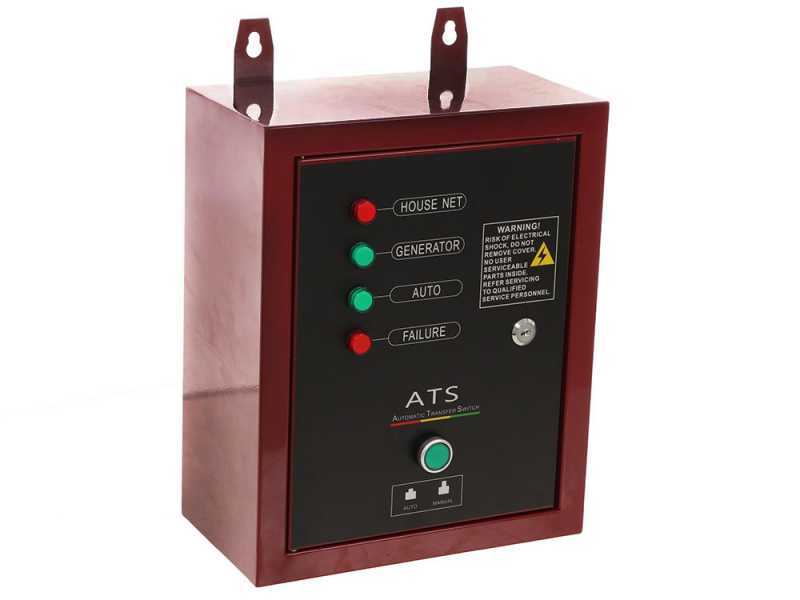

The automatic ATS board must be connected to the electric grid and the generator.

This allows to compensate immediately when there is a power outage.

This features is necessary for all those cases in which, a black out for example, could create economic, material damages or major inconveniences.

Equipped with a specific cable (8 m)

Front of the panel

Focus on the indicators on the ATS board

It is recommended to execute the connection of the AUTOMATIC INTERVENTION BOARD to your household with the help of your electrician.

Tank plug

Equipped with hook to allow lifting with forklift and other systems

Equipped with lateral handles to ease transport

Equipped with 4 rubber wheels

Door to access the battery

Fuel level

As far as the needed power is concerned, we now provide you with an handy chart to help you navigate among consumption, starting coefficients and watt.

The best criteria is to pinpoint first which are the instruments we need to power with the generator and, consequently perform a simple calculation, as explained below, to identify the needed power that the generator need to eject.

Power required = Electric appliance consumption X Breakaway starting coefficient

The starting coefficient is a fundamental characteristic of any instrument which works with electric current because it indicates how much the consumption of the object increases. Therefore, this is needed to concretely determine how many WATT are necessary during the start up operations.

Example: Compressor (1500 Watt ) X Starting coefficient (2) = 3000 Watt Hence you should orientate towards a generator which has a WATT power equal or superior to the result (*)

Check the consumption of the appliance on the instruction and maintenance manual or on the plate attached to the machine.

WARNING: the chart is purely indicative. Thanks to the formula above you can easily calculate the power a generator should deliver to connect and start some specific products and select the model of generator which best suits your needs. And remember that to operate the electronic equipment (computers, televisions and all the equipment equipped with an electronic card) must purchase a current with "inverter" generator (which stabilizes the output current).

• The generator can be exclusively used to power single electrical appliances (with respect to the produced KW power in relation to the absorption during the starting phase that must be lower than the power supplied by the generator).

• The generator can be used to power household device in emergency conditions (no current service provided by the domestic household), exclusively on the models that are specifically provided with ATS (Automatic Transfer Switch) device (specifically designed for this purpose and provided with connecting systems to your household electrical power).

• The generator was NOT designed for PROFESSIONAL use, it is therefore apt for occasional use (not frequent). The working sessions must no be over 3-4 continuous hours (which would cause the alternator to overheat and wear, especially in its internal components rotor and stator) If you need a generator for frequent use (for example once a week), the user should look towards another type of generator, specifically intended for a frequent use and precisely a PROFESSIONAL or even INDUSTRIAL quality-level generator (that is not provided with a standard 3000 rpm alternator as this models is, but one which is designed with a professional alternator with low speed; 1500 rpm - with liquid-cooled engine and alternator - which have a level of specific characteristic and price point very different from this model’s);

The generator is not designed to be installed in photovoltaic or solar energy systems for energy production nor for the recharging or maintenance of batteries of these specific or other electric systems. Indeed, it may damage seriously the generator on its internal components (alternator, engine and electrical component). Each photovoltaic system requires a generator for INDUSTRIAL use (not for domestic use as this present model), specifically designed and manufactured for this purpose. WE DO NOT PROVIDE WARRANTY on generators connected to photovoltaic systems, as this entails an IMPROPER USE OF THE UNIT.
