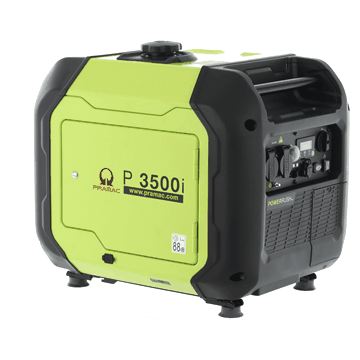

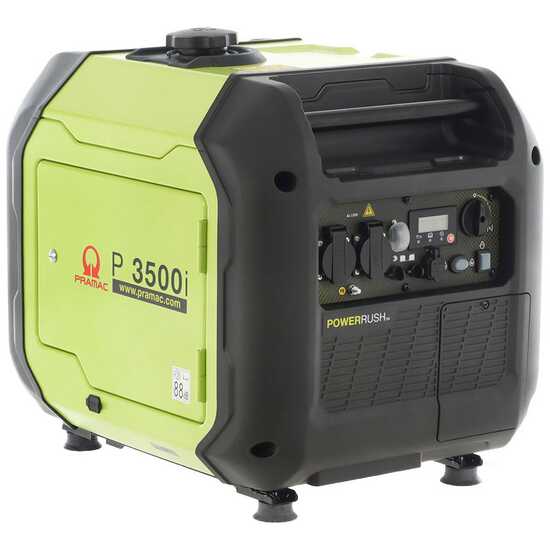

Pramac P3500I - 3.3 kW Inverter Silenced Petrol Power Generator with AVR - DC 3 kW Single-phase

The Pramac P3500I generator is part of the brand new Pramac series equipped with PowerRush, a technology that can offer generators more power during start-up, thus allowing you to power even high-absorption accessories without the risk of the generator stopping due to overload. It It has a 212 cc Loncin engine capable of delivering a power maximum of 3.3 kW. It is also equipped with inverter technology that allows you to emit clean energy. It is therefore perfect to provide power even to appliances or tools more sophisticated and sensitive to power surges.

The inverter technology:

This generator produces electrical energy with a constant frequency and voltage, regardless of the variation of the load and the engine speed; this is made possible by the use of an electronic converter that disengages the amplitude of the input voltage from the output.

Unlike traditional generators, a permanent magnet generator is used together with a speed monitoring system of the engine rpm according to the actually used power, which allows a significant reduction of fuel consumption and less noise with the use of average loads downs.

The reliability and the quality of the energy produced with this system allows the power supply of electronic equipment such as computers, medical equipment, measuring instruments, and any particularly device sensitive to variations in voltage and frequency.

Silenced Generator:

this aspect allows the use in camping sites, caravans, in public places, homes, condos, villas, townhouses, hobby or wherever it is required silent electricity.

Noise level at 7 mt: 61 db

The generator is not designed for energy production, charging or maintaining batteries for the photovoltaic or solar panels systems (or similar); this can seriously damage the generator.

ATTENTION: all current generators like this, belonging to one of the product levels lower than the PROFESSIONAL TYPE (with reference to the product level rating scale used on this site) must not work for longer than 3-4 hours continuously so as to not compromise in medium term the duration of the alternator and of the other components due to possible overheating or wear. In all this cases we suggest to focus on PROFESSIONAL generators, based on the product level rating scale used on this site.

Maximum nominal power: 3.3kW

Nominal power in continuous running (COP): 3,0 kW
*This s the data that should be taken into consideration as an effective and constant data for the generator output (it guarantees the product an infinite duration)

TECHNICAL DATA:

VOLTAGE: 230 volts
FREQUENCY: 50 Hz
TANK CAPACITY: 10 L
AUTONOMY (at 75% load): 6.5 hours

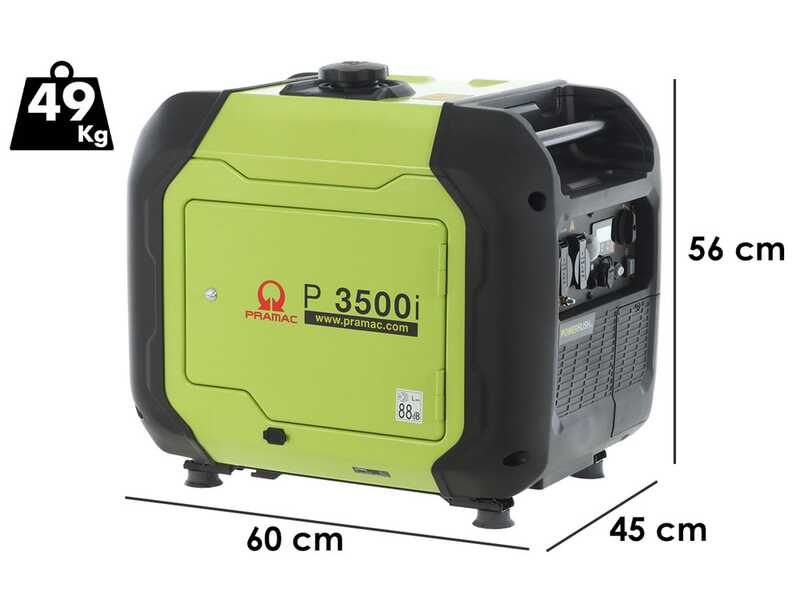

WEIGHT: 49 kg

ENGINE TYPE: 4-stroke petrol

COOLING: air
START: recoil start with self-recovery + electric
CONSUMPTION (at 75% load): 1.5 l/h

WARNING: Engine without oil
(Put oil for 4-stroke engines before starting the machine)

Major advantages over conventional 2-stroke mixture engines:

• Greater reliability
• Higher durability
• Easier start especially after long periods of inactivity
• Lesser problems related to the preparation and to the fuel freshness
• Lower fuel consumption (less than half!).
• Less maintenance

Start: Recoil start with self recovery

OHV technology

Focus on the oil tank plug

Door covered with rubber for noise reduction

Silenced generator. The silencer allows you to use the current generator for camping, caravans, in public places, homes, condos, villas, townhouses, hobby or wherever it is required silent electricity.

Switch

Speed regulator

USB ports 5V 2A

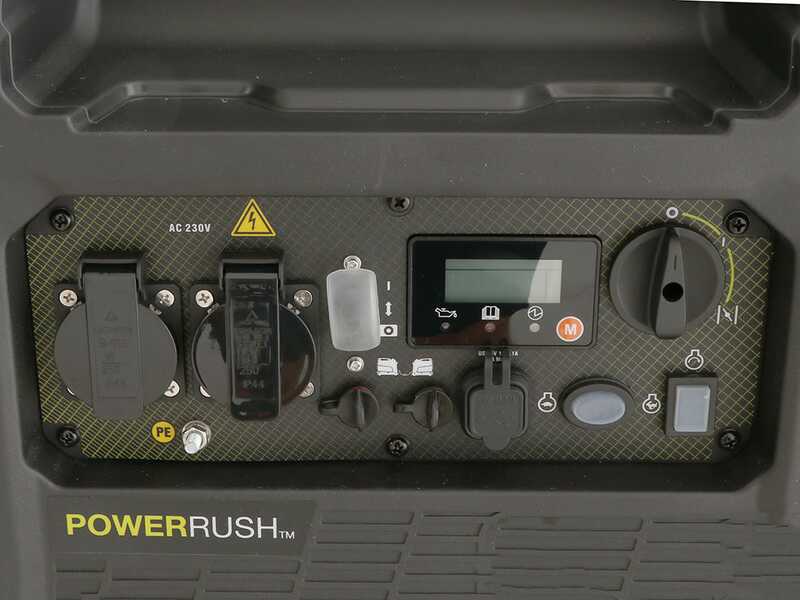

Voltometer and Warning Lights

Coupling for series connection of generators

Sockets:

- Nr. 2 Schuko sockets with delivery at 220 volts

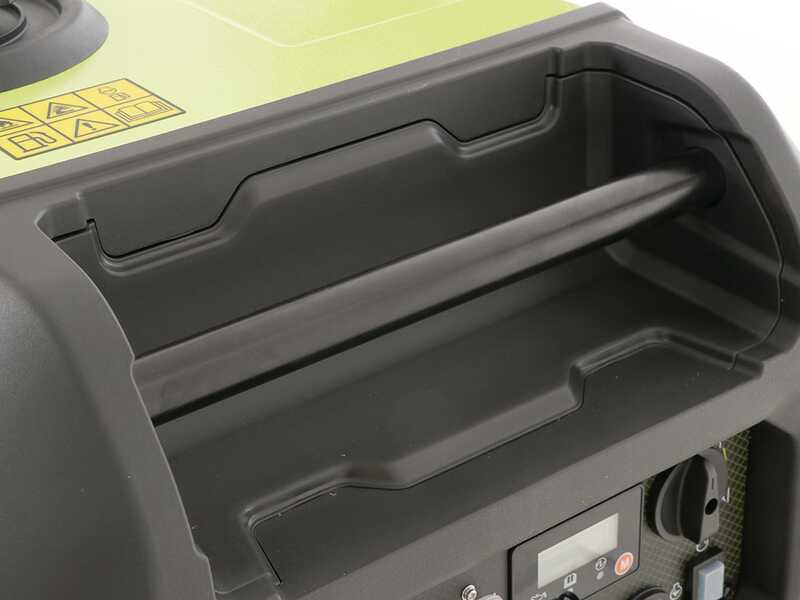

Transport handle

Tank plug

Focus on the starter rope

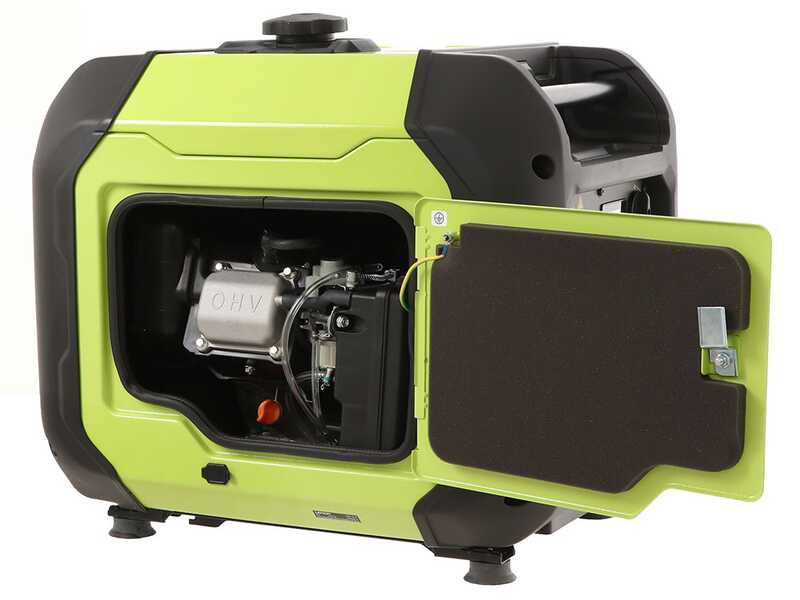

Easily accessible compartment for the engine

Focus on the spark plug

As far as the needed power is concerned, we now provide you with an handy chart to help you navigate among consumption, starting coefficients and watt.

The best criteria is to pinpoint first which are the instruments we need to power with the generator and, consequently perform a simple calculation, as explained below, to identify the needed power that the generator need to eject.

Power required = Electric appliance consumption X Breakaway starting coefficient

The starting coefficient is a fundamental characteristic of any instrument which works with electric current because it indicates how much the consumption of the object increases. Therefore, this is needed to concretely determine how many WATT are necessary during the start up operations.

Example: Compressor (1500 Watt ) X Starting coefficient (2) = 3000 Watt Hence you should orientate towards a generator which has a WATT power equal or superior to the result (*)

Check the consumption of the appliance on the instruction and maintenance manual or on the plate attached to the machine.

WARNING: the chart is purely indicative. Thanks to the formula above you can easily calculate the power a generator should deliver to connect and start some specific products and select the model of generator which best suits your needs. And remember that to operate the electronic equipment (computers, televisions and all the equipment equipped with an electronic card) must purchase a current with "inverter" generator (which stabilizes the output current).

• This inverter generator is equipped with an electronic card in order to stabilize the output current, generating an almost perfect wave.
  This makes it particularly suitable for application in certain uses, but also not suitable for other.
  Some examples of FIELD OF APPLICATION : Feeding of all kinds of electronic equipment (being equipped with electronic card which consequently require a very stable power to avoid the risk of damaging such cards), appliances, equipment and kitchen and domestic equipment, lights and lamps; In conclusion they are specific to a strictly domestic use or for vacation and leisure use (in a camper, boat, etc ...)

  Some examples of NON APPLICATION FIELDS : Construction equipment, workshop equipment, do-it-yourself, welding machines, equipment of any kind equipped with brush motors (which in the event of wear on the brushes can move back towards the generator some power surges that can damage the the generator electronic card); basically, for all this list of working, construction or artisan equipment, an inverter generator is too delicate and therefore inadequate, therefore it is necessary to focus on a classic generator, not with inverter card, but equipped with the classic alternator with stator and heavy rotor, most suitable for powering this equipment.

  We remind you that the inverter generator was designed for NOT PROFESSIONAL use, it is therefore apt for occasional use (not frequent). The working sessions must no be over 3-4 continuous hours (which would cause the alternator to overheat and wear) If you need a generator for frequent use (for example once a week), the user should look towards another type of generator, specifically intended for a frequent use and precisely a PROFESSIONAL or even INDUSTRIAL quality-level generator;

  The generator is not designed to be installed in photovoltaic or solar energy systems for energy production nor for the recharging or maintenance of batteries of these specific or other electric systems. Indeed, it may damage seriously the generator on its internal components (alternator, engine and electrical component). Each photovoltaic system requires a generator for INDUSTRIAL use (not for domestic use as this present model), specifically designed and manufactured for this purpose. WE DO NOT PROVIDE WARRANTY on generators connected to photovoltaic systems, as this entails an IMPROPER USE OF THE UNIT.
