Pair of stainless steel spray booms with 5 + 5 brass conical nozzles

Questions & Answers (1)
ID: K500687

EAN: 9993089182433

Pair of stainless steel spray booms with 5 + 5 brass conical nozzles
Prompt Delivery
18 items in stock
Suggested price:
€ 252,20
€ 226,98
VAT Included
Description

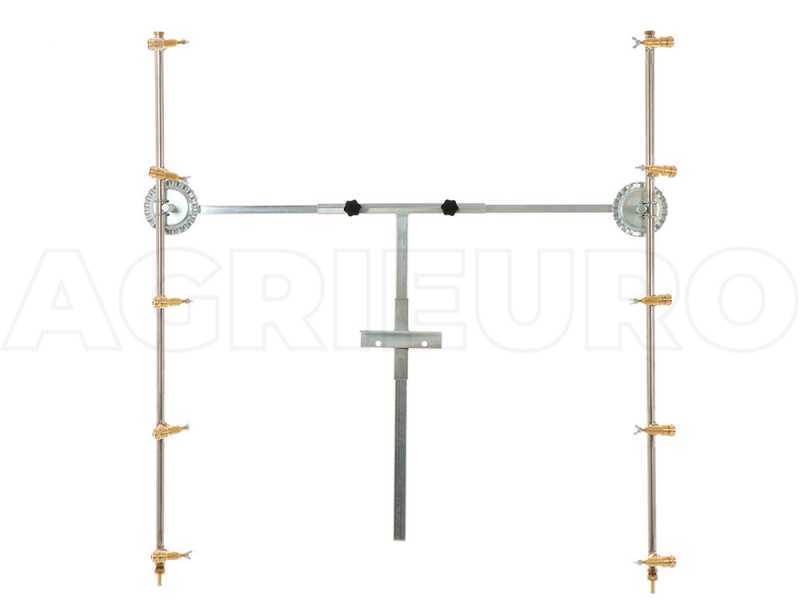

Pair of stainless steel spray booms with butterfly jets

Specific for spraying vineyards, they are also employed for a wide variety of crops, such as olive trees, orchards and more.
ATTENTION: for proper functioning, the pair of spraying jets 5+5 require a high-pressure diaphragm spray pump with a capacity of at least 40 l/min.

Pole length: 120 cm.

100% Made in Italy.

Stainless steel rods with brass fittings.

Professional brass butterfly jets.

Equipped with professional ceramic nozzle (hole diameter 1.2 mm)

Equipped with rear butterfly screw. It allows you to adjust the jet, either more direct or more cone-shaped, or even closed by tightening the screw completely.

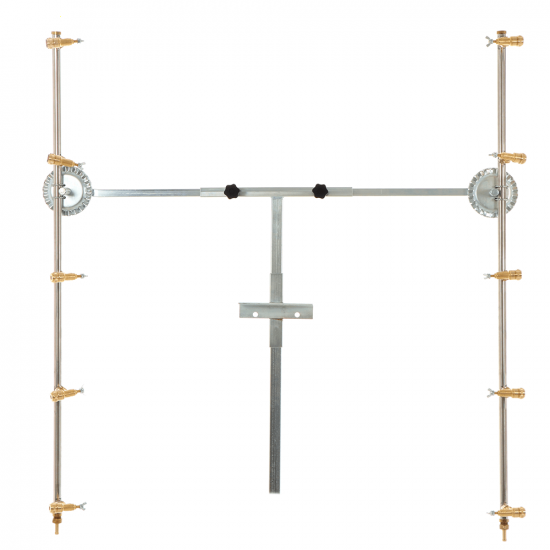

Steel frame with external galvanisation treatment. Each pole is equipped with its own telescopic bar that can be removed outwards. Allows the rods to be pulled outwards from the tank in order to perform treatment and closed inwards for transport and storage (by simply loosening and tightening the 2 black cranks). System to adjust the inclination of each pole by means of the 2 spring-loaded circular joints.
It allows the inclination of each of the two booms to be changed with a simple manual movement (without the use of keys or tools).
Telescopic height adjustment system of the pole frame. Equipped with practical black crank fitting. Attachment with drilled angle iron on both the front and top, allowing easy application to all spraying units on the market of any brand.

SUPPLIED in the package:

- no. 02 brass fittings for booms

- 3 m of high-pressure hose for connecting booms to the tank unit. Example of assembly on spraying tank unit (although the photo shows the 4+4 booms, the assembly method obviously does not change). On the side, photo with the open pair of booms in the working position; below, the closed pair of booms in the rest position (although the photo shows the 4+4 booms instead of the 5+5 as offered in this advertisement):

Pole length: 120 cm. Shown here is the professional brass butterfly jet model (MADE IN ITALY), included in the pair of booms featured in this advertisement.

However, at an additional cost, it is also possible to purchase the same jets with the PVC spray guard accessory

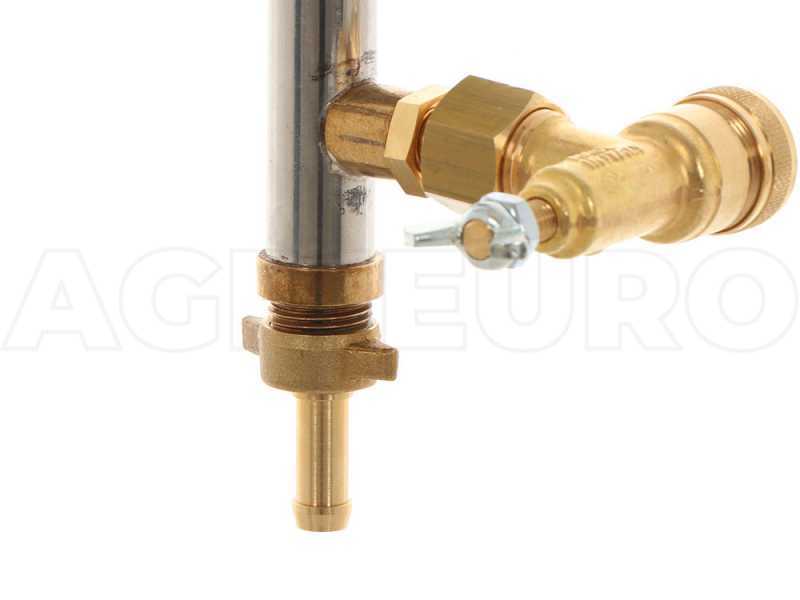

Butterfly nozzles type

Pair of professional brass butterfly nozzles.

Equipped with (hole's diameter: 1,2 mm)

Provided with [x=139186]butterfly screw located in the rear side for the spray adjustment, narrow or more conical. Otherwise, it can be closed by tigthening the screw.

With a price surcharge, it is possible to buy these nozzles equipped with PVC spray shield accessory
