Pair of stainless steel spray booms with 3 + 3 brass conical nozzles

€ 135,97
VAT Included
Prompt Delivery
13 items in stock
ID: 500686
EAN: 9993089182419
MPN: 45.F80003

Pair of stainless steel spray booms with 3 + 3 brass conical nozzles

Specific for the vineyards spraying, they are also used in many other crops, such as olive tree groves, orchards, and others.


Professional rank product 100% made in Italy
ATTENTION: for the pair of 3+3 spray booms correct functioning an high pressure membranes pump on not less than 20 lt/min is needed.
Support bars made of stainless steel with brass joints.
Professional brass conical spurts

Provided with professional ceramic nozzle (hole diameter 1,2 mm)

Provided with rear butterfly screw. It allows the flow regulation from one direct spurt to a conical one, or closed bu completely thighten the screw.
Zinc-coated steel frame
Each boom is provided with a telescopic bar that can be pulled outwards. This allows to pull the spray booms out for treatment job and close them for transport and storage (by simply loosen and lock the two black knobs).
Incline adjustment system of the boom by means of 2 round spring turning point.
It allows the incline adjustment for each bar with a simple handle action (any tool is needed for doing this).
Telescopic height adjustment system of the sustaining booms frame.
It is provided with practical fixing black knob.
Connection with L shaped steel tube with holes both in the front part and the upper part. It make possible the boom linkage with any sprayer on market.
ON STANDARD EQUIPMENT, included on price:

- nr.02 booms brass joints

- 3 mt high pressure hose for the sprayer connection to the boom
Assembly example on sprayer (even if the picture shows the 4+4 booms, the assembly mode doesn’t change)

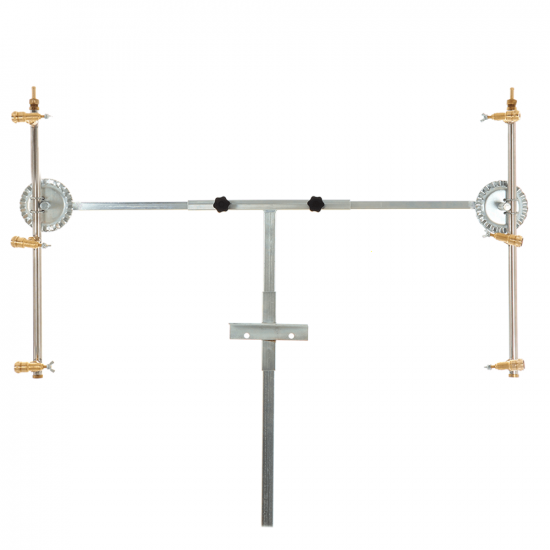

Aside, picture of the open position of booms in working position
Aside, booms in rest position
Aside, professional butterfly screw adjustable nozzle (MADE IN ITALY), provided on the here introduced booms

With a small price difefrence it is possible to have the PVC spurt cover accessory .
