OMA Duster 240 - Mounted sulphur dust extractor - 2-way

Add a question
ID: K4997

EAN: 9993089404788

MPN: NIP0200001

OMA Duster 240 - Mounted sulphur dust extractor - 2-way
+50 sold
Fan diameter Ø
400 mm
Tank capacity
200 l
Nr. of jets
2 nozzles
Tractor three-point hitch
Yes
Manufacturing country
Italy
Product Features
Model:
Duster 240
Type:
Sulphur Duster
Machine body material:
Polyethylene
Operating mode:
tractor mounted
Frame type:
Enamelled steel
Fan diameter Ø:
400 mm
Flow rate:
4000 m³/h
Max. spraying height:
6 m
Max range:
8 m
Tank capacity:
200 l
Fixed 3-point hitch:
Yes
Manufacturing country:
Italy
Transmission data
Transmission type:
PTO
Operating mode:
tractor mounted
Equipment
Tractor three-point hitch:
Yes
Nr. of jets:
2 nozzles
Jets type:
Adjustable
Tractor cab remote control:
Yes
Internal mechanical shaker:
Yes
Dimensions and logistics
Product dimensions in cm (L x W x H):
74 x 140 x 115 cm
Net weight:
70 Kg
Packaging:
On pallet
Original packaging/s dimensions in cm (L x W x H):
80 x 120 x 125 cm
Gross weight (packaging included) :
80 Kg
Assembly time:
5 minutes
Prompt Delivery
3 items in stock
Free Shipping
Estimated delivery: 03/06/2024 - 05/06/2024
€ 2.040,45
VAT Included
You're viewing:
Customers also viewed:
Description

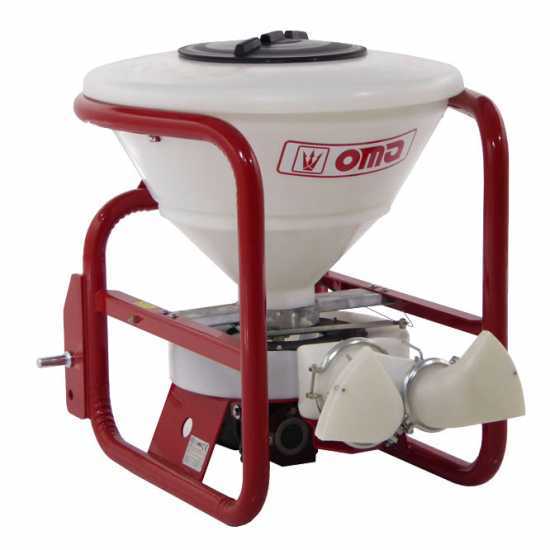

OMA Duster 240 Tractor-mounted Sulphur Duster

The OMA Duster tractor-mounted sulphur duster is an agricultural machinery used for treatments with powder pesticides. This machine represent a great solution for sulphur treatments in the vineyards, hence the name sulphur duster.

It can be used on both espalier and tendone vineyard installations thanks to a dual-opening adjustable cannon spray head diffuser.

The duster is also used to distribute copper sulphate, sulphur bentonite and general dusting products generally useful in agriculture.

The OMA Duster is towed by the tractor via a three-point-hitch. It is suitable to meet the needs of both companies and demanding users thanks to the large 200 L tank.

The sulphur duster comes with a steel frame where a polyethylene tank is mounted and which contains the product to be sprayed. The machine feature a 400 mm radial fan operated by means of the tractor's PTO and a dual-opening adjustable cannon spray head diffuser

The tank is equipped with a mechanical shredder for powder that acts as a shaker to prevent clogging and a powder regulator to open the tank through which the powder passes.

Maximum distance that can be reached from each head diffuser: 6-8 metres

Flow rate: 4000 m³/h

Tractor power: min 20 Hp



Controls and adjustments

The Duster tractor-mounted sulphur duster is fitted with a radial fan that measures 400 mm. This fan pushes the powders, which fall and pass from the tank to the fan: between the two there is a mechanical regulator that is adjusted by a manual control.

This control gradually opens or closes the 4 regulator discs inside the tank so that only the desired amount of product can enter the fan and be expelled through the sprayheads. The powder regulator manual control comes with a 2 metres cable and can be set by the user while comfortably sitting on the tractor.

Next to the 4 regulator discs, the tank features a mechanical shredder for powder that acts as a shaker and prevents any type of clogging of the powder regulator discs.

The Duster tractor-mounted sulphur duster is equipped with a dual-opening adjustable cannon spray head diffuser: they can be rotated thanks to the quick fixing system with steel clamp, to set the perfect direction of the powder jet.

In a low position, it allows the product to be distributed on ESPALIER VINEYARD installations, or all those crops spaced out in a similar way.

In a high position instead, the duster is used, for example, for sulphur treatments in TENDONE VINEYARD installations or in all types of crops that grow several meters in height.

The dual-opening head diffuser is controlled by two valves that open or close the flow of powders inside the sprayheads, allowing only one of the 2 available openings to be used.

Main features

The OMA Duster is built on a sturdy frame made of stove-enamelled painted steel.

The frame is equipped with a support for the adjustable sprayheads.

Focus on the tractor’s PTO

Focus on the high three-point-hitch

Focus on the low three-point-hitch

The power take-off transmits motion via a Made in Italy sturdy gearbox multiplier.

Focus on the 200 L polyethylene tank equipped with a double tap, for inspection and product filling.

Weight: 70 Kg

Size: 74 x 140 x 115 (H) cm
