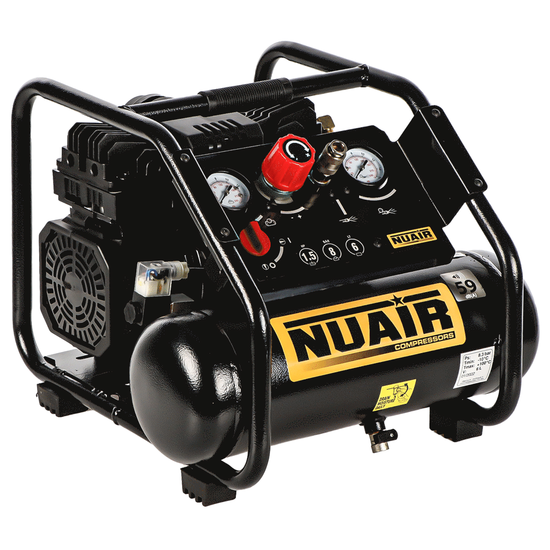

Nuair Siltek TB 6 - Silenced Portable Electric Air Compressor - 1.5 HP - 6 lt oilless

The Nuair Siltek TB 6 compressor is an ideal solution for those looking for a compact, efficient and easy-to-carry device.

Thanks to the optimal distribution of components within the structure and the comfortable rubber grip, this compressor is easy to move and handle. It is perfect for various uses, both domestic and professional, always guaranteeing a high level of performance.

Controls are centralised in the control panel, which includes double pressure gauges, a pressure reducer and an air outlet.

This allows precise control and easy use of the Nuair Siltek TB 6 compressor in various applications.

The robust structure fully protects the pumping unit, ensuring durability and safety during use.

Advantages of the Nuair Siltek TB 6 Compressor

The Nuair Siltek TB 6 compressor offers numerous advantages:

• Portability: Easy to move and use thanks to the comfortable handle and well-distributed structure.
• control EASE: The intuitive control panel puts all necessary functions at your fingertips.
• Robustness and Durability: The protective structure guarantees long life and safety of the pumping unit.
• Versatility. The adequately sized tank allows multiple applications, from domestic to professional.
• Practical storage: The compact design allows easy storage even in confined spaces.
• Operational stability: Rubber feet provide stability during operation.
• High performance: The powerful and quiet motor ensures high performance without disturbance.
• Low maintenance: Oilless technology eliminates the need for periodic maintenance, reducing costs and respecting the environment.

The Nuair Siltek TB 6 compress or is therefore an excellent choice for anyone looking for a reliable, powerful and easy-to-use compressor that is perfect for all types of work.

The Nuair Siltek TB 6 compressor is designed to meet the needs of both hobbyists and professionals. With its advanced features and compact design, it offers excellent performance in an easily transportable and convenient format.

Technical Specifications:

• Power: 1.5 hp (1.1 kW)
• Maximum pressure: 8 bar (116 psi)
• Tank: 6 L
• Air intake: 160 l/min (5.6 CFM)
• No. of rpm: 1450 RPM
• Voltage/Frequency: 230 Volt ~ 50 Hz
• Noise level: 59 dB(A)
• Weight 19.9 kg

Overall dimensions:
- Width: 48 mm
- Height: 44 mm
- Depth (or thickness): 38 mm

Weight: 28 kg

The Nuair Siltek TB 6 compressor is equipped with a centralised control system designed to ensure precise and intuitive control of operations. This makes the compressor easy to use for both hobbyists and professionals.

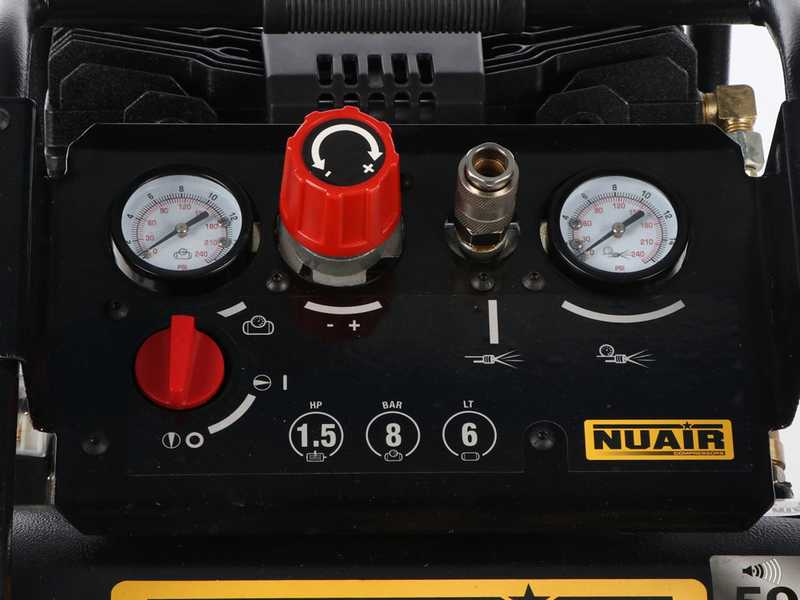

Centralised control panel

The central control panel of the Nuair Siltek TB 6 compressor offers a number of essential functions for efficient and safe use of the device:

• Double Manometers: The panel is equipped with two pressure gauges to monitor the internal tank pressure and the air outlet pressure. This system ensures precise control of the operating conditions, allowing the pressure to be easily adapted to the specific requirements of the application.
• Pressure reducer: Integrated in the control panel, the pressure reducer allows precise adjustment of the air outlet pressure. This component is essential to ensure that the air delivered is always at the optimum pressure for the tool or application in use.
• Air outlet: The air outlet is designed to ensure a constant and reliable flow. It is positioned so as to be easily accessible, allowing quick connection and disconnection of pneumatic tools.

Technical Characteristics of the Controls

• Double Manometers: They allow simultaneous monitoring of tank pressure and outlet pressure.
• Pressure reducer: It regulates the outlet pressure precisely, ensuring optimal performance and safety.
• Air outlet: Designed for easy access and quick connection of air tools.
• Ergonomic layout: All controls are ergonomically arranged on the control panel for ease of use and to minimise operating errors.

Recommendations for use

To ensure maximum durability and efficiency of the machine, the following instructions must be strictly observed. Failure to do so constitutes improper use, with a serious risk of damage to the product (such damage is not covered by the warranty).

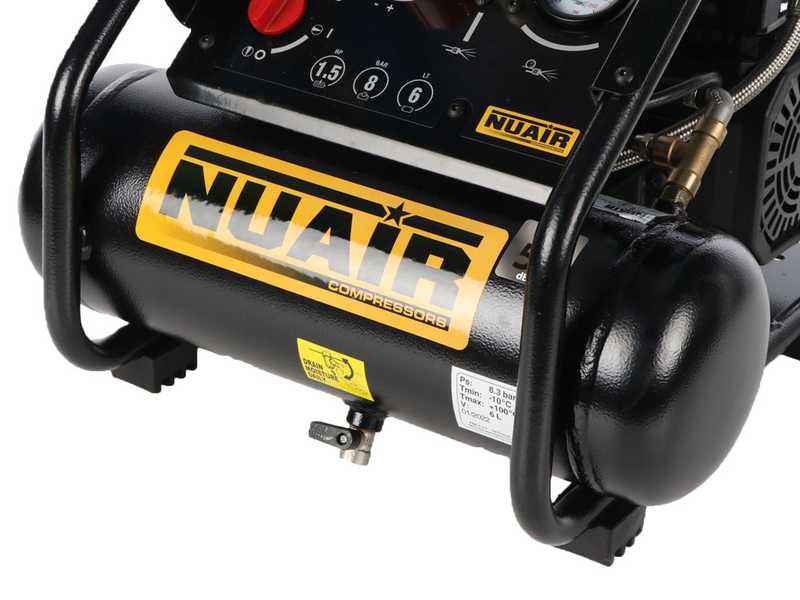

• Tank maintenance and condensate drainage: Moisture contained in the intake air accumulates as condensate at the bottom of the tank, due to the thermal processes generated during compression. Drain the condensate after each use by operating the lower drain valve, turning it carefully to avoid sudden discharges of compressed air and liquid. Failure to carry out this maintenance task may lead to internal corrosion of the tank. Furthermore, condensate accumulation reduces the effective air volume, causing abnormal motor restart cycles and the transfer of impurities to connected tools, with the resulting risk of premature damage to the entire system.
• Suitability of extension leads: Do not use unsuitable extension leads. Given the  high motor power, it is essential to ensure a constant power supply. Undersized cabling causes voltage drops that prevent the motor from reaching the correct speed, leading to abnormal overheating and permanent damage to electrical components. Use only cables with a minimum cross-section of 2.5 mm². This cross-section is necessary to handle the high current absorption, especially during start-up.

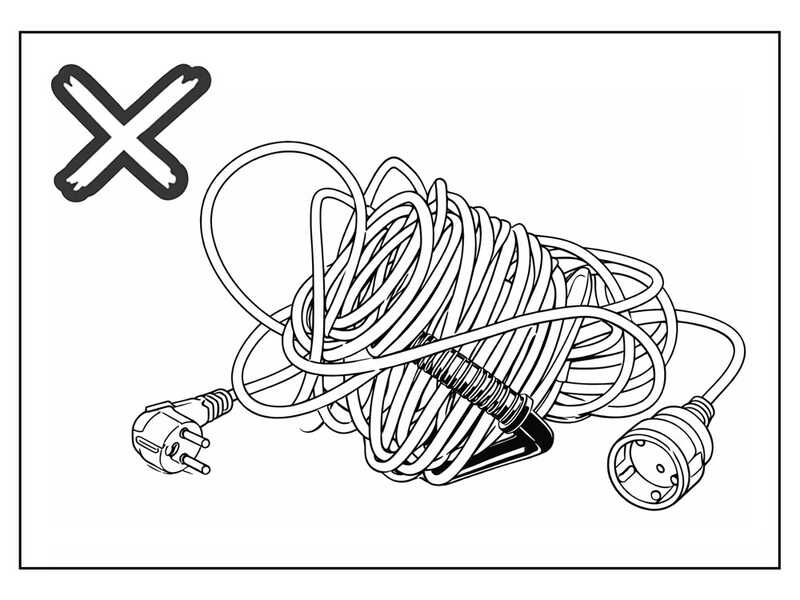

Unwind the extension lead completely before use. Never use the machine if the power cable is partially coiled or bunched up. Heat build-up due to induction can melt the cable and cause serious electrical damage to the motor or a fire hazard.

• Operating position:  The air compressor must only be installed in environments free from humidity, preferably in dry locations that are fully protected from weather exposure and potential water splashes. Adequate ventilation must be ensured by maintaining a clearance of at least 50 cm between the machine and any wall or obstacle, in order to allow for proper air circulation and effective heat dissipation. The installation area must also guarantee a high level of air cleanliness and be free from dust, fumes, chemical vapours, or flammable gases. Failure to comply with these requirements exposes the product to the following risks:

1. Critical overheating: insufficient ventilation or installation in confined spaces impairs the cooling of the motor and pump assembly, resulting in reduced service life.
2. Safety risks: the presence of volatile or flammable substances may compromise the structural integrity of the machine or the safety of the operator.

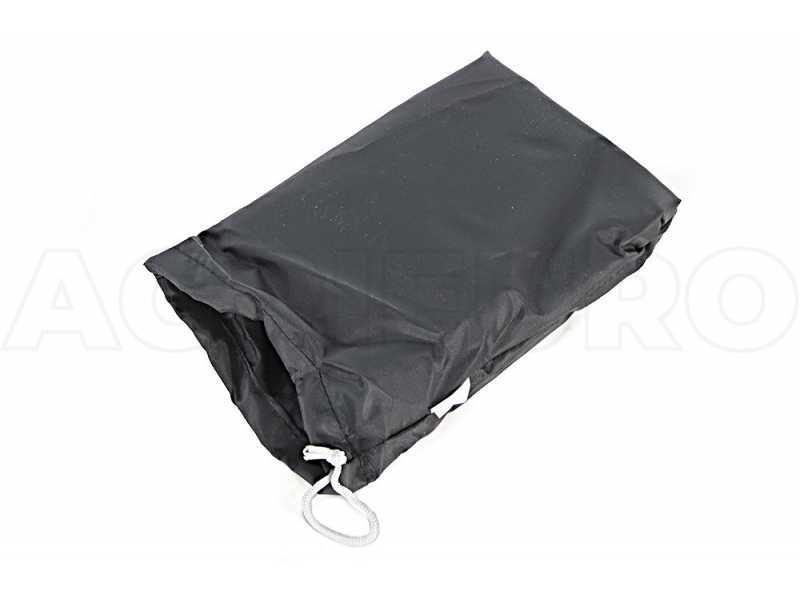

• Obstruction of cooling and ventilation systems:  During machine operation, the air compressor must not be covered with sheets, boxes or makeshift casings, as such barriers prevent the air flow required for cooling the internal components. Blocking the ventilation slots causes a rapid rise in operating temperature, with the consequent risk of irreversible damage to the motor and the seals of the pumping unit. If protective covers are used during periods of inactivity, these must be completely removed before any start-up attempt to ensure the full efficiency of the heat dissipation system, thus preventing critical overheating.
• Power supply and connections suitability: The air compressor must be connected exclusively to an electrical socket rated for the motor’s nominal power. Avoid using unsuitable sockets or connections located too far from the main electrical system. Failure to comply with these requirements exposes the machine to insufficient voltage conditions, seriously compromising the start-up phase, causing start-up difficulties, abnormal stresses and the sudden tripping of protective devices (circuit breakers or residual-current devices).
• Shutdown procedure and static pressure management: It is recommended not to leave the tank pressurised during periods of inactivity. After switching off (OFF position), the residual pressure must be released and the drain valve opened, leaving the tank empty in order to promote the evaporation of internal moisture. Maintaining constant pressure, in fact, promotes condensation build-up and accelerates the deterioration of pneumatic components, such as diaphragms and valves, drastically reducing the overall reliability of the system and its operational life.
• Checking the oil level: Before each use, check the oil level in the pumping unit. The level must fall within the range indicated by the oil level indicator or the dipstick, if fitted. Do not operate the air compressor if the oil level is too low, too high or if the oil is contaminated. An insufficient oil level can cause overheating, accelerated wear, seizure of the pumping unit and damage not covered by the warranty. An excessive oil level can cause leaks, oil leakage and oil carry-over into the compressed air circuit.

Operating position: Use the air compressor exclusively in a vertical position, on a flat and stable surface. Use on sloping surfaces may compromise the correct lubrication of the pumping unit.
