Nuair sil air 244/10 PCM - Vertical Electric Air Compressor - 1.5 Hp - 10 L Oilless - Silenced

Add a question
ID: K502411

EAN: 8016738766837

MPN: B4PP304NUA

6,9/10
After-sales assistance & Spare parts
Nuair sil air 244/10 PCM - Vertical Electric Air Compressor - 1.5  Hp - 10 L Oilless - Silenced
FREE
no. 8 compressor connectionsno. 8 compressor connections
Air compressor tank
10 L
Max. operating pressure
8 bar
Air intake flow
116 L/min
Cylinder head rpm
1440 RPM
Lubrication
Oil-less
Pump type
Single-stage
Nominal power
1.5 HP
Operating mode
Single-phase 230 V
Product Features
Model:
Sil air 244/10 PCM
Air compressor type 2:
Oilless
Air compressor type:
Portable
Handheld:
Operating mode:
Single-phase 230 V
Max. operating pressure:
8 bar
Number of tanks:
1
Tank capacity:
10 L
Air compressor tank:
10 L
Noise level:
64 dBA
Manufacturing country:
China
Motor data
Motor type:
Electric single-phase
Nominal power:
1.5 HP
Power supply:
220 V electric
Manufacturing country:
China
Pump data
Pump brand:
Stanley
Model:
sil air 244/10 PCM-
Air intake flow:
116 L/min
Pump type:
Single-stage
Lubrication:
Oil-less
No. of cylinders:
1
Cooling manifold:
No
Manufacturing country:
China
Transmission data
Transmission type:
Coaxial type direct
Cylinder head rpm:
1440 RPM
Equipment
No. of outlet couplings:
1
Rear wheels size:
120 mm
Rubber-coated soft grip:
Yes
Lifting handle:
Yes
Free gifts/extra features
Wooden pallet (safe shipping):
Yes
Quick reduction coupling:
Yes
Instructions manual:
Yes
Dimensions and logistics
Net weight:
26 Kg
Packaging:
On pallet
Gross weight (packaging included) :
26 Kg
Assembly time:
5 minutes
Prompt Delivery
1 item in stock
Free Shipping
Estimated delivery: 14/10/2024 - 16/10/2024
€ 375,83
VAT Included
You're viewing:
Customers also viewed:
Description

Nuair sil air 244/10 PCM Electric Air Compressor - 10 L 1,5 HP Oilless Silenced

Nuair sil air 244/10 Air Compressor
Main features:

Sil = Silenced model
244 = oilless cylinder head
10 = 10 L tank
PCM = Portable Vertical

The Nuair sil air 244/10 PCM air compressor is regarded as the best choice among hobbyists looking for a reliable, silent, lightweight and high-performing equipment.

Powered by a 1.5 Hp electric motor, this air compressor features a compressed air suction capacity of 130 L/min. It is capable of reaching a maximum pressure of 8 bar.

It comes with a large-sized compressed air storage tank of 10 L. It weighs 26 Kg and can be easily transported thanks to its wheels and the upper handle.

This air compressor belongs to the Nuair silenced line. Thanks to its peculiar vertically developed shape, it takes up small space.

Maintenance operations are also reduced, as no control or topping up of lubricating oil is required, as well as the transportability of these compressors, since there is no risk of oil leakage even when the air compressor is laid down on its side, for example to load it into the trunk of a car.

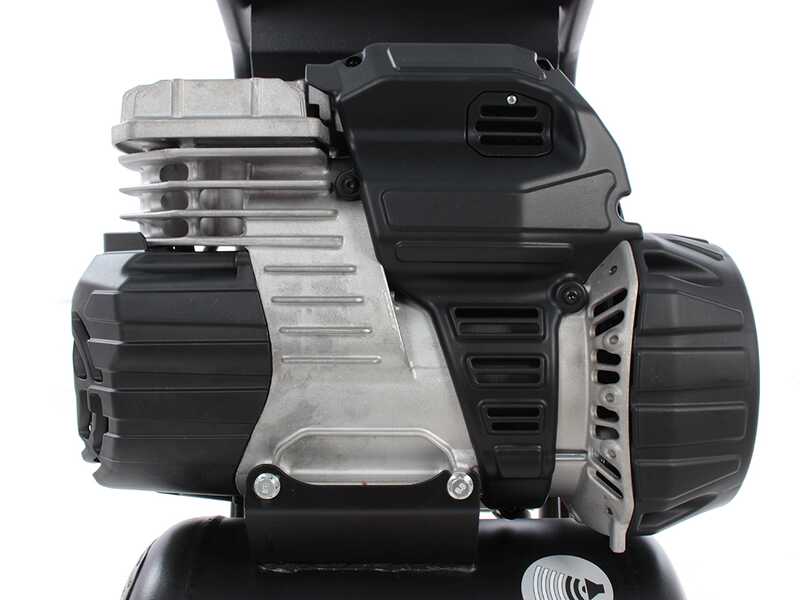

Technical features

Air intake flow: 130 L/ min


Pumping unit type: coaxial - oil-free

Pressure: 8 bar

Electric motor power: 1.5 Hp

Tank: 10 L


Overall dimensions:
- Width: 405 mm
- Height: 395 mm
- Depth (or thickness): 697 mm

Weight: 26 kg

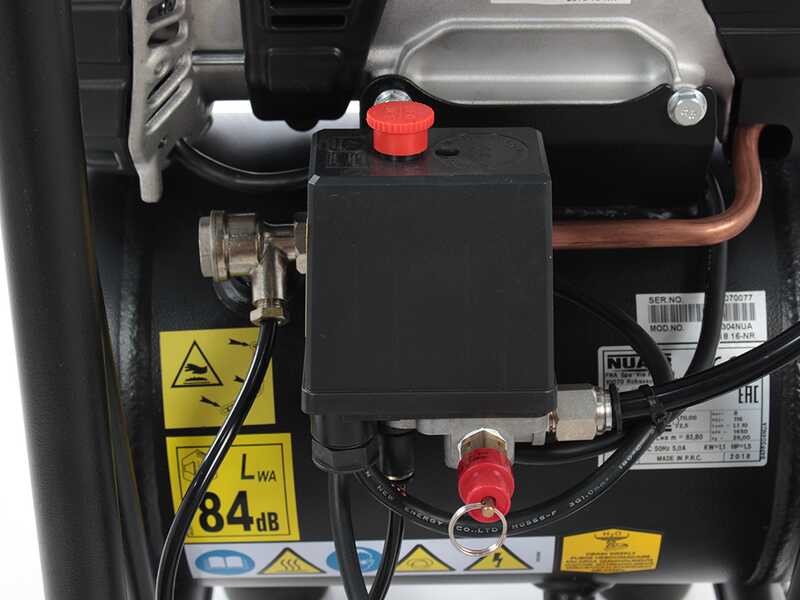

Controls

The Nuair sil air 244/10 PCM air compressor features easy and user-friendly controls, which are divided into:

Power switch

Output air pressure gauge

Tank air pressure gauge

Air compressor female outlet fitting

Pressure adjusting knob

Other features

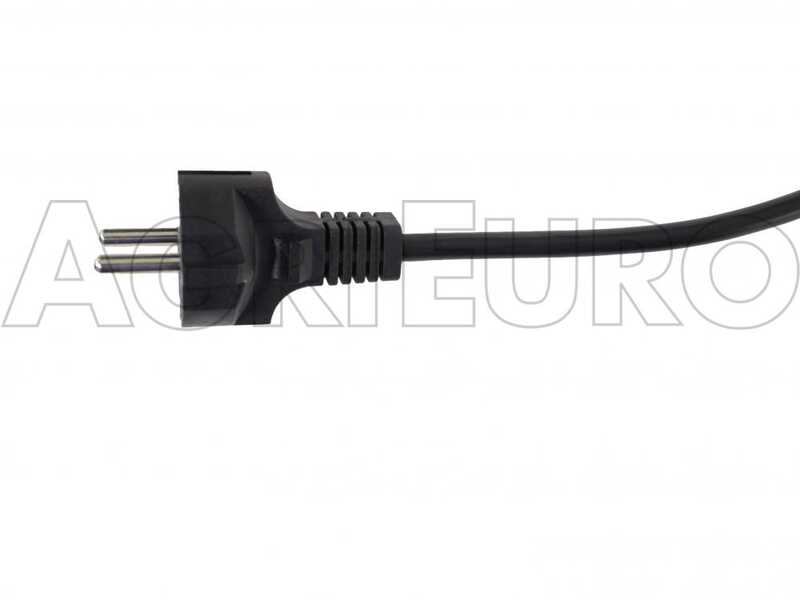

Schuko plug

Ergonomic handle for transportation

Large sturdy plastic wheels

Anti-vibration rubber pad

Condensate drain valve

Free items & Standard equipment

COMPLIMENTARY: Oilless Air Compressor Maintenance Kit

Maintenance kit provided on standard equipment includes:

  • Air compressor spare/replacing female output joint
  • Air compressor spare/replacing male output joint (replaceable on equipment with bayonet cap) or usable as spare joint

  • Quick joint to convert all the machineries fitted with standard bayonet coupling. It allows easily connecting the units to hoses with female quick joint.

  • Quick male joint for converting the female output joint supplied on the air compressor into the traditional bayonet cap (it also allows the use of the standard hoses with bayonet system)

  • Repair/Junction fitting for Ø 8 hoses
  • Repair/Junction fitting for Ø 10 hoses
  • Lower tank discharge valve replacement air compressor
  • Teflon roll, ideal for the main maintenance operations

Standard equipment

The air compressor is shipped in its original packaging.

Instructions manual included.
