Nuair Fu 227/10/12 - Compact Portable Electric Air Compressor - 2HP Motor - 12 L

Hobby
Add a question
ID: K502277

EAN: 8016738761726

MPN: HYBD404NUA

NuAir
Catalog NuAir
6,9/10
After-sales assistance & Spare parts
28Pictures
1Videos
1Customer pics
Nuair Fu 227/10/12 - Compact Portable Electric Air Compressor - 2HP Motor - 12 L
Nuair Fu 227/10/12 - Compact Portable Electric Air Compressor - 2HP Motor - 12 L
Nuair Fu 227/10/12 - Compact Portable Electric Air Compressor - 2HP Motor - 12 L
Nuair Fu 227/10/12 - Compact Portable Electric Air Compressor - 2HP Motor - 12 L
Nuair Fu 227/10/12 - Compact Portable Electric Air Compressor - 2HP Motor - 12 L
Nuair Fu 227/10/12 - Compact Portable Electric Air Compressor - 2HP Motor - 12 L
FREE
Bottle of 600 ml "COMPRIX" professional oilBottle of 600 ml "COMPRIX" professional oil
no. 8 compressor connectionsno. 8 compressor connections
Air compressor tank
12 L
Max. operating pressure
10 bar
Air intake flow
222 L/min
Cylinder head rpm
3400 RPM
Lubrication
Oil
Pump type
Single-stage
Motor type
Electric
Nominal power
2 HP
Operating mode
Single-phase 230 V
Product Features
Model:
FU 227/10/12
Air compressor type:
Portable
Handheld:
✔
Operating mode:
Single-phase 230 V
Operating mode:
Electric 230 V
Max. operating pressure:
10 bar
Number of tanks:
1
Tank capacity:
12 L
Air compressor tank:
12 L
Noise level:
97 LwA
Manufacturing country:
China
Motor data
Motor type:
Electric
Nominal power:
2 HP
Pump data
Pump brand:
Nuair
Model:
FU 227
Air intake flow:
222 L/min
Pump type:
Single-stage
Lubrication:
Oil
No. of cylinders:
1
Cooling manifold:
No
Transmission data
Transmission type:
Coaxial type direct
Cylinder head rpm:
3400 RPM
Equipment
No. of outlet couplings:
1
Rubber-coated soft grip:
Yes
Lifting handle:
Yes
Free gifts/extra features
Instructions manual:
Yes
Dimensions and logistics
Product dimensions in cm (L x W x H):
52x25x47 cm
Net weight:
15 Kg
Packaging:
Original packaging
Original packaging/s dimensions in cm (L x W x H):
52x25x47 cm
Gross weight (packaging included) :
15 Kg
Assembly time:
Assembled
Prompt Delivery
4 items in stock
Free Shipping
Estimated delivery: 18/10/2024 - 22/10/2024
Free returns (up to 30 days after receipt) *
€ 243,15
VAT Included
5% off from the second item in your cart
Are you a business? Check out prices tailored to you!

You're viewing:
Customers also viewed:
Description

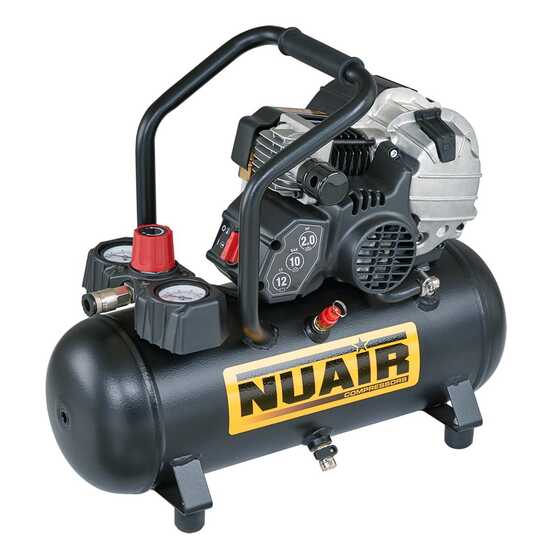

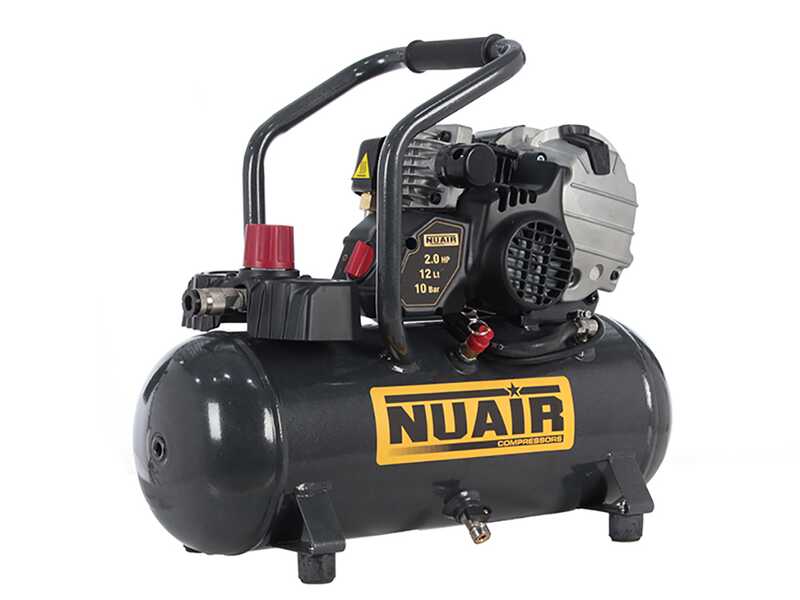

Nuair FU227/10/12 Electric Air Compressor

Nuair Fu 227/10/12 Air Compressor
Main features:

FU 227 (serial no. of the pumping unit)

10 - 10 bar Maximum pressure

12 - Tank capacity in litres 12 L

The Nuair Fu 227/10/12 is a compact medium-powered air compressor suitable for a variety of applications, such as:

  • Air blowing
  • Inflation
  • Air brushing
  • Nailing - Stapling
  • Spraying treatments
  • Painting
  • Professional painting
  • Screw driving

Powered by a 2 Hp electric motor, this air compressor features a compressed air suction capacity of 222 L/min. It is capable of reaching a maximum pressure of 10 bar.

Provided with a 12 L compressed air storage tank, this air compressor weighs 15 Kg and can be easily transported thanks to the ergonomic upper handle.

Nuair Fu 227/10/12 - Compact Portable Electric Air Compressor - 2HP Motor - 12 L
Nuair Fu 227/10/12 - Compact Portable Electric Air Compressor - 2HP Motor - 12 L Nuair Fu 227/10/12 - Compact Portable Electric Air Compressor - 2HP Motor - 12 L Nuair Fu 227/10/12 - Compact Portable Electric Air Compressor - 2HP Motor - 12 L Nuair Fu 227/10/12 - Compact Portable Electric Air Compressor - 2HP Motor - 12 L Nuair Fu 227/10/12 - Compact Portable Electric Air Compressor - 2HP Motor - 12 L Nuair Fu 227/10/12 - Compact Portable Electric Air Compressor - 2HP Motor - 12 L Nuair Fu 227/10/12 - Compact Portable Electric Air Compressor - 2HP Motor - 12 L Nuair Fu 227/10/12 - Compact Portable Electric Air Compressor - 2HP Motor - 12 L Nuair Fu 227/10/12 - Compact Portable Electric Air Compressor - 2HP Motor - 12 L Nuair Fu 227/10/12 - Compact Portable Electric Air Compressor - 2HP Motor - 12 L Nuair Fu 227/10/12 - Compact Portable Electric Air Compressor - 2HP Motor - 12 L Nuair Fu 227/10/12 - Compact Portable Electric Air Compressor - 2HP Motor - 12 L

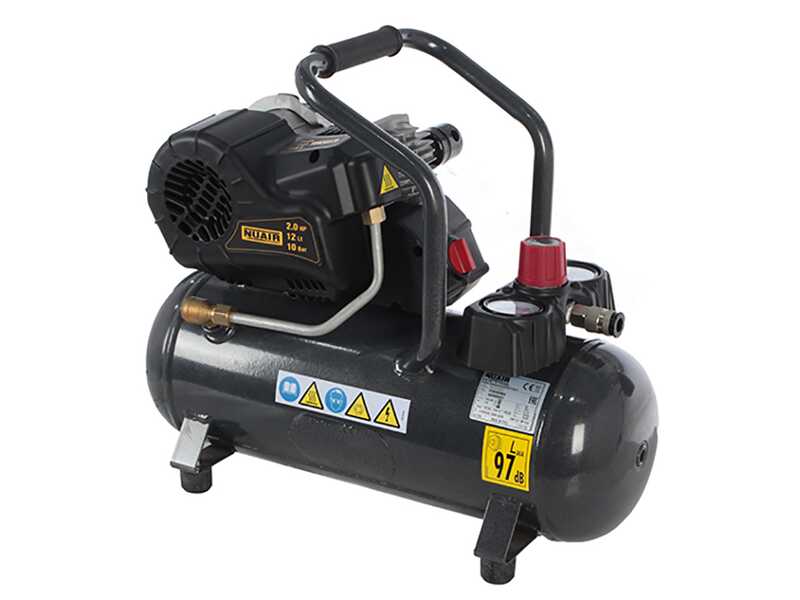

Technical features

Air intake flow: 222 L/min

Pumping unit type: coaxial

Air intake flow: 222 L/min

Pressure: 10 bar

Electric motor power: 2 Hp

Tank: 12 L

Dimensions:
- Width: 520 mm
- Height: 470 mm
- Depth (or thickness): 250 mm

Weight: 15 kg

Nuair Fu 227/10/12 - Compact Portable Electric Air Compressor - 2HP Motor - 12 L
Nuair Fu 227/10/12 - Compact Portable Electric Air Compressor - 2HP Motor - 12 L Nuair Fu 227/10/12 - Compact Portable Electric Air Compressor - 2HP Motor - 12 L Nuair Fu 227/10/12 - Compact Portable Electric Air Compressor - 2HP Motor - 12 L Nuair Fu 227/10/12 - Compact Portable Electric Air Compressor - 2HP Motor - 12 L

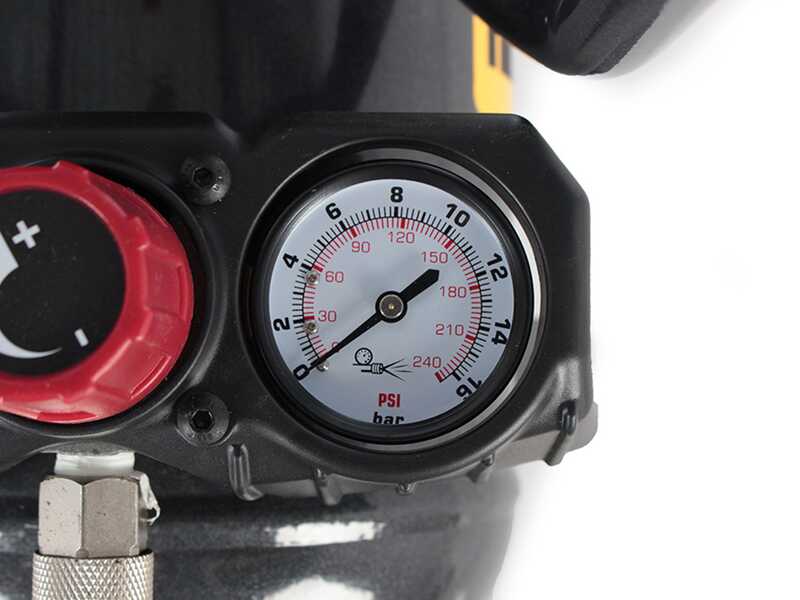

Controls

The Nuair FU227/10/12 air compressor features easy and user-friendly controls, which are divided into:

Output air pressure gauge

Tank air pressure gauge.

Power switch

Air compressor female outlet fitting

Pressure adjusting knob

Nuair Fu 227/10/12 - Compact Portable Electric Air Compressor - 2HP Motor - 12 L
Nuair Fu 227/10/12 - Compact Portable Electric Air Compressor - 2HP Motor - 12 L Nuair Fu 227/10/12 - Compact Portable Electric Air Compressor - 2HP Motor - 12 L Nuair Fu 227/10/12 - Compact Portable Electric Air Compressor - 2HP Motor - 12 L Nuair Fu 227/10/12 - Compact Portable Electric Air Compressor - 2HP Motor - 12 L Nuair Fu 227/10/12 - Compact Portable Electric Air Compressor - 2HP Motor - 12 L

Other features

Schuko plug

Ergonomic lifting handle

Anti-vibration rubber pads

Condensate drain valve

Nuair Fu 227/10/12 - Compact Portable Electric Air Compressor - 2HP Motor - 12 L
Nuair Fu 227/10/12 - Compact Portable Electric Air Compressor - 2HP Motor - 12 L Nuair Fu 227/10/12 - Compact Portable Electric Air Compressor - 2HP Motor - 12 L Nuair Fu 227/10/12 - Compact Portable Electric Air Compressor - 2HP Motor - 12 L Nuair Fu 227/10/12 - Compact Portable Electric Air Compressor - 2HP Motor - 12 L Nuair Fu 227/10/12 - Compact Portable Electric Air Compressor - 2HP Motor - 12 L Nuair Fu 227/10/12 - Compact Portable Electric Air Compressor - 2HP Motor - 12 L
Free items & Standard equipment

1° GIFT: air compressor maintenance kit with oil bottle and joints

Maintenance kit provided on standard equipment includes:

  • Air compressor spare/replacing female output joint

  • Air compressor spare/replacing male output joint (replaceable on equipment with bayonet cap) or usable as spare joint

  • Quick joint to convert all the machineries fitted with standard bayonet cap. It allows easily connecting the units to hoses with female quick joint.

  • Quick joint for converting the female output joint supplied on the air compressor into the traditional bayonet cap (also allows the use of the standard hoses with bayonet system)

  • Repair/Junction fitting for Ø 8 hoses
  • Repair/Junction fitting for Ø 10 hoses
  • Lower tank discharge valve replacement air compressor
  • Teflon roll, ideal for the main maintenance operations
Nuair Fu 227/10/12 - Compact Portable Electric Air Compressor - 2HP Motor - 12 L
Nuair Fu 227/10/12 - Compact Portable Electric Air Compressor - 2HP Motor - 12 L Nuair Fu 227/10/12 - Compact Portable Electric Air Compressor - 2HP Motor - 12 L

2° GIFT: 600 ml "COMPRIX” oil bottle

COMPLIMENTARY: 600 ml "COMPRIX” oil bottle, professional oil specifically designed for air compressor cylinder heads. Very useful for oil refill and first oil replacement (the air compressor is shipped already filled with oil).

Nuair Fu 227/10/12 - Compact Portable Electric Air Compressor - 2HP Motor - 12 L
Nuair Fu 227/10/12 - Compact Portable Electric Air Compressor - 2HP Motor - 12 L

Standard equipment

The air compressor is shipped in its original packaging.

Instructions manual included.

Nuair Fu 227/10/12 - Compact Portable Electric Air Compressor - 2HP Motor - 12 L
Nuair Fu 227/10/12 - Compact Portable Electric Air Compressor - 2HP Motor - 12 L Nuair Fu 227/10/12 - Compact Portable Electric Air Compressor - 2HP Motor - 12 L
