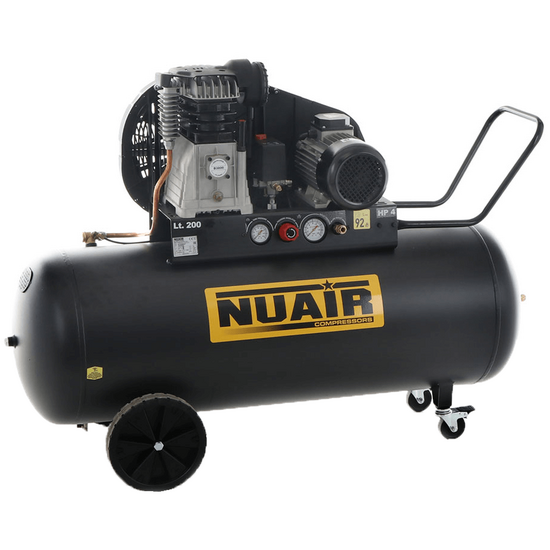

Nuair B3800B/4CT/200 TECH-PRO Air Compressor

Nuair B3800B/4CT/200 TECH-PRO short overview:

B3800B (air intake flow 480 L/min)

4CT - Three-phase 4 Hp motor

200 - Tank capacity: 200 L

The Nuair 3800B/4CT/200 TECH-PRO air compressor is regarded as the best choice among hobbyists looking for a reliable, silent and high-performing equipment.

Powered by a 4 HP electric motor, this air compressor has a 480 L/min compressed air suction capacity. It’s capable of reaching a 10 bar Max pressure.

It has a large-sized compressed air storage tank of 200 L.

The air compressor weighs 113 Kg and can be easily transported thanks to its three wheels and the upper handle.

Suitable for a number of applications:

Air-blowing
Inflation
Airbrushing
Nailing - Stapling
Spraying treatments
Painting
Professional painting
Screw driving
Washing operations
Chiselling
Polishing
Grinding

Nuair B3800B/4CT/200 Tech-Pro - Belt driven electric air compressor

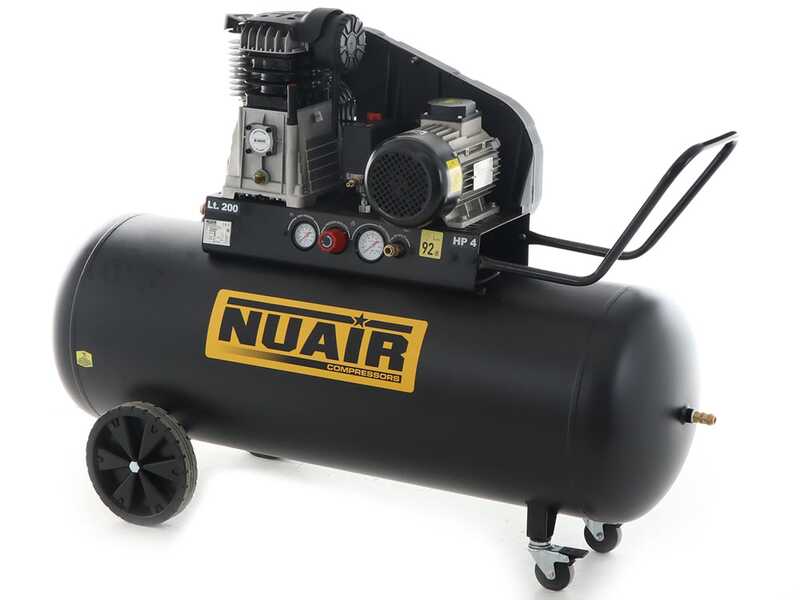

Technical features

Technical specifications:

Air intake flow: 480 L/min

Pump type: belt-driven

Air intake flow: 480 L/min

Pressure: 10 bar

Electric motor power: 4 HP

Tank: 200 L

Overall dimensions:
- Width: 1420 mm
- Height: 1010 mm
- Depth (or thickness): 530 mm

Weight: 113 kg

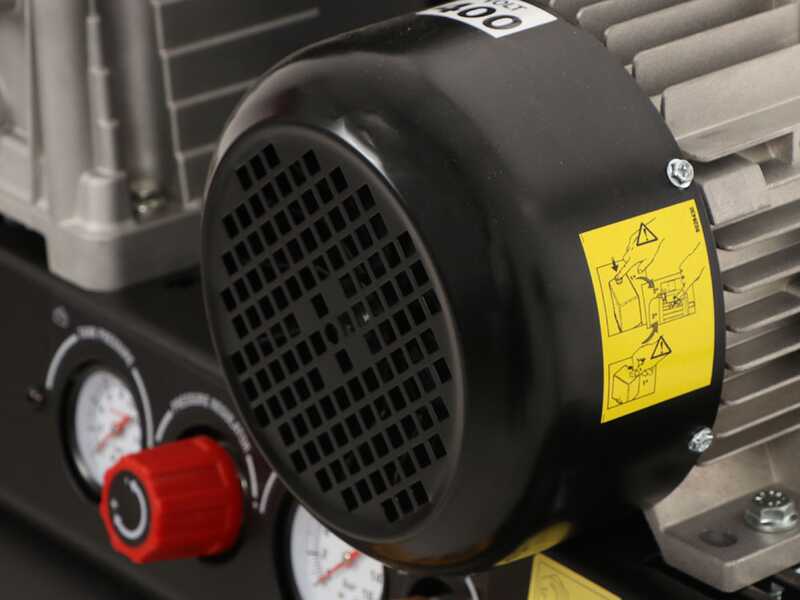

Three-phase electric induction motor 4 hp

Power supply: 400 V three-phase

Power: 4Hp
The induction motor is characterised by a very long-lasting service life and low maintenance requirements.

Indeed, this motor is brushless, the brushes being the main component subject to wear in electric motors. The absence of this component grants high durability to the motor.

It is a top-quality product in terms of reliability, low noise, durability, energy efficiency and maintenance.

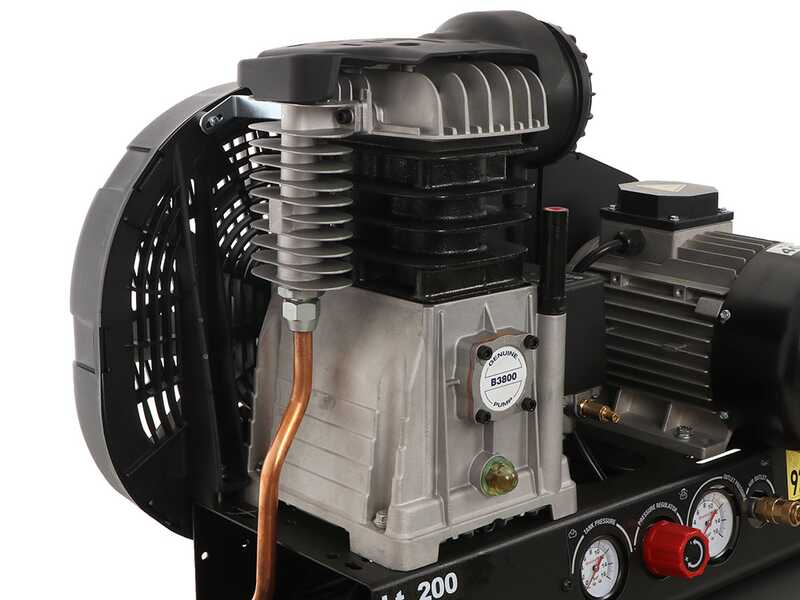

B3800B Head

Air intake flow: 480 L/min
Cylinder head type: twin-cylinder with cast iron cylinders
Suction type: single-stage
Lubrication: oil
No. of revolutions: 1400 bpm

The degree of professionalism and more generally the life of the compressor is largely determined by the number of revolutions per minute of the head.

The lower the rpm, the longer the life of the compressor. Speed reduction is achieved by means of pulleys of different diameters applied to the motor and cylinder head respectively.

Focus on the porthole for oil level check

Focus on the side cooling manifold, it keeps the compressed air outlet temperature low.

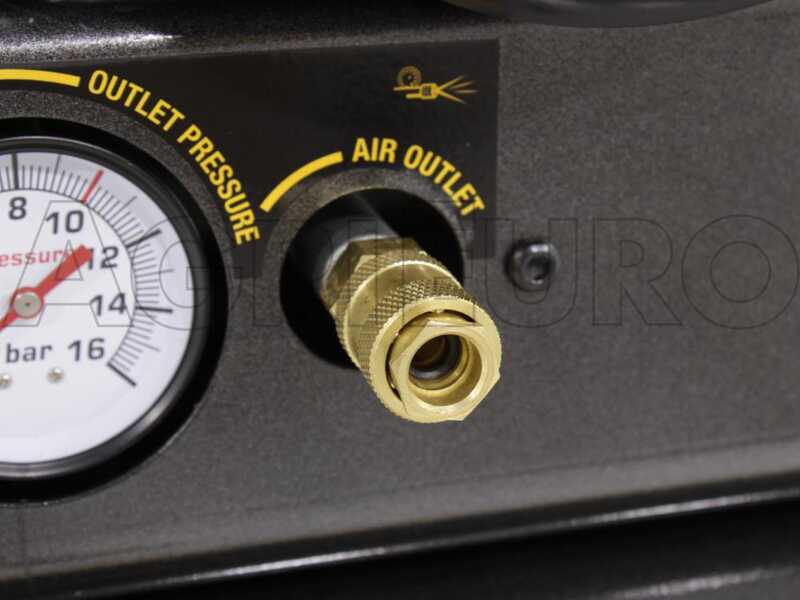

Controls

The B3800B/4CT/200 TECH-PRO air compressor features easy and user-friendly controls, which are divided into:

Power switch

Output air pressure gauge

Tank air pressure gauge

Air compressor female outlet fittings

Pressure adjusting knob

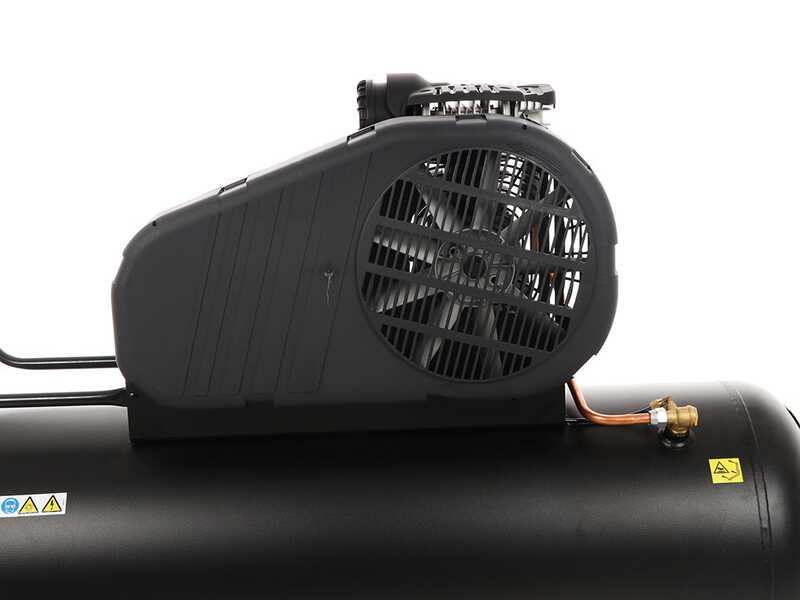

Belt drive

These Nuair air compressors feature a belt drive.

The use of the belt, combined with an induction motor, contributes to the durability of this air compressor, drastically reducing the number of revolutions of the cylinder head, increasing its life and reducing wear.

The protective grid is used to protect the belt and drive from any external objects that could damage it during operation. It also allows the status of the drive belt to be continuously checked.

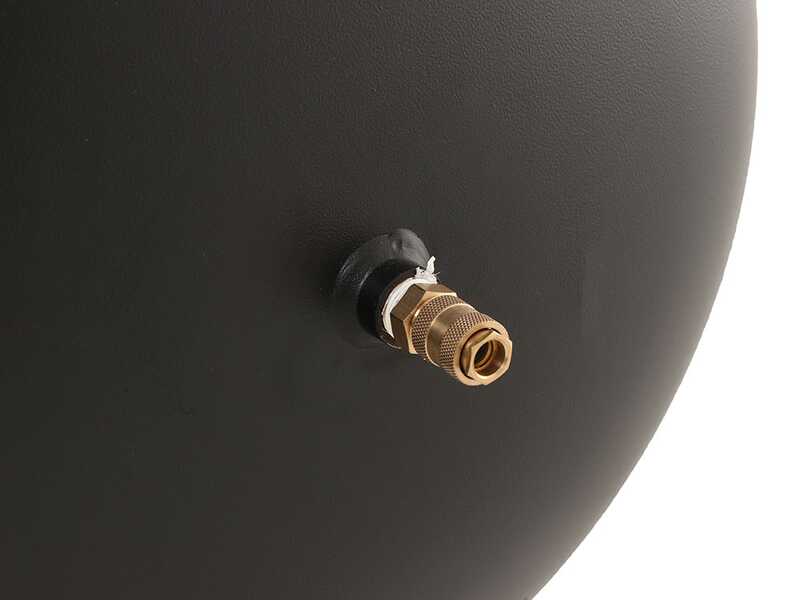

Additional features

Three-phase cable.

Ergonomic handle

Large sturdy plastic wheels

Front pivoting wheels

Tank direct coupling

Condensate drain valve

Free items & Standard equipment

1° GIFT: air compressor maintenance kit with oil bottle and joints

Maintenance kit provided on standard equipment includes:

Air compressor spare/replacing female output joint
Air compressor spare/replacing male output joint (replaceable on equipment with bayonet cap) or usable as spare joint
Quick joint to convert all the machineries fitted with standard bayonet cap. It allows easily connecting the units to hoses with female quick joint.
Quick joint for converting the female output joint supplied on the air compressor into the traditional bayonet cap (also allows the use of the standard hoses with bayonet system)
Repair/Junction fitting for Ø 8 hoses

Repair/Junction fitting for Ø 10 hoses

Lower tank discharge valve replacement air compressor

Teflon roll, ideal for the main maintenance operations

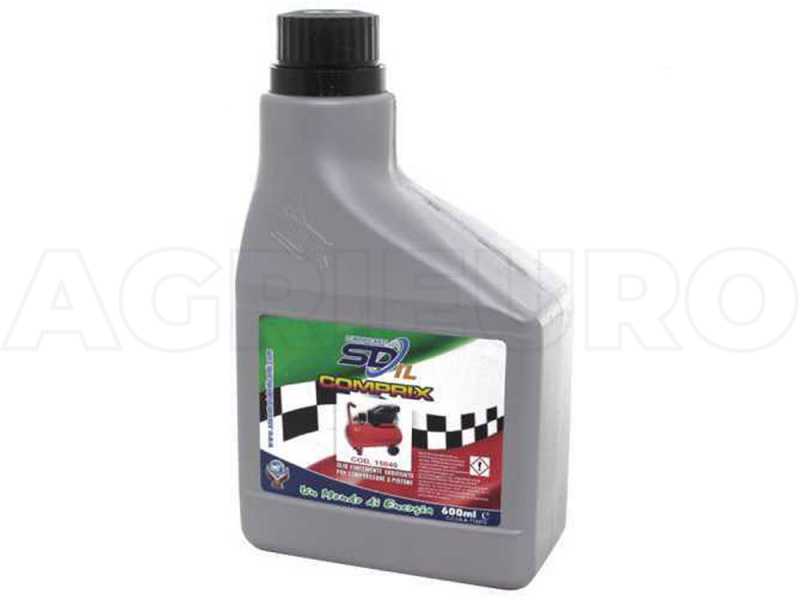

2° GIFT: 600 ml "COMPRIX” oil bottle

COMPLIMENTARY: 600 ml "COMPRIX” oil bottle, professional oil specifically designed for air compressor cylinder heads. Very useful for oil refill and first oil replacement (the air compressor is shipped already filled with oil).

Standard equipment

The air compressor is shipped in its original packaging.

Instructions manual included.
