Name: Nuair B2800B/3M/90V - Belt-driven Vertical Electric Air Compressor - 3HP Motor - 90 L
Brand: NuAir
SKU: K502509
Price: 646.39 EUR
Availability: InStock
Rating: 4.33 (12 reviews)

Description

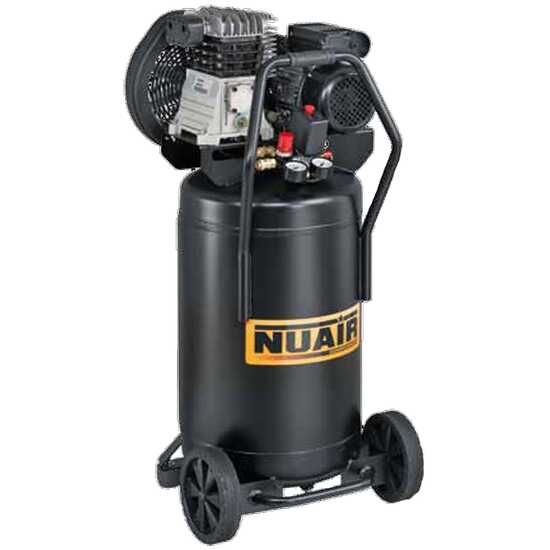

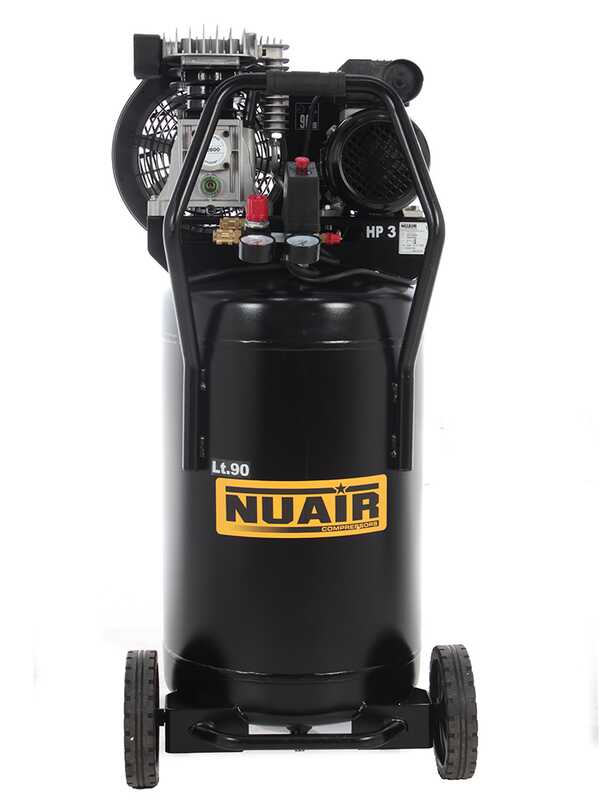

Nuair B2800B/3M/90V Electric Air Compressor

Nuair B2800B/3M/90V Air Compressor
Main features:

B2800B (serial no. of the pumping unit)

3M - 3 Hp Single-phase motor

90 - Tank capacity in litres 90 L

V - Vertical tank

The Nuair B2800B/3M/90V air compressor can be used for many different applications. It is the ideal tool for the most demanding craftsmen and hobbyists who carry out domestic work.

Its compact size allows for an easy storage.

It mounts an electric motor with a power of 3 Hp. This air compressor features a compressed air suction capacity of 330 L/min and can reach a maximum pressure of 10 bar.

It comes with a large-sized compressed air storage tank of 90 L. The air compressor weighs 66 Kg and can be easily transported thanks to its large wheels and the upper handle.

Suitable for a number of applications:

Air blowing
Inflation
Air brushing
Nailing - Stapling
Spraying treatments
Painting
Professional painting
Screw driving

Nuair B2800B/3M/90V - Belt-driven Vertical Electric Air Compressor - 3HP Motor - 90 L

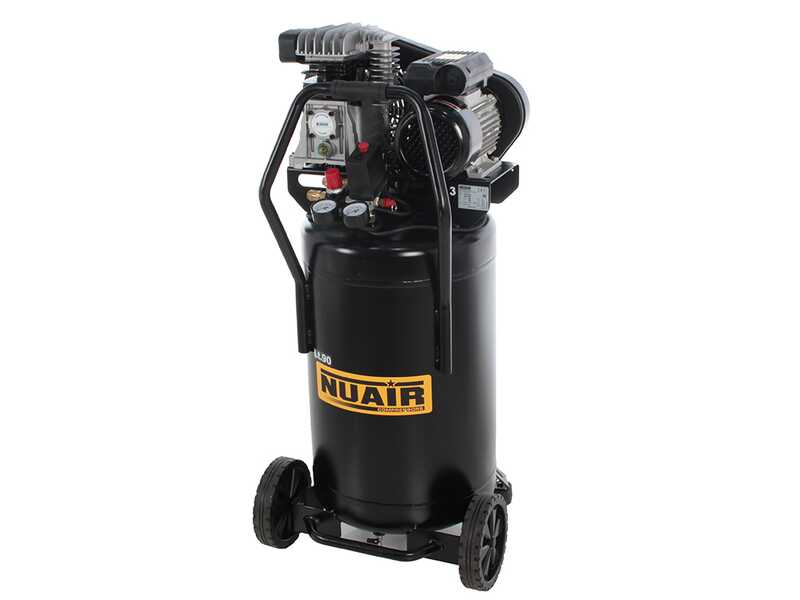

Technical features

Air intake flow: 330 L/min

Pumping unit type: coaxial

Pressure: 10 bar

Electric motor power: 3 Hp
90 L

Dimensions:
- Width: 610 mm
- Height: 1135 mm
- Depth (or thickness): 510 mm

Weight: 66 kg

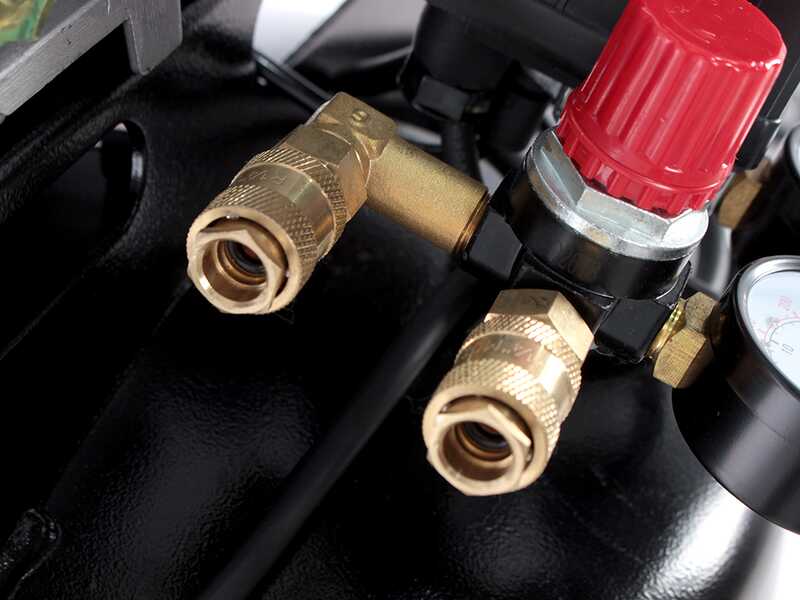

Controls

The Nuair B2800B/3M/90V air compressor features easy and user-friendly controls, which are divided into:

Power switch

Tank air pressure gauge

Output air pressure gauge

Air compressor female outlet fitting

Pressure adjusting knob

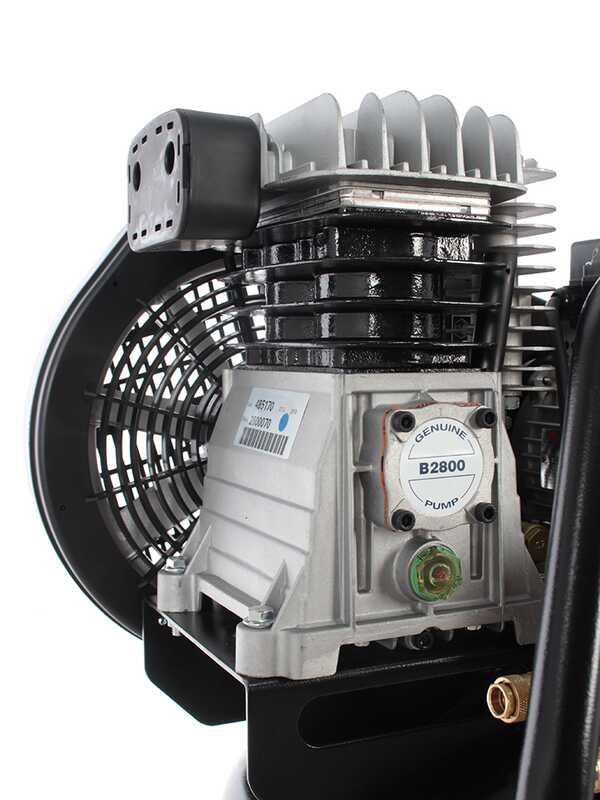

B2800 cylinder head

Air intake flow: 330 L/min
Cylinder head type: twin-cylinder with cast iron cylinders
Suction type: single stage
Lubrication: oil
No. of revolutions: 1480 rpm

The degree of professionalism and more generally the life of the air compressor is largely determined by the number of revolutions per minute of the cylinder head.

The lower the rpm, the longer the life of the air compressor. The reduction ratio of the number of revolutions is obtained by the pulleys of different diameter that are fitted to the motor and to the cylinder head respectively.

Focus on the porthole for oil control

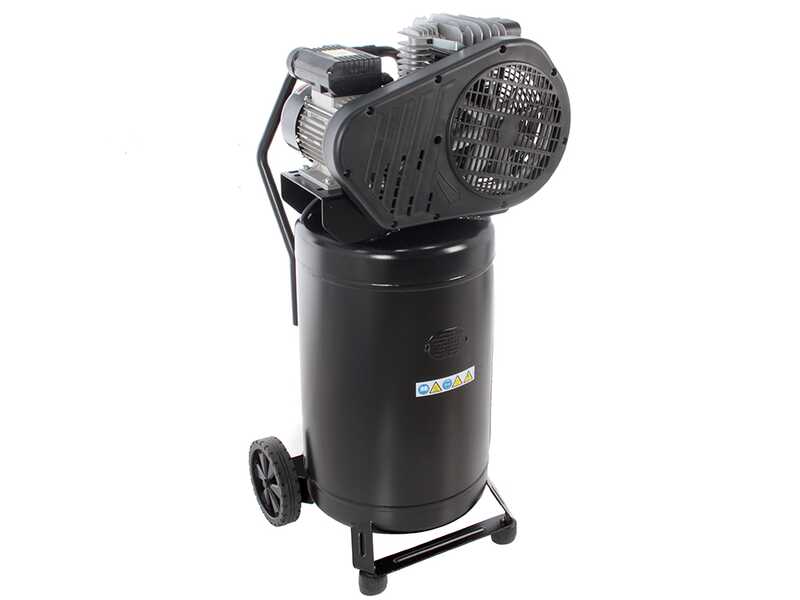

Belt drive

These Nuair air compressors feature a belt drive.

The use of the belt, combined with an induction motor, contributes to the durability of this air compressor, drastically reducing the number of revolutions of the cylinder head, increasing its life and reducing wear.

The grid protection serves to prevent the drive belt and the transmission from being damaged by external objects that might hit it during operation. It also allows the status of the drive belt to be continuously checked.
