Nuair B2800 /100 CM2 - Belt-driven Electric Air Compressor - 2 Hp Motor - 100 L

Semi-Pro
Questions & Answers (1)
ID: K609172

EAN: 8016738704037

MPN: 28FC404NUB012

NuAir
Catalog NuAir
6,9/10
After-sales assistance & Spare parts
45Pictures
Nuair B2800 /100 CM2 - Belt-driven Electric Air Compressor - 2 Hp Motor - 100 L
Nuair B2800 /100 CM2 - Belt-driven Electric Air Compressor - 2 Hp Motor - 100 L
Nuair B2800 /100 CM2 - Belt-driven Electric Air Compressor - 2 Hp Motor - 100 L
Nuair B2800 /100 CM2 - Belt-driven Electric Air Compressor - 2 Hp Motor - 100 L
Nuair B2800 /100 CM2 - Belt-driven Electric Air Compressor - 2 Hp Motor - 100 L
Nuair B2800 /100 CM2 - Belt-driven Electric Air Compressor - 2 Hp Motor - 100 L
FREE
Bottle of 600 ml "COMPRIX" professional oilBottle of 600 ml "COMPRIX" professional oil
no. 8 compressor connectionsno. 8 compressor connections
Air compressor tank
100 L
Max. operating pressure
10 bar
Air intake flow
255 L/min
Cylinder head rpm
1250 RPM
Lubrication
Oil
Pump type
Single-stage
Nominal power
2 HP
Operating mode
Single-phase 230 V
Transmission type
Belt
Pressure adjuster
Yes
Manufacturing country
Italy
Product Features
Model:
B2800B/100 CM 2
Air compressor type 2:
Twin-cylinder belt-driven - single stage
Air compressor type:
Horizontal
Operating mode:
Single-phase 230 V
Operating mode:
Electric 230 V
Max. operating pressure:
10 bar
Number of tanks:
1
Tank capacity:
100 L
Air compressor tank:
100 L
Noise level:
96 dB(A)
Manufacturing country:
Italy
Motor data
Motor type:
Electric single-phase
Nominal power:
2 HP
Pump data
Pump brand:
Nuair
Model:
B2800
Air intake flow:
255 L/min
Pump type:
Single-stage
Lubrication:
Oil
No. of cylinders:
2
Cooling manifold:
No
Manufacturing country:
Italy
Transmission data
Belt-driven:
✔
Transmission type:
Belt
Cylinder head rpm:
1250 RPM
Pulleys material:
Metal alloy
Equipment
No. of outlet couplings:
1
Pressure adjuster:
Yes
Folding/removable handle/s:
Yes
Free gifts/extra features
Wooden pallet (safe shipping):
Yes
Instructions manual:
Yes
Dimensions and logistics
Product dimensions in cm (L x W x H):
102x43x84 cm
Net weight:
62 Kg
Packaging:
On pallet
Original packaging/s dimensions in cm (L x W x H):
102x43x84 cm
Gross weight (packaging included) :
62 Kg
Unloading with hydraulic tail lift:
Yes
Assembly time:
5 minutes
Prompt Delivery
4 items in stock
Free Shipping
Estimated delivery: 17/12/2024 - 20/12/2024
Free returns (up to 30 days after receipt) *
€ 586,30
VAT Included
5% off from the second item in your cart
Are you a business? Check out prices tailored to you!

You're viewing:
Customers also viewed:
Description

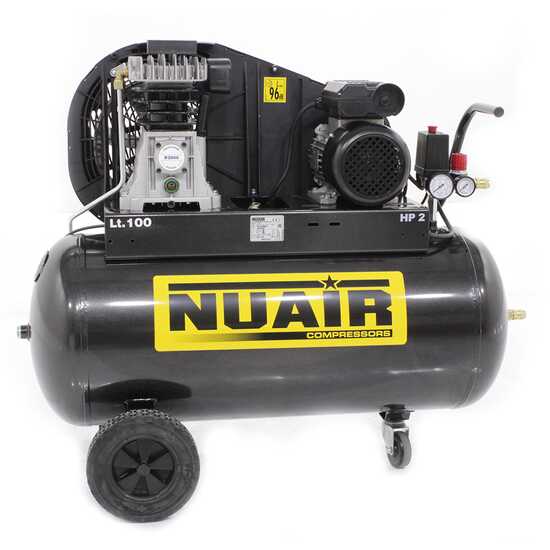

Nuair B2800/100 CM 2 Belt-drive Electric Air Compressor

Nuair B2800 /100 CM2 Air Compressor
Main features:

B 2800 (Air intake flow 255 L/min)

100 - Tank capacity in L 100 L

CM 2 - single-phase 230 V 2 Hp motor

The Nuair B2800/100 CM 2 air compressor is regarded as the best choice among hobbyists looking for a reliable, silent and high-performing equipment.

Powered by a 2 Hp electric motor, this air compressor features a compressed air suction capacity of 255 L/min. It is capable of reaching a maximum pressure of 10 bar.

Overload motor protection and manual reset. The air compressor comes with an electromechanical pressure switch, pressure reducer with pressure gauge and universal quick release valve.

It features a large-sized compressed air storage tank of 100 L.

The air compressor weighs 62 Kg and can be easily transported thanks to its wheels and the upper handle.

Nuair B2800 /100 CM2 - Belt-driven Electric Air Compressor - 2 Hp Motor - 100 L
Nuair B2800 /100 CM2 - Belt-driven Electric Air Compressor - 2 Hp Motor - 100 L Nuair B2800 /100 CM2 - Belt-driven Electric Air Compressor - 2 Hp Motor - 100 L Nuair B2800 /100 CM2 - Belt-driven Electric Air Compressor - 2 Hp Motor - 100 L Nuair B2800 /100 CM2 - Belt-driven Electric Air Compressor - 2 Hp Motor - 100 L Nuair B2800 /100 CM2 - Belt-driven Electric Air Compressor - 2 Hp Motor - 100 L Nuair B2800 /100 CM2 - Belt-driven Electric Air Compressor - 2 Hp Motor - 100 L Nuair B2800 /100 CM2 - Belt-driven Electric Air Compressor - 2 Hp Motor - 100 L Nuair B2800 /100 CM2 - Belt-driven Electric Air Compressor - 2 Hp Motor - 100 L Nuair B2800 /100 CM2 - Belt-driven Electric Air Compressor - 2 Hp Motor - 100 L Nuair B2800 /100 CM2 - Belt-driven Electric Air Compressor - 2 Hp Motor - 100 L Nuair B2800 /100 CM2 - Belt-driven Electric Air Compressor - 2 Hp Motor - 100 L Nuair B2800 /100 CM2 - Belt-driven Electric Air Compressor - 2 Hp Motor - 100 L

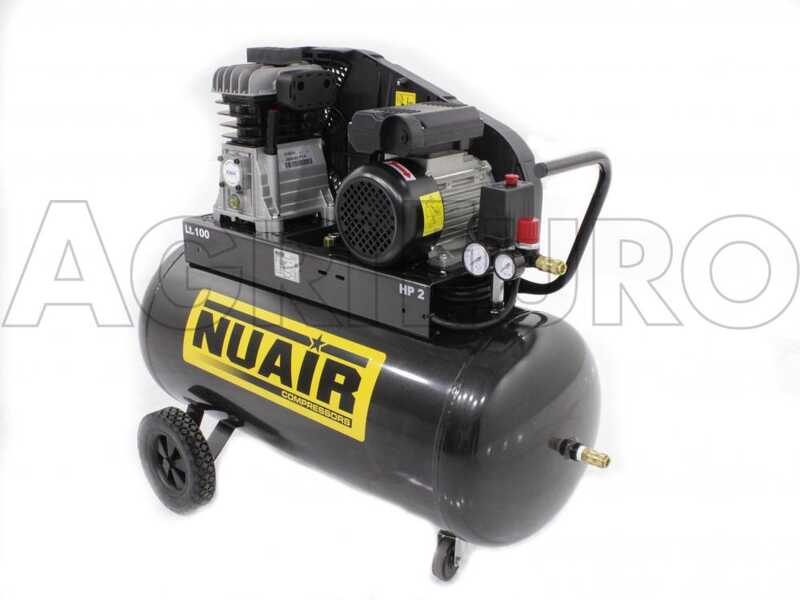

Technical features

Air intake flow: 255 L/min

Pump type: belt-driven

Pressure: 10 bar

Electric motor power: 2 Hp

Tank: 100 L


Overall dimensions:
- Width: 1025 mm
- Height: 845 mm
- Depth (or thickness): 435 mm

Weight: 62 kg

Nuair B2800 /100 CM2 - Belt-driven Electric Air Compressor - 2 Hp Motor - 100 L
Nuair B2800 /100 CM2 - Belt-driven Electric Air Compressor - 2 Hp Motor - 100 L Nuair B2800 /100 CM2 - Belt-driven Electric Air Compressor - 2 Hp Motor - 100 L Nuair B2800 /100 CM2 - Belt-driven Electric Air Compressor - 2 Hp Motor - 100 L Nuair B2800 /100 CM2 - Belt-driven Electric Air Compressor - 2 Hp Motor - 100 L Nuair B2800 /100 CM2 - Belt-driven Electric Air Compressor - 2 Hp Motor - 100 L

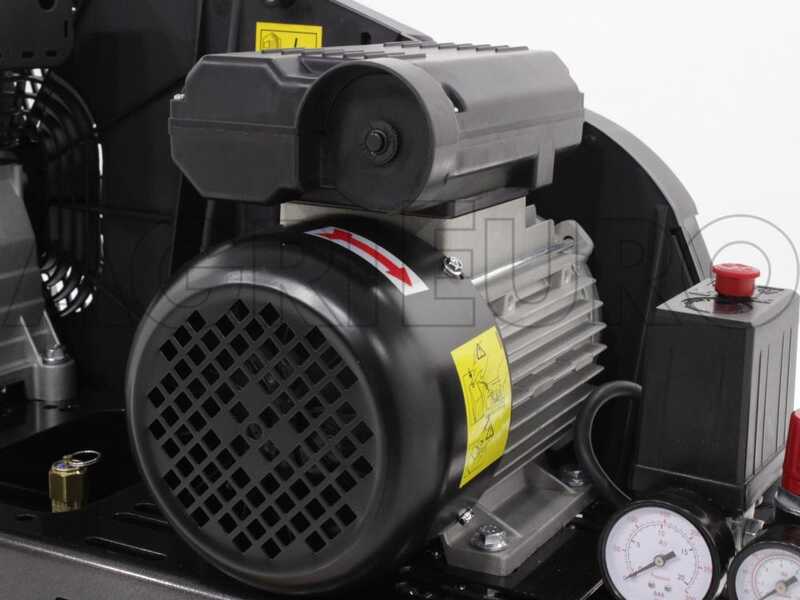

2 Hp single-phase electric induction motor

Power supply: 230V

 Power: 2 Hp
The induction motor is characterised by a very long service life and low maintenance requirements.

In fact, this motor is brushless, the brushes being the main component subject to wear in electric motors. The absence of this component grants high durability to the motor.

It is a top product in terms of reliability, low noise, durability, energy efficiency and maintenance.

Nuair B2800 /100 CM2 - Belt-driven Electric Air Compressor - 2 Hp Motor - 100 L
Nuair B2800 /100 CM2 - Belt-driven Electric Air Compressor - 2 Hp Motor - 100 L Nuair B2800 /100 CM2 - Belt-driven Electric Air Compressor - 2 Hp Motor - 100 L Nuair B2800 /100 CM2 - Belt-driven Electric Air Compressor - 2 Hp Motor - 100 L Nuair B2800 /100 CM2 - Belt-driven Electric Air Compressor - 2 Hp Motor - 100 L

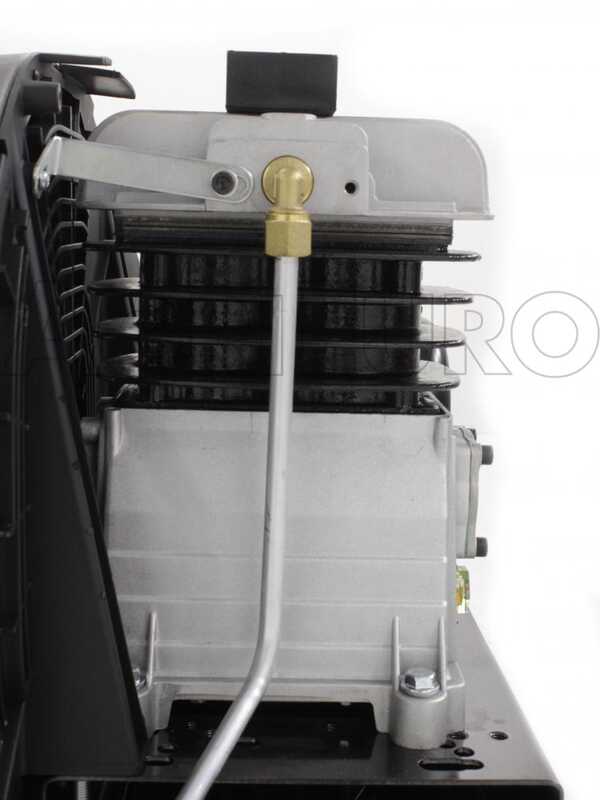

B2800 cylinder head

Air intake flow: 255 L/min
Cylinder head type: twin-cylinder with cast iron cylinders
Suction type: single stage
Lubrication: oil
No. of revolutions: 1250 rpm

The degree of professionalism and more generally the life of the air compressor is largely determined by the number of revolutions per minute of the cylinder head.

The lower the rpm, the longer the life of the air compressor. The reduction ratio of the number of revolutions is obtained by the pulleys of different diameter that are fitted to the motor and to the cylinder head respectively.

Focus on the porthole for oil control

Nuair B2800 /100 CM2 - Belt-driven Electric Air Compressor - 2 Hp Motor - 100 L
Nuair B2800 /100 CM2 - Belt-driven Electric Air Compressor - 2 Hp Motor - 100 L Nuair B2800 /100 CM2 - Belt-driven Electric Air Compressor - 2 Hp Motor - 100 L Nuair B2800 /100 CM2 - Belt-driven Electric Air Compressor - 2 Hp Motor - 100 L Nuair B2800 /100 CM2 - Belt-driven Electric Air Compressor - 2 Hp Motor - 100 L Nuair B2800 /100 CM2 - Belt-driven Electric Air Compressor - 2 Hp Motor - 100 L Nuair B2800 /100 CM2 - Belt-driven Electric Air Compressor - 2 Hp Motor - 100 L Nuair B2800 /100 CM2 - Belt-driven Electric Air Compressor - 2 Hp Motor - 100 L

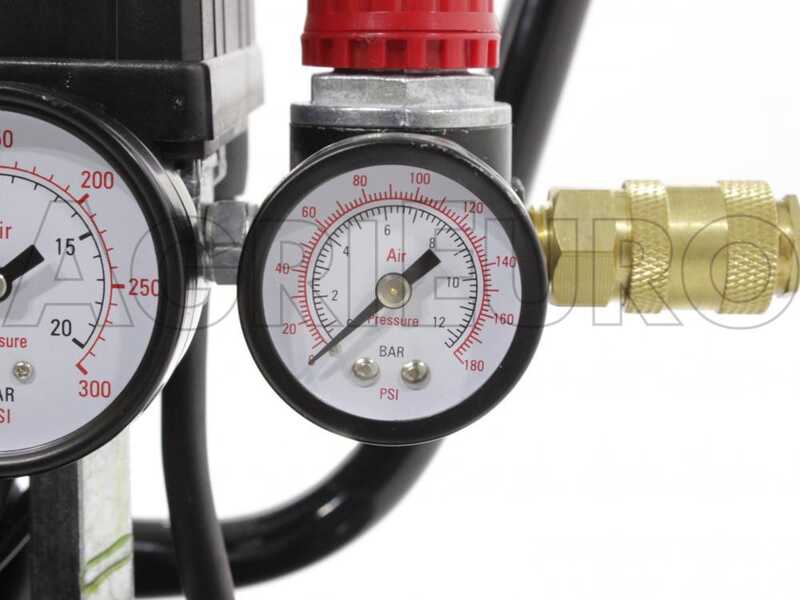

Controls

The Nuair B2800/100 CM 2 air compressor features easy and user-friendly controls, which are divided into:

Power switch

Output air pressure gauge

Tank air pressure gauge

Air compressor female outlet fitting

Pressure adjusting knob

Nuair B2800 /100 CM2 - Belt-driven Electric Air Compressor - 2 Hp Motor - 100 L
Nuair B2800 /100 CM2 - Belt-driven Electric Air Compressor - 2 Hp Motor - 100 L Nuair B2800 /100 CM2 - Belt-driven Electric Air Compressor - 2 Hp Motor - 100 L Nuair B2800 /100 CM2 - Belt-driven Electric Air Compressor - 2 Hp Motor - 100 L Nuair B2800 /100 CM2 - Belt-driven Electric Air Compressor - 2 Hp Motor - 100 L Nuair B2800 /100 CM2 - Belt-driven Electric Air Compressor - 2 Hp Motor - 100 L

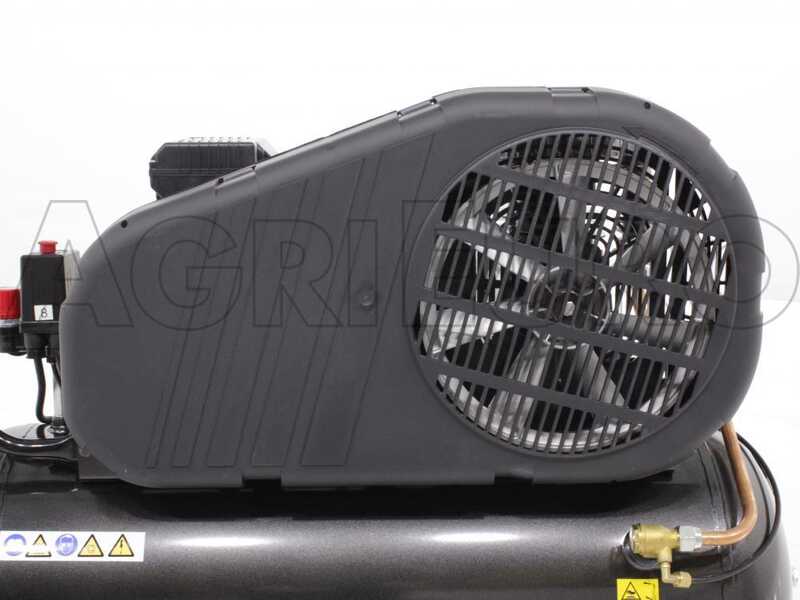

Belt drive

These Nuair air compressors feature a belt drive.

The use of the belt, combined with an induction motor, contributes to the durability of this air compressor, drastically reducing the number of revolutions of the cylinder head, increasing its life and reducing wear.

The grid protection serves to prevent the drive belt and the transmission from being damaged by external objects that might hit it during operation. It also allows the status of the drive belt to be continuously checked.

Nuair B2800 /100 CM2 - Belt-driven Electric Air Compressor - 2 Hp Motor - 100 L
Nuair B2800 /100 CM2 - Belt-driven Electric Air Compressor - 2 Hp Motor - 100 L Nuair B2800 /100 CM2 - Belt-driven Electric Air Compressor - 2 Hp Motor - 100 L Nuair B2800 /100 CM2 - Belt-driven Electric Air Compressor - 2 Hp Motor - 100 L Nuair B2800 /100 CM2 - Belt-driven Electric Air Compressor - 2 Hp Motor - 100 L Nuair B2800 /100 CM2 - Belt-driven Electric Air Compressor - 2 Hp Motor - 100 L

Other features

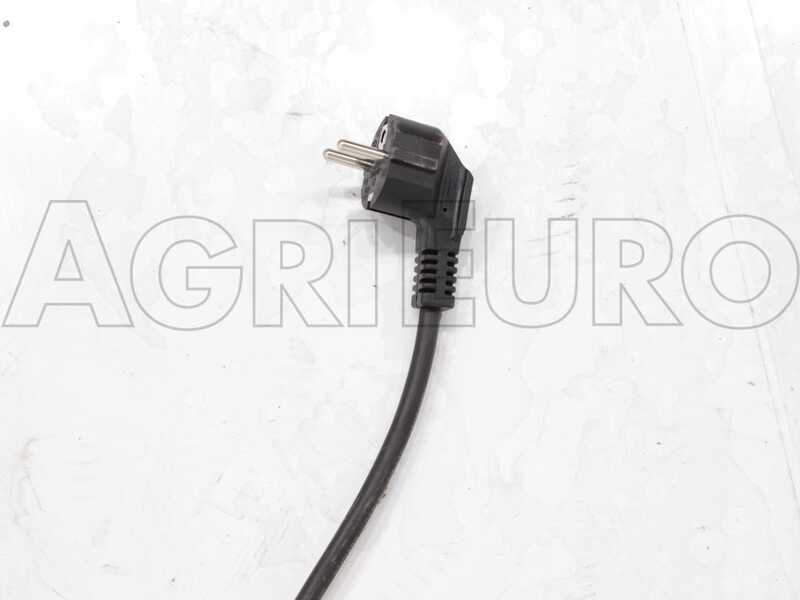

Schuko plug

Ergonomic handle

Large sturdy plastic wheels


Front pivoting wheel


Condensate drain valve

Tank quick coupling

Nuair B2800 /100 CM2 - Belt-driven Electric Air Compressor - 2 Hp Motor - 100 L
Nuair B2800 /100 CM2 - Belt-driven Electric Air Compressor - 2 Hp Motor - 100 L Nuair B2800 /100 CM2 - Belt-driven Electric Air Compressor - 2 Hp Motor - 100 L Nuair B2800 /100 CM2 - Belt-driven Electric Air Compressor - 2 Hp Motor - 100 L Nuair B2800 /100 CM2 - Belt-driven Electric Air Compressor - 2 Hp Motor - 100 L Nuair B2800 /100 CM2 - Belt-driven Electric Air Compressor - 2 Hp Motor - 100 L Nuair B2800 /100 CM2 - Belt-driven Electric Air Compressor - 2 Hp Motor - 100 L
Free items & Standard equipment

1° GIFT: air compressor maintenance kit with oil bottle and joints

Maintenance kit provided on standard equipment includes:

  • Air compressor spare/replacing female output joint

  • Air compressor spare/replacing male output joint (replaceable on equipment with bayonet cap) or usable as spare joint

  • Quick joint to convert all the machineries fitted with standard bayonet cap. It allows easily connecting the units to hoses with female quick joint.

  • Quick joint for converting the female output joint supplied on the air compressor into the traditional bayonet cap (also allows the use of the standard hoses with bayonet system)

  • Repair/Junction fitting for Ø 8 hoses
  • Repair/Junction fitting for Ø 10 hoses
  • Lower tank discharge valve replacement air compressor
  • Teflon roll, ideal for the main maintenance operations
Nuair B2800 /100 CM2 - Belt-driven Electric Air Compressor - 2 Hp Motor - 100 L
Nuair B2800 /100 CM2 - Belt-driven Electric Air Compressor - 2 Hp Motor - 100 L Nuair B2800 /100 CM2 - Belt-driven Electric Air Compressor - 2 Hp Motor - 100 L

2° GIFT: 600 ml "COMPRIX” oil bottle

COMPLIMENTARY: 600 ml "COMPRIX” oil bottle, professional oil specifically designed for air compressor cylinder heads. Very useful for oil refill and first oil replacement (the air compressor is shipped already filled with oil).

Nuair B2800 /100 CM2 - Belt-driven Electric Air Compressor - 2 Hp Motor - 100 L
Nuair B2800 /100 CM2 - Belt-driven Electric Air Compressor - 2 Hp Motor - 100 L

Standard equipment

The air compressor is shipped in its original packaging.

Instructions manual included.

Nuair B2800 /100 CM2 - Belt-driven Electric Air Compressor - 2 Hp Motor - 100 L
Nuair B2800 /100 CM2 - Belt-driven Electric Air Compressor - 2 Hp Motor - 100 L Nuair B2800 /100 CM2 - Belt-driven Electric Air Compressor - 2 Hp Motor - 100 L
