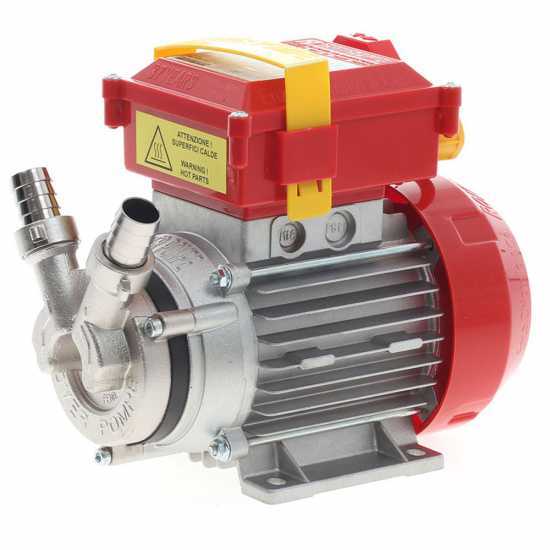

Novax 20 B Electric Transfer Pump - for beer and hot liquids

Semi-Pro
Questions & Answers (12)
ID: 2184

EAN: 8032706072526

MPN: 964000

Rover Pompe
Catalog Rover Pompe
8,9/10
After-sales assistance & Spare parts
23Pictures
2Videos
4Customer pics
Novax 20 B Electric Transfer Pump - for beer and hot liquids
Novax 20 B Electric Transfer Pump - for beer and hot liquids
Novax 20 B Electric Transfer Pump - for beer and hot liquids
Novax 20 B Electric Transfer Pump - for beer and hot liquids
Novax 20 B Electric Transfer Pump - for beer and hot liquids
Novax 20 B Electric Transfer Pump - for beer and hot liquids
+2000 sold
Operating mode
Electric 230 V
Flow rate
28 L/min
Pump for hot liquids up to 95°C
Yes
Motor type
Induction
Nominal power
0.5 HP
Pump material
NOVAX corrosion-resistant alloy
Fittings diameter
20 mm
Max. head lift
25 m
Max. suction height
5 m
Manufacturing country
Italy
Product Features
Model:
NOVAX 20-B
Type:
Self-priming
Body material:
Antioxidant alloy
Operating mode:
Electric - 230 V
Operating mode:
Electric 230 V
230 V Electric:
✔
Rotation:
Double direction
Flow rate:
28 L/min
Pump for hot liquids up to 95°C:
Yes
Manufacturing country:
Italy
Motor data
Motor type:
Induction
Nominal power:
0.5 HP
Motor speed:
2850 RPM
Power supply:
220 V electric
Manufacturing country:
Italy
Pump data
Pump material:
NOVAX corrosion-resistant alloy
Fittings diameter:
20 mm
Flow rate:
28 lt/min
Max. head lift:
25 m
Max. suction height:
5 m
Manufacturing country:
Italy
Equipment
Lifting handle:
Yes
Free gifts/extra features
Suction filter:
Yes
Instructions manual:
Yes
Dimensions and logistics
Product dimensions in cm (L x W x H):
(L x W x H) 230 x 120 x 190 mm
Net weight:
5 Kg
Packaging:
Original packaging
Assembly time:
Assembled
Prompt Delivery
102 items in stock
Free Shipping
Estimated delivery: 13/09/2024 - 17/09/2024
Free returns (up to 30 days after receipt) *
€ 159,47
VAT Included
5% off from the second item in your cart
Are you a business? Check out prices tailored to you!

You're viewing:
Customers also viewed:
Description

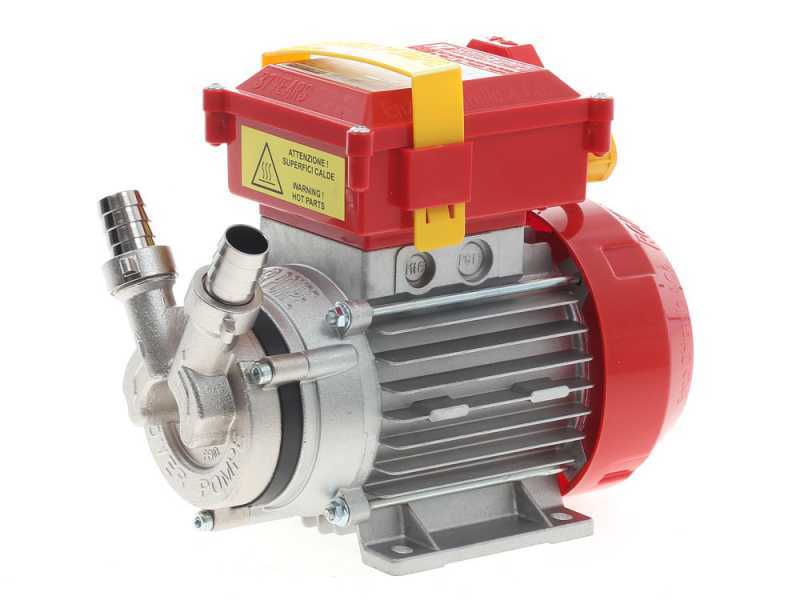

Main Features

The Rover Novax 20-B electric transfer pump is an electric pump in antioxidant alloy. Made in Italy product, Rover Pompe is a leading manufacturer in the construction of transfer pumps and wine filters.

Two-way self-priming liquid ring electric pumps, suitable to transfer clean liquids at a maximum temperature of 95° C.

Also, suitable for diesel fuel transfer.


Very popular for beer production.

The pump is built with Viton ® seals, guaranteeing greater durability over time.

This transfer pump is equipped with electric motor and new inverted impeller pump system.

NOVAX technology of Rover's electric transfer pumps guarantee greater reliability and a longer machine life. Transfer food liquids with greater safety.

This product ensures all the quality of Italian production and is unparalleled on the market for this type of machines.

Warning:

Not suitable for transferring liquids other than those indicated. Despite its high quality, this product is suitable for amateur use, not intensive nor for heavy-duty activities. The warranty does not cover use with liquids other than those indicated, not perfectly clean (i.e. with solid residues) or use in heavy-duty activities, etc...

Novax 20 B Electric Transfer Pump - for beer and hot liquids
Novax 20 B Electric Transfer Pump - for beer and hot liquids Novax 20 B Electric Transfer Pump - for beer and hot liquids Novax 20 B Electric Transfer Pump - for beer and hot liquids Novax 20 B Electric Transfer Pump - for beer and hot liquids Novax 20 B Electric Transfer Pump - for beer and hot liquids Novax 20 B Electric Transfer Pump - for beer and hot liquids Novax 20 B Electric Transfer Pump - for beer and hot liquids Novax 20 B Electric Transfer Pump - for beer and hot liquids Novax 20 B Electric Transfer Pump - for beer and hot liquids Novax 20 B Electric Transfer Pump - for beer and hot liquids Novax 20 B Electric Transfer Pump - for beer and hot liquids Novax 20 B Electric Transfer Pump - for beer and hot liquids

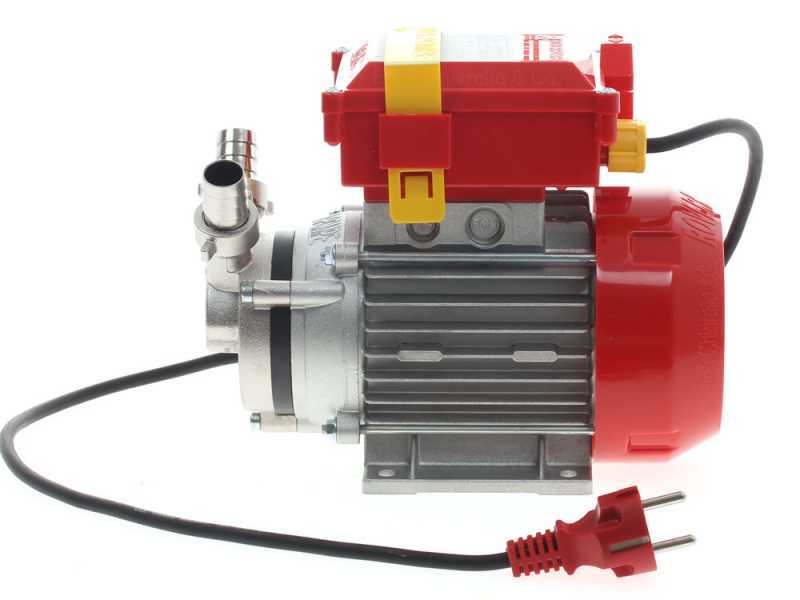

Technical Features and Details

Technical features:

  • Fittings: 20 mm Ø
  • 0.5 HP single-phase electric motor
  • Head: 25 m
  • Maximum flow rate: 28 L/min

Specifics:

Pump body made of special alloy coated with top-quality antioxidant treatment.

The pump is "self-priming": just put a little liquid in the impeller before use, turn it on, and it will suction every type of liquid by itself.

Two-way: you can reverse the flow direction thanks to the switch on the control box. It can pump liquids in both directions. One of the many advantages is that it allows very precise transferring, with the possibility of making corrections by pumping the liquid in the opposite direction if necessary. The direction is determined thanks to the double function switch.

Power cable: 1.5 m

Focus on the power switch

The machine can be either screwed to the support surface or transported by hand.

The electric pump has the following self-priming power:

with full pump and empty suction pipe without foot valve, 3 m

with full pump and full suction pipe with foot valve, 7 m

Novax 20 B Electric Transfer Pump - for beer and hot liquids
Novax 20 B Electric Transfer Pump - for beer and hot liquids Novax 20 B Electric Transfer Pump - for beer and hot liquids Novax 20 B Electric Transfer Pump - for beer and hot liquids Novax 20 B Electric Transfer Pump - for beer and hot liquids Novax 20 B Electric Transfer Pump - for beer and hot liquids Novax 20 B Electric Transfer Pump - for beer and hot liquids Novax 20 B Electric Transfer Pump - for beer and hot liquids Novax 20 B Electric Transfer Pump - for beer and hot liquids Novax 20 B Electric Transfer Pump - for beer and hot liquids Novax 20 B Electric Transfer Pump - for beer and hot liquids
Free items & Standard equipment

Free Items Included

The product is shipped in its original packaging, together with:

Instructions manual

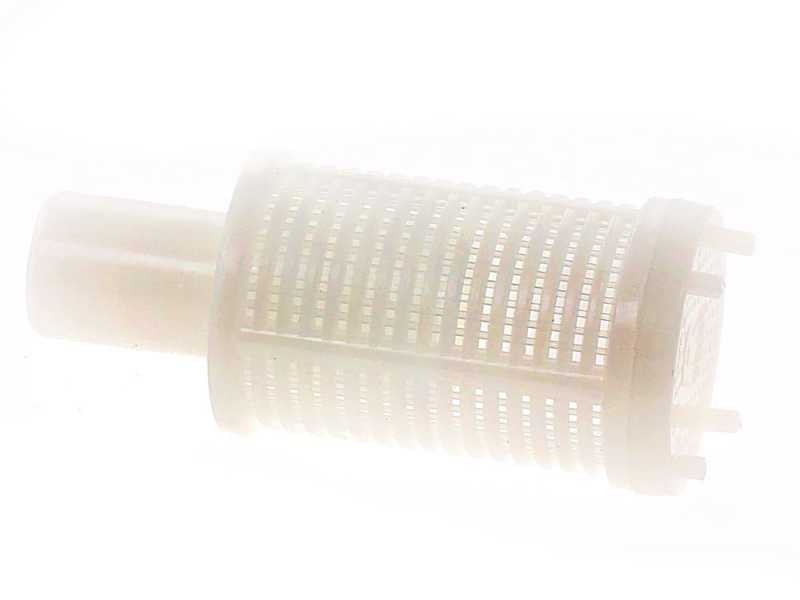

Suction filter

Rover catalogue

Novax 20 B Electric Transfer Pump - for beer and hot liquids
Novax 20 B Electric Transfer Pump - for beer and hot liquids Novax 20 B Electric Transfer Pump - for beer and hot liquids Novax 20 B Electric Transfer Pump - for beer and hot liquids Novax 20 B Electric Transfer Pump - for beer and hot liquids
