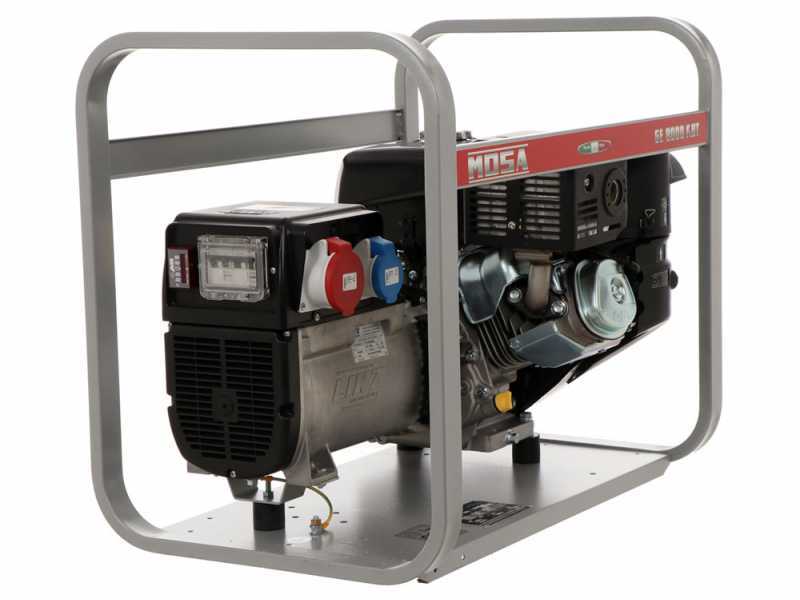

MOSA GE 8000 KBT - 6.4 kW Petrol Power Generator - DC 5.6 kW Three-phase

The Three-phase petrol Power Generator GE 8000 KBT is a product manufactured by the Italian company MOSA.

The GE 8000 KBT generator is a practical product that can be easily used for multiple jobs and a wide range of tasks.

The KOHLER CH 440 COMMAND PRO engine is highly reliable and guarantees great performance, which is why it is considered among the most outstanding petrol engines on the market.

The generator is a product composed of two fundamental elements such as the engine and the alternator. This GE 8000 KBT generator model features a high-quality engine and alternator.

The alternator is manufactured by LINZ, a leading Italian company that produces high-efficiency, high-quality alternators.

Both the Kohler engine and Linz alternator make the MOSA generator is a a product that stands out among the other generators that are offered in the catalogue.

The generator is not designed for energy production, charging or maintaining batteries for the photovoltaic or solar panels systems (or similar); this can seriously damage the generator.

Maximum three-phase power disbursement: 6.4 KW

Three-phase nominal power: 5.6 KW

Single-phase nominal power: 3.6 KW

*The latter is the figure to be taken into account as the actual and constant figure in the generator output during a variable power work cycle.

Voltage: 400V

Operating frequency: 50 Hz

Fuel tank capacity: 7 L

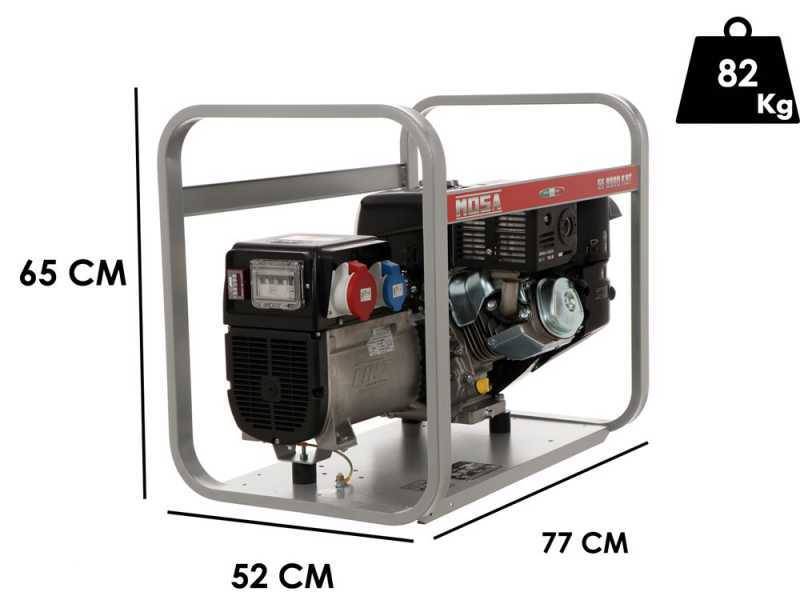

Dimensions: 77 x 52 x 65

Weight: 82 kg

Noise level: 99 dB

Automatic engine stop on low oil level

It complies with EC/EU regulations.

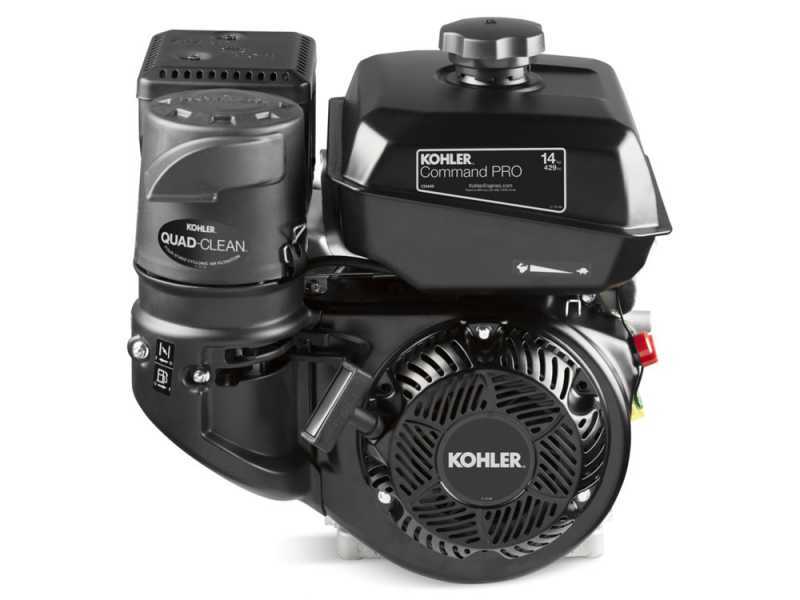

Standard-supplied Kohler CH 440 COMMAND PRO engine
Latest-generation engine with OHV overhead valve technology.

Features:

WARNING

Oil free engine.

Before using the machine, read the instruction manual carefully.

Nominal Power: 14 HP

The correct term would be "Commercial” Power, meaning the standard definition used until a few years ago by all well-known engine manufacturers. This technical detail is even more widespread and advertised in the leading commercial channels, although it is a matter that it is higher than the actual power.

Real power: 13.4 HP

* It corresponds to the real power expressed cutting organ in working phase. This is the power indicated as official in the engine instructions manual.

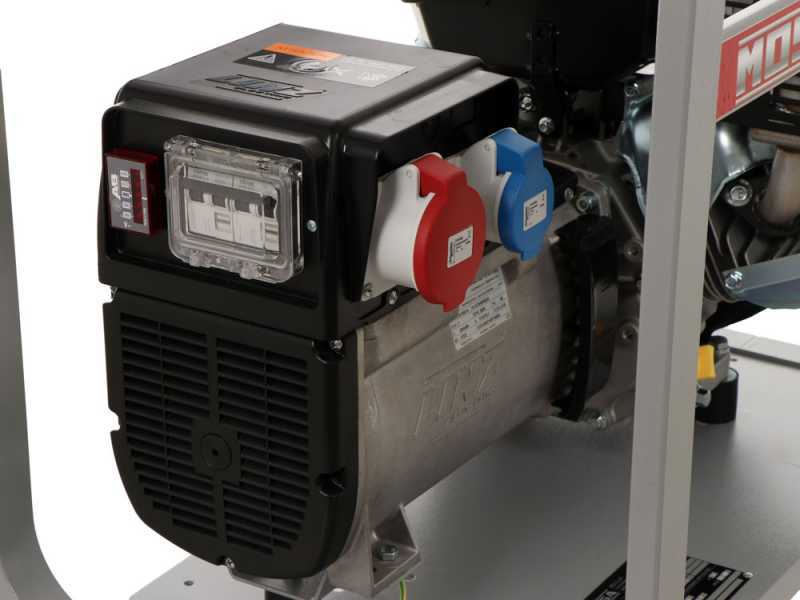

LINZ E1S10M H Alternator

LINZ Electric is a renowned Italian company which is part of the Pedrollo Group, leader in the electric pump sector. The vast experience of the group together with the high degree of innovation of the company LINZ alternators guarantee Made in Italy high quality and reliability.

The LINZ can be now considered the top company among manufacturers of alternators Italy.

High-quality and efficient alternator with copper winding.

Voltage: 400V

Operating frequency: 50 Hz

Revolutions per minute: 3000 RPM

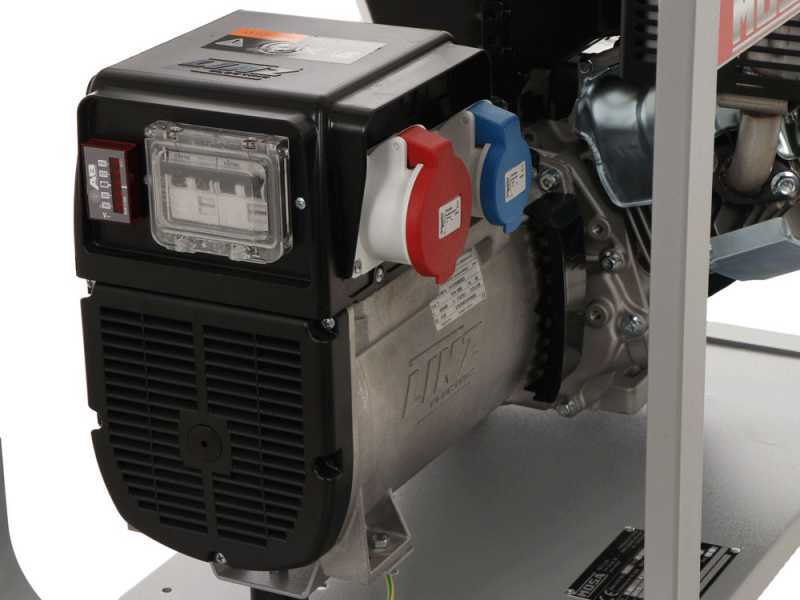

Electric control panel.

CEE industrial socket 16 A 400 V three-phase IP44

CEE industrial socket 32 A 230 V single-phase 3 poles

Led Voltmeter

1 Contact breaker to connect and disconnect the power

Focus on the anti vibration pads

Focus on the oil tank plug

Focus on the ground discharge

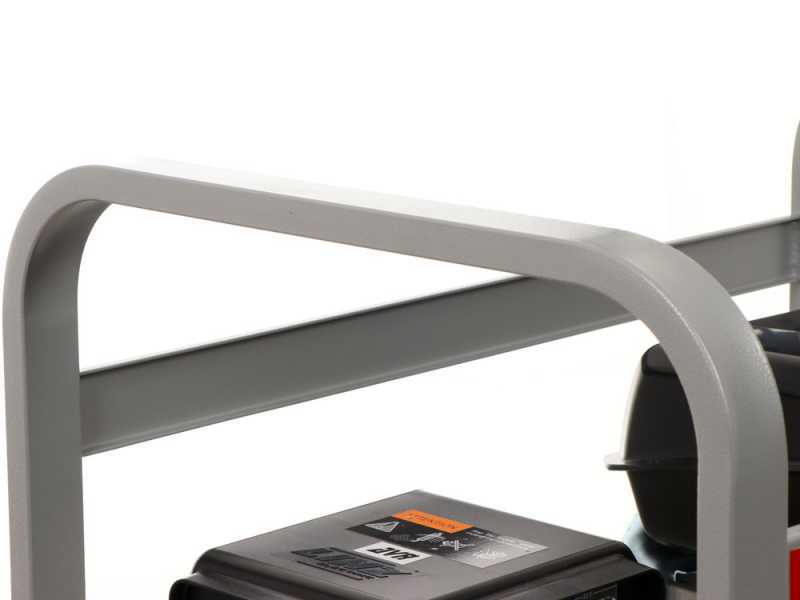

Focus on the upper handle

As far as the needed power is concerned, we now provide you with an handy chart to help you navigate among consumption, starting coefficients and watt.

The best criteria is to pinpoint first which are the instruments we need to power with the generator and, consequently perform a simple calculation, as explained below, to identify the needed power that the generator need to eject.

Power required = Electric appliance consumption X Breakaway starting coefficient

The starting coefficient is a fundamental characteristic of any instrument which works with electric current because it indicates how much the consumption of the object increases. Therefore, this is needed to concretely determine how many WATT are necessary during the start up operations.

Example: Compressor (1500 Watt ) X Starting coefficient (2) = 3000 Watt Hence you should orientate towards a generator which has a WATT power equal or superior to the result (*)

Check the consumption of the appliance on the instruction and maintenance manual or on the plate attached to the machine.

WARNING: the chart is purely indicative. Thanks to the formula above you can easily calculate the power a generator should deliver to connect and start some specific products and select the model of generator which best suits your needs.
