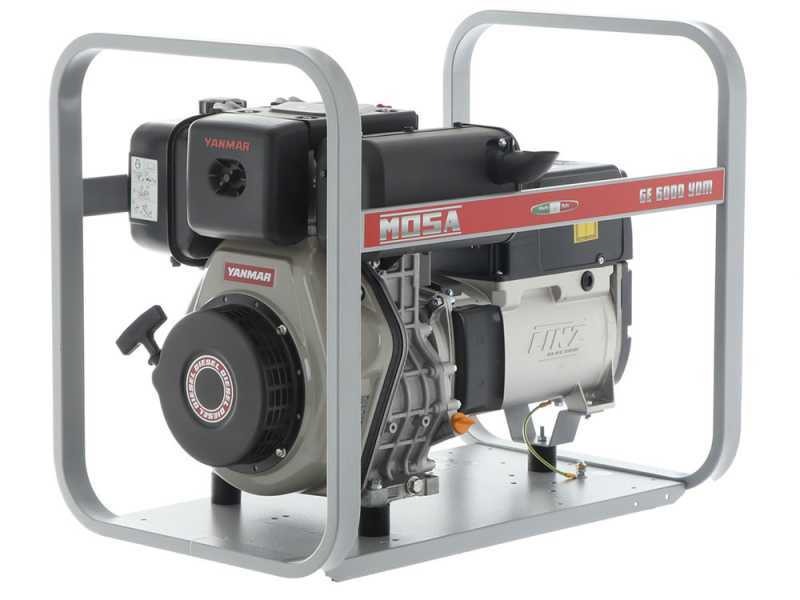

MOSA GE 6000 YDM - 5.1 kW Diesel Power Generator - DC 4.5 kW Single-phase

The GE 6000 YDM Diesel generator is able to reach a maximum power of 5.1 kW. This generator is manufactured by the Italian company MOSA and has high quality components such as an Italian alternator marked Linz and a Euro 5 Yanmar diesel engine.

The Yanmar L 100 N diesel engine features a displacement of 435 cc and is capable of delivering a rated power of 8.8 Hp.

The alternator is manufactured by LINZ, a leading Italian company that produces high-efficiency, high-quality alternators. The GE 4000 KDM generator is a functional product, suitable for a wide range of tasks.

Thanks to its open configuration, it is also very easy to transport.

It can guarantee a running time of 5.5 hours (75% prp)

Both the Yanmar engine and Linz alternator make the MOSA generator a product that stands out among the other generators that are offered in the catalogue.

The generator is not designed for energy production, charging or maintaining batteries for the photovoltaic or solar panels systems (or similar); this can seriously damage the generator.

Maximum single- phase power disbursement: 5.1 KW

Single-phase nominal power: 4.5 KW

*The latter is the figure to be taken into account as the actual and constant figure in the generator output during a variable power work cycle.

Voltage: 230V

Operating frequency: 50 Hz

Fuel tank capacity: 5.5 L

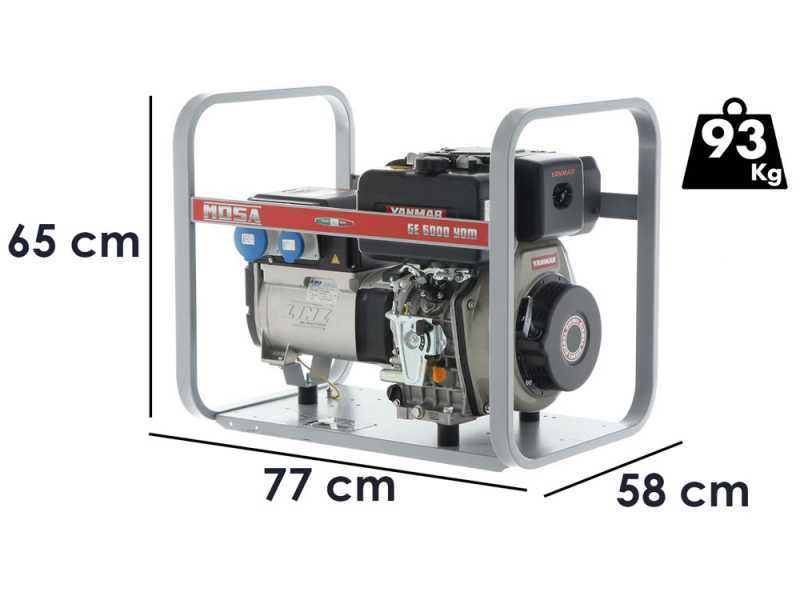

Dimensions: 77x58x65 cm

Weight: 93 kg

Noise level: 99 dB

Thermal over current protection

It complies with EC safety regulations.

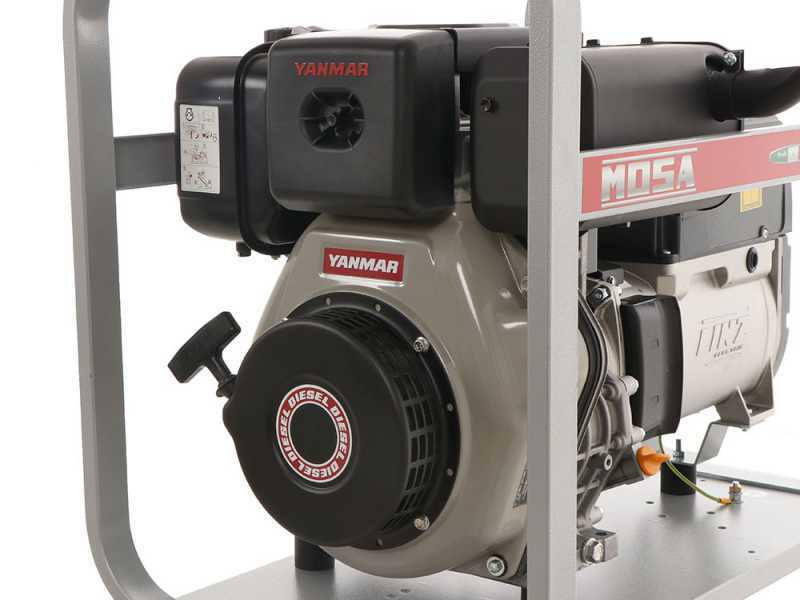

Standard-supplied Yanmar L 100 N engine
Latest generation naturally aspirated engine.

Features:

WARNING

Oil free engine.

Before using the machine, read the instruction manual carefully.

Nominal Power: 8.8 HP

The correct term would be "Commercial” Power, meaning the standard definition used until a few years ago by all well-known engine manufacturers. This technical detail is even more widespread and advertised in the leading commercial channels, although it is a matter that it is higher than the actual power.

Real power: 7.7 HP

* It corresponds to the real power expressed cutting organ in working phase. This is the power indicated as official in the engine instructions manual.

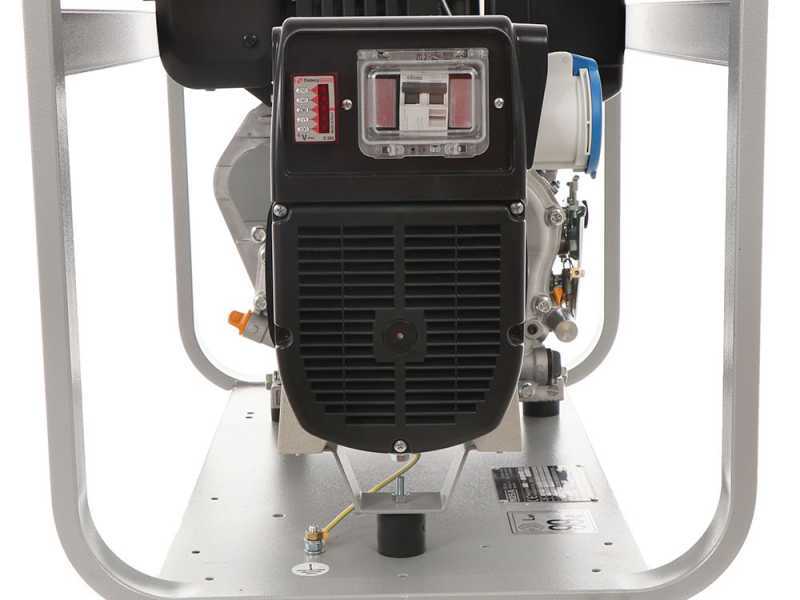

LINZ E1C10M H Alternator

LINZ Electric is a renowned Italian company which is part of the Pedrollo Group, leader in the electric pump sector. The vast experience of the group together with the high degree of innovation of the company LINZ guarantee high-quality and reliability Made in Italy alternators.

The LINZ can be now considered the top company among manufacturers of alternators Italy.

High-quality and efficient alternator with copper winding.

Voltage: 230V

Operating frequency: 50 Hz

Revolutions per minute: 3000 RPM

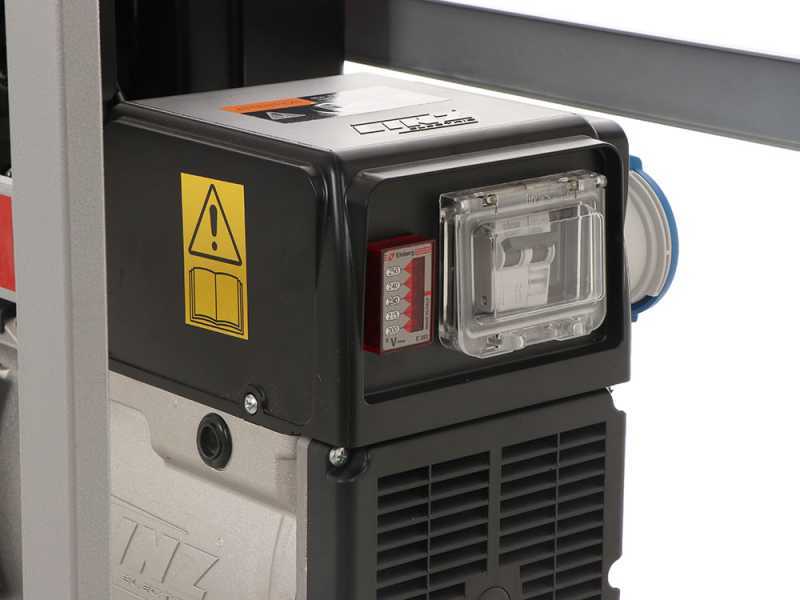

Electric control panel.

CEE industrial socket 16 A 230 V single-phase IP44

CEE industrial socket 32 A 230 V single-phase IP44

Voltmeter

Breaker switch

Focus on the fuel tank plug

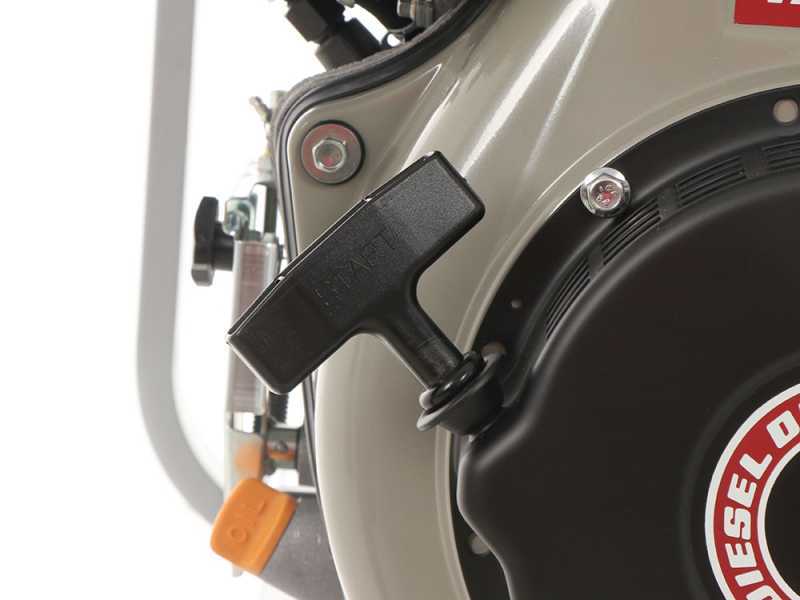

Focus on the starter rope

Focus on the oil tank plug

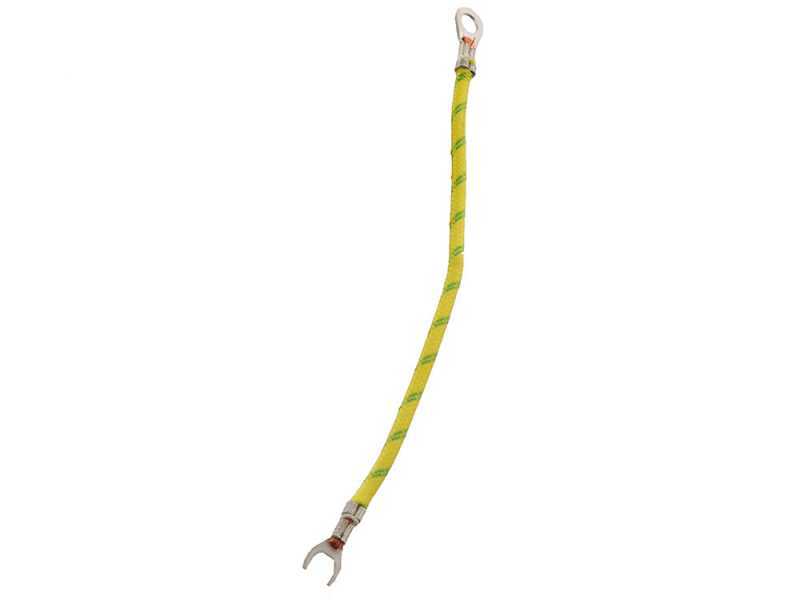

Focus on the ground connection

As far as the needed power is concerned, we now provide you with an handy chart to help you navigate among consumption, starting coefficients and watt.

The best criteria is to pinpoint first which are the instruments we need to power with the generator and, consequently perform a simple calculation, as explained below, to identify the needed power that the generator need to eject.

Power required = Electric appliance consumption X Breakaway starting coefficient

The starting coefficient is a fundamental characteristic of any instrument which works with electric current because it indicates how much the consumption of the object increases. Therefore, this is needed to concretely determine how many WATT are necessary during the start up operations.

Example: Compressor (1500 Watt ) X Starting coefficient (2) = 3000 Watt Hence you should orientate towards a generator which has a WATT power equal or superior to the result (*)

Check the consumption of the appliance on the instruction and maintenance manual or on the plate attached to the machine.

WARNING: the chart is purely indicative. Thanks to the formula above you can easily calculate the power a generator should deliver to connect and start some specific products and select the model of generator which best suits your needs.
