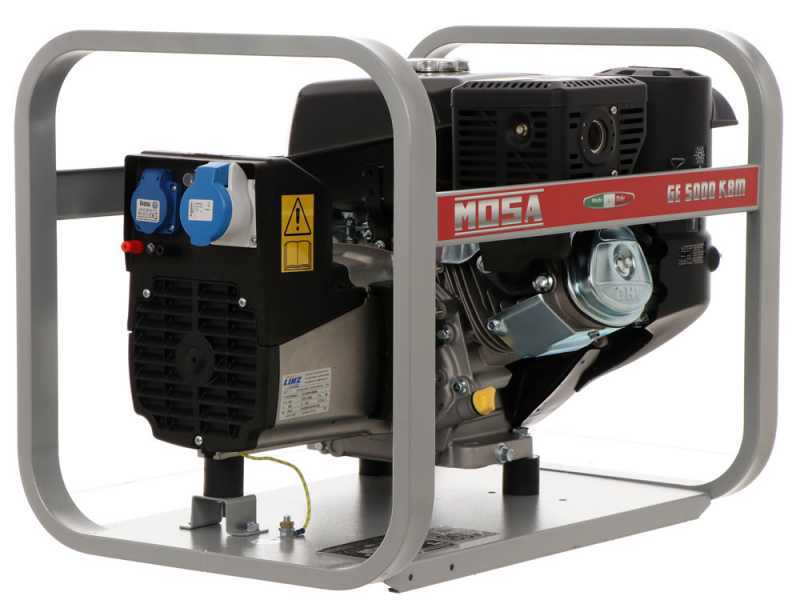

MOSA GE 5000 KBM - 4.4 KW Single-phase Power Generator - Italian Alternator - Kohler Motor

The GE 5000 KBM single-phase petrol generator is produced by the Italian company MOSA.

The GE 5000 KBM is a practical and user-friendly product that can be easily used in many applications.

The KOHLER CH 395 COMMAND PRO engine represents a secure reliability and large engine performance and is the top of the range among the gasoline engines used for these products.

The generator is a product composed of two fundamental elements such as the engine and the alternator. In the GE 5000 KBM both the engine and the alternator are high-quality components.

The alternator is produced by LINZ, an important Italian company that produces high-quality and efficient alternators.

Kohler engine and Linz alternator make MOSA a top range product.

The generator is not designed for energy production, charging or maintaining batteries for the photovoltaic or solar panels systems (or similar); this can seriously damage the generator.

Maximum single- phase output power: 4.4 KW

Nominal power in continuous running (COP) Single-phase: 3.6 KW

This is the data that should be taken into consideration as an effective and constant data for the generator output (it guarantees the product an infinite duration).

Voltage: 230 V

Operating frequency: 50 Hz

Fuel tank capacity: 7 L

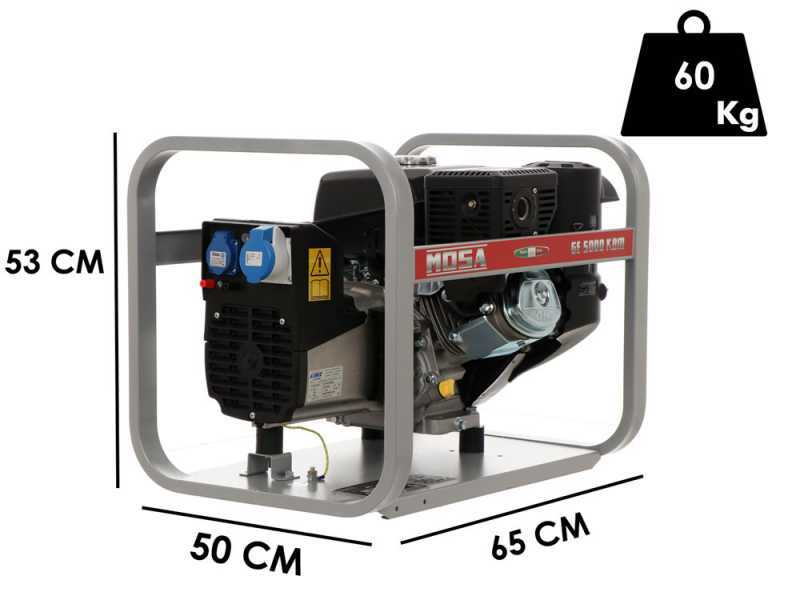

Size: 65 x 50 x 53

Weight: 60 kg

Noise level: 99 dB

Automatic engine shut down for low oil level

Thermal overcurrent protection

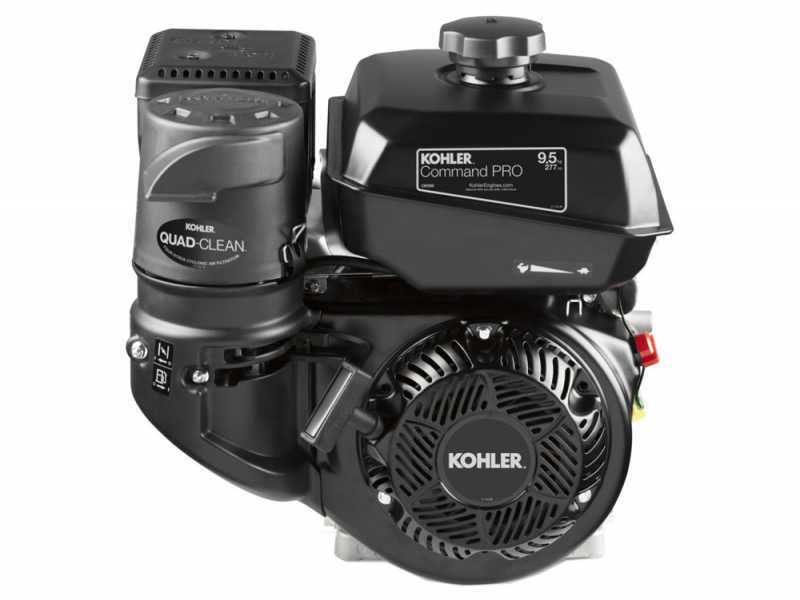

The Kohler CH 395 COMMAND PRO engine is professional, powerful and with the latest generation technology in OHV valve head.

Features:

WARNING

Oil free engine.

Please carefully read the instructions manual before starting the unit.

Nominal Power: 9.5 hp

The correct term would be "Commercial” Power, meaning the standard definition used until a few years ago by all well-known engine manufacturers. This technical feature is the one indicated in the main sales channels, even if it is higher than the real power of the engine.

Rated power: 9.1 hp

* It refers to the real power of the engine. This is the power indicated as official in the engine instructions manual.

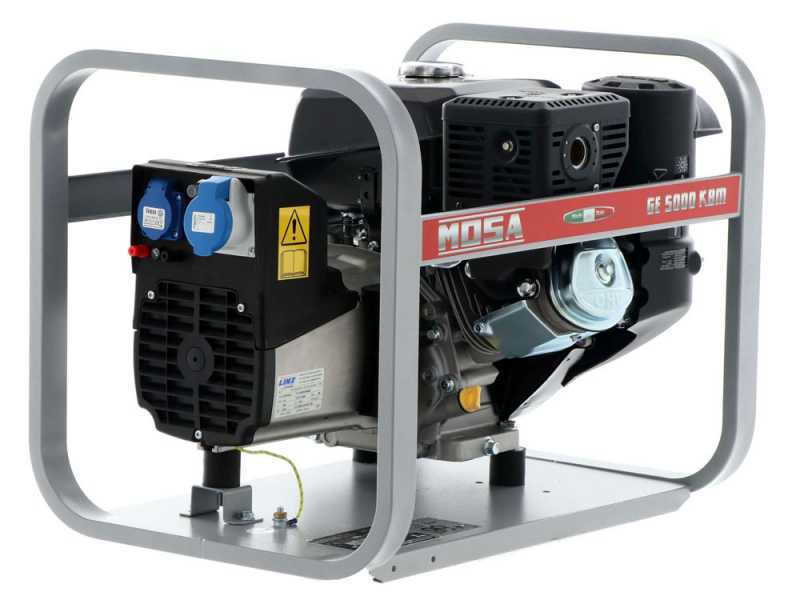

LINZ SP10M F Alternator

LINZ Electric is a renowned Italian company which is part of the Pedrollo Group, leader in the electric pump sector. The vast experience of the group together with the high degree of innovation of the company LINZ alternators guarantee Made in Italy high quality and reliability.

The LINZ can be now considered the top company among manufacturers of alternators Italy.

High-quality and efficient alternator with copper winding.

Voltage: 230 V

Operating frequency: 50 Hz

Revolutions per minute 3000 RPM

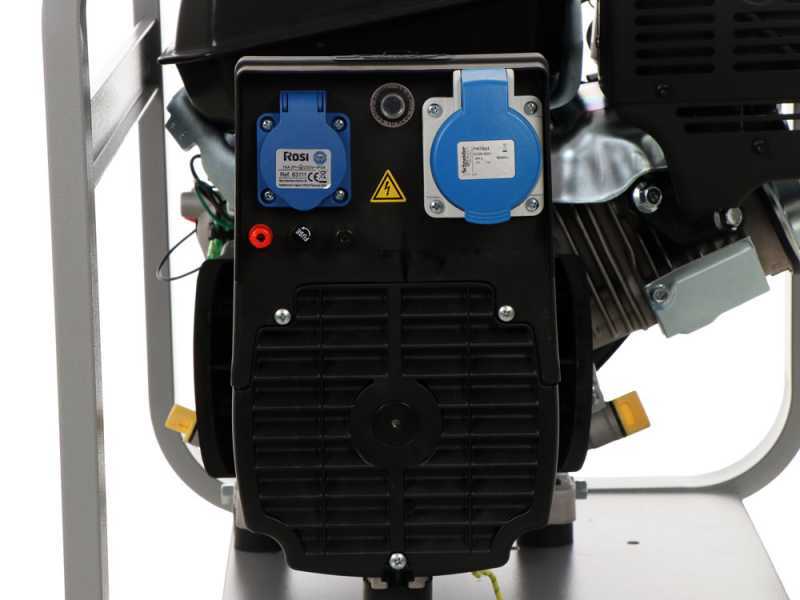

Electric control panel.

Sockets:

1 Schuko 230 V 14 A IP54 single-phase sockets and breaker protection

1 CEE industrial 230 V single-phase sockets

Battery charger unit

Focus on the anti vibration pads

Focus on the oil tank plug

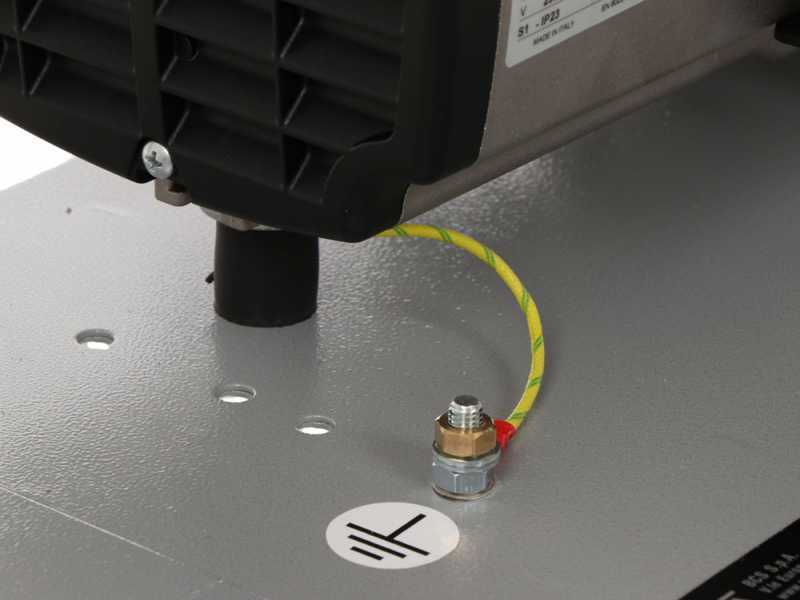

Focus on the ground discharge

Focus on the upper handle

As far as the needed power is concerned, we now provide you with an handy chart to help you navigate among consumption, starting coefficients and watt.

The best criteria is to pinpoint first which are the instruments we need to power with the generator and, consequently perform a simple calculation, as explained below, to identify the needed power that the generator need to eject.

Power required = Electric appliance consumption X Breakaway starting coefficient

The starting coefficient is a fundamental characteristic of any instrument which works with electric current because it indicates how much the consumption of the object increases. Therefore, this is needed to concretely determine how many WATT are necessary during the start up operations.

Example: Compressor (1500 Watt ) X Starting coefficient (2) = 3000 Watt Hence you should orientate towards a generator which has a WATT power equal or superior to the result (*)

Check the consumption of the appliance on the instruction and maintenance manual or on the plate attached to the machine.

WARNING: the chart is purely indicative. Thanks to the formula above you can easily calculate the power a generator should deliver to connect and start some specific products and select the model of generator which best suits your needs.
