MOSA GE 13000 HBS - 10.4 kW Diesel Power Generator - DC 9 kW Three-phase

Add a question
ID: K606032

EAN: 8056201190479

MPN: CC6M8001

7,6/10
After-sales assistance & Spare parts
MOSA GE 13000 HBS - 10.4 kW Diesel Power Generator - DC 9 kW Three-phase
+50 sold
FREE
2 bottles of 1 L oil each2 bottles of 1 L oil each
Power supply
Petrol
Electric Current
Three-phase
Three-phase rated power
9 kW
Max. power
10.4 kW
AVR technology
Yes
Alternator
Made in Italy
Alternator casing
copper
Electric start
Yes
Motor brand
Honda
Motor Model
GX630
Cubic capacity
688 cm³
Nominal power
19.7 HP
Manufacturing country
Italy
Product Features
Model:
GE 13000 HBS AVR
Power supply:
Petrol
Type:
Fixed
Electric Current:
Three-phase
Voltage stabiliser:
AVR
Alternator casing:
copper
Single-phase power supply 220 V:
Yes
Three-phase power supply 400 V:
Yes
Frequency:
50 Hz
AVR board:
Yes
Alternator brand:
Linz
Three-phase rated power :
9 kW
Max. power:
10.4 kW
Tank capacity:
25 L
Electric start:
Yes
Noise level:
99 db
Alternator:
Made in Italy
Manufacturing country:
Italy
Motor data
Motor brand:
Honda
Motor Model:
GX630
Cubic capacity:
688 cm³
No. of cylinders:
1
Nominal power:
19.7 HP
Fuel:
Petrol
Power supply:
Overhead camshaft
Engine lubrication system:
Oil bath
Decompression system:
With lever
Tank capacity:
18 L
Working autonomy:
10.4 h
Noise level:
99 dB(A)
Manufacturing country:
Japan
Equipment
Anti-vibrating system:
Yes
Automatic Transfer Switch (ATS):
No
AVR technology:
Yes
CEE power outlets:
3
Three-phase power outlets:
1
Battery for electric start:
Yes
Electric start with key :
Yes
Voltmeter:
yes
Free gifts/extra features
Engine oil bottle for free:
2
Wooden pallet (safe shipping):
Yes
Instructions manual:
Yes

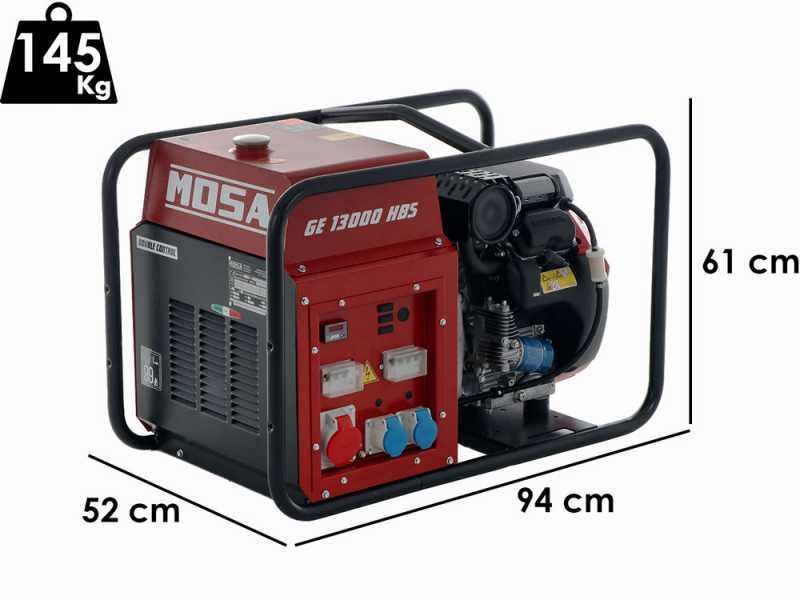

Dimensions and logistics
Product dimensions in cm (L x W x H):
94X52X61 cm
Net weight:
145 Kg
Packaging:
Original packaging
Original packaging/s dimensions in cm (L x W x H):
97X7582 cm
Gross weight (packaging included) :
160 Kg
Assembly time:
Assembled
Prompt Delivery
25 items in stock
Free Shipping
Estimated delivery: 25/11/2024 - 27/11/2024
€ 3.882,49
VAT Included
You're viewing:
Customers also viewed:
Description

MOSA GE 13000 HBS Three-phase Generator

The GE 13000 HBS petrol generator is a product manufactured by the Italian company MOSA. The generator is also able to guarantee a running time of 10.4 H (75% of PRP).

Moreover, the generator is equipped with AVR, which controls the voltage. The alternator is manufactured by LINZ, a leading Italian company that produces high-efficiency, high-quality alternators.

This generator model can express a maximum three-phase power output of 10.4 kW.

Powerful and versatile, it is a functional product, suitable for any application, that will serve you reliably for many years.

Among the machine features, an automatic engine shutdown system, in the event of low oil level (Oil Alert).

The HONDA GX630 engine 688 cc expresses a power output of 19.7 Hp, so it is reliable and guarantees great performance, which is why it is considered one of the best.

The generator is a product made up of two basic elements: the alternator and the engine. This GE 13000 HBS generator model features a high-quality engine and alternator.

Both the HONDA engine and the Linz alternator make the MOSA generator a product that stands out among all the other generators offered in the catalogue.

Among the special features of this model is a practical electric key start, which allows the machine to be started very easily.

The anti-vibration pads placed both under the engine and under the alternator will significantly reduce vibrations and increase the stability of the generator.

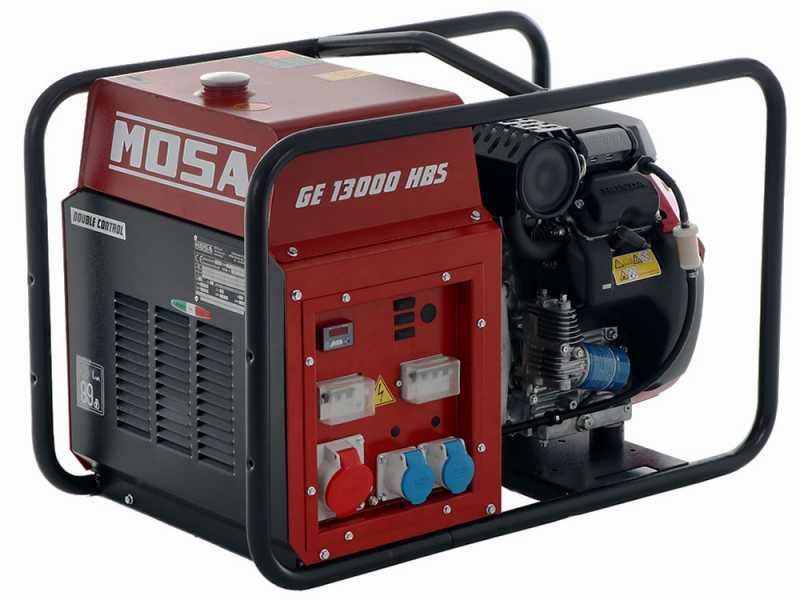

Technical features

Maximum three-phase power output: 10,4 kw

Continuous power with three-phase variable loads: 9,2 kw

Continuous power with variable loads (PRP): 4,8 kw

Voltage: 400V

Operating frequency: 50 Hz

Tank: 25 L

Dimensions: 94X52X61 cm

Weight: 145 kg

Noise level: 99 dB

Automatic engine stop on low oil level

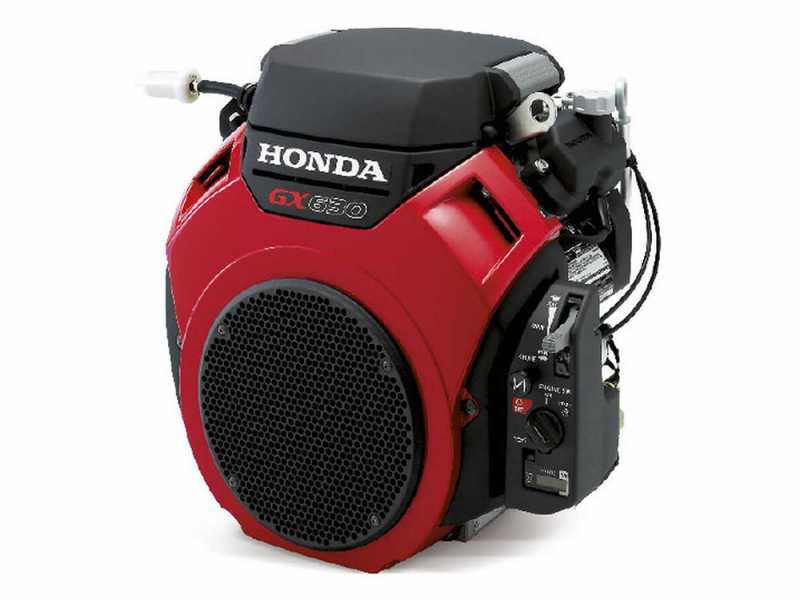

Honda GX 630 Engine

The Honda GX 690 engine is one of the most powerful engines on the market; the latest generation of technology OHV head valve, 4-stroke twin-cylinder.

Features:

Engine type
4-Stroke Twin-cylinder - OHV
Cylinder type:
Cast Iron
Cubic Capacity:
688 cm³
Compression ratio
9.3: 1
Max. rpm
3600 rpm
Torque value
48.3 Nm / 4.93 kgfm / 2500 rpm
Fuel tank capacity:
18 L

Electronic motor (With electronic ignition). This will allow you to operate the electronic control unit. The battery will be holding charge of the engine by the alternator.

The Honda GX series is highly professional and developed for heavy-duty jobs in building and agricultural field for generators, welders etc., reliable and long life.

This model, from the industrial point of view, offers excellent performance that can last in time.

Focus on the air filter

WARNING!

The engine is PROVIDED WITHOUT OIL. Make sure to carefully read the instructions manual before starting the machine

Nominal Power: 20.8 HP
* Also referred to as 'Commercial' power, we mean the classic power definition standard that was also officially used until a few years ago by all well-known engine manufacturers. This figure is the one that is most widely used and publicised in the main sales channels.

Real power: 16.1 HP
* It corresponds to the real power expressed cutting organ in working phase. This is the power indicated as official in the engine instructions manual.

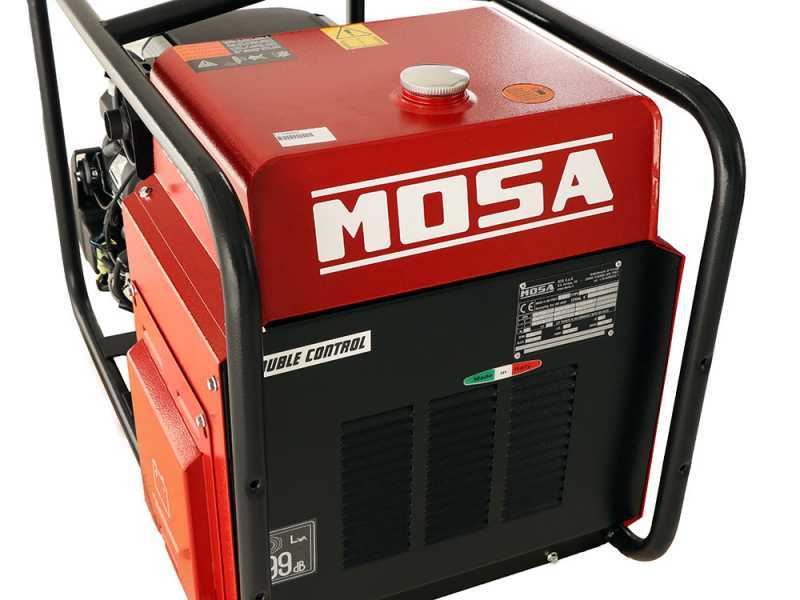

Made in Italy Alternator

E1S10 KE Alternator

LINZ Electric is a renowned Italian company which is part of the Pedrollo Group, leader in the electric pump sector. The vast experience of the group together with the high degree of innovation of the company LINZ guarantee high-quality and reliability Made in Italy alternators.

The LINZ can be now considered the top company among manufacturers of alternators Italy.

High-quality and efficient alternator with copper winding.

Voltage: 400 V

Operating frequency: 50 Hz

Revolutions per minute: 3600 RPM

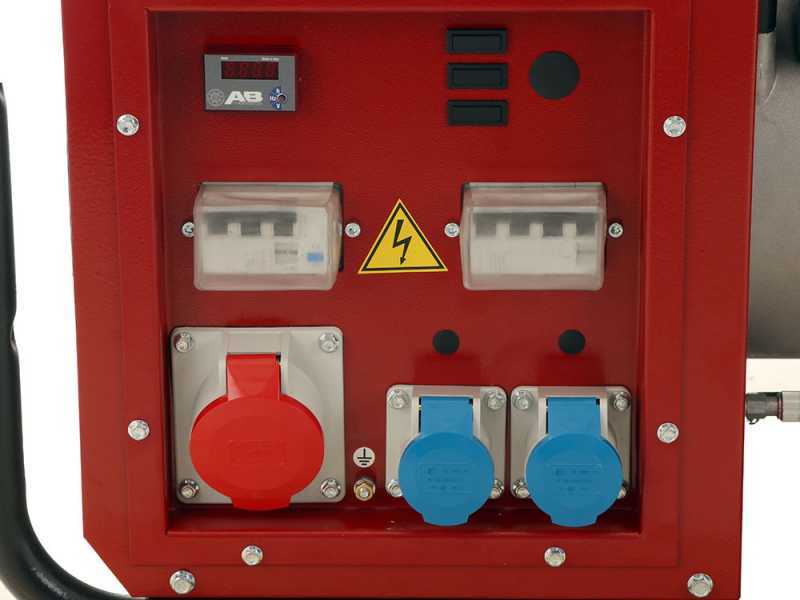

Control panel

Electric control panel.

Three-phase socket 32 A 400 V IP44

2 CEE industrial sockets 16 A 230 V single-phase IP44

Circuit breaker

Residual current circuit breaker

Multifunction digital display: Voltmeter - Frequency meter - Total and partial hour counter

How To Select The Correct Power Rating Of The Generator

As far as the needed power is concerned, we now provide you with an handy chart to help you navigate among consumption, starting coefficients and watt.

The best criteria is to pinpoint first which are the instruments we need to power with the generator and, consequently perform a simple calculation, as explained below, to identify the needed power that the generator need to eject.

Power required = Electric appliance consumption X Breakaway starting coefficient

The starting coefficient is a fundamental characteristic of any instrument which works with electric current because it indicates how much the consumption of the object increases. Therefore, this is needed to concretely determine how many WATT are necessary during the start up operations.

Example: Compressor (1500 Watt ) X Starting coefficient (2) = 3000 Watt Hence you should orientate towards a generator which has a WATT power equal or superior to the result (*)

Check the consumption of the appliance on the instruction and maintenance manual or on the plate attached to the machine.

WARNING: the chart is purely indicative. Thanks to the formula above you can easily calculate the power a generator should deliver to connect and start some specific products and select the model of generator which best suits your needs.

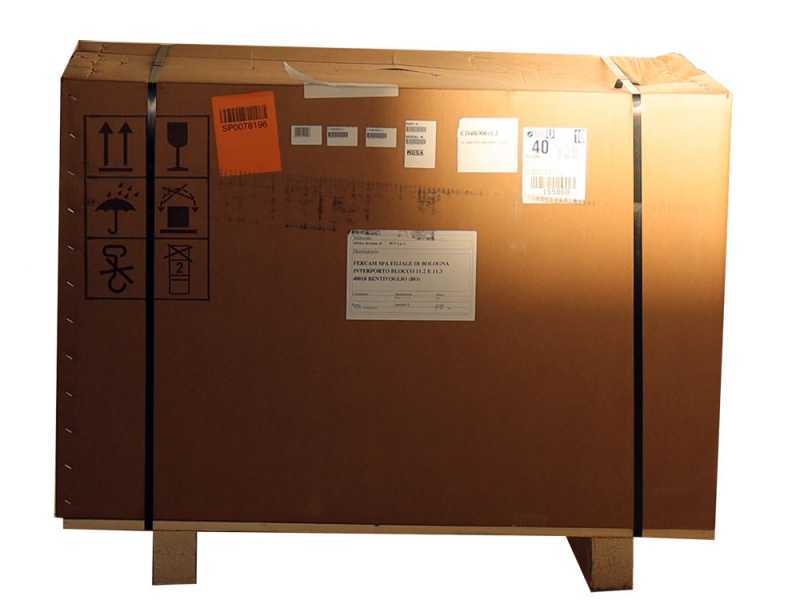

Free items & Standard equipment

Free Items Included

Complimentary:

2 bottles of 10W40 oil, specific for 4-stroke engines

Free items included

he generator is shipped in its original packaging on a pallet.

Included in the package detailed operating and maintenance instructions and general rules for proper product operation.
