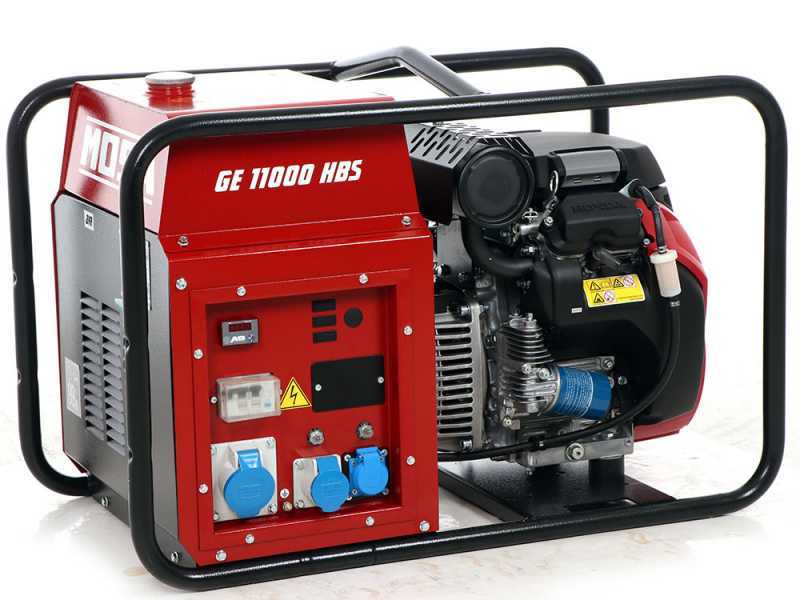

MOSA GE 11000 HBS - 9.9 kW Diesel Power Generator - DC 9 kW Single-phase

The Diesel Power Generator GE 11000 HBS is a product manufactured by the Italian company MOSA. The generator is also able to guarantee a running time of 7.2 H (75% of PRP).

Moreover, the generator is equipped with AVR, which controls the voltage. The alternator is manufactured by LINZ, a leading Italian company that produces high-efficiency, high-quality alternators.

This generator model can express a maximum single-phase power output of 9.9 kW.

Powerful and versatile, it is a functional product, suitable for any application, that will serve you reliably for many years.

Among the machine features, an automatic engine shutdown system, in the event of low oil level (Oil Alert).

The HONDA GX630 engine 688 cc expresses a power output of 19.7 Hp, so it is reliable and guarantees great performance, which is why it is considered one of the best.

The generator is a product made up of two basic elements: the alternator and the engine. This GE 11000 HBS generator model features a high-quality engine and alternator.

Both the Honda engine and the Linz alternator make the MOSA generator a product that stands out among all the other generators offered in the catalogue.

One of the most features of this generator model is the practical electric starter with key, which allows easily start the unit and it also ensures a quick connection with the ATS panel.

The anti-vibration pads placed both under the engine and under the alternator will significantly reduce vibrations and increase the stability of the generator.

The generator is not designed for energy production, charging or maintaining batteries for the photovoltaic or solar panels systems (or similar); this can seriously damage the generator.

Maximum single-phase power output: 9.9 KW

Continuous power with variable loads (PRP): 9Kw

Voltage: 230 V

Operating frequency: 50 Hz

Tank: 18 L

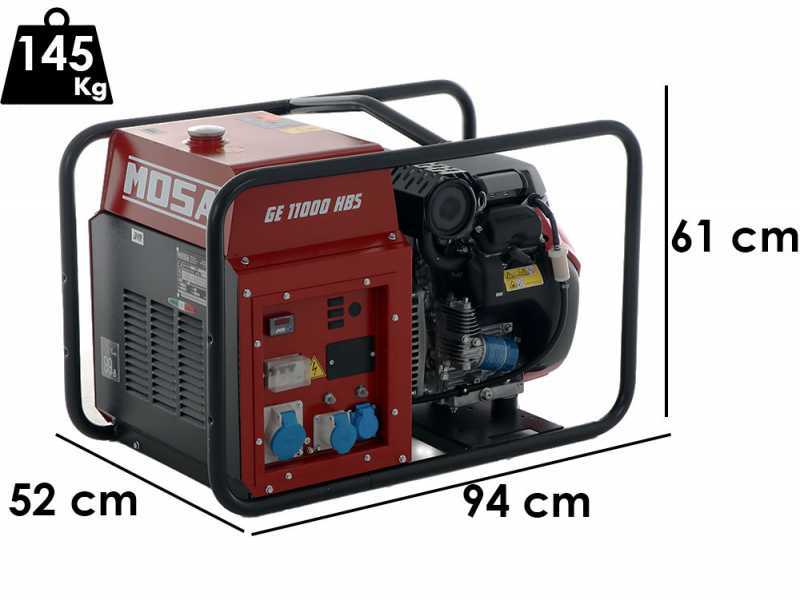

Dimensions: 94X52X61 cm

Weight: 145 kg

Noise level: 99 dB

Automatic engine stop on low oil level

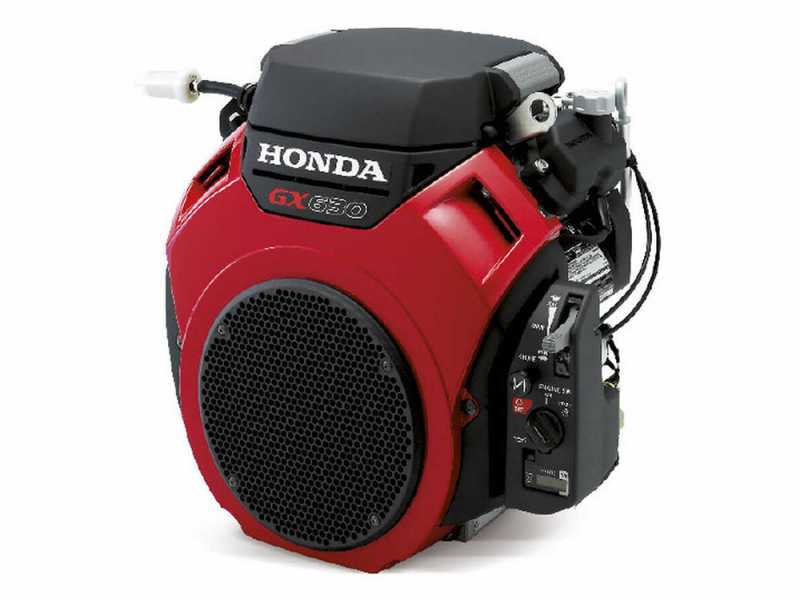

The Honda GX 690 engine is one of the most powerful engines on the market; the latest generation of technology OHV head valve, 4-stroke twin-cylinder.

Features:

Electronic motor (With electronic ignition). This will allow you to operate the electronic control unit. The battery will be holding charge of the engine by the alternator.

The Honda GX series is highly professional and developed for heavy duty jobs in building and agricultural field for generators, welders etc., reliable and long life.

This model, from the industrial point of view, offers excellent performance that can last in time.

Focus on the air filter.

WARNING!

The engine is PROVIDED WITHOUT OIL. Make sure to carefully read the instructions manual before starting the machine

Nominal Power: 20.8 HP
* Also referred to as 'Commercial' power, we mean the classic power definition standard that was also officially used until a few years ago by all well-known engine manufacturers. This figure is the one that is most widely used and publicised in the main sales channels.

Real power: 16.1 HP
* It corresponds to the real power expressed cutting organ in working phase. This is the power indicated as official in the engine instructions manual.

E1S10 KE Alternator

LINZ Electric is a renowned Italian company which is part of the Pedrollo Group, leader in the electric pump sector. The vast experience of the group together with the high degree of innovation of the company LINZ guarantee high-quality and reliability Made in Italy alternators.

The LINZ can be now considered the top company among manufacturers of alternators Italy.

High-quality and efficient alternator with copper winding.

Voltage: 230 V

Operating frequency: 50 Hz

Revolutions per minute: 3600 RPM

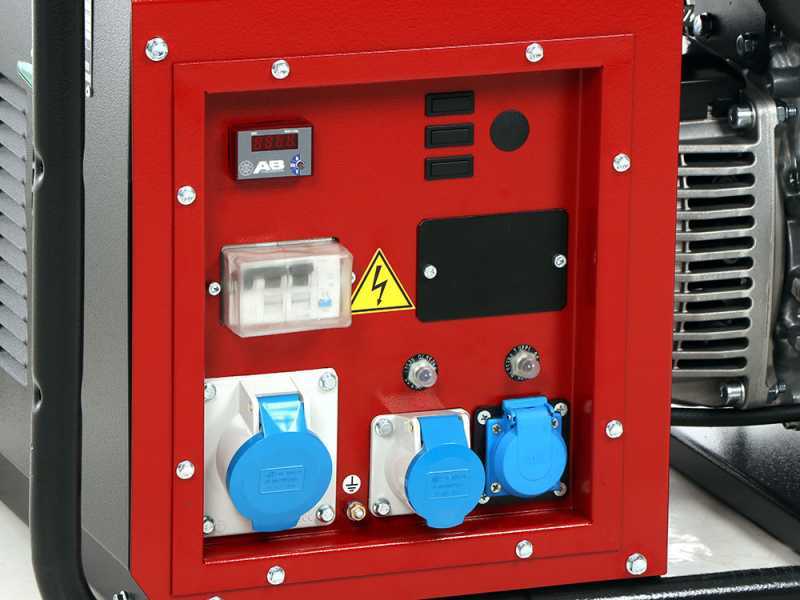

Electric control panel.

CEE industrial socket 32 A 230 V single-phase IP44

CEE industrial socket 16 A 230 V single-phase IP44

Schuko 16 A 230V power socket

Circuit breaker

Multifunction digital display: Voltmeter - Frequency meter - Total and partial hour counter

As far as the needed power is concerned, we now provide you with an handy chart to help you navigate among consumption, starting coefficients and watt.

The best criteria is to pinpoint first which are the instruments we need to power with the generator and, consequently perform a simple calculation, as explained below, to identify the needed power that the generator need to eject.

Power required = Electric appliance consumption X Breakaway starting coefficient

The starting coefficient is a fundamental characteristic of any instrument which works with electric current because it indicates how much the consumption of the object increases. Therefore, this is needed to concretely determine how many WATT are necessary during the start up operations.

Example: Compressor (1500 Watt ) X Starting coefficient (2) = 3000 Watt Hence you should orientate towards a generator which has a WATT power equal or superior to the result (*)

Check the consumption of the appliance on the instruction and maintenance manual or on the plate attached to the machine.

WARNING: the chart is purely indicative. Thanks to the formula above you can easily calculate the power a generator should deliver to connect and start some specific products and select the model of generator which best suits your needs.
