MMA-TIG Awelco MIKROTIG 200 Inverter Weldeing Machine - 200A - 35% 150A - 230V

Add a question
ID: K605110

EAN: 8004386683002

MPN: 68300

7,8/10
After-sales assistance & Spare parts
MMA-TIG Awelco MIKROTIG 200 Inverter Weldeing Machine - 200A - 35% 150A - 230V
FREE
Pack of 230 2.0 mm AWS electrodesPack of 230 2.0 mm AWS electrodes
Pack of 140 AWS 2.5 mm electrodesPack of 140 AWS 2.5 mm electrodes
GeoTech Welding gloves provided on standard equipment!GeoTech Welding gloves provided on standard equipment!
Type
Inverter MMA + TIG
MMA electrode
TIG
Welding current range (A)
25 - 200
Open circuit voltage
90 Volt
Suitable MMA electrodes
1.6 - 4
40°C duty cycle
20 %
Generator +/- 15%
TIG lift
Welding equipment
Suitcase + accessories
Manufacturing country
Italy
Product Features
Model:
MIKROTIG 200
Type:
Inverter MMA + TIG
MMA electrode:
TIG:
Power supply:
Single-phase electric
Suitable MMA electrodes:
1.6 - 4
IP:
21S
Open circuit voltage:
90 Volt
220 V max absorbed power:
5 KW
Min. required generator power:
7.5 KW
40°C duty cycle:
20 %
40°C duty cycle:
20%@150A
20°C duty cycle:
20%@150A
Welding current range (A):
25 - 200
TIG lift:
Generator +/- 15%:
Synergic welding:
No
Manufacturing country:
Italy
Free gifts/extra features
Welding equipment:
Suitcase + accessories
Instructions manual:
Yes
Dimensions and logistics

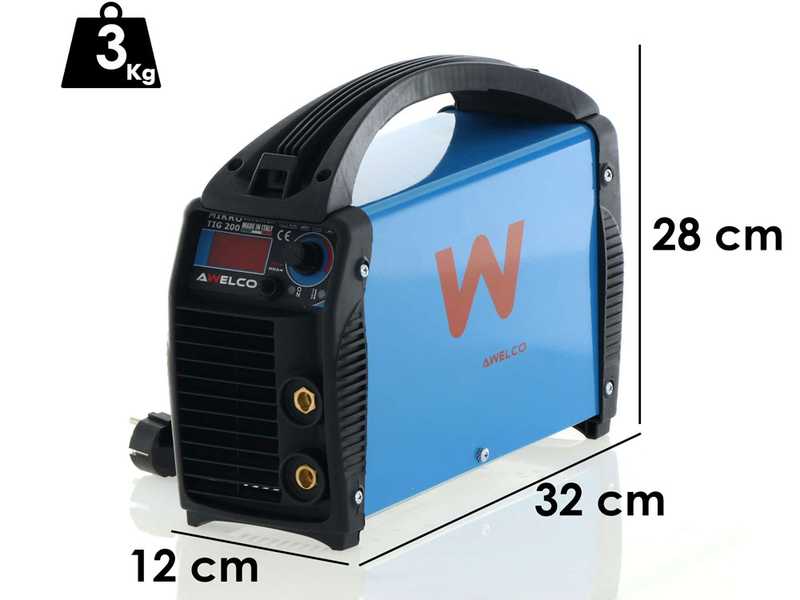

Product dimensions in cm (L x W x H):
32x12x28 cm
Net weight:
3 Kg
Packaging:
Original packaging
Original packaging/s dimensions in cm (L x W x H):
42x35x20 cm
Gross weight (packaging included) :
6.2 Kg
Assembly time:
5 minutes
Prompt Delivery
2 items in stock
Free Shipping
Estimated delivery: 23/09/2024 - 25/09/2024
€ 277,63
VAT Included

You're viewing:
Customers also viewed:
Description

Awelco MIKROTIG 200

Awelco MIKROTIG 200 Inverter Welding Machine

A lightweight, versatile and powerful machine.

It can be used in both MMA (electrode) and TIG mode (through the use of a special torch, not supplied).

An ideal product for demanding amateurs looking for quality and ease of use.

Reliable, high-performance machine, very efficient for domestic use, even intensive ones.

The TIG mode is ideal for those jobs requiring greater accuracy and refinement. Therefore, this machine is able to meet different user requirements. This easy-to-use machine features the traditional MMA welding, with a large duty cycle at an amperage of 150A (35%). The TIG duty cycle is lower.

The inverter welder is equipped with the HOT START system, an additional power booster that facilitates the engagement of the electrode arc, useful in the case of difficult-to-start electrodes.

Furthermore, when the welding arc is kept short, the ARC FORCE comes into effect, a system that increases the amperes.

It is also equipped with the ANTI-STICKING device, a system that removes the problem of the electrode sticking to the component.

Machine with IGBT inverter technology. Safe, lightweight, compact and reliable product.

The inverter welding machine is suitable for rutile, basic, stainless and cast iron electrodes of 1.6-4(5) mm diameter.

The Awelco MIKROTIG 200 electrode and tig welding machine is a air-cooled machine.

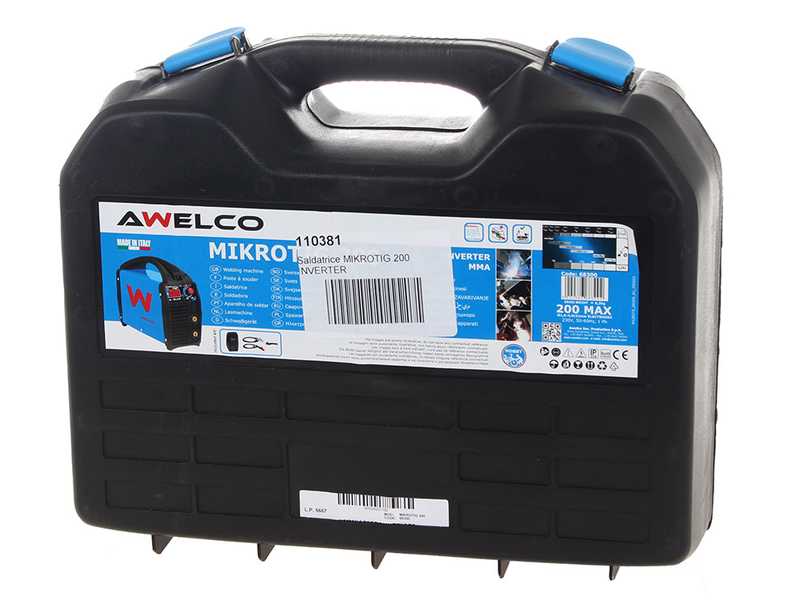

This inverter welding machine is easily movable thanks to the suitcase in which it is stored and the machine's low weight of 3 kg.

Technical features

Power supply: 230 Volts

Electrodes to be used: 1.6 - 4(5) Ø mm (rutile, basic, stainless, cast iron)

Open circuit voltage: 90 Volts

Adjustment range: 25-200 max

Duty cycle at 20°: 35% at 150A (standard cycle)

Duty cycle at 40°: 20% at 150A

According to standard CEI EN 60974-1, the technical tests on the welding machine are carried out at a room temperature of 40°C, and when the power supply is at controlled temperature, after working for a certain time. Of course, at lower temperatures or when the machine is cold, the welding cycle increases.

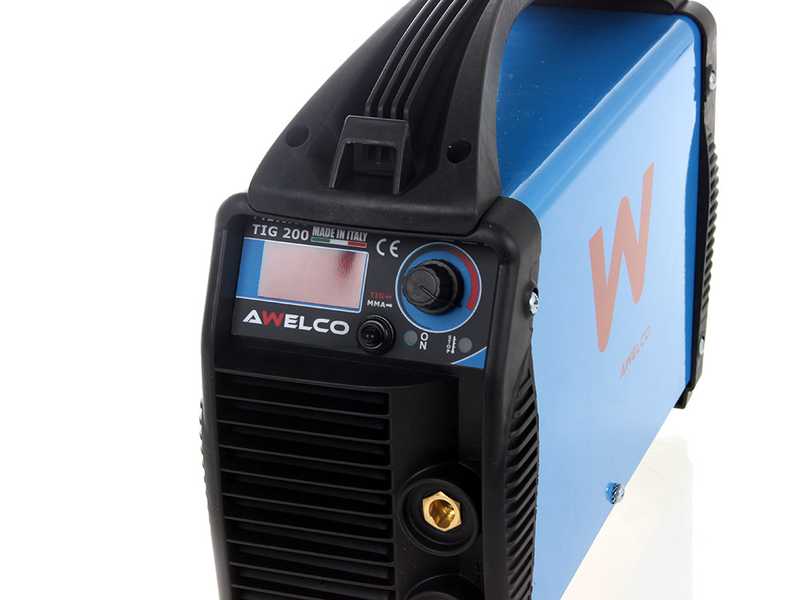

Power switch

Voltage regulator

Switch to select TIG LIFT function

Brass sockets

Free items & Standard equipment

COMPLIMENTARY: 230 2.0 AWS Electrodes + 140 2.5 AWS Electrodes + Welding Gloves

Free items included:

400 AWS ELECTRODES:

- Package of 230 AWS rutile electrodes, 2.0 mm

- Package of 140 AWS rutile electrodes, 2.5mm

Excellent electrodes, perfect for many types of welding.



GeoTech welding gloves which guarantee maximum comfort and maximum safety during welding operations.

Free Items Included

The product is shipped in its original packaging.

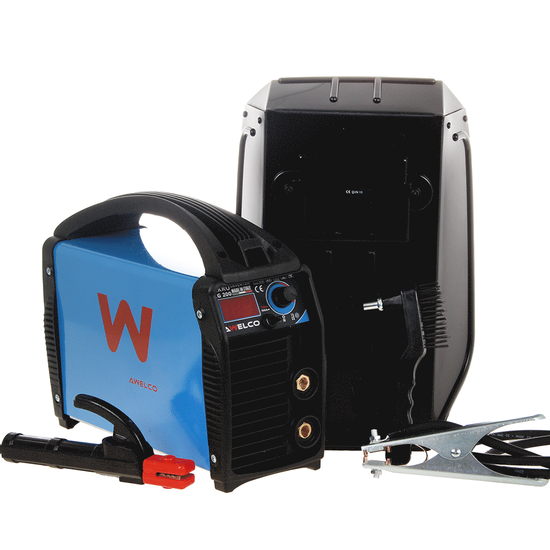

The package also includes:

- plastic mask

- hammer/brush

- electrode holder

- ground clamp

- instruction manual

- cables
