MMA Awelco AX180 Inverter Electrode Welding Machine - with MMA Kit - 30%160A Cycle

Questions & Answers (1)
ID: K603280

EAN: 8004386500507

MPN: Codice AX180

7,8/10
After-sales assistance & Spare parts

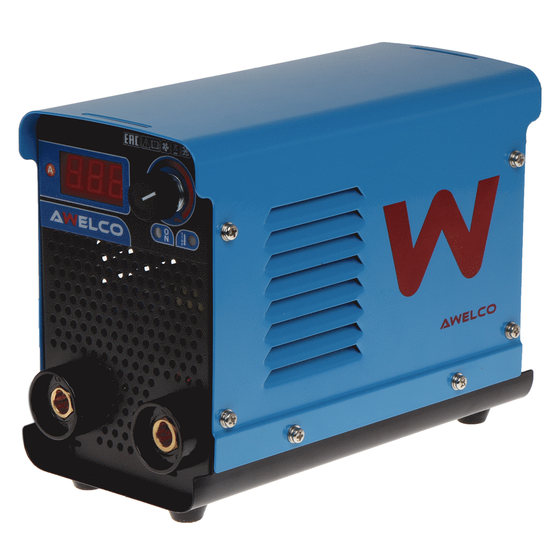

MMA Awelco AX180 Inverter Electrode Welding Machine -  with MMA Kit - 30%160A Cycle
Free gifts from AgriEuro
Pack of 140 AWS 2.5 mm electrodesPack of 140 AWS 2.5 mm electrodes
GeoTech Welding gloves provided on standard equipment!GeoTech Welding gloves provided on standard equipment!
Prompt Delivery
2 items in stock
Free Shipping
Estimated delivery: 14/04/2026 - 16/04/2026
€ 145,62
Vat included
Technical data
Type
Inverter MMA
MMA electrode
yes
Welding current range (A)
15 - 160
Open circuit voltage
60 Volt
Suitable MMA electrodes
1.6 - 4
40°C duty cycle
30 %
Generator +/- 15%
yes
Product Features
Model
AX180
Type
Inverter MMA
MMA electrode
yes
Power supply
Single-phase electric
Suitable MMA electrodes
1.6 - 4
Open circuit voltage
60 Volt
220 V max absorbed power
4.9 KW
Min. required generator power
7.5 KW
40°C duty cycle
30 %
40°C duty cycle
30%@160A
20°C duty cycle
60%@160A
Welding current range (A)
15 - 160
Generator +/- 15%
yes
Synergic welding
No
Manufacturing country
China
Free gifts/extra features
Welding machine equipment
Standard supplied accessories
Instructions manual
Yes
Dimensions and logistics

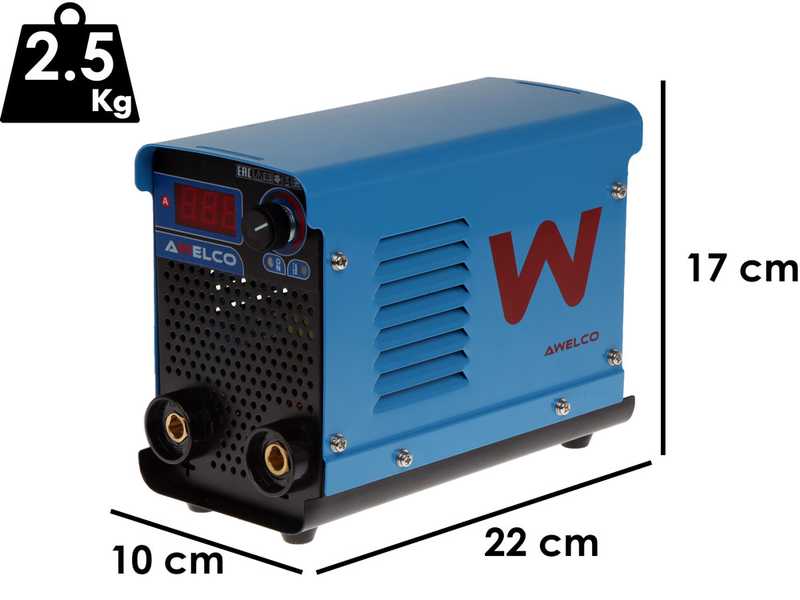

Product dimensions in cm (L x W x H)
33x18x20 cm
Net weight
3.5 Kg
Packaging
Original packaging
Original packaging/s dimensions in cm (L x W x H)
33x18x20 cm
Weight including packaging
3.7 Kg
Assembly time
5 minutes

Add Accessories and get a discount
You're viewing:
Customers also viewed:
Description

MMA Awelco AX180 Inverter Electrode Welder

The MMA Awelco AX180 inverter electrode welding machine stands out to be a welding machine for hobby use and limited applications, but good performance.

Welding machine of excellent workmanship guaranteed by the made in Italy quality.

The standard operation with the classic Schuko plug powered at 220 V (the household mains) makes it suitable for any hobbyist looking for a versatile and efficient product.

Equipped with Arc Force ignition system and Anti stick system to avoid electrode sticking.

This welding machine model guarantees high stability of the welding current in case of variations of the supply voltage.

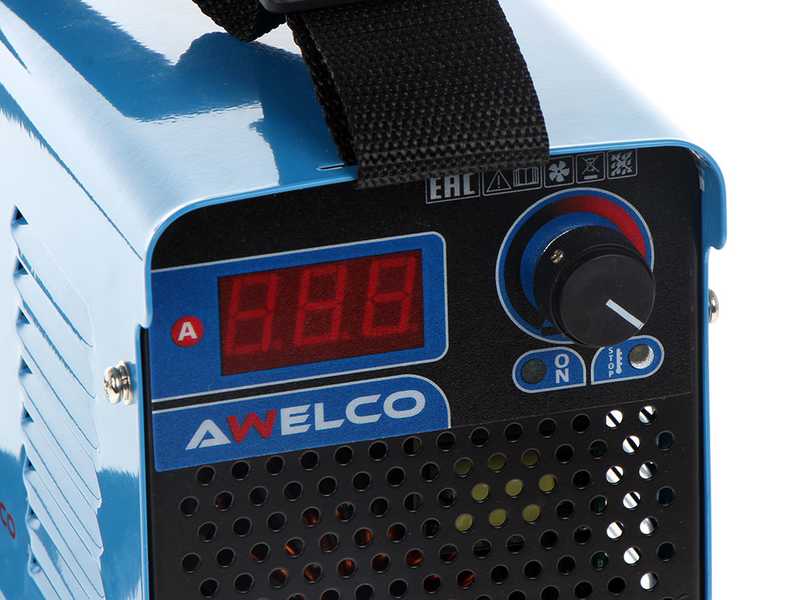

The Inverter technology allows the Operator to use this welding machine with ease and high safely, thanks to its absorption stability. Extremely helpful voltage regulator and digital display.

Its compact size and top shoulder harness make it suitable for carrying and dynamic work. Additionally, it can be also easily stored anywhere.

The Stanley welding machine requires electrodes with a diameter of 1.6-4.0 mm and guarantees a cycle of use or service equal to 30% at 160A (this data is tested at 40°in compliance with current legislation).
Usable electrodes: rutile, basic, stainless, cast iron, and many others.

Technical features

Quality guaranteed by the Italian manufacturing.

Power supply: 230 Volts

Maximum power absorption: 4.9 KW

Usable electrodes 1.6 - 4.0 Ø mm

Usable electrodes: rutile, basic, stainless steel, cast iron

Open circuit voltage: 60 Volts

Power: 20 - 160 A

Duty cycle at 40°: 30% at 160A

According to standard CEI EN 60974-1, the technical tests on the welding machine are carried out at a room temperature of 40°C, and when the power supply is at controlled temperature, after working for a certain time.


Power switch

Fan to ensure the machine cooling

Shoulder harness for easy transport

Voltage regulator: to set the optimal welding level according to the electrode used. A suitable voltage corresponds to each electrode size.

Free items & Standard equipment

COMPLIMENTARY: heavy-duty welding gloves - Montana model

GeoTech welding gloves which guarantee maximum comfort and maximum safety during welding operations.

FOR FREE: 140 AWS 2.5 mm electrodes

FOR FREE: Pack of 140 2.5 mm AWS electrodes. This kit offers a wide range of options for precise, quality welds. Suitable for various applications, it guarantees excellent adhesion and good results.

Free items included

The product is shipped in its original packaging along with the instruction manual.

Wide range of accessories provided on standard equipment:

Power cable with Schuko socket

Ground clamp

Electrode holder
