The MD-02BF single furrow plough is an agricultural implement for ploughing on moderately compact soils, suitable for attachment to low-horsepower tractors.
Its compact design and low weight make it suitable for use on small/medium-sized surfaces, such as large vegetable gardens or agricultural plots.
It is suitable for use with tractors between 12 and 25 HP.
Operation involves the tractor moving forward, dragging the ploughshare into the ground. The blade penetrates the soil and lifts it, while the mouldboard curves and turns the clod sideways. The rear wheel helps to stabilise the working depth as the tractor moves forward, making the tillage more uniform. Adjustment is carried out via the mechanical system located on the frame, which allows plough tilt adjustment.
The main technical features of the MD-02BF single furrow plough are:
- Painted steel structure: sturdy frame with black load-bearing components and a red plough body, withstands the stresses typical of soil cultivation;
- Ploughshare with shaped mouldboard: allows the soil to be lifted and turned over, promotes effective breaking up of the topsoil;
- Depth wheel: positioned on the side, maintains a constant working depth of up to approximately 24 cm;

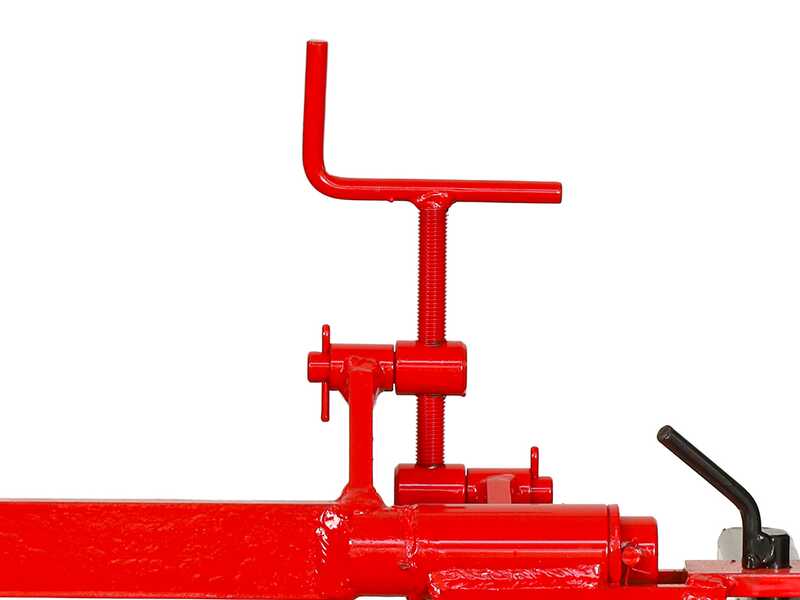

- Mechanical adjustment: screw system with upper lever, allows the settings to be adjusted according to the ground and available traction;
- Working width of 24 cm: allows for linear and precise tillage, suitable for repeated passes on small surfaces;
- Weight of 75 kg: sufficient mass to facilitate penetration into the soil, requires suitable tractors within the recommended power range.
