Master B 9EPB - Electric heater - Hot air generator with fan

Questions & Answers (4)
ID: K607662

EAN: 8053670891258

MPN: 4012.009

Master B 9EPB - Electric heater - Hot air generator with fan
Tarpaulin cover and storageTarpaulin cover and storage
Power supply
Three-phase electric
Max. heat output
9 kW
Body material
Enamelled steel
Manufacturing country
Product Features
Power supply:
Three-phase electric
Body material:
Enamelled steel
Operating mode:
Electric 400V
Max. heat output:
9 kW
Air flow:
800 m3/h
39 A
Recommended for indoor areas:
Manufacturing country:
Thermal-protected motor:
Over-heating thermostat:
Built-in room thermostat :
Adjustable heat:
Free gifts/extra features
Instructions manual:
Dimensions and logistics
Net weight:
9.3 Kg
Original packaging
Original packaging/s dimensions in cm (L x W x H):
42x33x43 cm
Gross weight (packaging included) :
10.3 Kg
Assembly time:
Prompt Delivery
5 items in stock
Free Shipping
Estimated delivery: 05/06/2024 - 07/06/2024
€ 278,01
VAT Included

You're viewing:
Customers also viewed:

Electric Hot Air Generator Master B 9 EPB

The Master B 9 EPB hot air generator, equipped with a fan and three-phase power supply, offers an optimal solution for heating small spaces in industrial, commercial or residential areas.

This device is characterised by the absence of emissions and open flames, making it suitable for use in conditions where the use of gas or oil is limited or in locations with insufficient ventilation.

The Master B 9 EPB's electric heating technology ensures a quick release of clean and safe heat, ideal for temporary needs or emergency situations, thanks to its ease of transport and use.

Manufactured with high quality components, these heaters guarantee high reliability and efficiency, confirming Master's commitment to producing long-lasting and high-performance heating solutions, entirely produced in Italy.

Main features

  • No oxygen consumption
  • No smokes, smells and condensation
  • Low noise 100% efficiency
  • Thermally-protected motor
  • Armoured heating elements
  • Over-temperature thermostat
  • Built-in thermostat
  • Adjustable heat level
  • Made of sturdy and long-lasting steel
  • Ventilation placed centrally to the heating elements

The operating principle of these portable hot air generators is based on the Joule effect of the current flowing through the heating elements, which heat the air by means of an axial fan. The heating function is also controlled by the room temperature detection thermostat and the overheating prevention thermostat.

These hot air generators are also characterized by their low noise level, transportability and the stainless steel heating elements.

Detail of the instrumentation:

  • Thermostat adjusting knob
  • Selection knob for the 4 functions with which this hot air generator is equipped

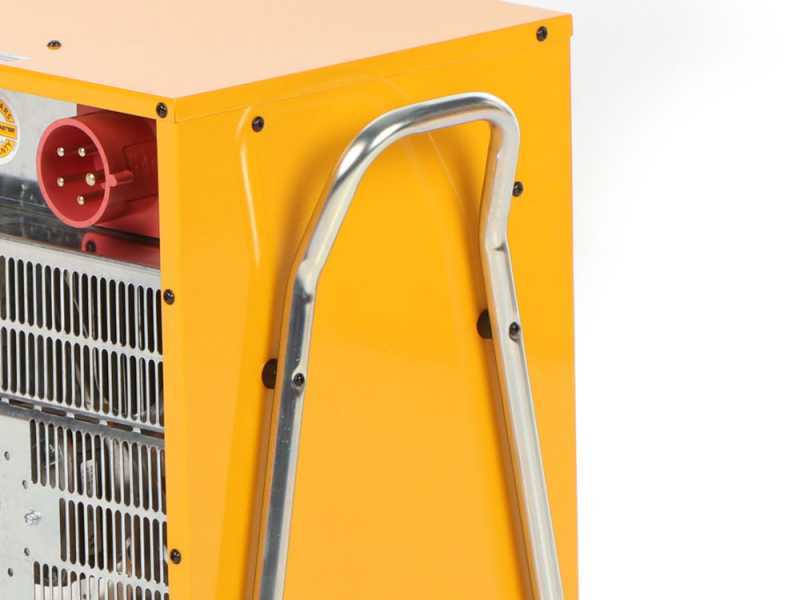

Focus on the three-phase plug

Carrying handles

How to select the ideal hot air generator

Important features that the Operator has to consider in order to choose the ideal gas heater which best suits his requirements according to the room that has to be heated up:

  • Dimensions of the area that has to be heated up [V]
  • The ideal temperature [ΔT] that has to be reached
  • Room thermal insulation [K]

High thermal insulation: k = 1

Medium levels thermal insulation: k = 2

Low levels thermal insulation: k = 3

No thermal insulation: k = 4

Therefore, the heat requirements can also be calculated by using the following formula:

V x ΔT x K [kcal/h]

For example:

V = width 4 m width, 12 m length, 3 m height, room volume = 144 m³

ΔT = outdoor temperature -5ºC, room required temperature +18ºC, room temperature = 23ºC

K = 4 not-insulated room

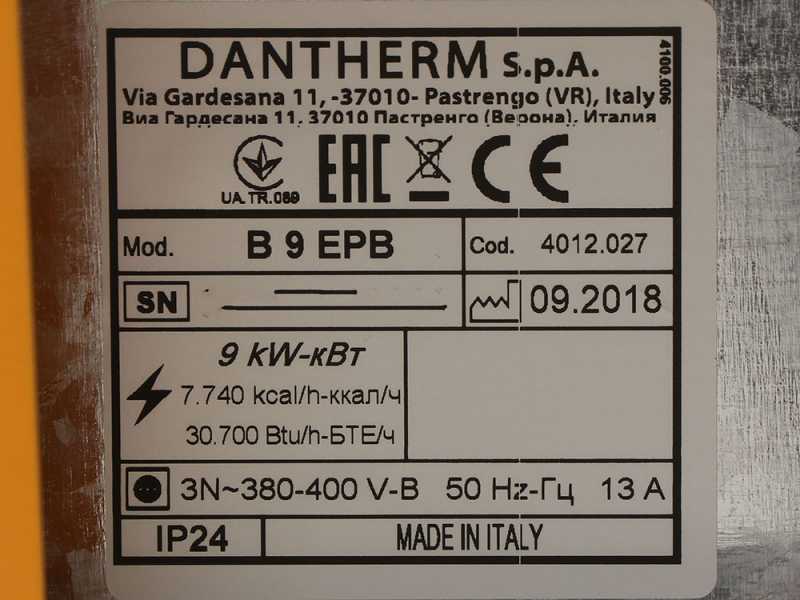

The formula above-mentioned brings to the following result: 144 x 23 x 4 = 13 248 kcal / h, which has to be compared with the data written on the machine serial no. plate, which highlights this heater functionality being able to produce larger volumes of instant heat compared to that one needed.

Converting to KW is simple, just multiply the result by 0.001163, so 13248 x 0.001163 = 15.4 KW

Free items & Standard equipment

Protection and Storage Cover for Pressure Washers - Size: - Medium

Essential for protecting your machine when stored.

This cloth is quick and easy to apply; in a few seconds, your machine will be protected against dust and humidity.

It is equipped with an elastic band on the lower border to perfectly fit to the shape of the machine.

Easy to fold and store in its box and space-saving!

Standard Equipment

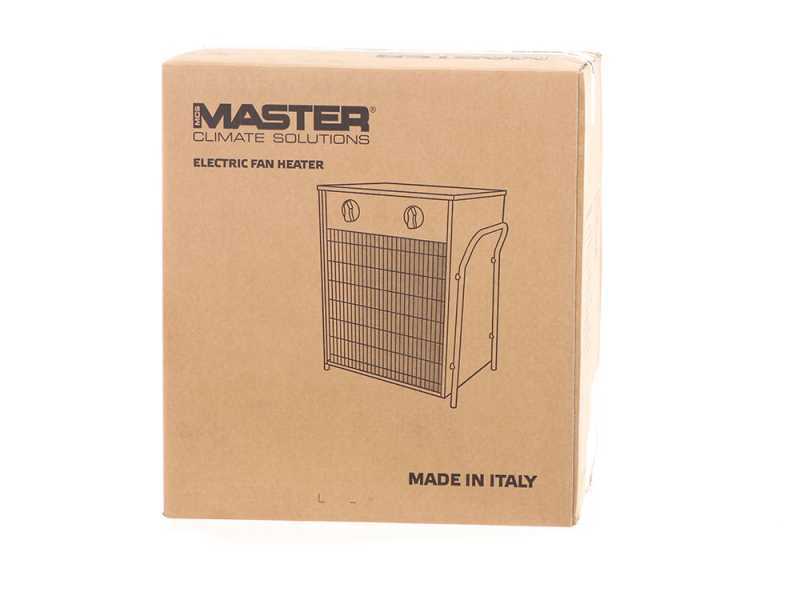

The hot air generator is shipped in its original packaging.

The packaging includes:

  • Maintenance and instructions manual
