Name: Master B 22 EPB - Three-phase electric heater with fan - Hot air generator
Brand: Master
Price: 514.66 EUR
Availability: InStock
Rating: 4.57 (7 reviews)

Description

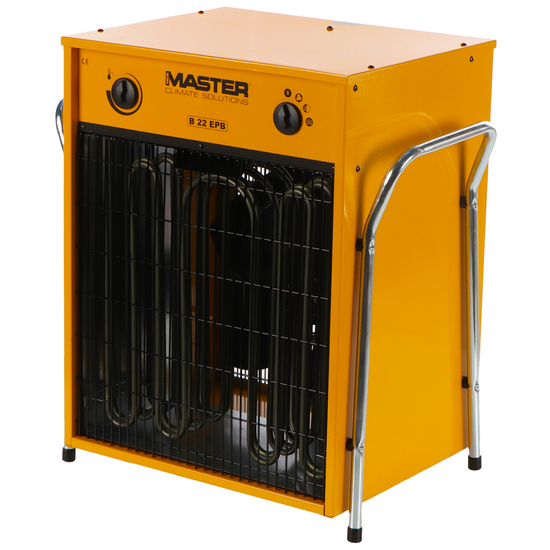

Master B 22 EPB three-phase heat generator

The three-phase electric hot air generator Master B 22 EPB is an optimal solution for heating small rooms, whether in industrial, commercial or residential settings.

This emission and flame-free device is particularly suitable for places where the use of fuels such as gas and oil is restricted or prohibited, or in spaces with reduced ventilation.

Designed to provide fast, clean and safe heating, the Master B 22 EPB hot air generator is characterised by its mobility and ease of use, making it ideal for temporary or emergency applications.

Its construction involves the exclusive use of high quality components, thus ensuring maximum reliability and efficiency.

Manufactured in Italy, this model operates at 400V and has a power output of 22 kW, confirming Master's commitment to producing excellent electric heating devices.

Master B 22 EPB - Three-phase electric heater with fan - Hot air generator

Main features

No oxygen consumption
No smokes, smells and condensation
Low noise 100% efficiency
Thermally-protected motor
Armoured heating elements
Over-temperature thermostat
Built-in thermostat
Adjustable heat level
Made of sturdy and long-lasting steel

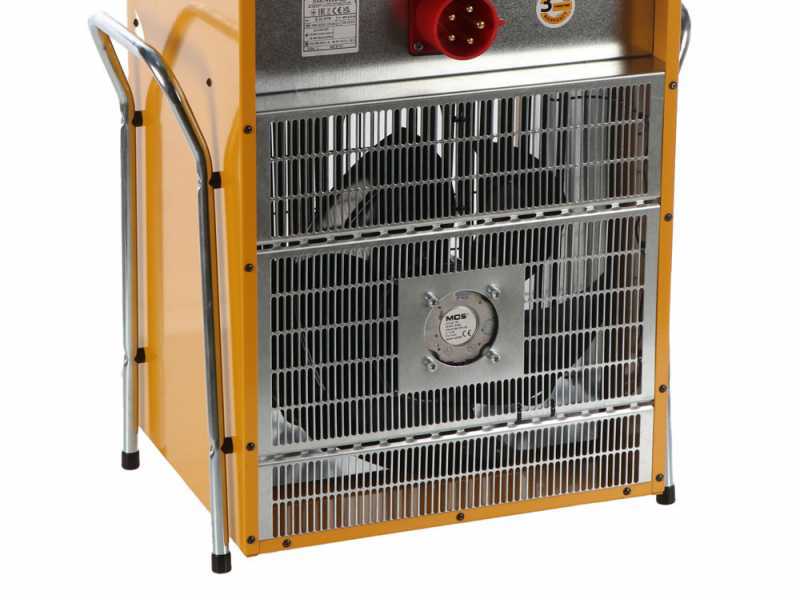

Ventilation placed centrally to the heating elements

The operating principle of these portable hot air generators is based on the Joule effect of the current flowing through the heating elements, which heat the air by means an axial fan. The heating function is also controlled by the room temperature detection thermostat and the overheating prevention thermostat.

These hot air generators are also characterized by their low noise level, transportability and the stainless steel heating elements.

Detail of the Instrumentation:

Thermostat adjusting knob
Selection knob for the 4 functions with which this hot air generator is equipped

Focus on the three-phase plug

Carrying handles

How to select the ideal hot air generator

Important features that the Operator has to consider in order to choose the ideal gas heater which best suits his requirements according to the room that has to be heated up:

Dimensions of the area that has to be heated up [V]
The ideal temperature [ΔT] that has to be reached
Room thermal insulation [K]

High thermal insulation: k = 1

Medium levels thermal insulation: k = 2

Low levels thermal insulation: k = 3

No thermal insulation: k = 4

Therefore, the heat requirements can also be calculated by using the following formula:

V x ΔT x K [kcal/h]

For example:

V = width 4 m width, 12 m length, 3 m height, room volume = 144 m³

ΔT = outdoor temperature -5ºC, room required temperature +18ºC, room temperature = 23ºC

K = 4 not-insulated room

The formula above-mentioned brings to the following result: 144 x 23 x 4 = 13 248 kcal / h, which has to be compared with the data written on the machine serial no. plate, which highlights this heater functionality being able to produce larger volumes of instant heat compared to that one needed.

Converting to KW is simple, just multiply the result by 0.001163, so 13248 x 0.001163 = 15.4 KW

Free items & Standard equipment

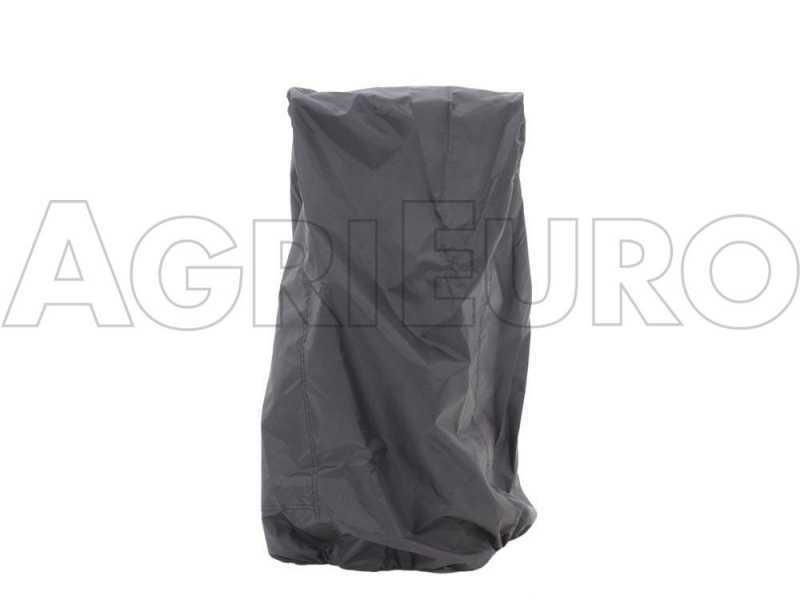

FREE ITEM: Cover and storage sheet

Essential for protecting your machine when not in use.

This cover cloth is quick and easy to apply; in a few seconds, your machine will be protected against dust and humidity.

It is equipped with an elastic band on the lower edge to perfectly fit the machine.

Easy to fold and store in its box and space-saving!

Standard Equipment

The hot air generator is shipped in its original packaging.

The packaging includes:

Maintenance and instructions manual
